Logitech Rally Mounting Kit for Rally and Rally Plus
PRODUCT DESCRIPTION
Logitech Rally Mounting Kit (939-001644) - 2 Years Local Warranty
Logitech Rally Mounting Kit — Wall Mounting for the Modular Rally System
The Logitech Rally Mounting Kit (939-001644) brings together every bracket needed to wall-mount the modular Logitech Rally and Rally Plus systems: a camera mount, two speaker brackets, and mounts for the Table Hub and Display Hub. Getting the camera and speakers off the table and onto the wall gives a cleaner room and better sightlines in medium and large meeting rooms.
Invertible Camera Mount and Low-Profile Speaker Brackets

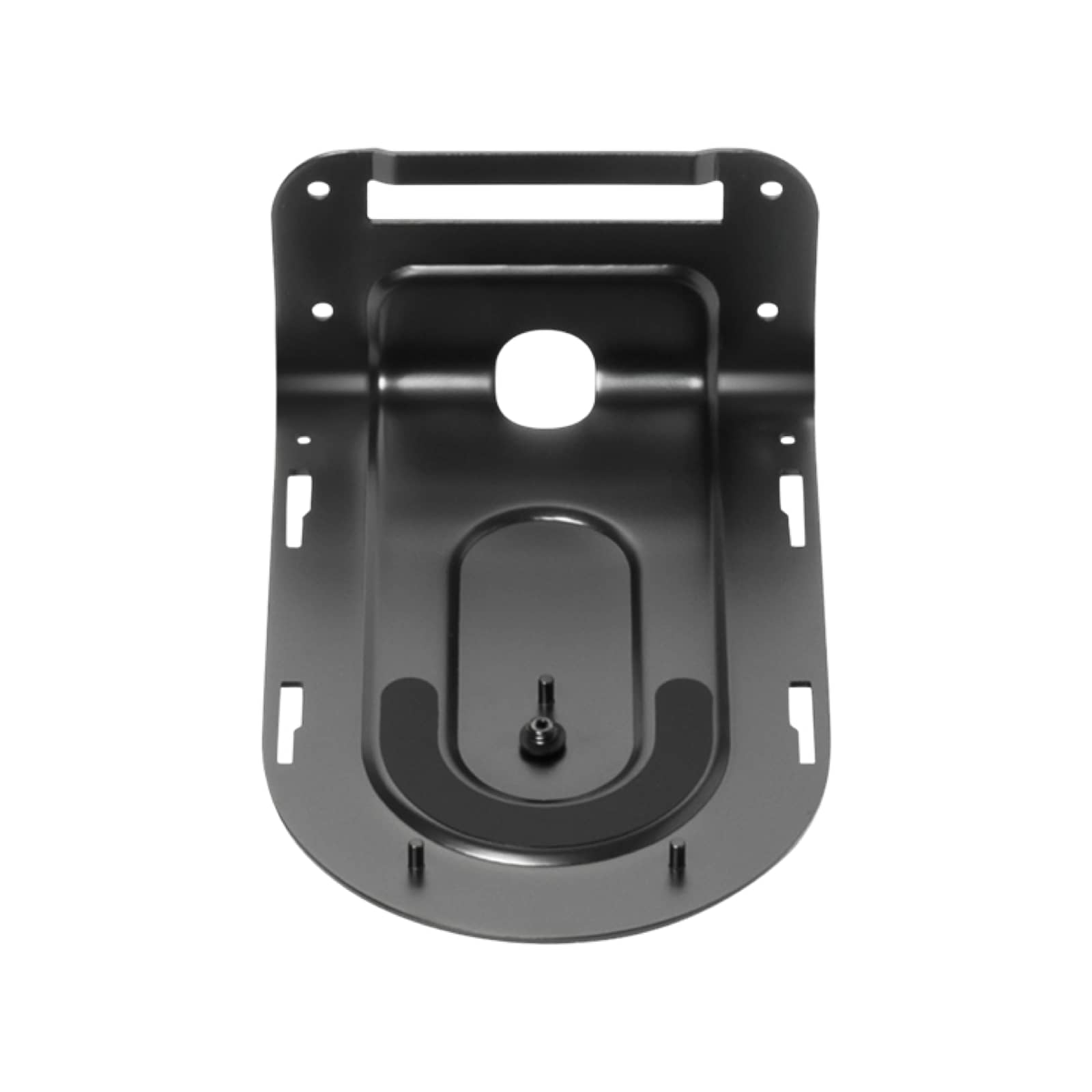

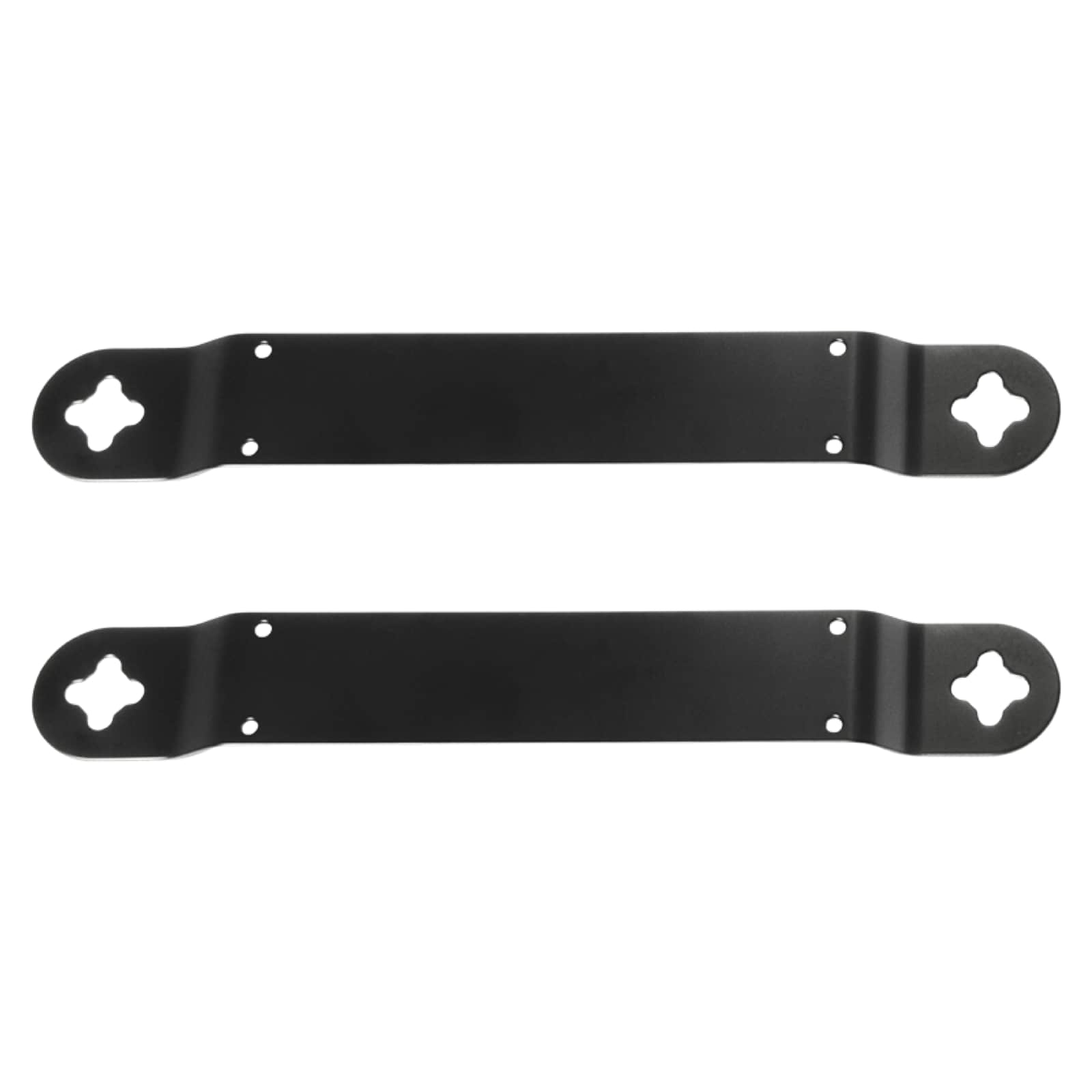

The sturdy camera mount inverts 180° to support near-ceiling installation, while two low-profile brackets float the Rally Speakers on the wall either side of the display.

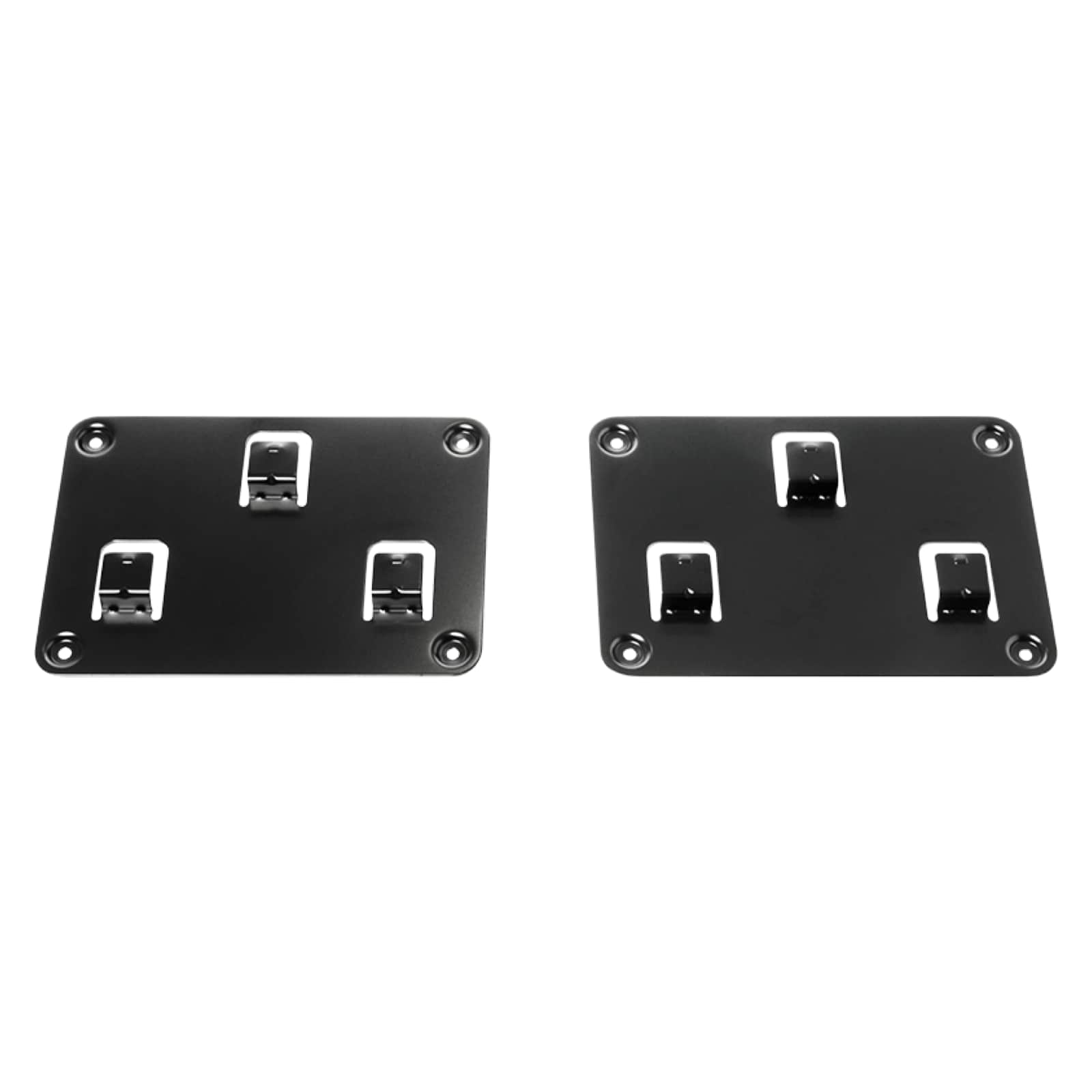

Ventilated Hub Mounts with Cable Retention
Ventilated mounts and cable retention brackets for the Table Hub and Display Hub keep the system's hubs secured and the cabling tidy behind the display or under the table.
Logitech Rally Mounting Kit Datasheet — Technical Specifications
General
| Part Number | 939-001644 |
| Product series | Logitech Rally accessories — modular system mounting |
| Compatibility | Logitech Rally and Logitech Rally Plus |
| Warranty | 2 Years Local Warranty (Singapore) |
Bracket Dimensions (H x W x D)
| Speaker bracket | 1.42 x 10.47 x 0.31 in |
| Camera bracket | 2.48 x 4.29 x 6.54 in |
| Table Hub bracket | 0.47 x 6.46 x 4.53 in |
| Display Hub bracket | 0.47 x 6.46 x 4.53 in |
| Cable retainer | 0.91 x 6.46 x 1.5 in |
Features
| Camera mount | Inverts 180° for near-ceiling installation |
| Speaker mounting | Two low-profile wall brackets |
| Hub mounting | Ventilated mounts with cable retention for Table Hub and Display Hub |
Compatibility & Installation Notes
The Rally Mounting Kit is designed for the modular Logitech Rally and Logitech Rally Plus systems, which use a Table Hub and Display Hub. It is not intended for the standalone USB Rally Camera — the standalone camera ships with its own mount, and the TV Mount for Video Bars supports Rally Camera on VESA displays.
The kit does not apply to the all-in-one Rally Bar family; for those use the Wall Mount for Video Bars or the TV Mount for Video Bars.
Package Contents & Rally System Ordering Information

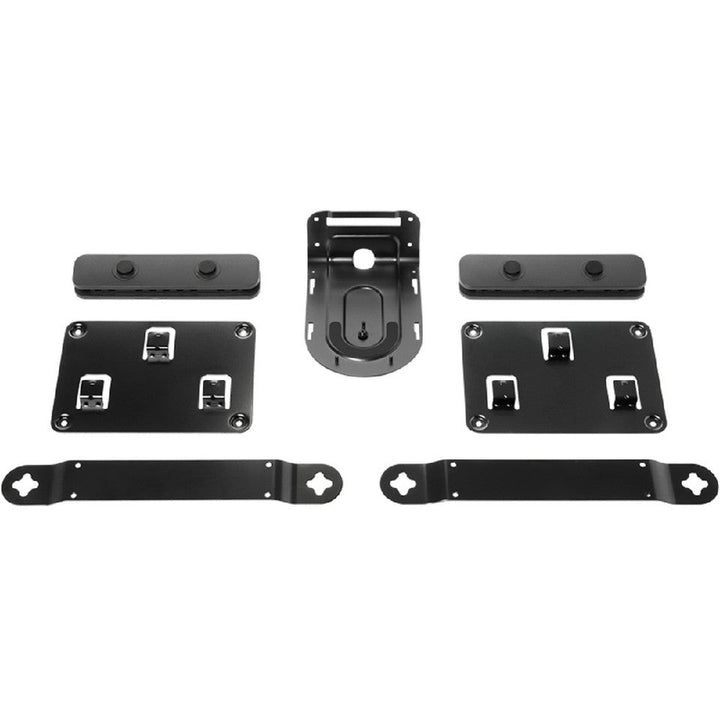

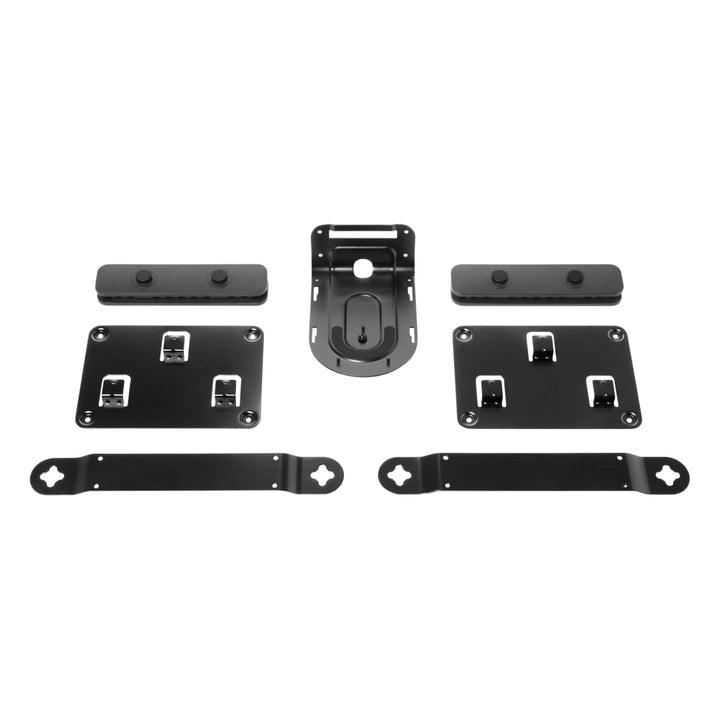

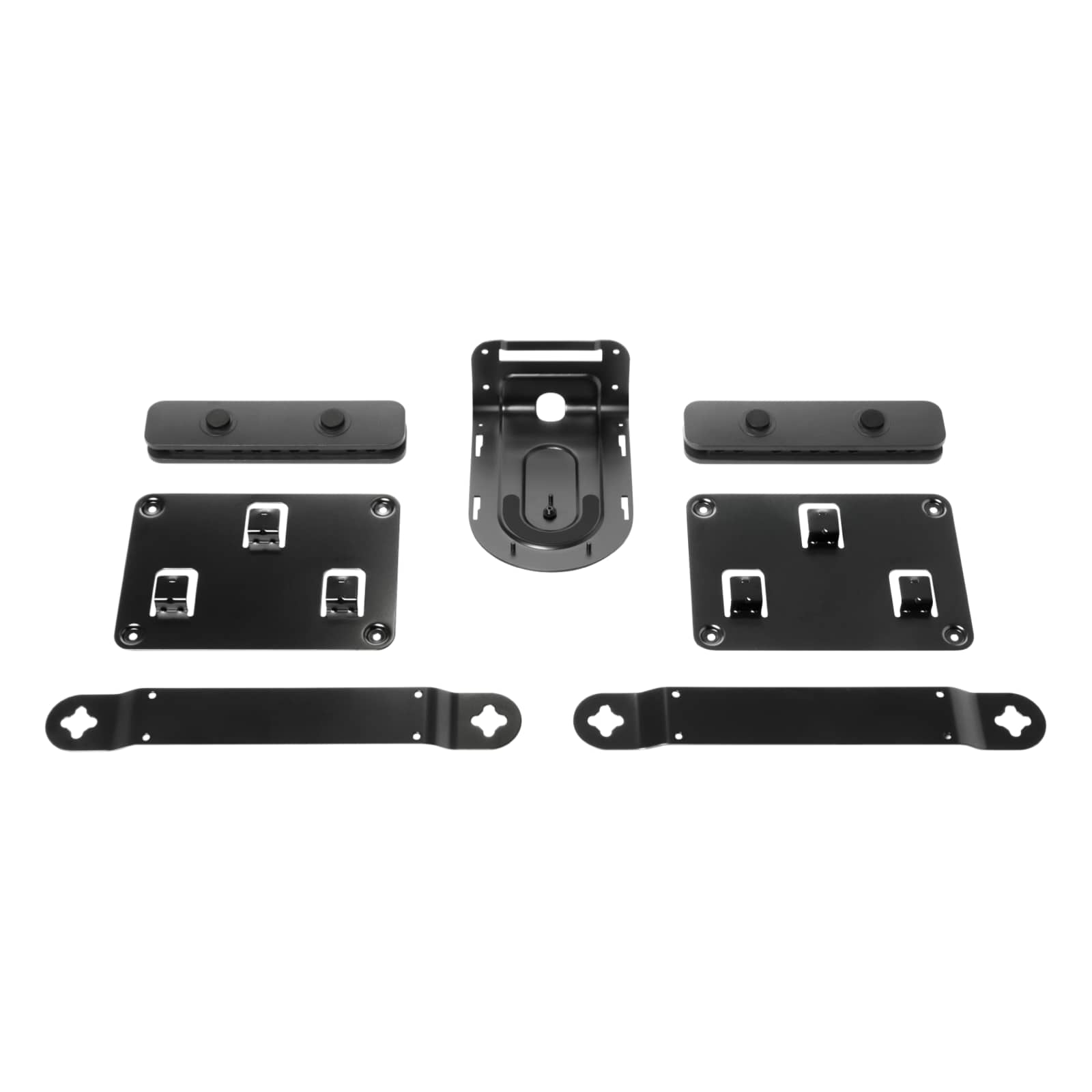

In the box: 2 x speaker bracket, 1 x camera bracket, 1 x Table Hub bracket, 1 x Display Hub bracket, 2 x cable retainer, fasteners and documentation.
Logitech Rally system at SourceIT:
| Model | Part Number |
| Logitech Rally Mounting Kit (this listing) | 939-001644 |
| Logitech Rally Video Conferencing System | 960-001237 |
| Logitech Rally Plus Video Conferencing System | 960-001242 |
| Logitech Rally Speaker | 960-001230 |
| Logitech Rally Camera | 960-001226 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Mounting Kit
Which systems is the Rally Mounting Kit for?
Logitech Rally and Logitech Rally Plus, the modular systems built around the Rally Camera, Rally Speakers, Table Hub and Display Hub.
Does it work with a standalone USB Rally Camera?
No. Logitech lists the kit for Rally and Rally Plus only. The standalone Rally Camera includes its own mount and is also supported by the TV Mount for Video Bars.
Can the camera be mounted near the ceiling?
Yes. The camera mount inverts 180° to support near-ceiling installation.
How many speaker brackets are included?
Two low-profile speaker brackets are included for floating Rally Speakers on the wall.
Does it come with a local warranty?
Yes. Every Logitech Rally Mounting Kit sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
