Logitech Rally AI Camera Pro 4K PTZ Conference Camera Graphite
PRODUCT DESCRIPTION
Logitech Rally AI Camera Pro, Graphite (960-001767) - 2 Years Local Warranty

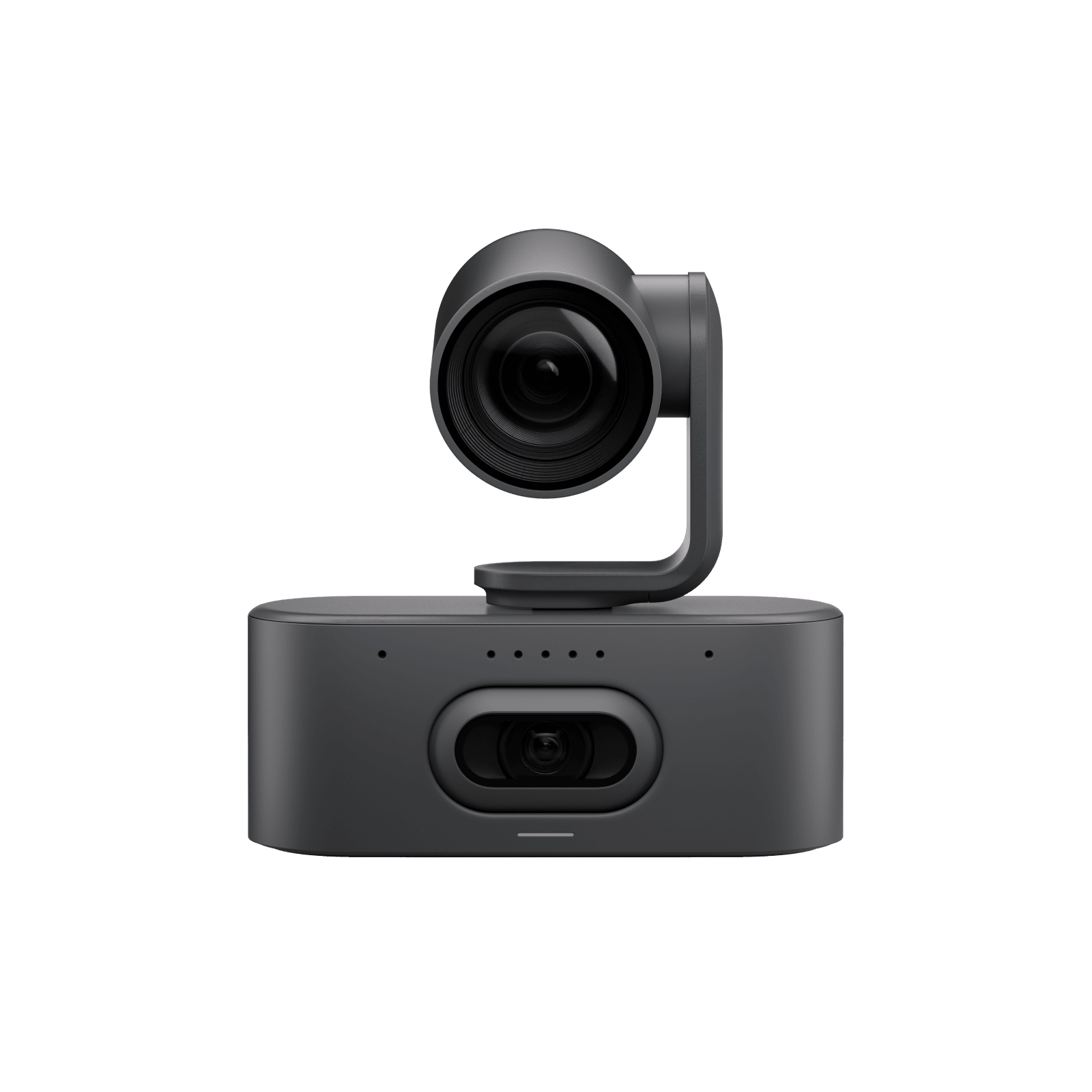

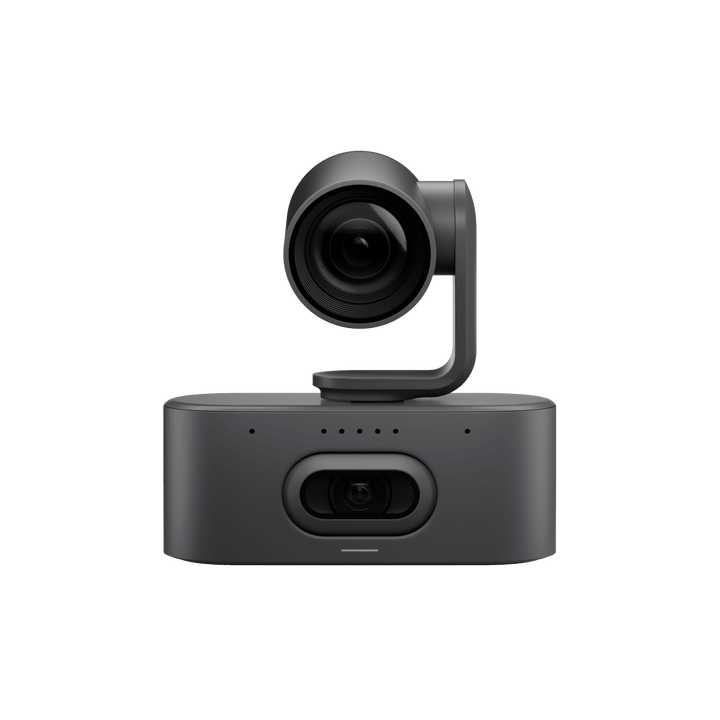

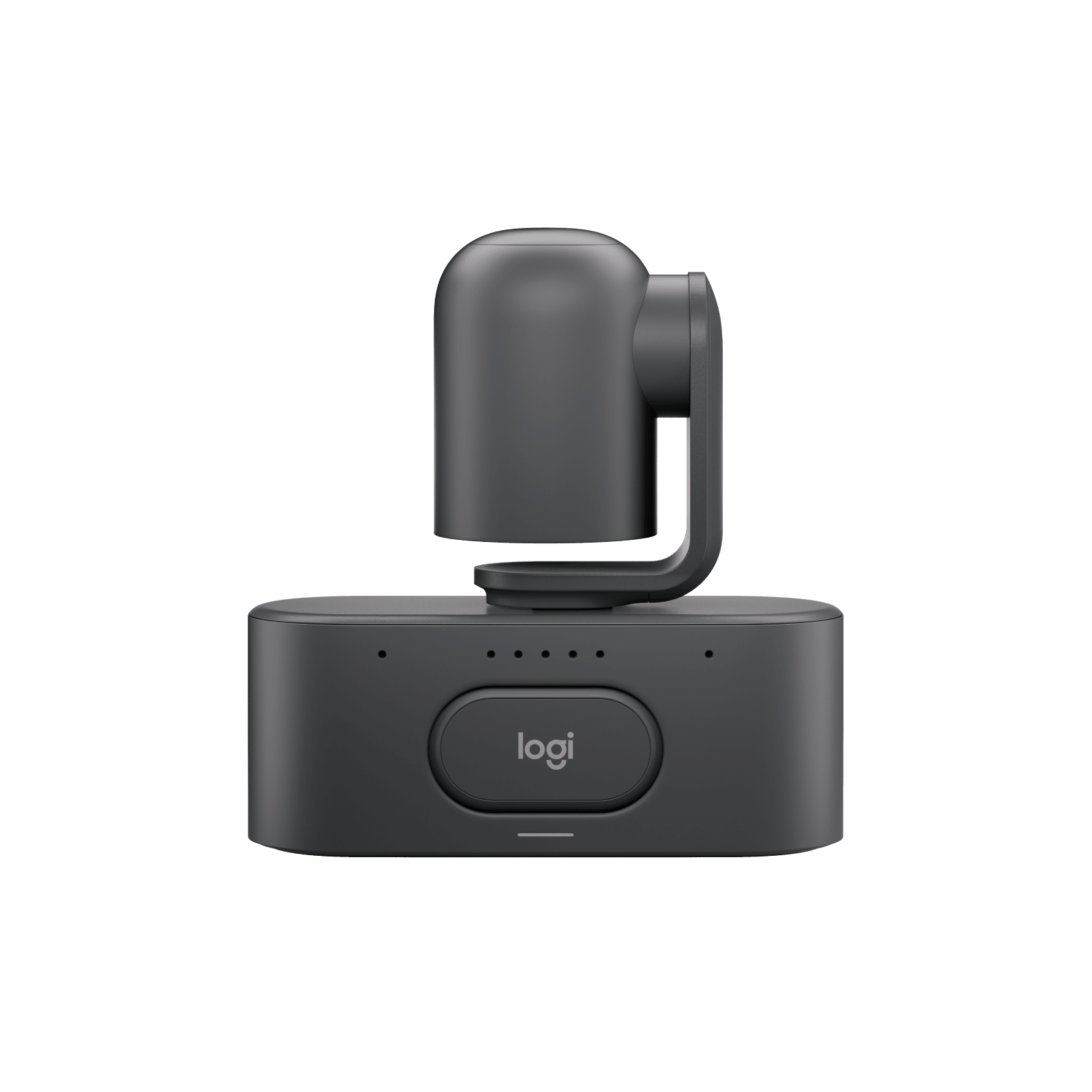

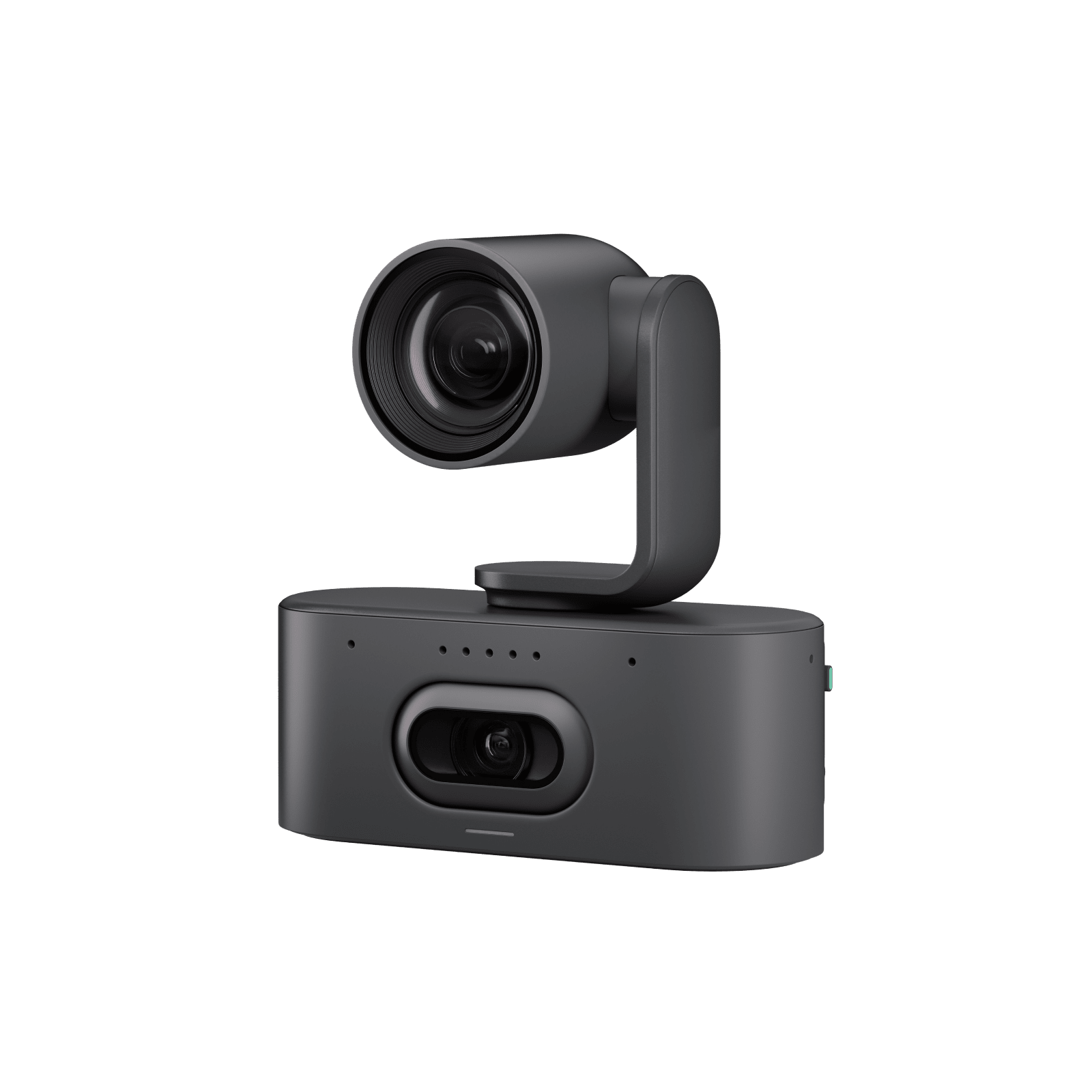

Two cameras in one body
The Rally AI Camera Pro is not simply a faster version of the Rally AI Camera - it is a dual-camera device. Alongside the same one-inch, 20-megapixel digital PTZ camera found in the standard model, it carries a second, motorised 8-megapixel PTZ camera with 15x zoom (5x optical x 3x digital), mechanical pan of ±90° and tilt of +50° to -90°. The wide camera holds the room; the motorised camera reaches down it. Combined, they cover 262° horizontally and 192° vertically - more than most rooms will ever need.
What optical zoom actually buys you
Digital zoom crops pixels; optical zoom moves glass. In a long boardroom, training room or lecture theatre, a digital crop of someone at the far end degrades quickly, while 5x optical holds a clean, detailed face. This is the practical reason to choose the Pro over the standard Rally AI Camera. In a small or medium room where everyone is close to the camera, that advantage largely disappears and the standard model is the sensible buy.
RightSight 2 decides which camera to use
RightSight 2 automatically frames groups, individuals and presenters, and with two cameras available it can switch between the wide view and the motorised close shot as the meeting moves. Participants get a properly composed shot without anyone touching a controller.
One cable: PoE++

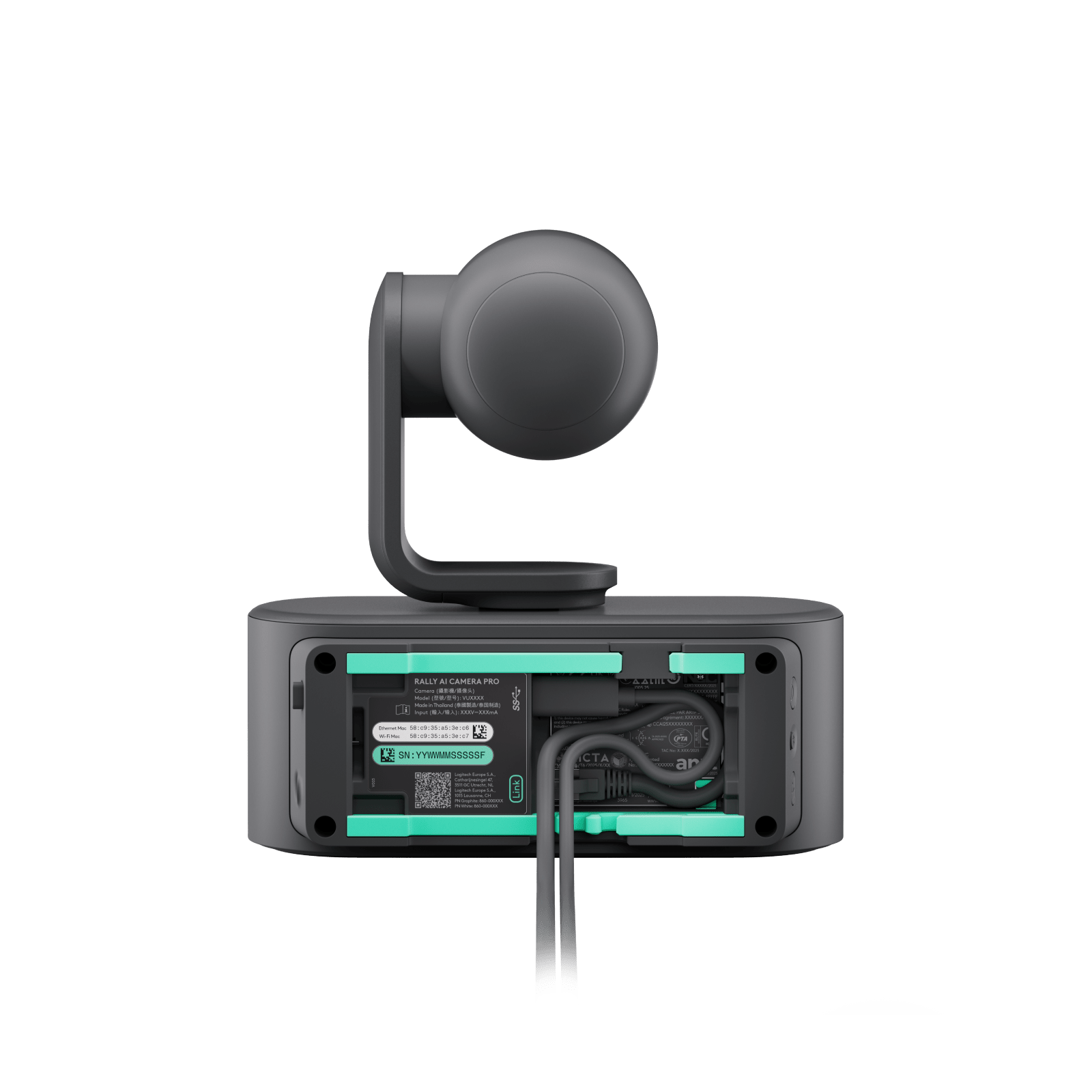

The Pro runs on PoE++ - a step above the PoE+ used by the standard model, because it is driving a motorised camera as well. A single Ethernet run still carries both power and network, so no mains outlet is needed at the camera position. Confirm your switch or injector supplies PoE++ (IEEE 802.3bt) before installation.
Logitech Rally AI Camera Pro Datasheet - Technical Specifications
General
| Part number | 960-001767 |
| Colour | Graphite. An Off-White version is available as 960-001779. |
| Product type | Dual-camera conference system - motorised PTZ plus digital PTZ, with AI framing |
| Warranty | 2 Years Local Warranty (Singapore) |
Motorised PTZ Camera
| Sensor | 8 megapixels |
| Field of view | 90° diagonal / 82° horizontal / 52° vertical |
| Zoom | 15x total - 5x optical x 3x digital |
| Pan | ±90°, mechanical |
| Tilt | +50° / -90°, mechanical |
Digital PTZ Camera
| Sensor | 20 megapixels, one inch |
| Field of view | 115.7° diagonal / 103.3° horizontal / 60.7° vertical |
| Zoom | 4x HD digital zoom |
Combined Coverage & Video
| Total room coverage | 262° horizontal, 192° vertical |
| Resolutions | 4K, 1440p, 1080p, 900p, 720p and SD, all at 30 fps |
| AI framing | RightSight 2 - automatically frames groups, individuals and presenters, and selects between the two cameras |
Connectivity & Power
| USB | USB 3.2 Gen 1 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth Low Energy 5.3 |
| Power | PoE++ - power and network over a single Ethernet cable. Operating voltage 100-240 V. Note this is a higher class than the standard Rally AI Camera's PoE+. |

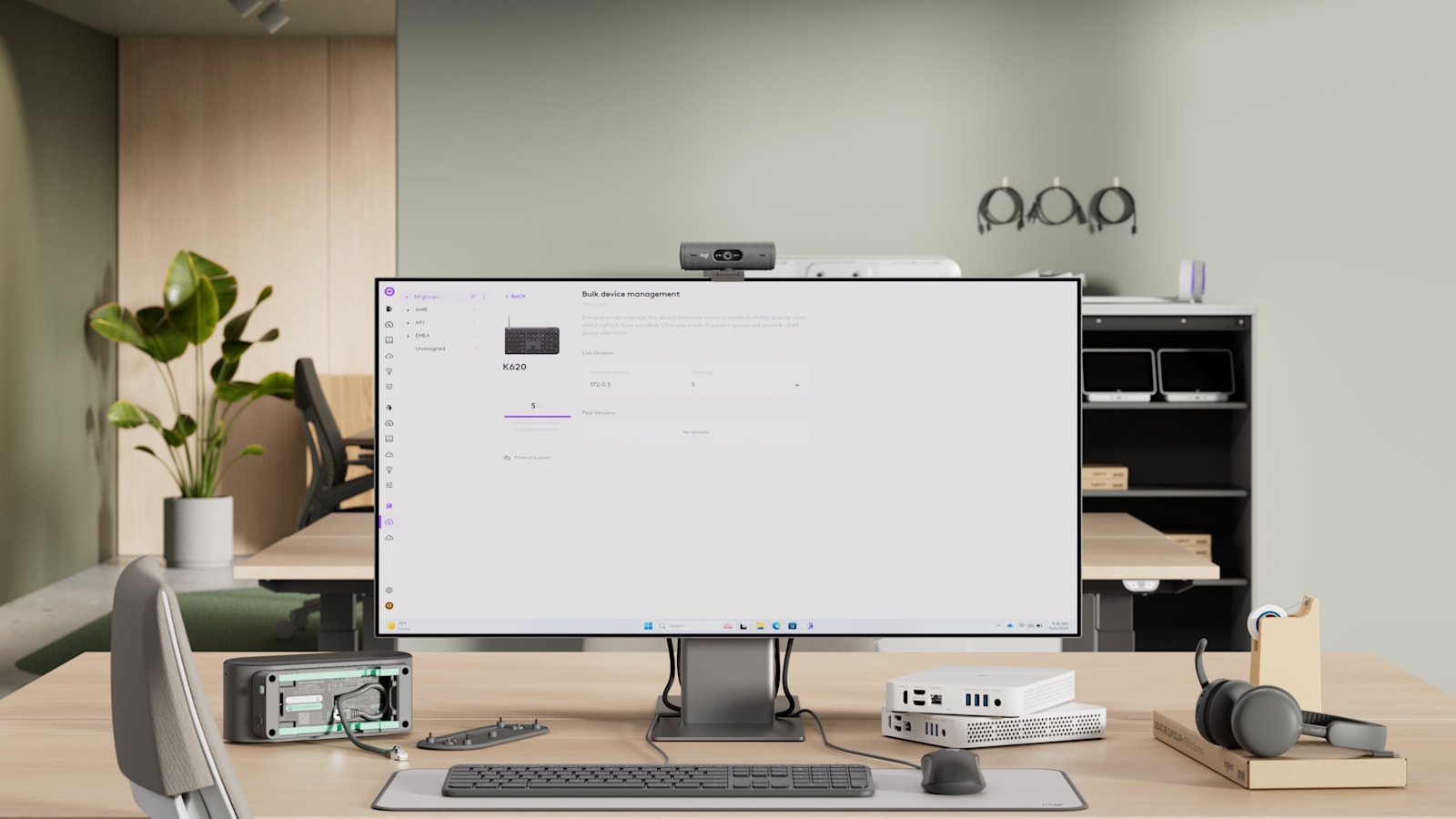

| Management | Logitech CollabOS platform, with Logitech Sync for firmware management and device monitoring |
Physical
| Dimensions | 231 mm H x 224 mm W x 101-146 mm D. Depth varies with the motorised camera's position. |
| Weight | Not published in Logitech's datasheet for this model. Ask us if a shipping or mounting weight is needed for your installation. |
| Regional variant | This is the UK regional SKU. The UK power plug is the same Type G standard used in Singapore, so no adapter is required. |
Compatibility & Room Fit

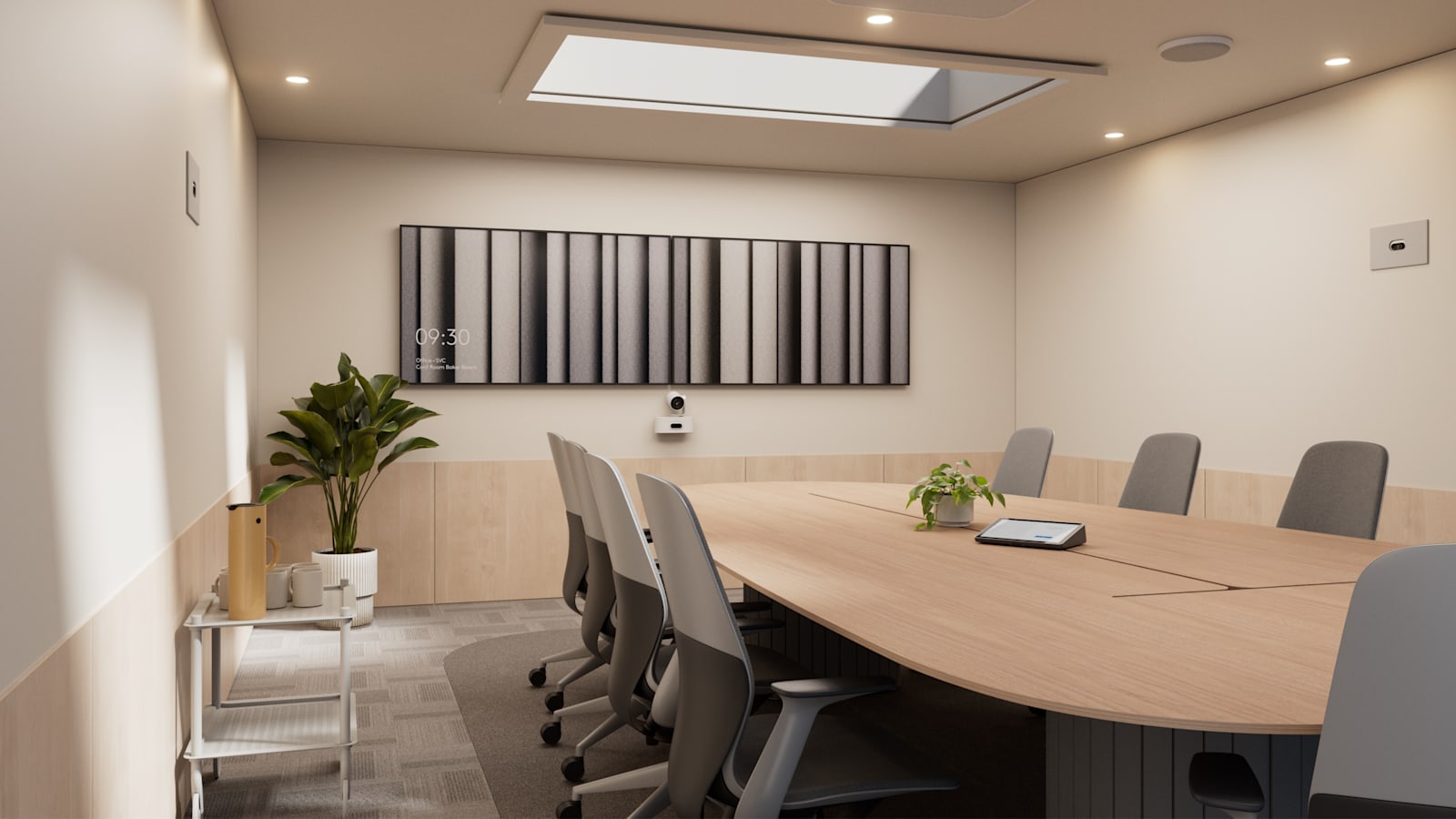

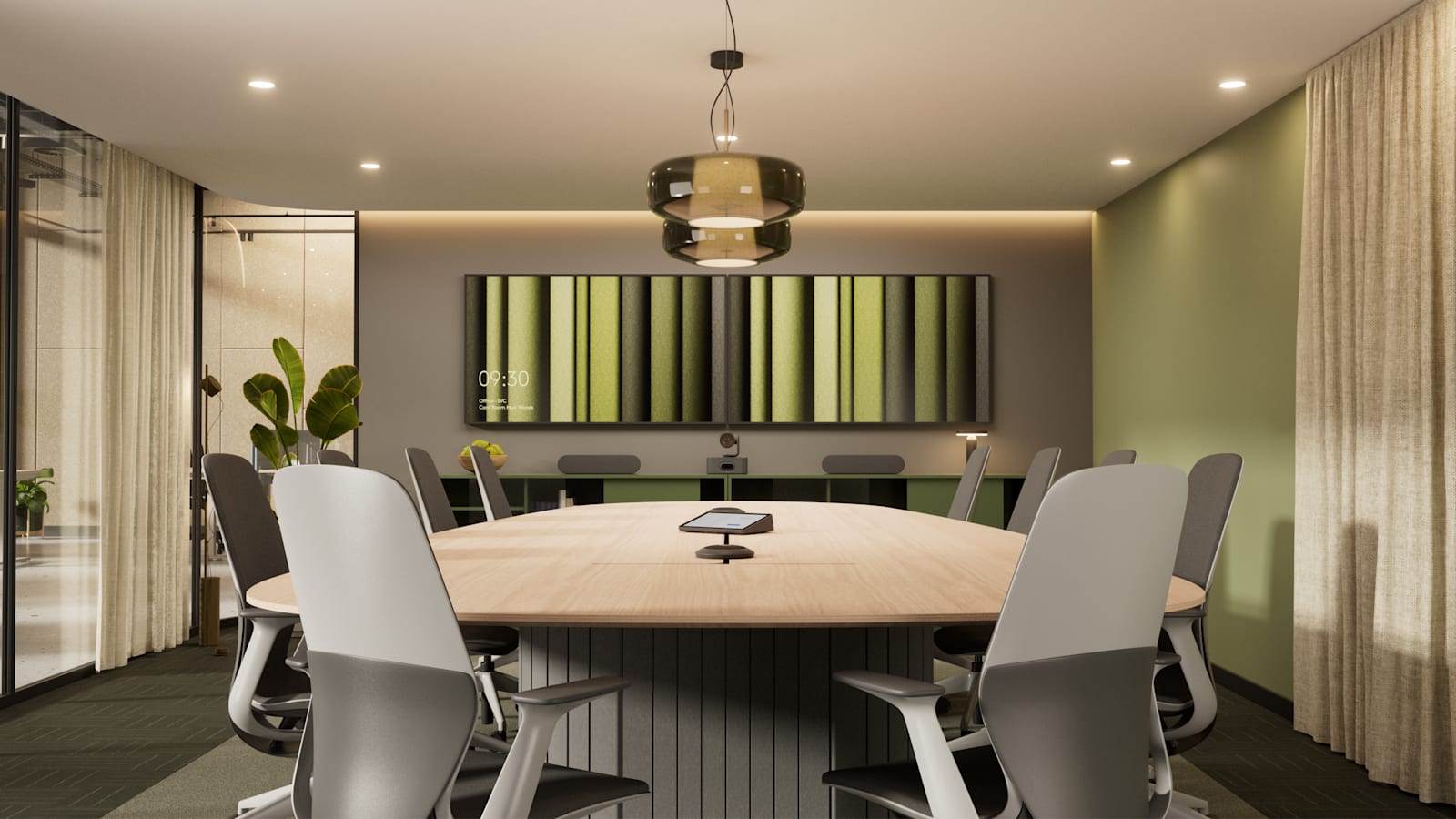

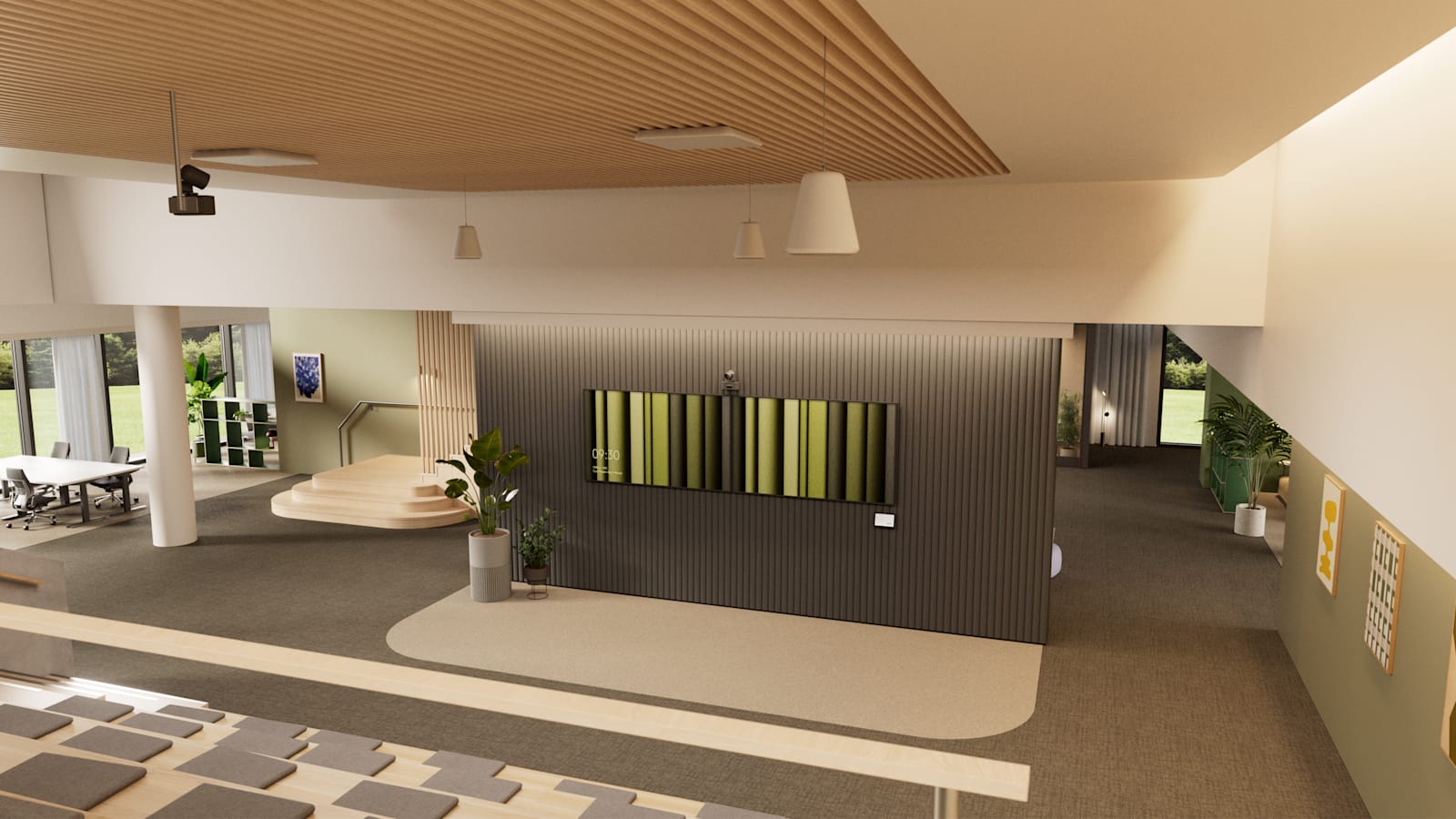

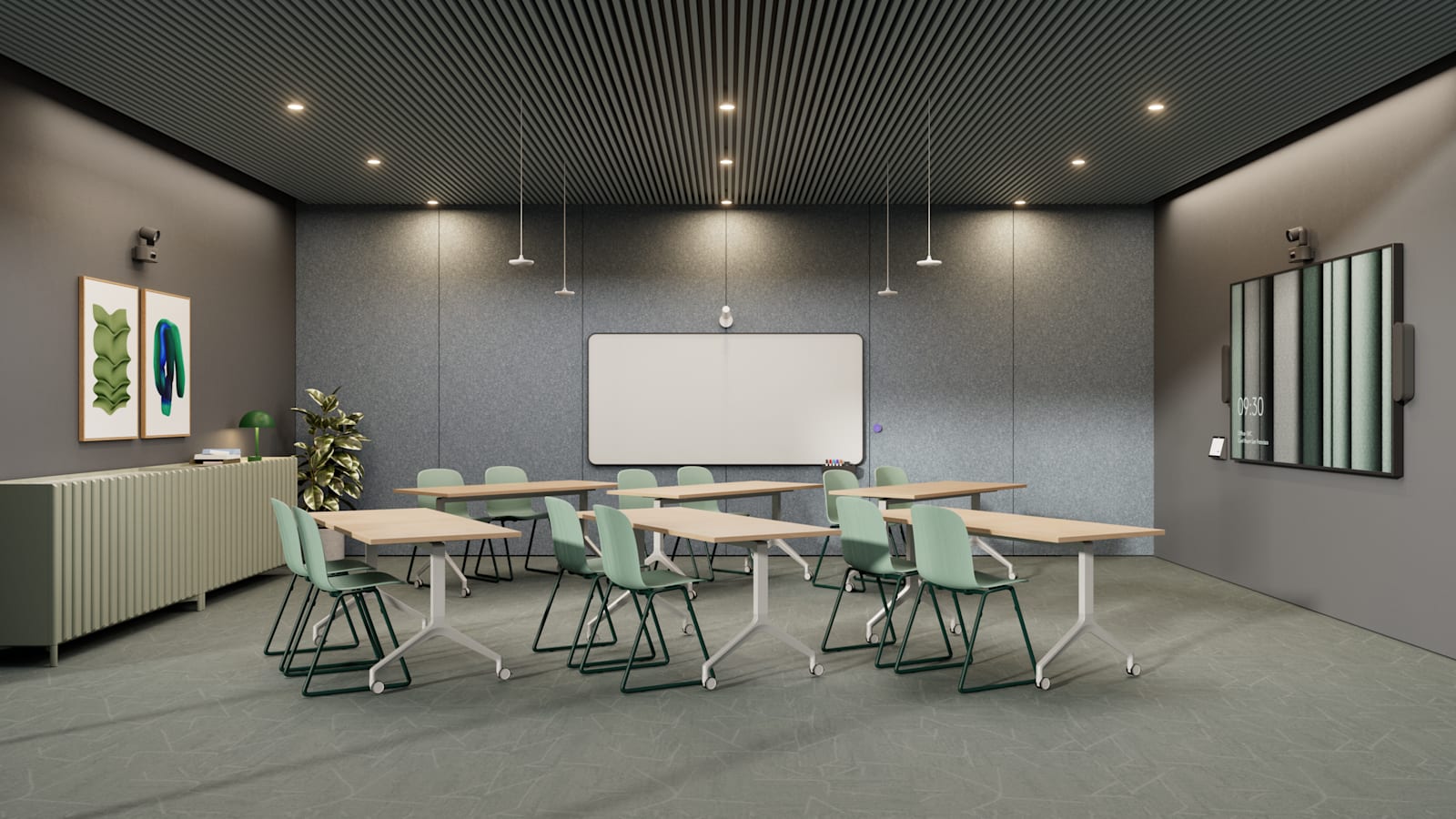

| Room size | Built for large rooms - long boardrooms, training rooms, lecture theatres and multi-purpose spaces where participants sit well back from the camera. In a small or medium room the optical zoom rarely earns its cost; the standard Rally AI Camera is the better value there. |
| Power | PoE++ (IEEE 802.3bt) is required - a higher class than the standard model's PoE+. Confirm your switch or injector supports it before installation; a PoE+ switch will not power this camera. |
| Platform | Certified for Microsoft Teams Rooms and Zoom Rooms. Logitech's published material does not state Google Meet certification, so we do not claim it - ask us and we will confirm against the current certification matrix. |
| Compute | A camera, not an all-in-one. It needs a room compute device such as Logitech RoomMate or a room PC, plus a controller like Tap IP. |
| Audio | No microphones or speaker built in. In a room large enough to justify this camera, plan on multiple Rally Mic Pods and a Rally Speaker or a room audio system. |

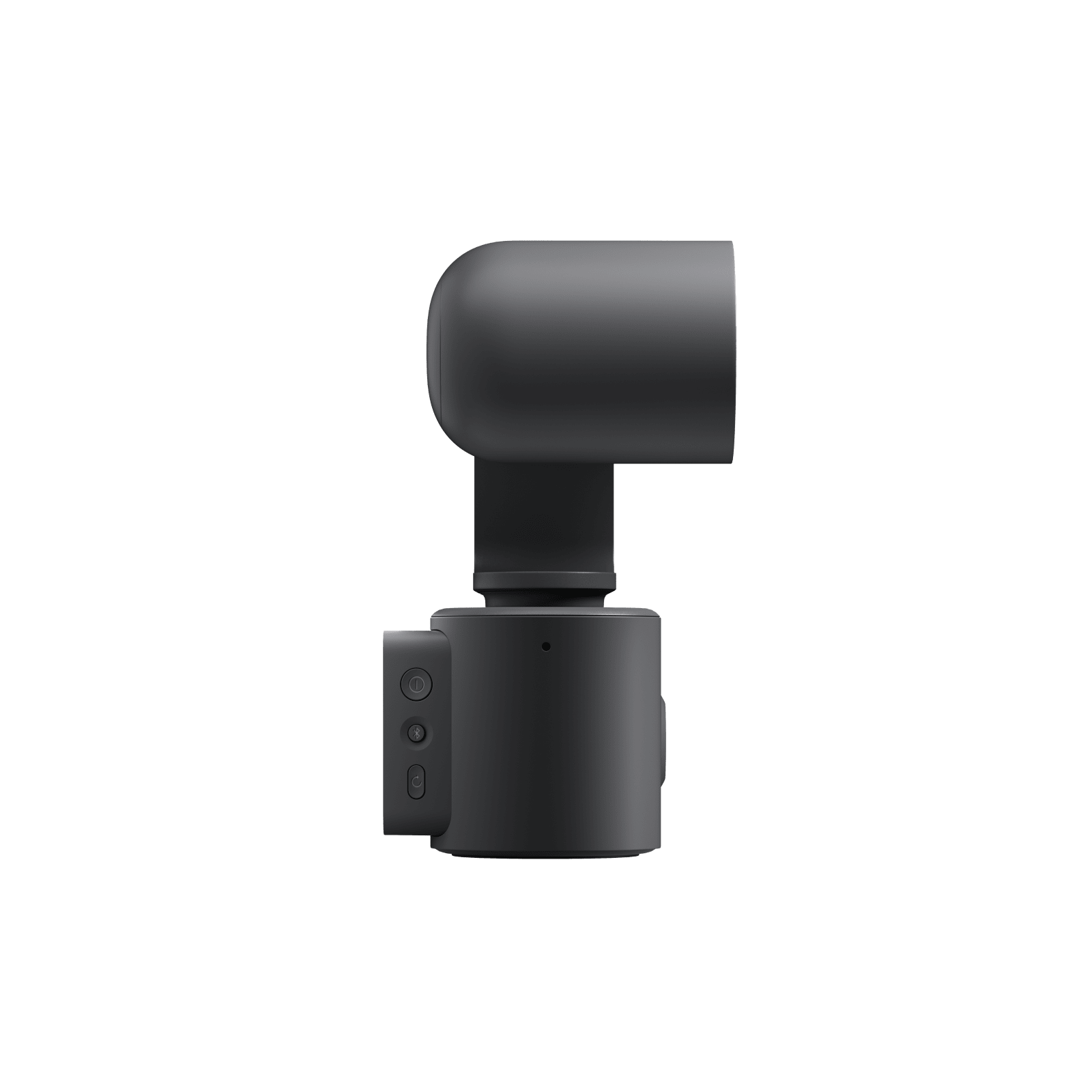

| Mounting and clearance | Depth varies between 101 mm and 146 mm as the motorised camera moves. Allow clearance in front of the mounting surface - this is not a flush-mount device in the way the standard model can be. |
| Colour matching | Graphite on this listing; Off-White is available at the same price for lighter room finishes. |
Package Contents & Rally AI Camera Ordering Information
In the box: Logitech does not publish a fully itemised box-contents list for the Rally AI Camera Pro in the datasheet we can read. Based on the standard Rally AI Camera, expect the camera, mounting plate and hardware, PoE power supply, cables and documentation. If a bundled item is essential to your order, please confirm it with us in writing before you buy.
Rally AI Camera range at SourceIT
| Model | Part Number |
| Logitech Rally AI Camera, Graphite - single 20MP digital PTZ camera, PoE+ | 960-001808 |
| Logitech Rally AI Camera Pro, Graphite (this listing) - dual camera, adds motorised PTZ with 5x optical zoom, PoE++ | 960-001767 |
| Logitech Rally AI Camera Pro, Off-White - identical specification, lighter finish | 960-001779 |
What you may also need
| Logitech RoomMate - room compute appliance | 950-000085 |
| Logitech Tap IP - meeting room touch controller | 952-000085 |
| Logitech Rally Mic Pod - table microphone | 989-000430 |
| Logitech Rally Speaker | 960-001230 |
Configurations, prices and availability change without notice; please confirm with us before ordering.
Datasheet & Downloads
- Logitech Rally AI Camera Pro Datasheet (PDF)
- Logitech Rally AI Camera Pro product page
- Logitech Sync Hub - Rally AI Camera Pro product specifications
Every unit sold by SourceIT comes with a 2-year Singapore local warranty and a GST invoice.
Frequently Asked Questions - Logitech Rally AI Camera Pro
What exactly makes it "Pro"?
A second camera. Both models share the one-inch 20-megapixel digital PTZ camera with a 115.7° field of view. The Pro adds a motorised 8-megapixel PTZ camera with 15x zoom (5x optical x 3x digital), mechanical pan of ±90° and tilt of +50° / -90°. Together they cover 262° horizontally and 192° vertically.
Do I actually need the optical zoom?
It depends on the room. Optical zoom moves glass rather than cropping pixels, so it holds detail on a face at the far end of a long room where a digital crop would fall apart. In a small or medium room where everyone sits close, you are unlikely to see the benefit - the standard Rally AI Camera costs less and covers it. We would rather you bought the right one.
Will a PoE+ switch power it?
No. The Pro requires PoE++ (IEEE 802.3bt), a higher power class than the PoE+ used by the standard Rally AI Camera, because it drives a motorised camera as well. Check your switch or injector before installation - this catches people out.
Does it include microphones or a speaker?
No. It is a camera only. In rooms large enough to justify it, plan for multiple Rally Mic Pods and a Rally Speaker or an installed audio system.
Do I need a RoomMate or a room PC?
Yes. It is a conference camera, not an all-in-one appliance, so it needs room compute such as RoomMate or a PC, plus a controller like Tap IP for a native Teams Rooms or Zoom Rooms deployment.
This is the UK SKU - will it work in Singapore?
Yes. The UK regional variant uses the Type G three-pin plug, which is the same standard used in Singapore, so no adapter is needed. The camera itself is 100-240 V.
How much clearance does it need?
Depth ranges from 101 mm to 146 mm as the motorised camera moves, so allow room in front of the mounting surface. It is physically taller than the standard model at 231 mm against 91 mm.
What warranty does it come with?
Two years local Singapore warranty with a GST invoice. Logitech publishes a 2-year limited hardware warranty across the Rally AI Camera line, with optional extensions.
