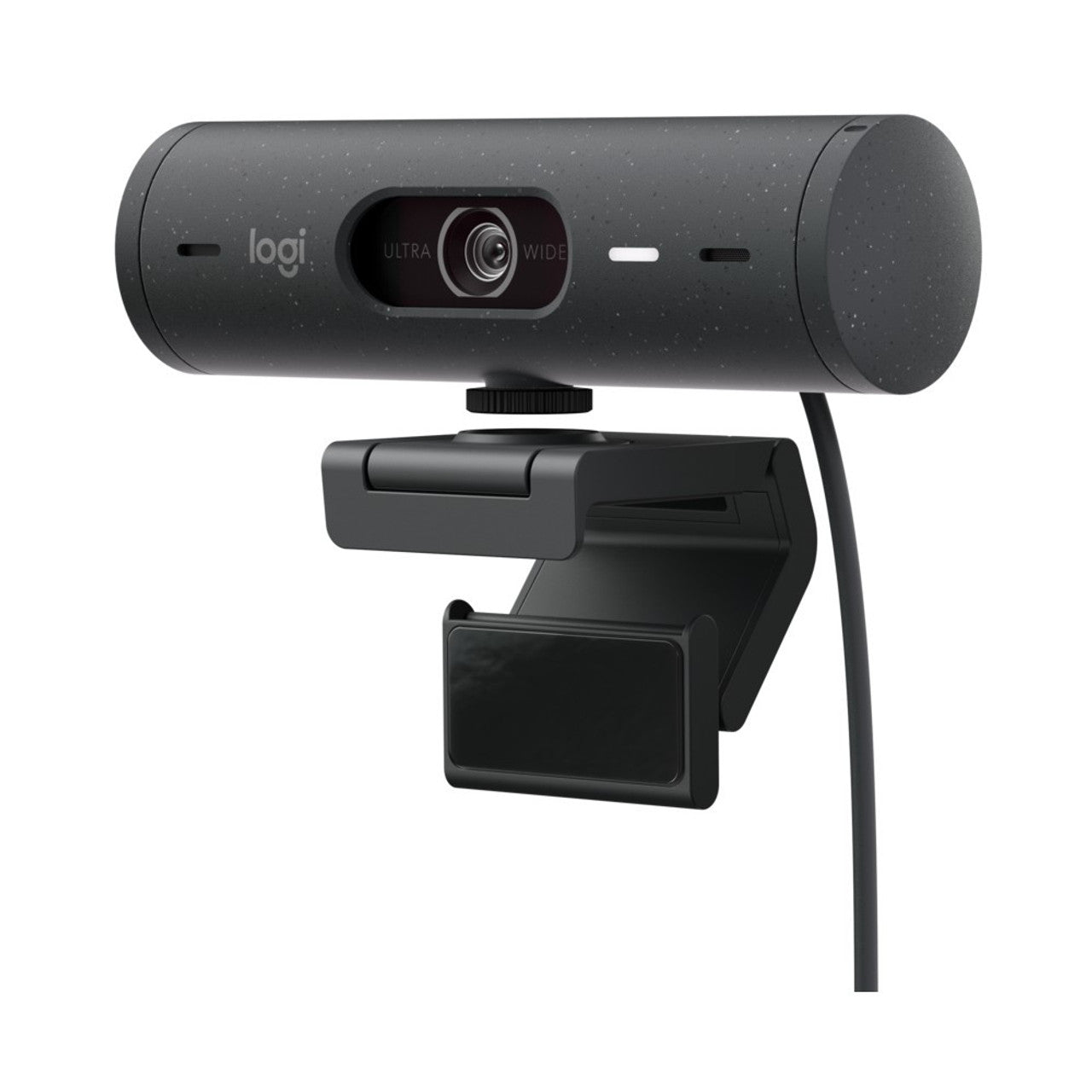

Logitech Brio 505 Full HD 1080p HDR Business Webcam
PRODUCT DESCRIPTION
Logitech Brio 505 Full HD 1080p HDR Business Webcam (960-001461) - 2 Years Local Warranty
Full HD 1080p HDR Business Webcam with RightSight Auto-Framing
The Logitech Brio 505 Full HD 1080p HDR Business Webcam (960-001461) is Logitech's mainstream business webcam: a 4 MP sensor with autofocus, RightLight 4 auto light correction with HDR, and RightSight auto-framing that keeps the camera centred on you so you can stand up and move without leaving the shot. It is certified for Microsoft Teams, Zoom and Google Meet and manageable through Logitech Sync.
Selectable 65°, 78° or 90° Field of View with 4× Digital Zoom
IT can standardise the default framing across a fleet and let individual users adjust from there. Tighten to 65° to crop a busy open-plan office out of the background, or open to 90° when two people share a desk or a small huddle space. A 4× digital zoom refines the crop without moving the camera.
Dual Beamforming Microphones for Business-Class Voice
Two beamforming microphones with noise reduction focus on the person in front of the camera and suppress the room around them, at a pickup range of up to 1.22 m. Combined with Show Mode — tilt the camera down to present a physical document or sample — it covers most of what a desk-side meeting needs.
TAA Compliant, 68% Recycled and Managed Through Logitech Sync
Logitech builds the Brio 505 from a minimum of 68% post-consumer recycled material with FSC-certified paper packaging, and publishes it as TAA compliant — both increasingly common line items in Singapore government and MNC procurement. Logitech Sync handles company-wide deployment, inventory and firmware updates.
Logitech Brio 505 Datasheet — Technical Specifications
General
| Model | Logitech Brio 505 Business Webcam |
| Part Number (Asia Pacific, Graphite) | 960-001461 |
| Product Type | Full HD HDR business USB-C webcam |
| Privacy | Integrated privacy shutter (dial mechanism) |
| Mounting | Universal mount clip with removable mount adaptor |
| Special Modes | Show Mode — present physical items by tilting the camera down |
| Compliance | TAA compliant |
| Sustainability | Minimum 68% post-consumer recycled material; FSC-certified paper packaging |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Maximum Resolution | 1080p/30 fps |
| Secondary Resolution | 720p/30 fps or 60 fps |
| Sensor | 4 MP with High Dynamic Contrast |
| Lens | Glass lens |
| Focus | Autofocus |
| Diagonal Field of View (dFoV) | 65° / 78° / 90° (selectable) |
| Digital Zoom | 4× |
| Light Correction | RightLight 4 auto light correction with HDR |
| Auto Framing | RightSight auto-framing keeps the camera centred so participants can stand and move |
Audio
| Microphone | Dual beamforming microphones with noise reduction |
| Microphone Range | Up to 4 ft (1.22 m) |
Connectivity
| Interface | USB-C (plug-and-play); USB-A with a third-party adapter |
| Cable | Attached, 1.5 m (5 ft) |
| Port Required | Available USB-C port |
Design & Power
| Dimensions — Webcam (H × W × D) | 31.5 × 110 × 31.5 mm |
| Dimensions — With Mount Clip (H × W × D) | 51.5 × 110 × 45 mm |
| Mount Clip (H × W × D) | 25 × 45.8 × 65.1 mm; 40 g |
| Weight | 121 g, including mount clip |
| Power | Bus-powered over USB-C |
Compatibility & Software Support
| Operating Systems | Windows 10 and higher, macOS 10.15 and higher, ChromeOS |
| System Memory | 2 GB RAM for 1080p; 1 GB for 720p |
| Certifications | Certified for Microsoft Teams, Zoom and Google Meet; Works With Chromebook; TAA compliant |
| Device Management | Logitech Sync — company-wide deployment, inventory and firmware updates |
| Image Tuning | Logi Tune — zoom, colour, focus and firmware updates on Windows and macOS (not available on ChromeOS) |
| Connection | Available USB-C port, or USB-A with a third-party adapter |
Logitech states the Brio 505 “works with Windows, macOS, ChromeOS, and most platforms and operating systems”, so it also functions as a standard USB (UVC) camera in Webex, GoTo, BlueJeans and similar clients.
Package Contents & Brio 505 Ordering Information
In the Box

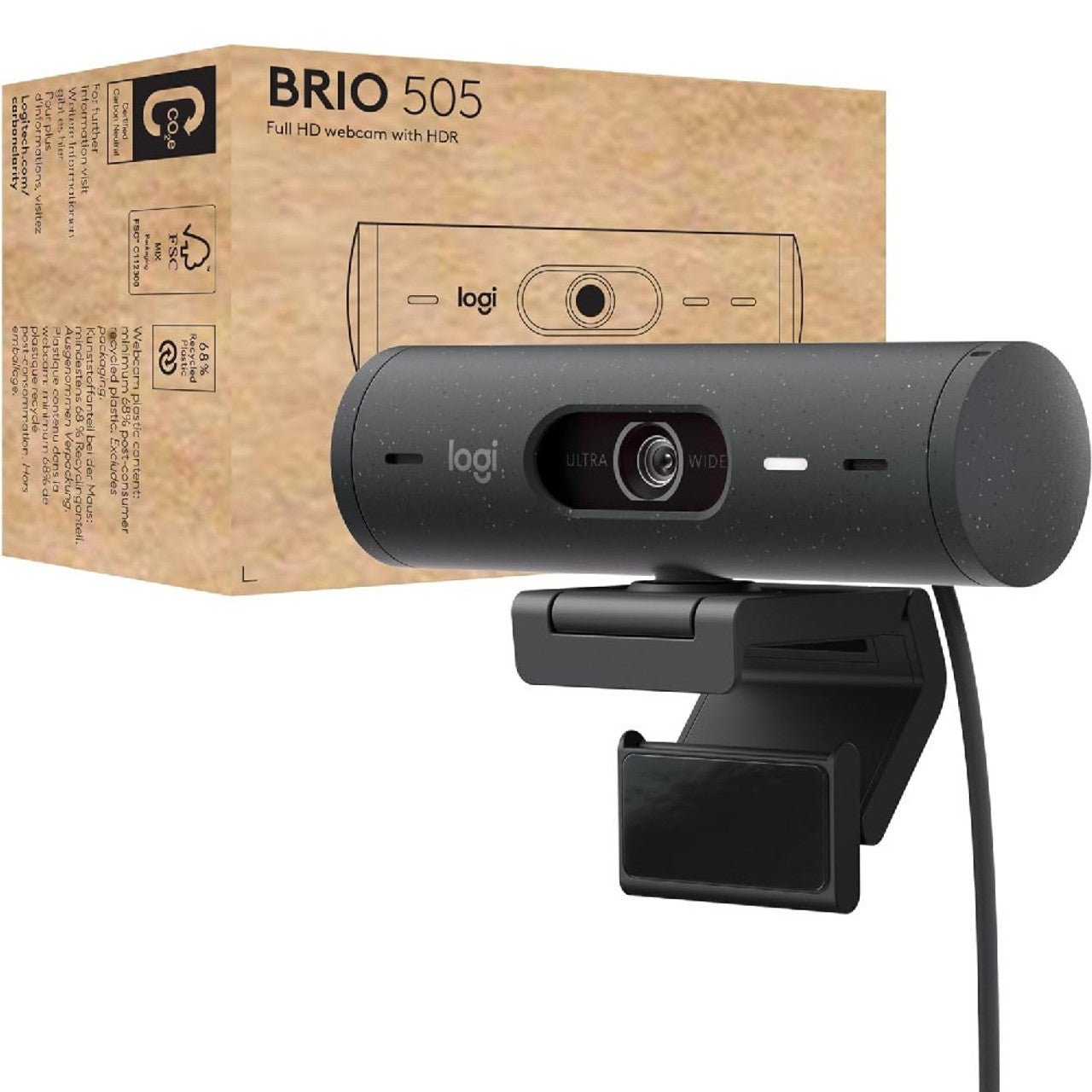

- Brio 505 webcam with attached USB-C cable
- Mount clip with removable mount adaptor
- User documentation
Brio 505 Regional Ordering Information (Logitech)
| Asia Pacific — Graphite (the SKU SourceIT supplies) | 960-001461 |
| Asia Pacific — Off-white | 960-001462 |
| Asia Pacific — Rose | 960-001456 |
| EMEA — Graphite / Off-white / Rose | 960-001459 / 960-001460 / 960-001455 |
| US and Canada — Graphite / Off-white / Rose | 960-001522 / 960-001454 / 960-001417 |
| Japan — Graphite / Off-white / Rose | BRIO505GR / BRIO505WH / BRIO505RO |
Related Brio 500 Series Listings at SourceIT
| Brio 500 Full HD 1080p HDR Webcam | 960-001423 |
| Brio 505 Full HD 1080p HDR Business Webcam — Graphite (this listing) | 960-001461 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Brio 505
What is the difference between the Brio 505 and the Brio 500?
The hardware is the same family — 4 MP sensor, autofocus, glass lens, RightLight 4 with HDR, dual microphones, USB-C. The Brio 505 is the business SKU: Logitech publishes RightSight auto-framing, Logitech Sync fleet management and TAA compliance for it, and sells it through the B2B channel.
Which colour variants exist and do they differ technically?
Graphite, Off-white and Rose. They are identical cameras — only the finish and part number change. SourceIT lists the Asia Pacific Graphite SKU, 960-001461, on this page.
What room size or use case is the Brio 505 designed for?
A personal workstation, a home office, or a very small huddle space where one or two people sit within about 1.2 m of the camera. For a meeting room with a table, use a Logitech video bar with a room-scale microphone array instead of a webcam.
How does it compare with the Brio 305 and MX Brio 705?
The Brio 305 is a simpler 2 MP fixed-focus camera with a single 70° view, one microphone and no auto-framing. The Logitech MX Brio 705 is the 4K flagship: 4K/30 fps capture, RightLight 5 with HDR and advanced closed-loop autofocus. The Brio 505 is the Full HD sweet spot for volume business deployment.
Does it need a room PC, licence, dock or compute appliance?
No. Video and power both run over the single USB-C cable, and there is no licence or subscription. Logitech Sync and Logi Tune are free downloads.
Can it be centrally deployed and firmware-managed?
Yes. Logitech Sync supports company-wide deployment, device inventory and firmware updates, which is the practical reason most IT teams choose the 505 over the consumer Brio 500.
What should I add for better meeting audio?
The dual beamforming microphones are good at desk distance, but in a noisy open-plan office a dedicated headset still wins for the far end. A Logitech Zone Vibe wireless headset pairs well with the Brio 505 on a hot desk.
Does the Brio 505 come with warranty in Singapore?
Yes. Every Brio 505 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
