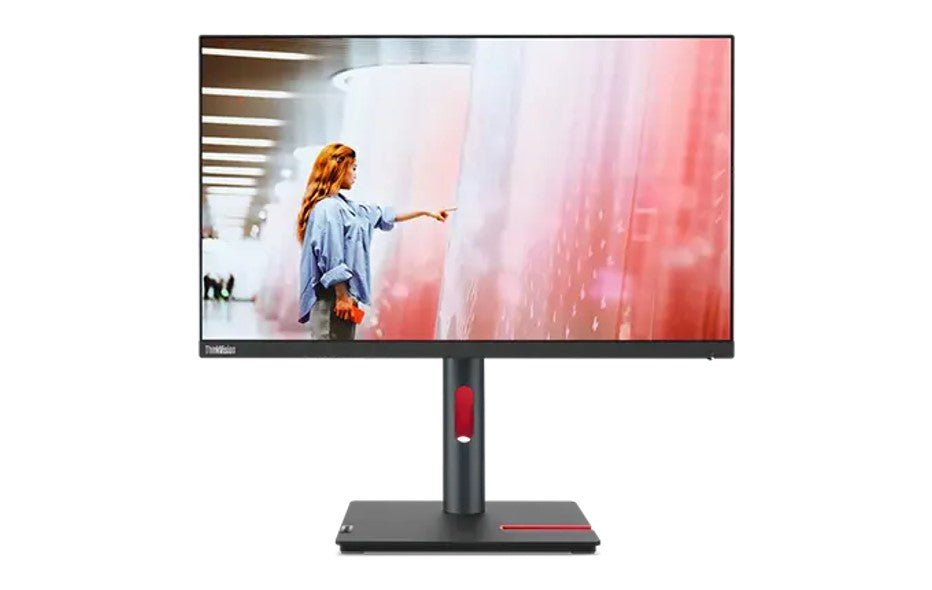

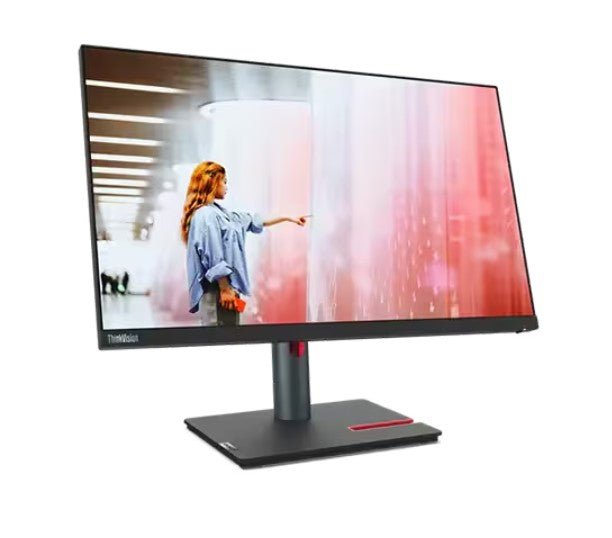

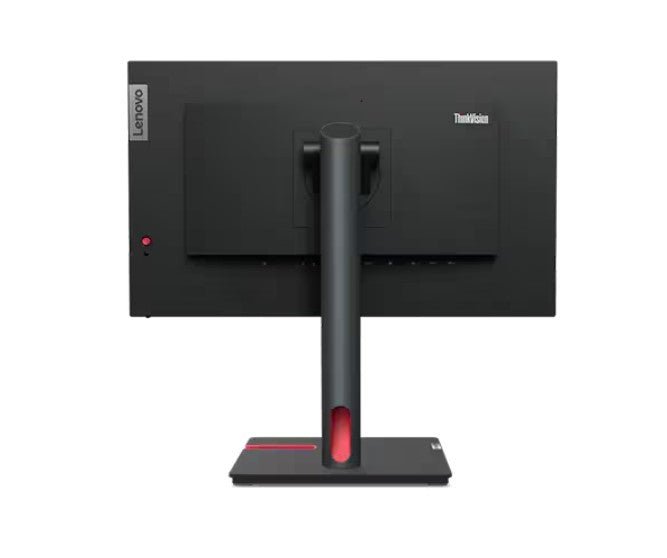

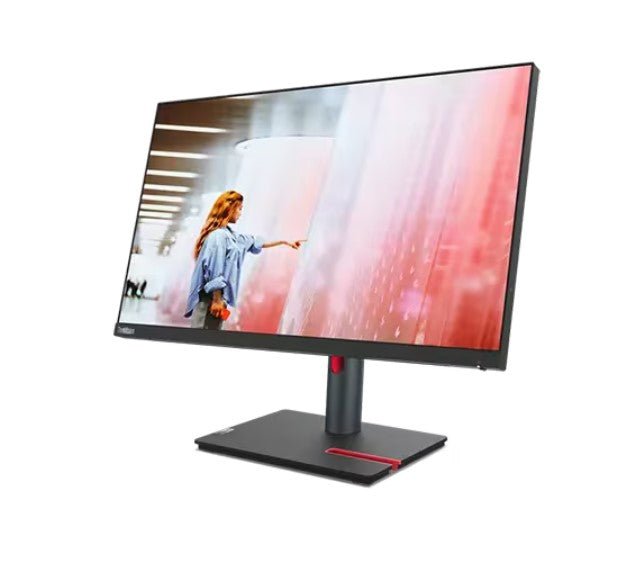

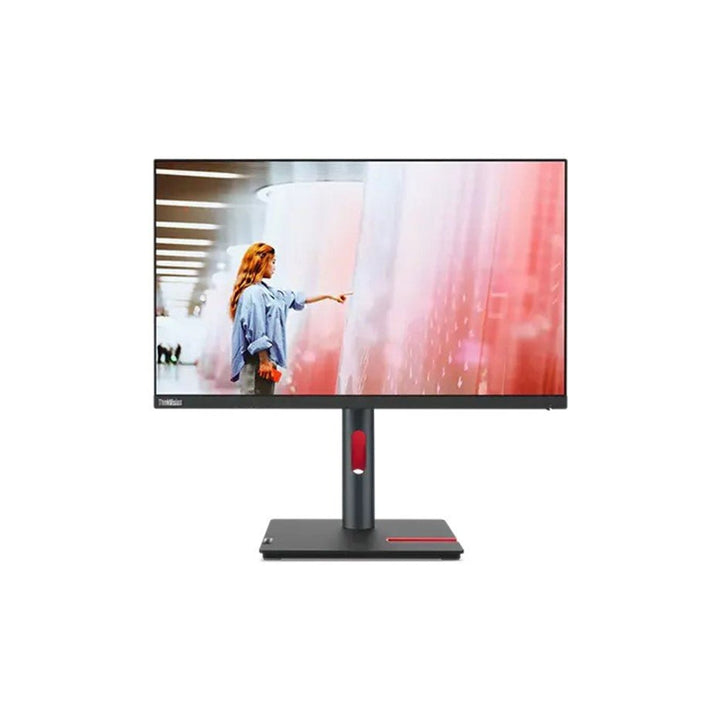

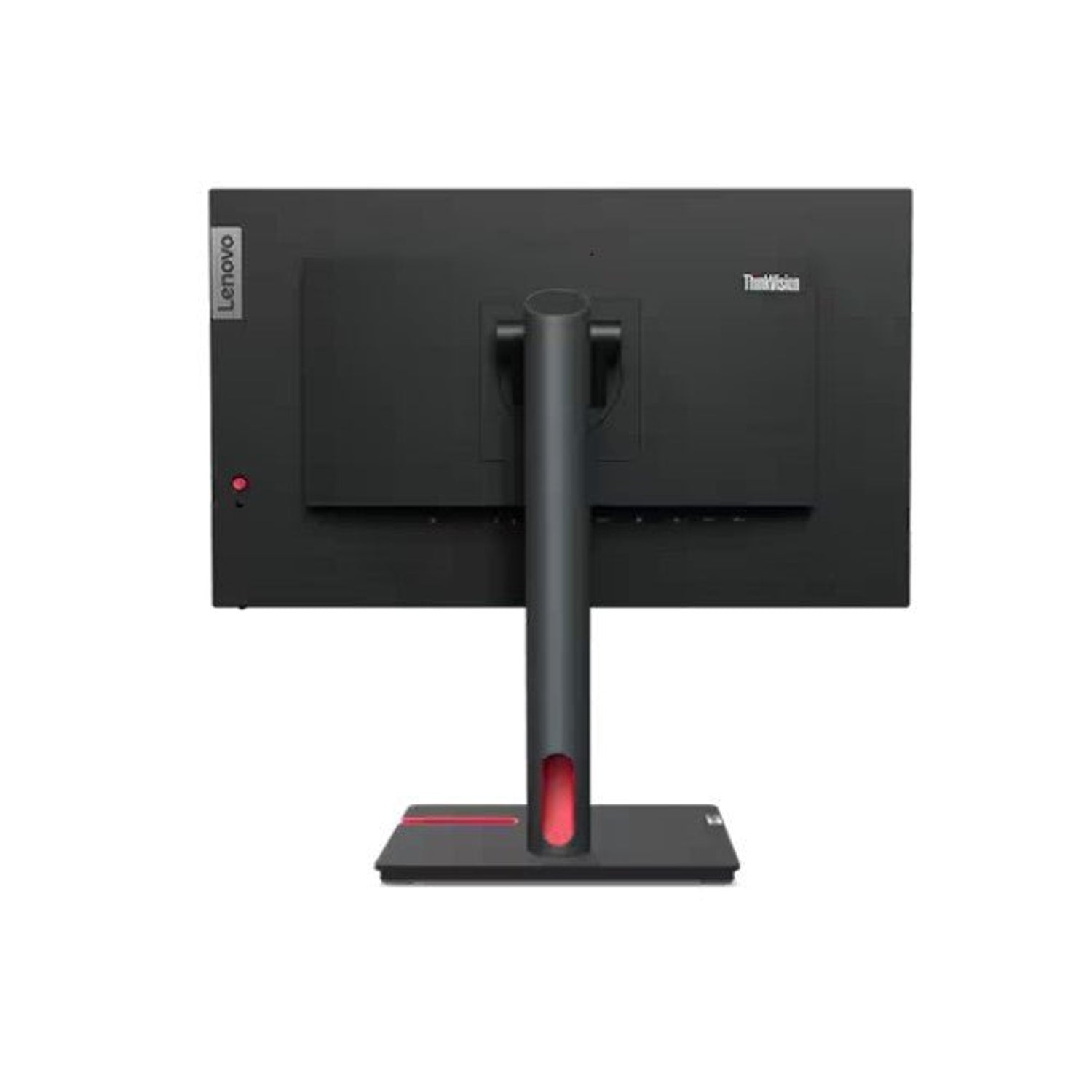

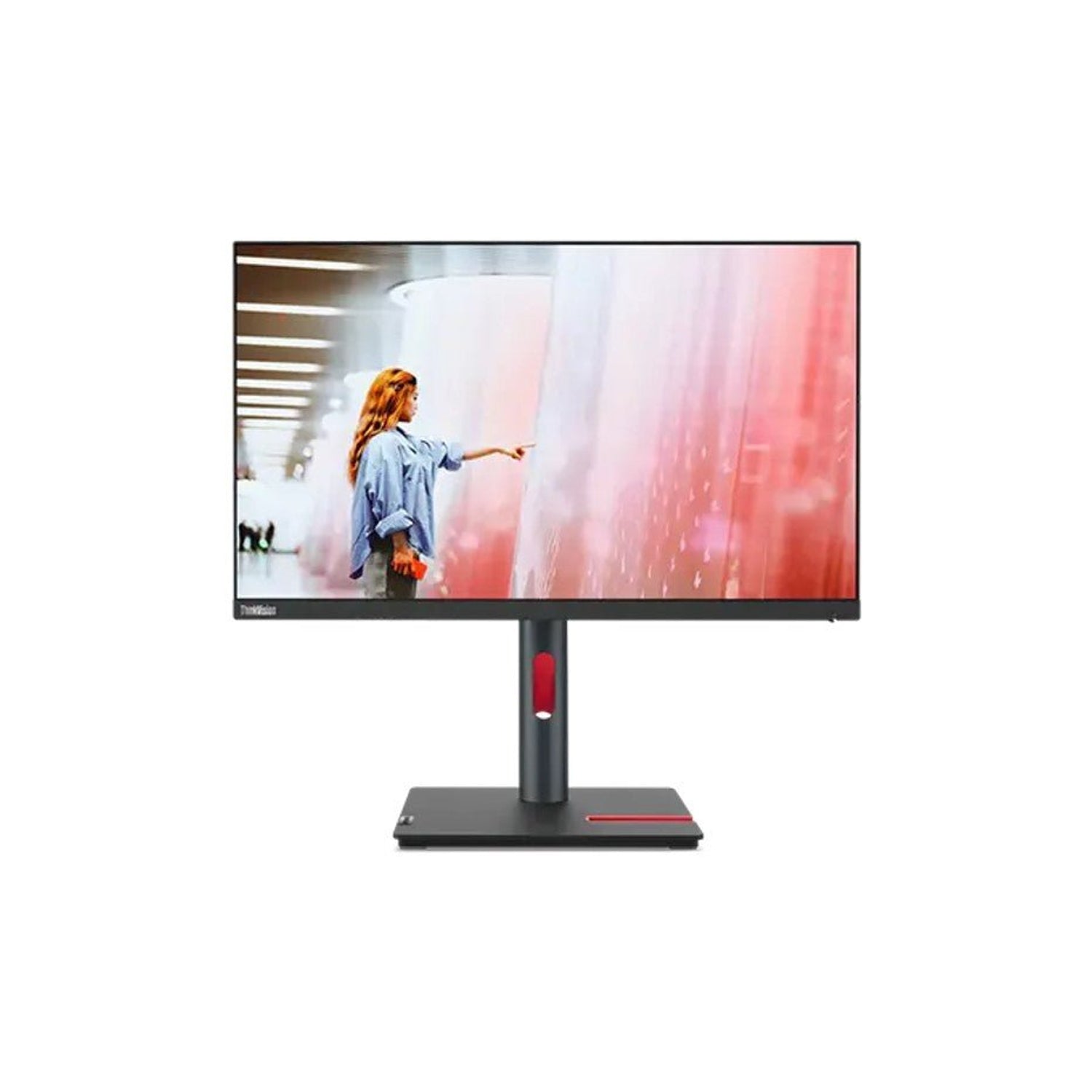

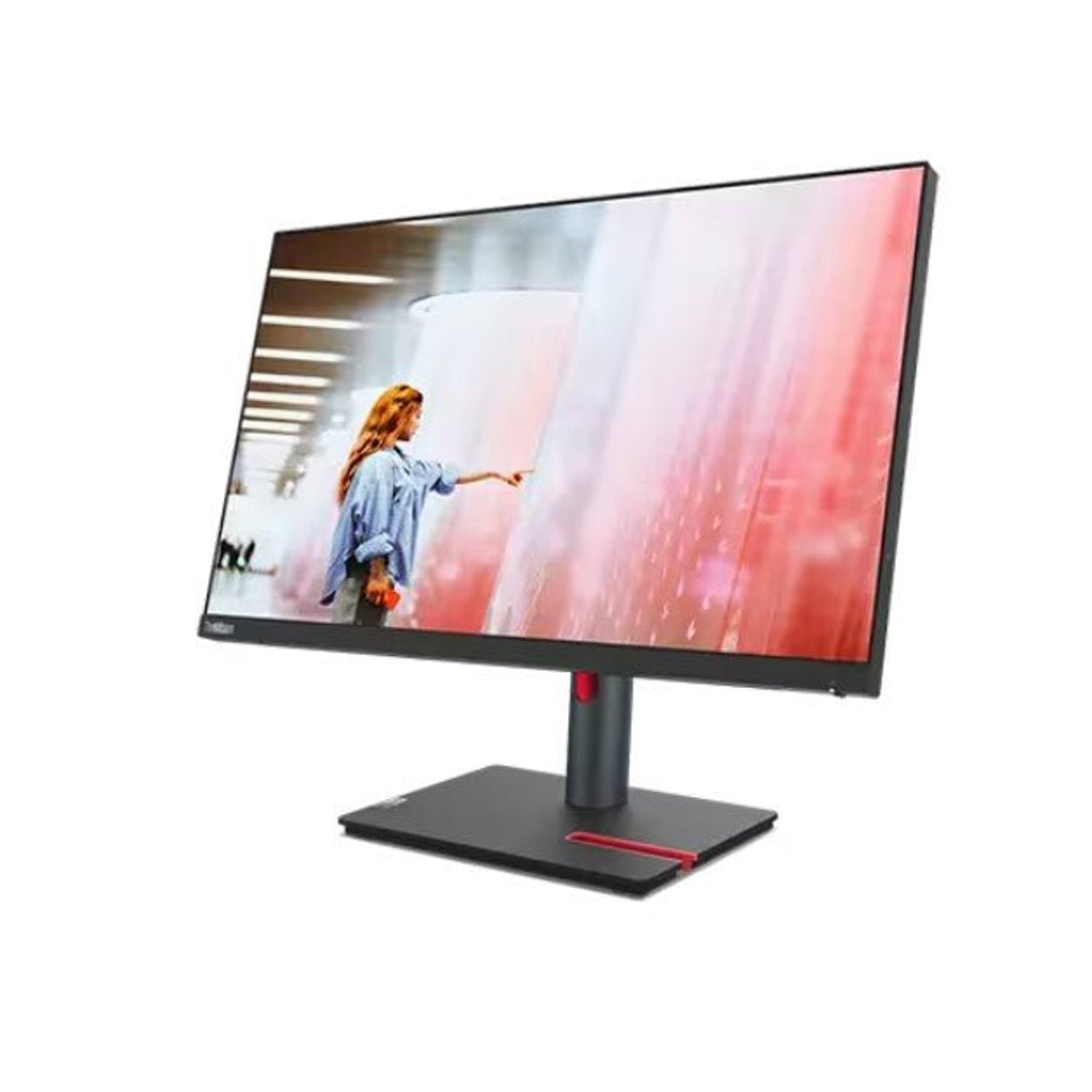

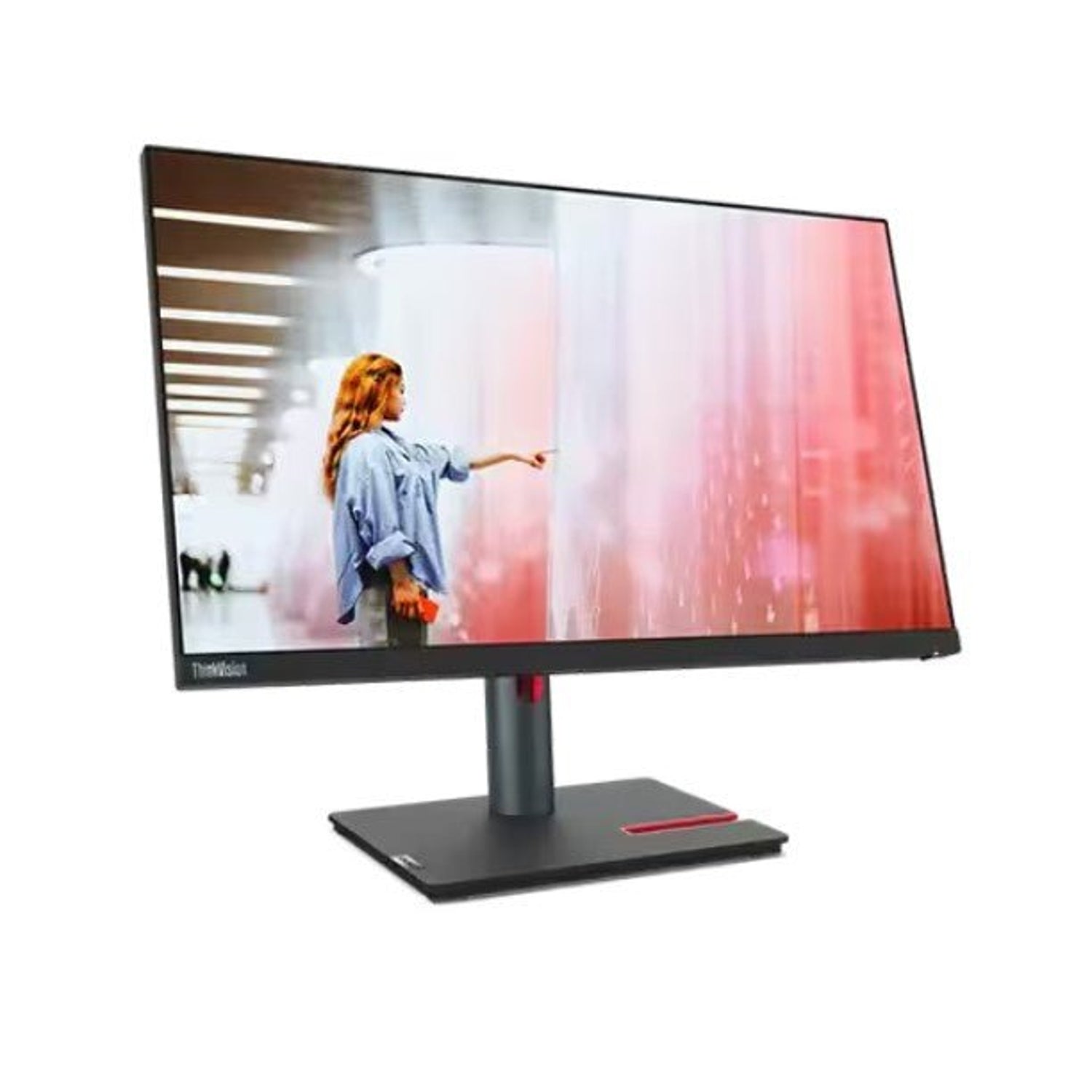

Lenovo ThinkVision P24q-30 23.8-inch Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision P24q-30 (63B4GAR6WW) - 3 Years Local Warranty
23.8-Inch QHD at 123 dpi, Calibrated to Delta E Under 2
The ThinkVision P24q-30 pairs a dense 2560 x 1440 panel — 123 dpi at 23.8 inches — with a published factory calibration of average Delta E under 2 and a printed calibration report in the box. For colour-sensitive work on a compact desk, that combination is the reason this model exists.
Read This Before You Order: There Is No USB-C at All
The P24q-30 has no USB-C port of any kind, and no Ethernet. Its USB hub is fed by a conventional USB-B upstream cable. If you are cross-shopping it against the P24QD-40 or P24h-2L and assuming a P-series monitor docks a laptop, it does not. Both docking alternatives are linked in the ordering table below.
A DisplayPort Output and a Four-Port Hub
What it does have: HDMI 2.1 TMDS and DisplayPort 1.4 inputs, a DisplayPort output for chaining a second display, four downstream USB 3.2 Gen 1 ports with one BC 1.2 fast-charge port, and a full ergonomic stand with 155 mm of lift, 45° swivel and 90° pivot.
Where This Monitor Belongs
On a desk with a desktop PC or a workstation, doing work where colour has to be right: design, marketing production, photo review, print preparation. It is a calibrated panel first and a connectivity hub second — and priced accordingly. For a laptop-first desk, buy a docking model instead.
Specification note. Every figure on this page is taken from Lenovo's own PSREF specification sheet for the ThinkVision P24q-30, with any item drawn from Lenovo's product datasheet instead labelled as such in the table. Lenovo publishes monitor specifications per model rather than per part number — the PSREF sheet we link does not itself list this SKU, and the suffix on a part number governs market and packaging rather than the panel or the ports. Where Lenovo publishes no figure, this page says so rather than estimating one, and where two Lenovo documents disagree we show the disagreement. Specifications and prices are subject to change by Lenovo without notice.
Lenovo ThinkVision P24q-30 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision P24q-30 |
| Part Number | 63B4GAR6WW |
| Machine Type | 63B4 |
| Type | 23.8-inch QHD colour-calibrated monitor |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 2560 x 1440 (QHD), 123 dpi |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.205 x 0.205 mm |
| Refresh Rate | 60 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB coverage ratio; 99% BT.709 coverage; 110% sRGB colour area ratio. Lenovo publishes no DCI-P3 or Adobe RGB figure for this model |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Factory Calibration | Average Delta E under 2, with a printed calibration report in the box |
| Hardware Calibration | Not published by Lenovo for any monitor in this range. What Lenovo publishes is factory calibration — the panel is calibrated on the line and a printed report ships in the box. That is not the same as being able to recalibrate it yourself with a colorimeter |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare |
| Bezel | 2.0 mm sides, 2 mm top, 18 mm bottom |
Connectivity
| USB-C | None. This model has no USB-C port of any kind — no docking, no power delivery, no DisplayPort Alt Mode |
| Video Inputs | 1 x HDMI 2.1 TMDS (supports 2560 x 1440 at 60 Hz), 1 x DisplayPort 1.4 |
| DisplayPort Out | 1 x DisplayPort out |
| USB Hub | 1 x USB-B 3.2 Gen 1 upstream; 4 x USB 3.2 Gen 1 downstream, one with BC 1.2 |
| Network | None |
| Audio Out | 1 x 3.5 mm |
| Speakers | None built in. Lenovo offers the MS30 Monitor Soundbar as a separately-sold accessory that clips to the display |
| Camera | None with this part number. Lenovo bundles the ThinkVision VoIP Stack MC60 webcam only on separate model codes. It is available as an accessory — ask us to quote one |
| KVM Switch | Not published by Lenovo for this model |
| Security | Kensington Security Slot (2.5 x 6 mm and 3 x 7 mm) |
Stand & Ergonomics
| Tilt | -5° to +23.5° |
| Swivel | 45° left and right |
| Pivot | 90° |
| Height Adjustment | Up to 155 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 25 W typical / 65 W maximum |
| ENERGY STAR Power-On | 16 W; TEC 49 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; RoHS; TCO Certified 9.0; TCO edge 2.0; Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort; TÜV Rheinland Low Blue Light |
| EU Energy Label | Not published by Lenovo for this model |
Physical
| Dimensions with Stand | 539.5 x 199.7 x 348.8 mm at lowest; 503.8 mm high at highest |
| Head Only | 539.5 x 46.5 x 323.7 mm |
| Weight | 5.7 kg with stand; 3.8 kg head only |
| Packaged | 620 x 160 x 420 mm; 8.3 kg |
Features
| Software | Lenovo ThinkColour; Lenovo Accessories and Display Manager |
Compatibility & Fit
What actually separates the P-series from the T-series. Lenovo's own marketing puts the P-series under "Best-in-Class Performance for Leading Professionals" and the T-series under "Enhanced Productivity for Modern Taskers", but it never states in prose that colour accuracy is the dividing line. The evidence is in the specification sheets instead: most P-series models publish a factory calibration figure of Delta E under 2 and ship a printed calibration report in the box, and T-series models do not. That is the difference we are willing to stand behind, and it is why this page cites the per-model figure rather than a slogan.
The calibration is what you are paying for. Lenovo publishes average Delta E under 2 for this panel and puts the measurement report in the box. In practice that means what you see is close enough to correct that colour decisions made on this screen hold up when the work leaves it — without you buying a colorimeter or learning to use one.
And here is what it deliberately is not. There is no USB-C and no Ethernet on this monitor. A laptop connects over HDMI or DisplayPort for the picture and a separate USB-B cable for the hub, and charges from its own adapter. That is a perfectly normal way to run a desktop PC, and an awkward one for a laptop-first desk. If your users dock and undock daily, the P24QD-40 gives you the same size and resolution with a 140 W dock, 2.5-gigabit Ethernet and an eKVM — it is linked above.
123 dpi on a 23.8-inch panel. This is a denser screen than QHD at 27 inches and much denser than Full HD at the same size. Text is sharp at 100% scaling. For anyone looking closely at type, images or fine detail on a compact desk, that density does as much for the experience as the calibration does.
Chaining a second display. The DisplayPort output lets you run a second screen from this monitor. Lenovo publishes the port but no chain limit — ask us if you are planning three or more.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor
- 1 x DisplayPort cable (1.8 m)
- 1 x USB-A to USB-B cable (1.8 m)
- 1 x power cable (1.8 m)
- Factory calibration report
- Quick setup guide and warranty booklet
No HDMI cable is supplied. Ask us to add one if HDMI is how the desk connects.
ThinkVision P-Series Ordering Information
| 62B2GAR1WW | ThinkVision P24h-2L — 23.8" QHD dock, 75 W USB-C, GbE, 1 W speakers |
| 63B4GAR6WW (this listing) | ThinkVision P24q-30 — 23.8" QHD, Delta E<2, no USB-C |
| 64B2GAR1MY | ThinkVision P24Q-40 — 23.8" QHD, Delta E<2, USB hub — not a dock |
| 64B1GAR1MY | ThinkVision P24QD-40 — 23.8" QHD dock — 140 W USB-C, 2.5GbE, eKVM |
| 63F4MAR1WW | ThinkVision P25i-30 (WW) — 24.5" FHD, 100 Hz, DP out, VGA |
| 63F4MAR1MY | ThinkVision P25i-30 (MY) — 24.5" FHD, 100 Hz, DP out, VGA |
| 63A1GAR1WW | ThinkVision P27h-30 — 27" QHD dock, 100 W USB-C, 95% DCI-P3, KVM |
| 64B3GAR2MY | ThinkVision P27QD-40 — 27" QHD dock — 140 W, 2.5GbE, eKVM, 98% DCI-P3 |
| 63D1RAR1WW | ThinkVision P32p-30 — 31.5" 4K Thunderbolt 4 dock, 100 W, KVM |
| 64A8XAR2MY | ThinkVision P32UD-40 — 31.5" 4K Thunderbolt 4, 140 W, 2.5GbE, eKVM |
| 64ADGAR1MY | ThinkVision P34WD-40 — 34" curved IPS Black, 140 W USB-C, eKVM, speakers |
| 64B4XAR1MY | ThinkVision P40WD-40 — 39.7" 5K2K IPS Black, Thunderbolt 4, 140 W, eKVM |
| 63DBRAR1MY | ThinkVision P49w-30 — 49" DQHD 32:9 curved, Thunderbolt 4, KVM |
Datasheet & Downloads
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision P24q-30
Does it have USB-C docking?
No. The P24q-30 has no USB-C port at all, and no Ethernet. Its USB hub connects to the PC over a conventional USB-B cable, and a laptop would charge from its own adapter. If one-cable docking is what you need, the P24QD-40 is the same size and resolution with a 140 W USB-C dock, 2.5-gigabit Ethernet and an eKVM switch.
How accurate is the colour?
Lenovo publishes average Delta E under 2 for this model and ships a printed calibration report in the box. Note that Lenovo publishes no DCI-P3 figure for this panel — it states 99% sRGB and 99% BT.709 coverage. For sRGB-space work that is exactly right; for wide-gamut work the P27h-30 (95% DCI-P3) or the P27QD-40 (98% DCI-P3) are the models to look at.
What does "factory calibrated" actually mean here?
It means Lenovo calibrated this panel on the production line, measured the result and put a printed report in the box — so the monitor is accurate out of the carton without you buying a colorimeter. What it does not mean is hardware calibration: Lenovo publishes no hardware-calibration support for any ThinkVision P-series model, so you cannot write a new calibration into the monitor's own lookup table later. For most design, marketing and video-review work the factory calibration is what matters; for a print house that recalibrates monthly, it is worth a conversation before you order.
Can I run a second monitor from it?
Yes, over the DisplayPort output. Lenovo publishes the port but states no maximum chain length, so if you are planning three or more displays, ask us to confirm the topology first.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
