Lenovo ThinkSmart Core for Microsoft Team Rooms
PRODUCT DESCRIPTION
Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms (11LR0005SG) - 3 Years Local Warranty

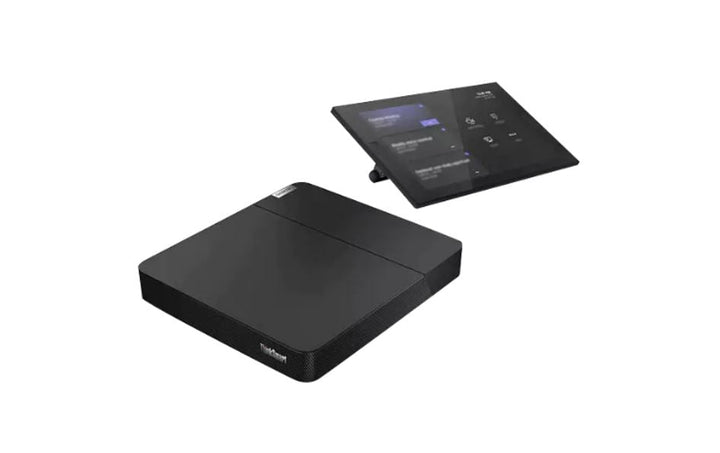

A Compute Unit and a Touch Controller — For a Room That Already Has Its A/V
This kit is a ThinkSmart Core and a ThinkSmart Controller, and nothing else. Lenovo sells this tier for rooms that already have their camera and their audio system installed, where what you are adding or replacing is the brain of the room and the thing people touch to start a meeting. The Core is a small, VESA-mountable computer that runs Microsoft Teams Rooms and drives the displays; the Controller is the 10.1-inch touch console that sits on the table. If your room already has its A/V, this is the efficient way to buy. If it does not, read the next section before you order anything.
There Is No Camera and No Microphone in This Box
We are putting this second because it is the thing most likely to go wrong. No camera. No microphone. No speaker. Lenovo's specification sheet has no camera, audio, speaker or microphone row for the Core at all — the only audio-adjacent feature on the unit is a 3.5 mm headphone and microphone jack. If the room does not already have a camera and an audio system, this kit cannot hold a meeting on its own. The Full Room Kit versions in the ordering table below are the ones that include the camera and the audio, and we would much rather sell you the right one now than take a return later.
The Memory Is 16 GB, Soldered — There Is No 8 GB Version
Lenovo publishes 16 GB of soldered DDR4-3200 memory, explicitly not upgradable, for this entire machine type. There is no 8 GB configuration of the ThinkSmart Core Gen 1 in Lenovo's specification sheet, and because the memory is soldered it cannot be increased after purchase either. If you have seen 8 GB quoted for this part number anywhere — including previously on this page — that figure was wrong and we have corrected it. The storage is a single drive: Lenovo's specification sheet says up to 256 GB SSD, and Lenovo's kit datasheet specifies a 256 GB PCIe TLC SSD.
Teams Is the Factory Image, and the Platform Licence Is a Separate Line
Lenovo builds the Teams and Zoom versions of this kit as separate machine types with separate factory images — 11LR for Microsoft Teams Rooms and 11LT for Zoom Rooms. A Teams part number is not a Zoom part number, and this is a Teams part number. Lenovo's own wording is that the device is “certified and preloaded with Microsoft Teams Rooms”. Note carefully that preloaded describes the software image, not the subscription: no Lenovo document states that the Microsoft Teams Rooms licence is included, so budget for it separately.
Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms Datasheet & Technical Specifications
General
| Product | Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms |
| Part Number | 11LR0005SG |
| Machine Type | 11LR |
| Kit Tier | Compute and controller only — no camera and no audio |
| Warranty | 3-year limited onsite service, per Lenovo's specification sheet |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
ThinkSmart Core — the Compute Unit
| What It Is | A small standalone computer that runs the meeting platform and drives the room's displays. Everything else in the room — controller, camera, audio — connects to it |
| Processor | 11th Generation Intel Core i5-1145G7E, 4 cores and 8 threads, 1.5 GHz base and up to 4.1 GHz, 8 MB cache. Lenovo's kit datasheet names it the i5-1145G7E IoTG vPro processor |
| Graphics | Intel Iris Xe Graphics, integrated and shared |
| Memory | 16 GB soldered DDR4-3200, not upgradable |
| Storage | One drive. Lenovo's specification sheet states up to 256 GB SSD; Lenovo's kit datasheet specifies a 256 GB PCIe TLC SSD |
| Display Outputs | 2 x HDMI 1.4 out. Lenovo's published maximum resolution row reads 3840 x 2160 at 24 Hz over HDMI. Note the 24 Hz — a 4K signal from this unit is published at 24 Hz, which suits a room display showing a meeting, not a desktop |
| HDMI In | 1 x HDMI-in, marked in Lenovo's book as available on selected models only. We cannot confirm from Lenovo's documentation that it is present on this part number |
| Other Ports | 1 x Thunderbolt 4; 1 x USB-C 3.2 Gen 1 marked for the Controller; 1 x USB-C 3.2 Gen 2; 1 x USB-C 2.0 for the Core; 1 x USB 3.2 Gen 1; 2 x USB 3.2 Gen 2; 3.5 mm headphone and microphone combo jack; power connector |
| Networking | Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1 x RJ-45, supports Wake-on-LAN |
| Wireless | Lenovo lists two options for this machine type — Intel Wireless-AC 9260 (Wi-Fi 5, 802.11ac dual-band 2x2) or Intel Wi-Fi 6 AX201 (802.11ax 2x2). Lenovo's kit datasheet lists 802.11ac only. Which card is in this SKU is not published, so do not plan on Wi-Fi 6. Bluetooth 5.0 |
| Security | Discrete TPM 2.0, TCG certified. Kensington MiniSaver lock slot and a screw point for a security plate |
| Operating System | Windows IoT Enterprise for Collaboration. Lenovo's book lists both a Windows 11 IoT Enterprise for Collaboration GAC 64 and a Windows 10 IoT Enterprise for Collaboration SAC 64 build; which ships on this part number is not published |
| Preinstalled Platform | Microsoft Teams Rooms |
| Power | 90 W adapter, 89% autosensing |
| Dimensions and Weight | 226 x 200 x 37.5 mm; 1.1 kg per the specification sheet, 1.12 kg per the kit datasheet. VESA mountable |
ThinkSmart Controller — the Touch Console
| Screen | 10.1-inch, 1280 x 800 HD, 16:10, 10-point touch, anti-glare and anti-fingerprint, up to 340 nits |
| Sensors | Human presence sensor |
| Connection | USB-C, into the Core's dedicated controller port |
| Cable Length | 10 m USB-C cable, stated by Lenovo as included with the ThinkSmart Controller. Lenovo's book documents two different controllers for this family, and it does not publish which one ships in this part number — so treat 10 m as the figure for the ThinkSmart Controller rather than a guarantee about this box, and ask us to confirm before you plan a long cable run |
| Ergonomics | 85/85/85/85 viewing angles; rotatable to 30 and 60 degrees |
| Other | 3.5 mm headphone and microphone combo jack; Kensington MiniSaver security slot |
| Dimensions and Weight | 265.5 x 13 x 168.1 mm; 753.8 g |
Platform, Certification and Warranty
| Platform | Microsoft Teams Rooms |
| Lenovo's Wording | “Certified and preloaded with Microsoft Teams Rooms” |
| Independent Confirmation | Microsoft publishes its own Teams Rooms certified hardware list, linked in the downloads section. We could not load that list at the time this page was written, so the certification above is Lenovo's published claim, which we have not independently verified against Microsoft |
| Is the Platform Licence Included? | Not published by Lenovo. Lenovo says the platform is “preloaded”, which describes the software image rather than the subscription entitlement. Budget for the Microsoft Teams Rooms licence separately |
| Base Warranty | Lenovo's specification sheet publishes a single base term: 3-year limited onsite service. Its footnote adds that warranty upgrades may be bundled with some models |
| Premier Support | Lenovo's marketing datasheet offers a 3-year Premier Support term, together with 1-year deployment, 1-year maintenance and 1-year ThinkSmart Manager Premium. None of that appears in Lenovo's specification sheet for this machine type and none of it is tied to a part number. Premier Support is a higher service tier than the base onsite warranty — ask us to quote it explicitly if you want it |
| Environmental and Efficiency Certifications | Not published for this machine type. Lenovo's specification sheet carries no ENERGY STAR, EPEAT, TCO or RoHS rows |
Compatibility & Fit
Read this first: what is not in this box
This kit contains a compute unit and a touch controller. It contains no camera, no microphone and no speaker. Lenovo's specification sheet has no camera or audio row for the Core; the camera and audio rows in that book belong to separate products — the ThinkSmart Cam, the ThinkSmart Bar and the ThinkSmart Bar 180 — which are sold in the higher kit tiers. This tier is sold for rooms that already have their audio-visual equipment.
The kit you probably want instead is the Full Room Kit. Lenovo's Full Room tier adds the camera and the audio, and both the Teams and Zoom versions are in the ordering table below. Send us the room and we will tell you which tier it needs.
Teams and Zoom are different part numbers, not a setting
Lenovo builds these as separate machine types with separate factory software images. The Core with Controller is 11LR for Microsoft Teams Rooms and 11LT for Zoom Rooms; the Hub Gen 2 is 11H1 for Teams and 11H3 for Zoom. A Teams SKU is not a Zoom SKU. Order the platform your organisation actually runs.
Lenovo publishes a support article describing a unified-communications swap feature between Microsoft Teams Rooms and Zoom Rooms using ThinkSmart Manager. We can confirm the article exists, but its body is not readable to us, so we make no claim about which models it covers, what licences it needs or what its limitations are. If that flexibility matters to you, ask us and we will get a written answer from Lenovo before you order.
Which controller, and how far from the compute unit
Lenovo's book documents two controllers for this family and does not say which one ships in this part number. The ThinkSmart Controller connects over USB-C and Lenovo states a 10 m USB-C cable is included with it. The Lenovo IP Controller is a different device: it connects over gigabit Ethernet and comes with a Link Box carrying power, RJ-45, HDMI-in, HDMI-out and USB-B, and it is wall mountable with mount kits sold separately. Two cautions on the IP Controller, because they are widely misquoted: Lenovo's specification sheet for this family does not contain the words Power over Ethernet, and does not publish a maximum cable distance. A 100 m figure appears only in Lenovo's marketing datasheet. If the table is a long way from where the Core will be mounted, talk to us before ordering.
Availability of the Gen 1 machine type
This is the Gen 1 ThinkSmart Core. Lenovo's PSREF product listing for this family appears under a title ending “(Withdrawn)” and Lenovo's own store shows the Core + Controller Kit as temporarily unavailable, which together indicate the machine type is at end of marketing. We could not confirm that from a Lenovo source we can read directly, so we are not stating it as fact — but if you are standardising a fleet, the Gen 2 kits in the ordering table are the current generation and the safer choice for a long deployment. Ask us for current lead times either way.
What you still need to supply
The display or displays, their wall mounting, the power and network drops, the camera and audio if the room does not already have them, and the Microsoft Teams Rooms platform licence. A room system is an installation, not just a box — send us the room dimensions, the table shape, where people sit and where the power and network drops are, and we will size it properly.
Package Contents & ThinkSmart Room System Ordering Information
In the box, per Lenovo's published kit contents:
- ThinkSmart Core compute unit
- ThinkSmart Controller — 10.1-inch touch console
Lenovo specifies a 90 W autosensing adapter as the Core's power supply. Lenovo does not print a separate box-contents list for this kit beyond the compute unit and the controller, so we are quoting the adapter as a specification rather than asserting a packing list.
Not included: the display and its mounting, the camera, the audio system, and the Microsoft Teams Rooms platform licence. There is no camera and no audio in this kit — see the compatibility section above.
ThinkSmart Core Room Kit Ordering Information
| 11LR0005SG (this listing) | Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms — Compute + touch controller. No camera, no audio |
| 11LR000BSG | Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms — Compute + touch controller. No camera, no audio |
| 11S30008SG | Lenovo ThinkSmart Core Full Room Kit for Microsoft Teams Rooms — Complete room: Core, Controller, Cam and Bar |
| 11S3000LSG | Lenovo ThinkSmart Core Full Room Kit for Microsoft Teams Rooms — Complete room: Core, Controller, Cam and Bar |
| 12QJ0004SG | Lenovo ThinkSmart Core + IP Controller Kit for Microsoft Teams Rooms — Compute + IP controller. No camera, no audio |
| 12QN0004SG | Lenovo ThinkSmart Core Full Room + IP Controller Kit for Microsoft Teams Rooms — Complete room with an IP controller |
| 12VL0000SG | Lenovo ThinkSmart Core Full Room Kit + ThinkSmart Bar 180 — Complete room with the Bar 180 video bar instead of Cam + Bar |
| 12VR0000SG | Lenovo ThinkSmart Core Full Room Kit + IP Controller + Bar 180 — Complete room: Bar 180 with an IP controller |
| 12WA000ASG | Lenovo ThinkSmart Core Gen 2 + Controller Kit for Microsoft Teams Rooms, Core Ultra 5 135H — Gen 2 compute + controller. No camera, no audio |
| 12WA000BSG | Lenovo ThinkSmart Core Gen 2 + Controller Kit for Microsoft Teams Rooms, Core Ultra 7 165H — Gen 2 compute + controller. No camera, no audio |
| 12WE000BSG | Lenovo ThinkSmart Core Gen 2 + IP Controller Kit for Microsoft Teams Rooms, Core Ultra 5 135H — Gen 2 compute + IP controller. No camera, no audio |
| 12WE000CSG | Lenovo ThinkSmart Core Gen 2 + IP Controller Kit for Microsoft Teams Rooms, Core Ultra 7 165H — Gen 2 compute + IP controller. No camera, no audio |
| 12WJ0008SG | Lenovo ThinkSmart Core Gen 2 Full Room Kit + ThinkSmart Bar 180 — Gen 2 complete room with the Bar 180 video bar |
| 12WN000CSG | Lenovo ThinkSmart Core Gen 2 Full Room + IP Controller + Bar 180, Core Ultra 5 135H |
| 12WN000DSG | Lenovo ThinkSmart Core Gen 2 Full Room + IP Controller + Bar 180, Core Ultra 7 165H |
| 11LT0006SG | Lenovo ThinkSmart Core + Controller Kit for Zoom Rooms — Compute + touch controller. No camera, no audio |
| 11LT000CSG | Lenovo ThinkSmart Core + Controller Kit for Zoom Rooms — Compute + touch controller. No camera, no audio |
| 11S50008SG | Lenovo ThinkSmart Core Full Room Kit for Zoom Rooms — Complete room: Core, Controller, Cam and Bar |
| 11S5000KSG | Lenovo ThinkSmart Core Full Room Kit for Zoom Rooms — Complete room: Core, Controller, Cam and Bar |
| 12QL0004SG | Lenovo ThinkSmart Core + IP Controller Kit for Zoom Rooms — Compute + IP controller. No camera, no audio |
| 12QR0004SG | Lenovo ThinkSmart Core Full Room + IP Controller Kit for Zoom Rooms — Complete room with an IP controller |
Datasheet & Downloads
- Lenovo PSREF — ThinkSmart Core for Microsoft Team Rooms, specification sheet (PDF)
- Lenovo ThinkSmart Core Kits datasheet, Teams (PDF)
- Microsoft — Teams Rooms certified hardware list
Lenovo publishes ThinkSmart specifications at family level in PSREF, not per part number. The specification sheet above is the authoritative document for the chassis, the ports, the controller and the base warranty; the kit datasheet is a marketing document and differs from it on the wireless card and on the service tier, both of which we have shown side by side rather than reconciled. Neither document contains a per-model table, so no Lenovo source states a bill of materials for 11LR0005SG specifically. Ask us and we will confirm the exact build and the current warranty entitlement in writing before you order.
Frequently Asked Questions — Lenovo ThinkSmart Core + Controller Kit for Microsoft Teams Rooms
Does this kit include a camera and a microphone?
No — neither, and no speaker either. This tier is the compute unit and the touch controller only. Lenovo's specification sheet has no camera or audio row for the Core at all. If the room does not already have its audio-visual equipment, you want a Full Room Kit, which adds the camera and the audio — they are in the ordering table above and we will happily quote one instead.
Is it 8 GB or 16 GB of memory?
16 GB, soldered and not upgradable. Lenovo publishes 16 GB soldered DDR4-3200 for this machine type and publishes no 8 GB configuration of it. An 8 GB figure previously appeared on this listing and was incorrect; it has been corrected. Because the memory is soldered, it also cannot be increased later.
What is the difference between the Controller and the IP Controller?
The same size of touch panel, connected differently. The ThinkSmart Controller plugs into the Core over USB-C, and Lenovo states a 10 m USB-C cable is included with it. The Lenovo IP Controller runs over gigabit Ethernet with a Link Box that adds power, RJ-45, HDMI-in, HDMI-out and USB-B, and it is wall mountable with mount kits sold separately. Lenovo's specification sheet for this family does not publish a Power over Ethernet claim or a maximum distance for the IP Controller — the 100 m figure often quoted comes from Lenovo's marketing datasheet only. Lenovo also does not publish which of the two controllers ships in this part number, so ask us to confirm before you plan the cable run.
How many displays can it drive, and at what resolution?
The Core has two HDMI 1.4 outputs. Lenovo's published maximum resolution row reads 3840 x 2160 at 24 Hz over HDMI. Lenovo does not print an explicit “maximum displays supported” figure for this machine type, so we are quoting the ports rather than asserting a number. There is also an HDMI-in port, but Lenovo marks it as present on selected models only and does not confirm it for this part number.
Can I run Zoom Rooms on it instead?
Not as supplied. Lenovo builds the Teams and Zoom versions as separate machine types with separate factory software images — 11LR for Teams and 11LT for Zoom. They are different part numbers, not a setting. Lenovo does publish a support article describing a unified-communications swap feature using ThinkSmart Manager, but its content is not readable to us and we will not promise that a room system can be converted between platforms. If you need that flexibility, ask us and we will get it confirmed by Lenovo in writing.
Is the Microsoft Teams Rooms licence included?
Lenovo does not publish an answer. Its documents say the platform is “preloaded” or “preinstalled”, which describes the software image rather than the subscription entitlement. No Lenovo document states that a licence ships with the kit. Budget for the Microsoft Teams Rooms subscription separately, and ask us if you would like it quoted alongside the hardware.
What warranty does it carry?
Lenovo's specification sheet publishes a single base term for this machine type: 3-year limited onsite service, which is what we quote and what the heading on this page refers to. Lenovo's marketing datasheet separately offers a 3-year Premier Support term with deployment and maintenance services — a higher tier that does not appear in the specification sheet and is not tied to any part number there. If you want Premier Support, ask us to quote it explicitly rather than assuming it is included. Every SourceIT purchase includes Singapore local warranty support with a GST invoice.
