Lenovo ThinkSmart Core G2 Full Room + IP Controller + Bar 180 for Teams Rooms U5-135H (12WN000CSG)
Lenovo ThinkSmart Core G2 Full Room + IP Controller + Bar 180 for Teams Rooms U5-135H (12WN000CSG) - 3 Year Local Warranty
Bold Complete Teams Rooms Ecosystem
The Lenovo ThinkSmart Core G2 Full Room + IP Controller + Bar 180 for Teams Rooms (U5‑135H, 12WN000CSG) delivers a comprehensive AV solution, ideal for medium‑to‑large rooms.

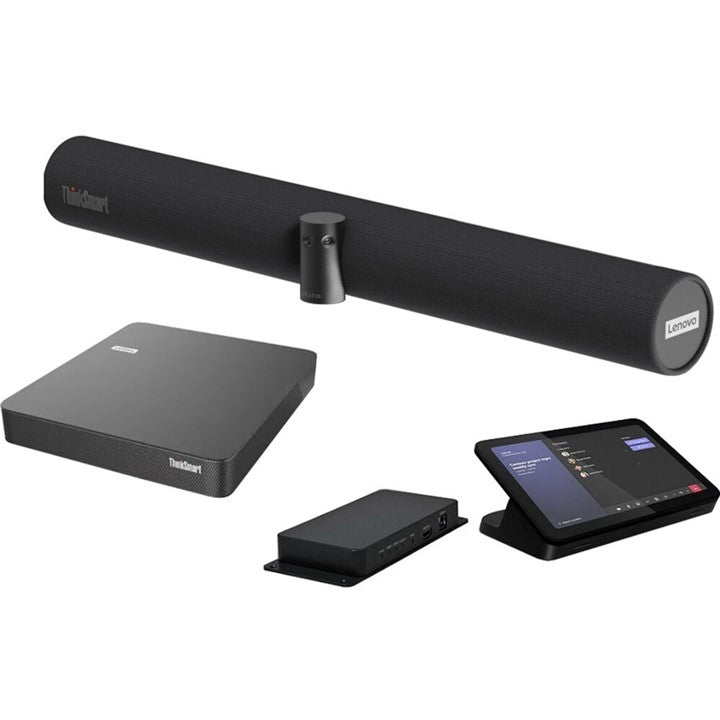

It includes the Core G2 compute unit, 10.1″ IP touch controller, and Bar 180 integrated smart audio/video bar.
Everything connects via PoE or single Ethernet—simplifying setup and reducing cables.
Bold Powerful AI‑Driven Audio and Visual Quality
Equipped with Intel® Core™ Ultra 5 135H vPro CPU and Intel Arc graphics, the compute supports high‑quality processing.
The Bar 180 merges smart audio with AI-enabled video capture, offering enhanced sound pickup and clear visuals in one sleek unit.
It handles beamforming, noise reduction, auto‑framing and speaker tracking, streamlining the AV experience.
Bold Flexible Controller & User Experience
The 10.1″ IP controller provides a sharp 1280×800 touch interface, anti-glare finish, and gesture-based controls.
Powered via PoE up to 100 m from the compute unit, it supports HDMI‑in for BYOD content sharing.
Its clean setup ensures intuitive meeting starts with just a tap.
Bold Seamless IT Management & Security
Preloaded with Teams Rooms software and managed through ThinkSmart Manager, IT teams can deploy and monitor remotely.
Security features include Windows 11 IoT, Intel vPro, ThinkShield, and TPM 2.0.
Bar 180 is fanless and designed for whisper-quiet room operation.
Technical Specification
Compute Unit: Intel Core Ultra 5 135H vPro (10-core W/NPU), Intel Arc graphics, Windows 11 IoT, 16 GB DDR5, 256 GB PCIe 4.0 NVMe SSD
Bar 180: Integrated AI AV bar with auto‑framing camera, beamforming mic array, echo & noise cancelling, PoE-powered
IP Controller: 10.1″ HD (1280×800), anti‑smudge, PoE-powered, HDMI‑in, USB‑C, optional mount
Ports (Compute): 2× HDMI‑out, HDMI‑in, 3× USB‑A, 2× USB‑C, 1× Thunderbolt 4, RJ‑45, Wi‑Fi 6E, Bluetooth 5.3
Dimensions & Weight: Compute ~220×185×38 mm/1.01 kg; Bar 180 approx. 900×80×90 mm; Controller 248×151×100 mm/0.97 kg
Power: Compute via 170 W adapter; peripherals via PoE
Support: 3‑year Premier Support; includes 1‑year ThinkSmart Manager Premium
Technical Specification
ThinkSmart™ Core Gen 2™ IP Full Room Kit (ThinkSmart Controller + ThinkSmart Bar 180)
Intel® Core™ Ultra 5 135H, 14C (4P + 8E + 2LPE) / 18T, Max Turbo up to 4.6GHz, 18MB
Graphic: Integrated Intel® Arc™ Graphics
16GB (2 x 8GB) Soldered DDR4-3200 / 256GB SSD M.2 2280 PCIe® 3.0x4 NVMe®
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
LAN / VESA Mount / HDMI / TBT4 / USB-C
ThinkSmart™ Core™ Full Room Kit (Lenovo® IP Controller + ThinkSmart Bar 180) 6/18/2024
1x ThinkSmart Core | 1x Lenovo IP Controller | 1x ThinkSmart Bar 180
Windows® 11 IoT Enterprise for Collaboration GAC 64, English
Lenovo® IP Controller, 10.1"" Touch Controller, Multi-touch, 1280x800, 16:10, PoE, HDMI®(in)
ThinkSmart™ Bar 180, 4x speaker (2 woofer, 2 tweeters), 8x microphone, 3x Camera, Noise cancellation
8x Mic on ThinkSmart™ Bar 180, -37dBFS, 100Hz - 8KHz
