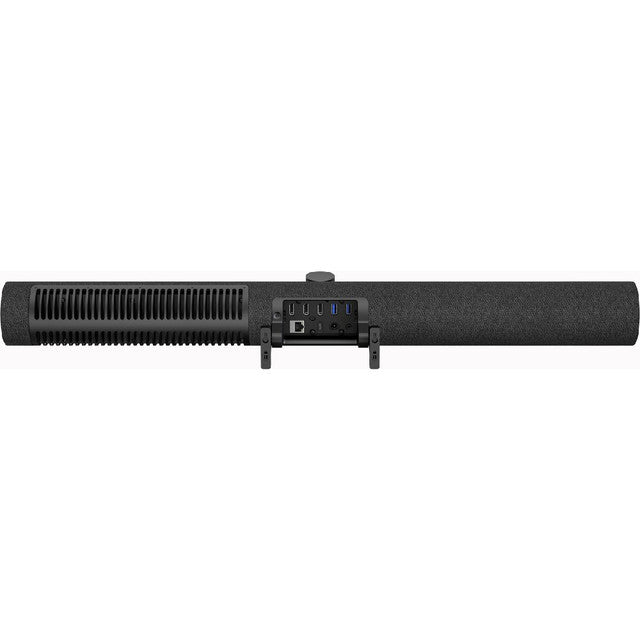

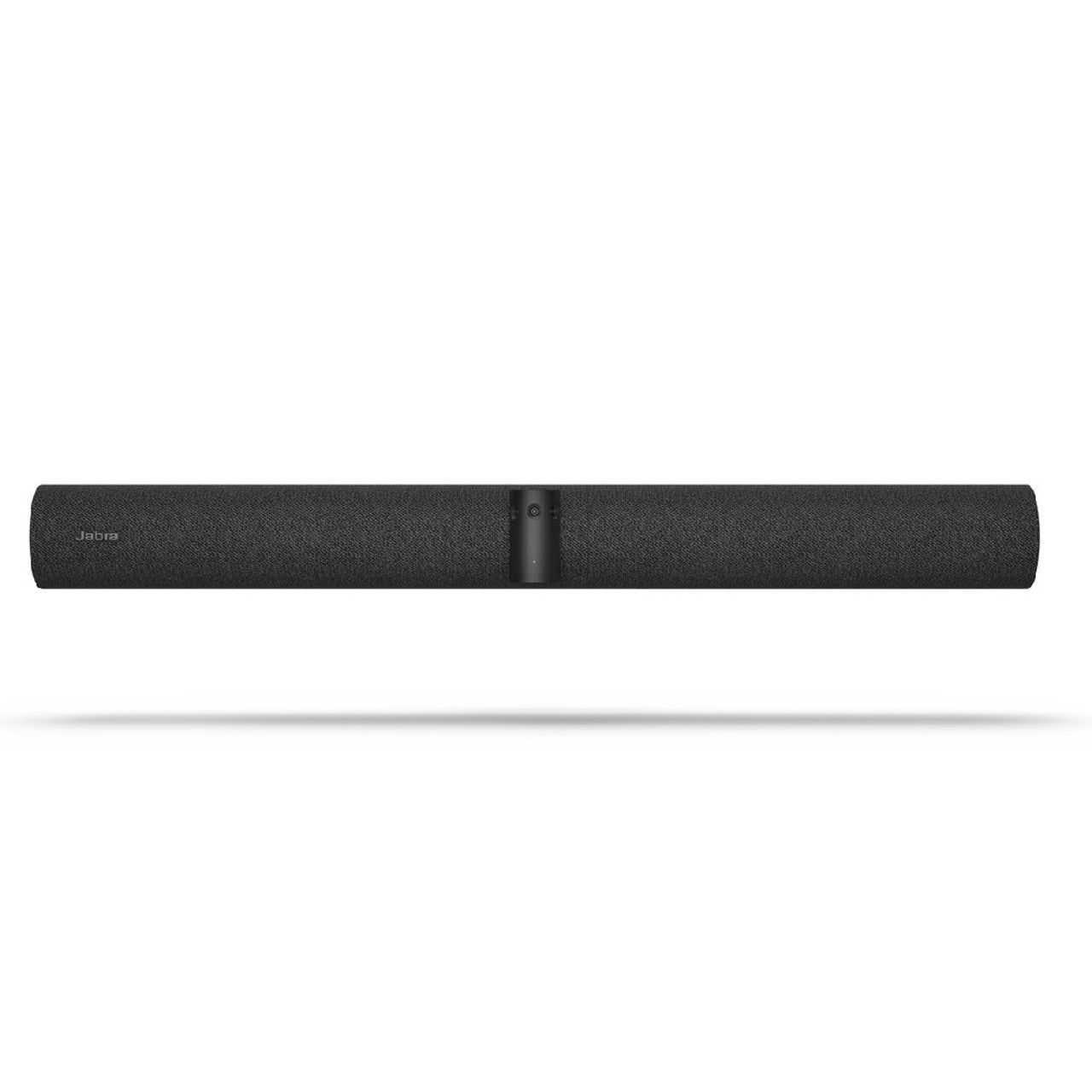

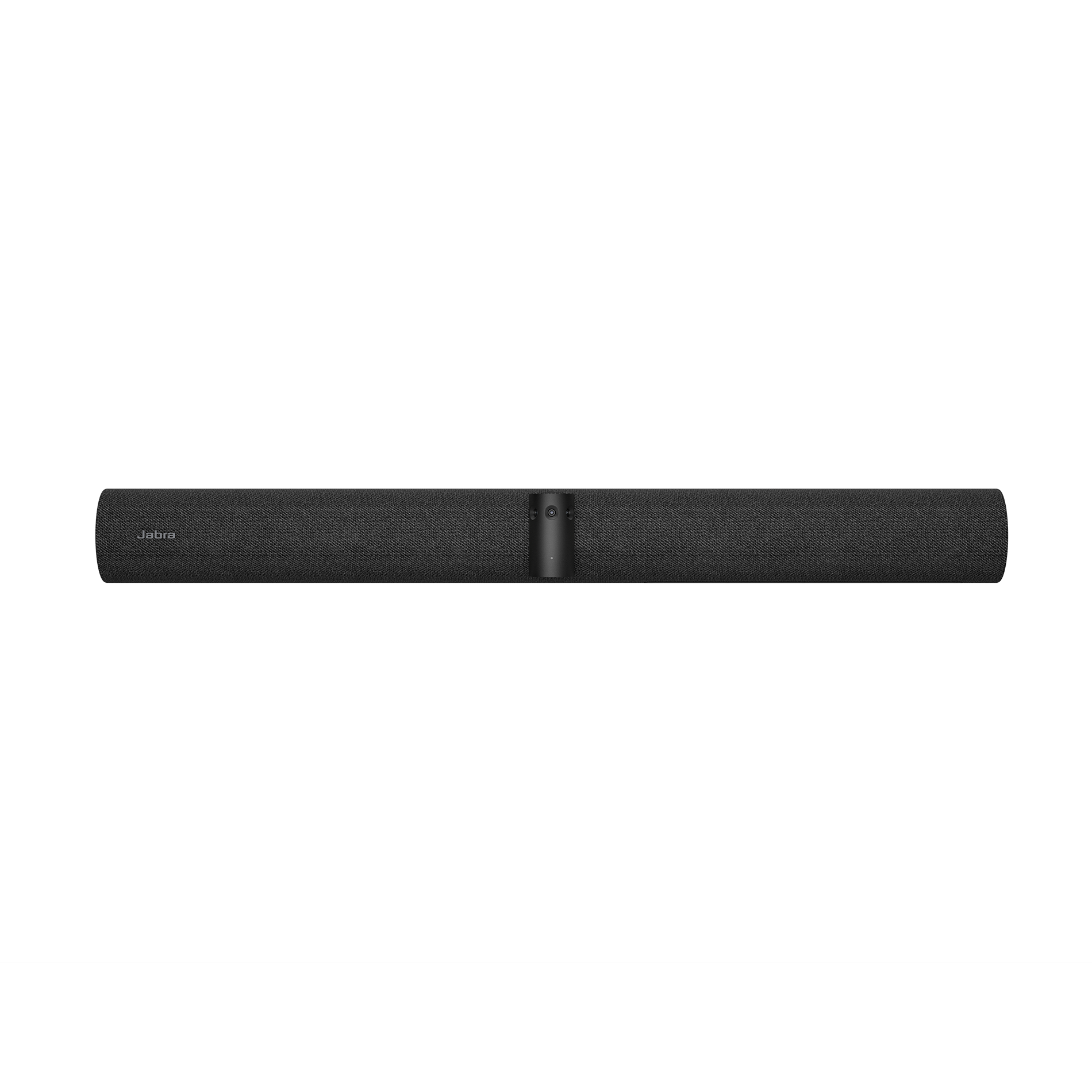

Jabra PanaCast 50 VBS Bar Only For UC Rooms
PRODUCT DESCRIPTION
Jabra PanaCast 50 VBS Bar Only for UC Rooms (8530-237) - 2 Years Local Warranty
All-in-One Android Video Bar System — No Room PC Required
The Jabra PanaCast 50 Video Bar System packs enterprise-grade Android compute (Qualcomm QCS8250 with secure boot and Microsoft PKI hardware root of trust) directly into the video bar. This Bar Only variant excludes the touch controller — the smart choice when pairing with a touchscreen display or adding controllers separately.
Full-Room 180° Panoramic-4K Coverage
Three 13 MP cameras stitch a real-time 180° Panoramic-4K view so nobody in your meeting room is off-camera, while Virtual Director, Dynamic Composition and Intelligent Meeting Space keep the meeting perfectly framed with on-device AI across 10 Edge processors.
Professional Stereo Audio & 8-Mic Beamforming Array
Dual woofers and dual tweeters deliver rich full-duplex stereo, and eight beamforming microphones with echo cancellation and noise suppression capture every voice clearly in rooms up to 4.5 m x 6 m.
Dual-Screen HDMI, Wireless Sharing & Smart Room Sensors
Drive up to two displays over HDMI, share content via HDMI input or wirelessly (Teams Cast / AirPlay), and monitor room health with built-in CO2, temperature, humidity and occupancy sensors — all remotely managed via Jabra+ and Jabra WebConsole.
Jabra PanaCast 50 VBS Datasheet — Technical Specifications
General
| Product | Jabra PanaCast 50 Video Bar System — Bar Only, UC Rooms (no touch controller) |
| Part Number | 8530-237 |
| Warranty | 2 Years Local Warranty (Singapore) |
Compute & Platform
| Built-in Compute | Android-based all-in-one video bar — no external PC required |
| Chipset | Qualcomm QCS8250 SoC; Qualcomm Trusted Execution Environment with Microsoft PKI hardware root of trust, secure boot |
| Processing | 7 Edge processors + 3 Edge AI processors |
| Modes | Native room app (Microsoft Teams Rooms on Android / Zoom Rooms), BYOD/USB mode, Appliance mode |
Camera & Video
| Camera Array | 3-camera panoramic array (3 x 13 MP) |
| Field of View | 180° horizontal / 54° vertical |
| Resolution | Panoramic-4K; up to 6x lossless digital zoom; Vivid HDR |
| AI Video Features | Intelligent Zoom, Virtual Director, Dynamic Composition, Multi-stream Dynamic Composition, Intelligent Meeting Space, manual PTZ, PeopleCount |
Audio
| Speakers | 2 x 50 mm woofers + 2 x 20 mm tweeters, 80 Hz – 20 kHz |
| Microphones | 8-microphone beamforming array, -37 dBFS, 100 Hz – 16 kHz |
| Audio Processing | Full duplex; echo cancellation; non-speech noise suppression; Automatic Speaker Detection |
| Mic Pickup | Certified for rooms up to 4.5 m x 6 m |
Connectivity
| Displays | HDMI output for up to 2 screens |
| Content Sharing | 1 x HDMI input; Miracast / Teams Cast (Teams), Apple AirPlay (Zoom) |
| Network | Ethernet RJ45; Wi-Fi 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.1 |
| USB | USB-A and USB-C (USB 2.0/3.0) |
| Room Sensors | Proximity, temperature, humidity, CO2, TVOC |
Design
| Dimensions | 730 x 77 x 146 mm |
| Weight | 2,259 g |
| Power | 100–240 V power supply (12 V / 5 A) |

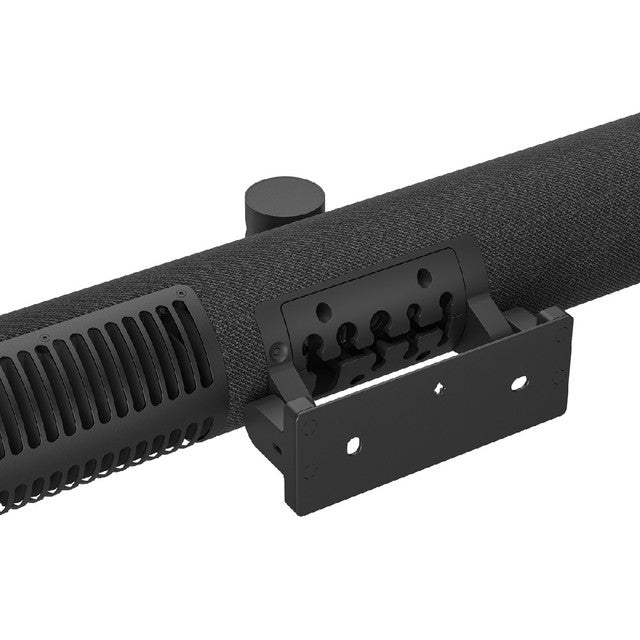

| Mounting | Wall mount included; optional table stand (14307-70) and wall mount (14307-57) |
Compatibility & Software Support
This SKU ships as the open UC Bar Only variant (no touch controller) with BYOD/USB and Appliance modes, and can be provisioned for Microsoft Teams Rooms on Android or Zoom Rooms.
| Certifications | Microsoft Teams Rooms certified; Zoom Rooms certified |
| Platform Options | Microsoft Teams Rooms on Android; Zoom Rooms; UC/BYOD via USB |
| Management | Jabra+ admin app; Jabra WebConsole remote management; Microsoft Teams Admin Center; Zoom Device Management |
| Room Size | Medium meeting rooms — up to 4.5 m x 6 m |
Package Contents & PanaCast 50 VBS Ordering Information
In the box: PanaCast 50 VBS video bar, power supply, wall mount, privacy cover with sensor, cable compartment cover & tool, 1 x 1.83 m Ethernet cable, 1 x 1.83 m HDMI cable, regional power cable. (Touch controller not included — designed for use with a touchscreen display or purchased separately.)
| VBS for UC Rooms (bar + touch controller) | 8500-237 |
| VBS for Microsoft Teams Rooms (bar + touch controller) | 8501-237 |
| VBS for Zoom Rooms (bar + touch controller) | 8502-237 |
| VBS Bar Only for UC Rooms (no controller) | 8530-237 |
Datasheet & Downloads
Download the official Jabra documentation for full technical specifications:
Frequently Asked Questions — Jabra PanaCast 50 VBS
Q: Does the PanaCast 50 VBS need a separate meeting room PC?
A: No. The Video Bar System has Android compute built into the bar (Qualcomm QCS8250) and runs Microsoft Teams Rooms on Android or Zoom Rooms natively — just add displays, network and power.
Q: What is the difference between the MS, Zoom and UC variants?
A: The hardware is identical; each SKU ships set up for a different room platform: 8501-237 for Microsoft Teams Rooms, 8502-237 for Zoom Rooms, and 8500-237 for UC/BYOD rooms. The platform can be switched in admin settings.
Q: What is the difference between "VBS" and the regular PanaCast 50 video bar?
A: The regular PanaCast 50 (8200-237) is a USB peripheral that needs a room PC or laptop. The VBS is a self-contained Android room system with HDMI output for two screens, Wi-Fi, and wireless content sharing built in.
Q: Is a touch controller included?
A: The system SKUs (8500/8501/8502) include the Jabra PanaCast Control 10.1" PoE touchscreen. The Bar Only SKU (8530-237) excludes it — ideal when pairing with a touchscreen display.
Q: Can people share content wirelessly?
A: Yes — Miracast / Teams Cast on Microsoft Teams Rooms and Apple AirPlay on Zoom Rooms, plus a dedicated HDMI input for wired content sharing.
Q: Does the PanaCast 50 VBS come with warranty in Singapore?
A: Yes. Every PanaCast 50 VBS sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
