J5Create JVAW76MAX ScreenCast 4K Max Wireless Display Adapter
Shipping calculated at checkout.
PRODUCT DESCRIPTION

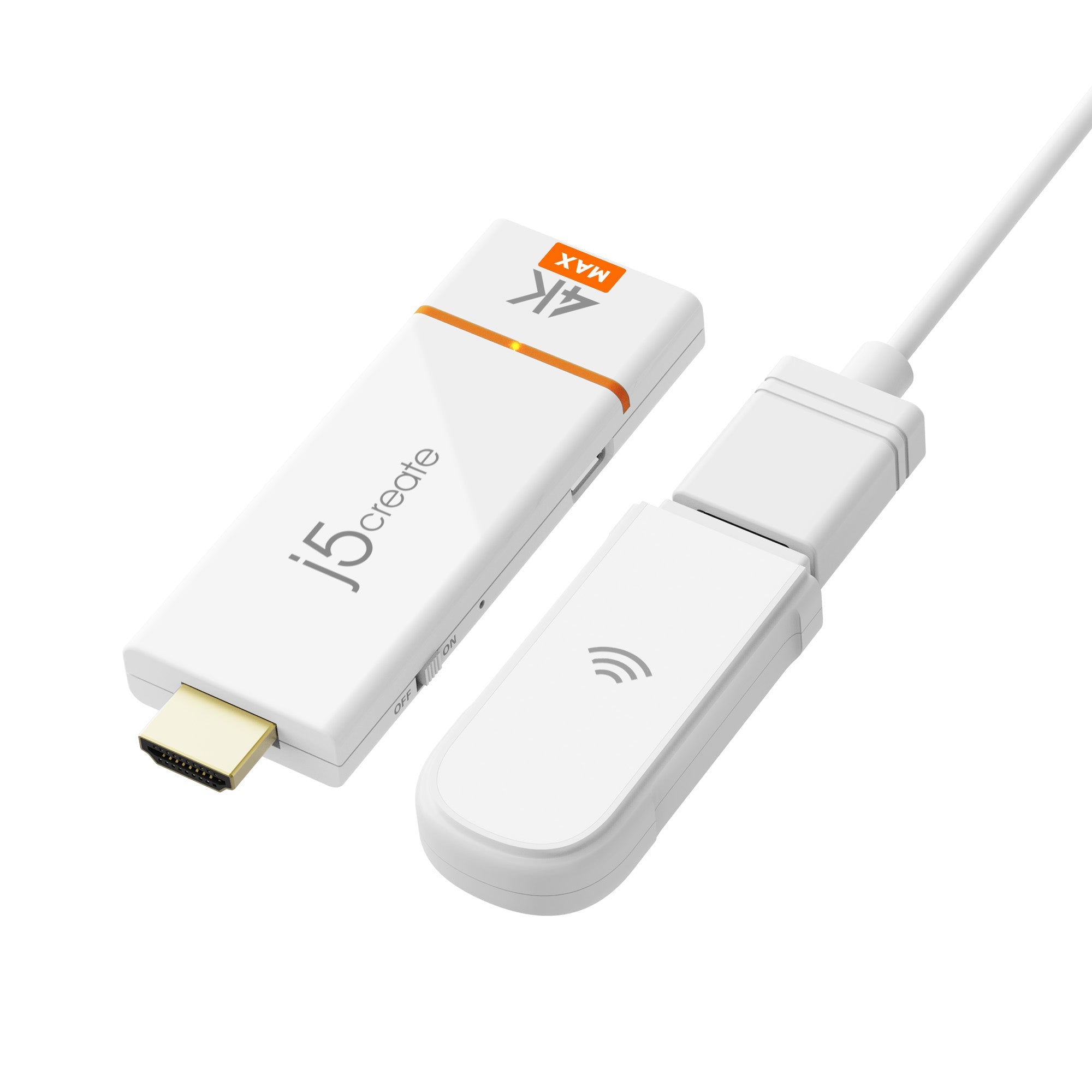

J5Create JVAW76MAX ScreenCast 4K Max Wireless Display Adapter - 1 Year Local Warranty
A j5create ScreenCast wireless display solution for presenting from a laptop, tablet or phone to a TV, monitor or projector without running an HDMI cable across the room.
Key Features
- Wireless casting up to 4K, with upscaling of 1080p Miracast sources on 4K displays
- Supports AirPlay, Miracast and Google Cast; mirror and extend display modes
- Business/education controls: custom background, Miracast PIN and admin gateway password
- Dual-band 2.4/5 GHz Wi-Fi, up to 15 m range; no Wi-Fi needed for AirPlay/Miracast
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JVAW76MAX Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 1-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JVAW76MAX |
| Product Name | ScreenCast 4K Max Wireless Display Adapter |
| EAN | 4712795089455 |
Video
| Max Resolution | Up to 4K (3840 x 2160) |
| Supported Output Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| HDMI Compliance | HDMI v1.4 |
| Audio Channel | 2.1 via HDMI |
Wireless
| Standard | IEEE 802.11ac |
| Frequency | Dual-band 2.4 GHz / 5 GHz |
| Channel Width | 20 MHz, 40 MHz |
| Range | Up to 15 m (50 ft) in open environment |
| Antenna | External antenna |
| Security / Encryption | WPA2 |
| Casting Protocols | AirPlay, Miracast, Chromecast (Google Cast) |
Hardware
| Host Connector | HDMI male |
| Power Source | USB micro-B to USB Type-A male |
Physical
| Dimensions (W x H x D) | 32 x 95 x 11 mm (1.25 x 3.74 x 0.43 in) |
| Weight | 79.5 g (2.8 oz) |
| Cable Length | 100 cm (39 in) antenna/power cable |
| Colour | White |
| Operating Temperature | -10 to +40 C (+14 to +104 F) |
| Storage Temperature | -20 to +50 C (-4 to +122 F) |
| Operating Humidity | < 85% non-condensing |
| Storage Humidity | < 85% non-condensing |
Compatibility
| Windows | Windows 10 / 8.1 |
| macOS | 10.15 or later with AirPlay support |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 8.0 or later |
| Chrome OS | Supported |
| Network | Wi-Fi not required for AirPlay/Miracast; required for Google Cast |
Features
| Display Modes | Mirror and extend |
| Miracast Source Output | 1080p / 720p / 480p (upscaled to 4K on 4K display) |
| Management | Customisable background, Miracast PIN code, Admin Gateway Password |
Compatibility & System Requirements
System Requirements
- Windows 10 / 8.1
- Android 8.0 or later
- macOS 10.15 or later with AirPlay support
- iOS 10.0 or later
- iPadOS 13 or later
- Chrome OS
Compatibility
| Windows | Windows 10 / 8.1 |
| macOS | 10.15 or later with AirPlay support |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 8.0 or later |
| Chrome OS | Supported |
| Network | Wi-Fi not required for AirPlay/Miracast; required for Google Cast |
Package Contents & j5create ScreenCast Wireless Display Ordering Information

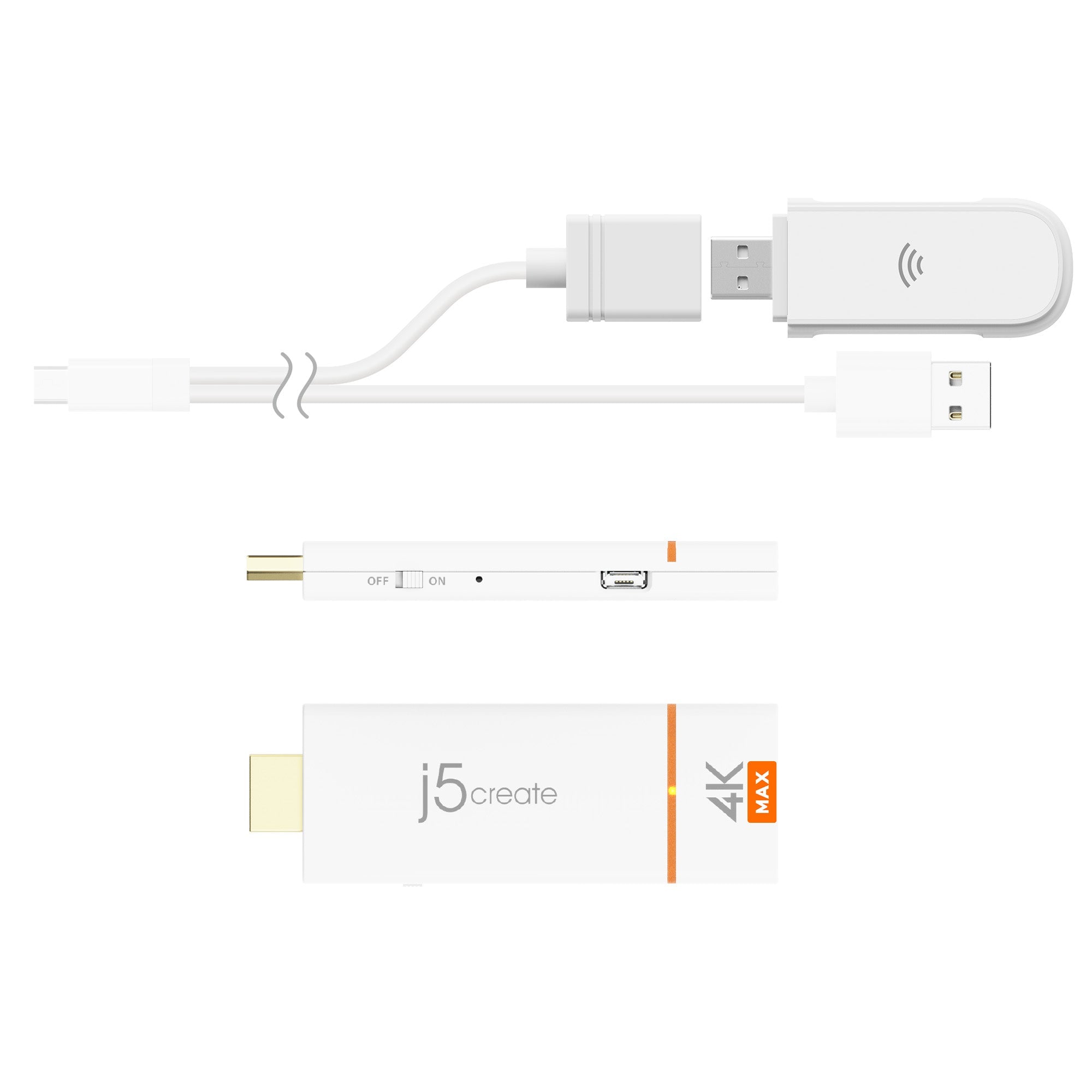

In the Box
- 1 x JVAW76MAX ScreenCast 4K Max Wireless Display Adapter
- 1 x External antenna with USB Type-A power cable (39 in)
- 1 x HDMI extension cable (5.11 in)
- 1 x Quick Installation Guide
j5create ScreenCast Wireless Display at SourceIT
| Model | Product |
| JVAW62T76MAX | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| JVAW76-1T | ScreenCast 4K Wireless Display Adapter |
| JVAW76MAX (this listing) | ScreenCast 4K Max Wireless Display Adapter |
| JVAW60 | ScreenCast Mini Duo |
| JVAW56 | ScreenCast Wireless Display Adapter |
| JVAW62 | ScreenCast USB-C Wireless Display HDMI Extender |
| JVAW65 | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
Datasheet & Downloads
| j5create product page | JVAW76MAX on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
| Country of Origin Declaration | Country of Origin Declaration (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JVAW76MAX.
Frequently Asked Questions — j5create JVAW76MAX
What warranty do I get?
1-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JVAW76MAX and the quantity for volume pricing and delivery lead time.
