J5Create JVAW65 ScreenCast Mini - HDMI FHD Wireless Display Adapter
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JVAW65 ScreenCast Mini - HDMI FHD Wireless Display Adapter - 1 Year Local Warranty
A j5create ScreenCast wireless display solution for presenting from a laptop, tablet or phone to a TV, monitor or projector without running an HDMI cable across the room.
Key Features

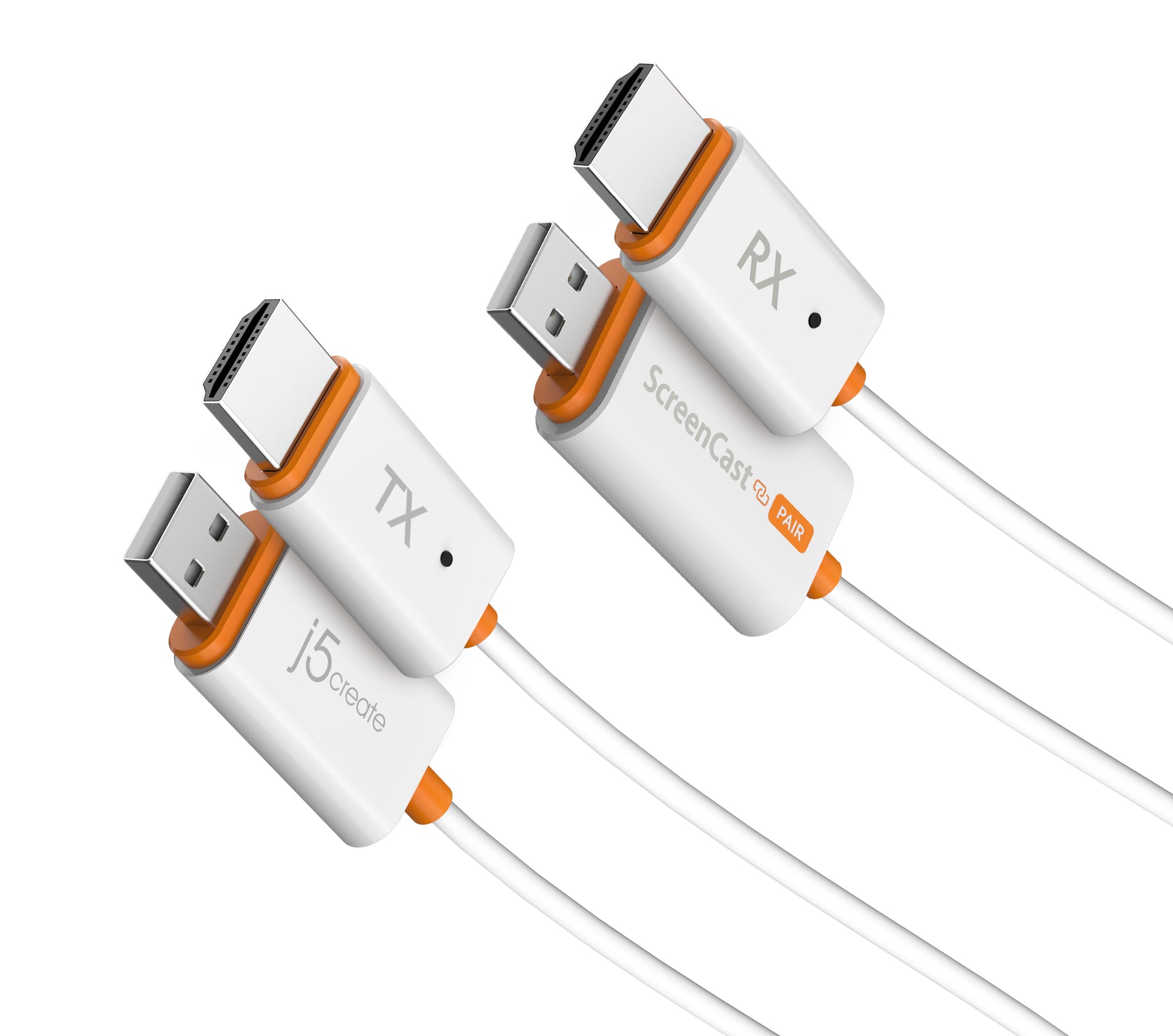

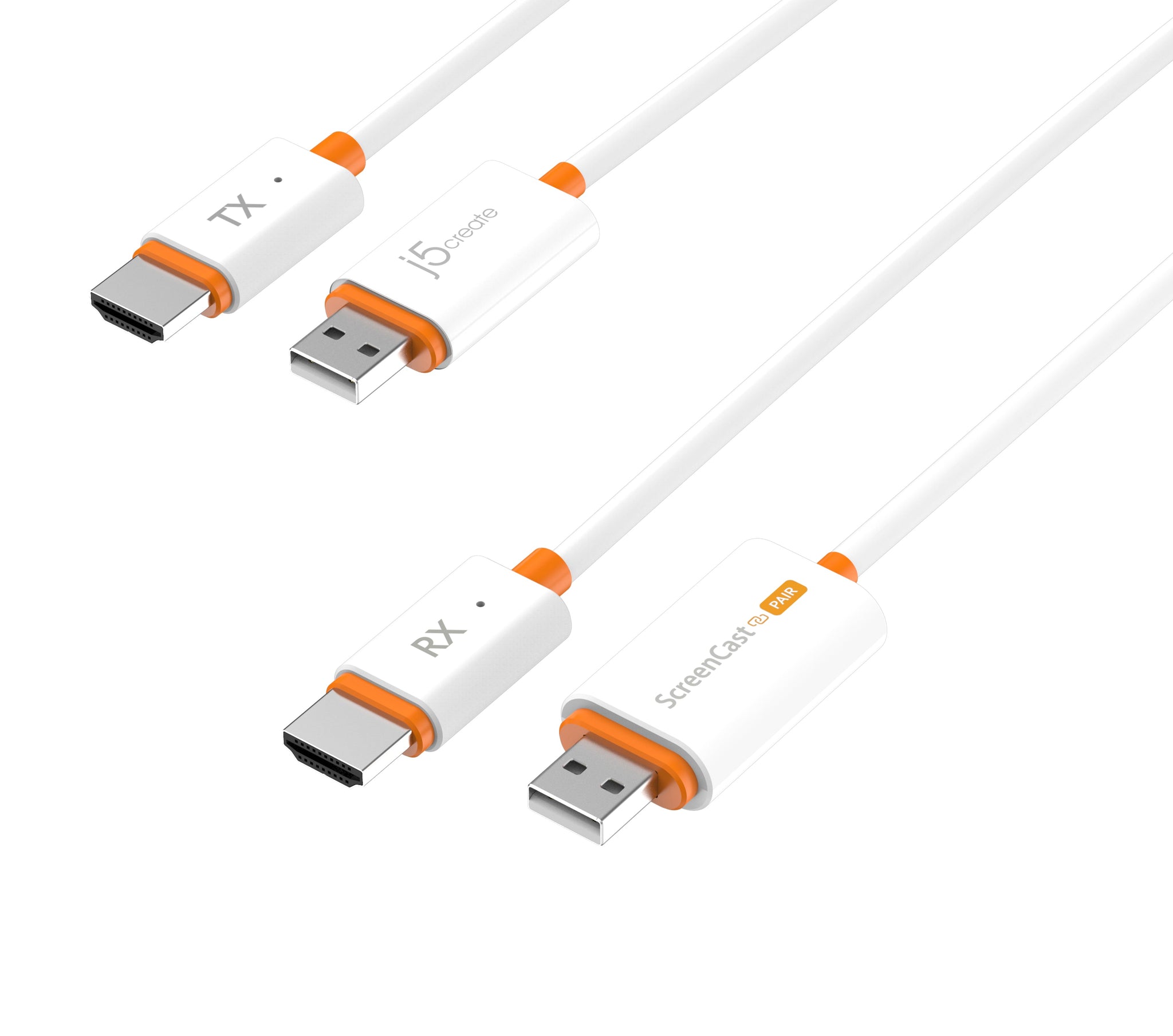

- HDMI transmitter and receiver pair for plug-and-play 1080p60 wireless display
- DRM/HDCP-protected content supported via the HDMI transmitter
- Receiver also accepts AirPlay and Miracast casting
- Portrait and dual display modes with low-latency casting
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JVAW65 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 1-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JVAW65 |
| Product Name | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
| EAN | 4712795089882 |
Video
| Max Resolution | 1920 x 1080 @ 60Hz |
| Supported Output Resolutions | 1920 x 1080, 1280 x 720, 720 x 480 |
| HDMI Compliance | HDMI v1.3 |
| Audio Channel | 2.1 via HDMI |
| Content Protection | DRM and HDCP compliant (via HDMI transmitter) |
| Display Modes | Portrait mode, dual display modes |
Wireless
| Standard | IEEE 802.11n |
| Frequency | 5 GHz + 2.4 GHz dual band (marketing copy) |
| Channel Width | 20 MHz, 40 MHz |
| Range | Up to 30 m |
| Antenna | Internal |
| Security / Encryption | WPA2 |
| Casting Protocols | AirPlay, Miracast |
Hardware
| Connector | HDMI male (transmitter / receiver) |
| Power Source | USB Type-A male (transmitter / receiver) |
Compatibility
| Windows | 10 or later |
| macOS | 10.15 or later (with AirPlay support) |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 8.0 or later |
Physical
| Transmitter Dimensions (W x H x D) | 20 x 33 x 10.5 mm (0.78 x 1.3 x 0.41 in) |
| Transmitter Weight | 27 g (0.95 oz) |
| Extension Cable Weight | 28 g (0.99 oz) |

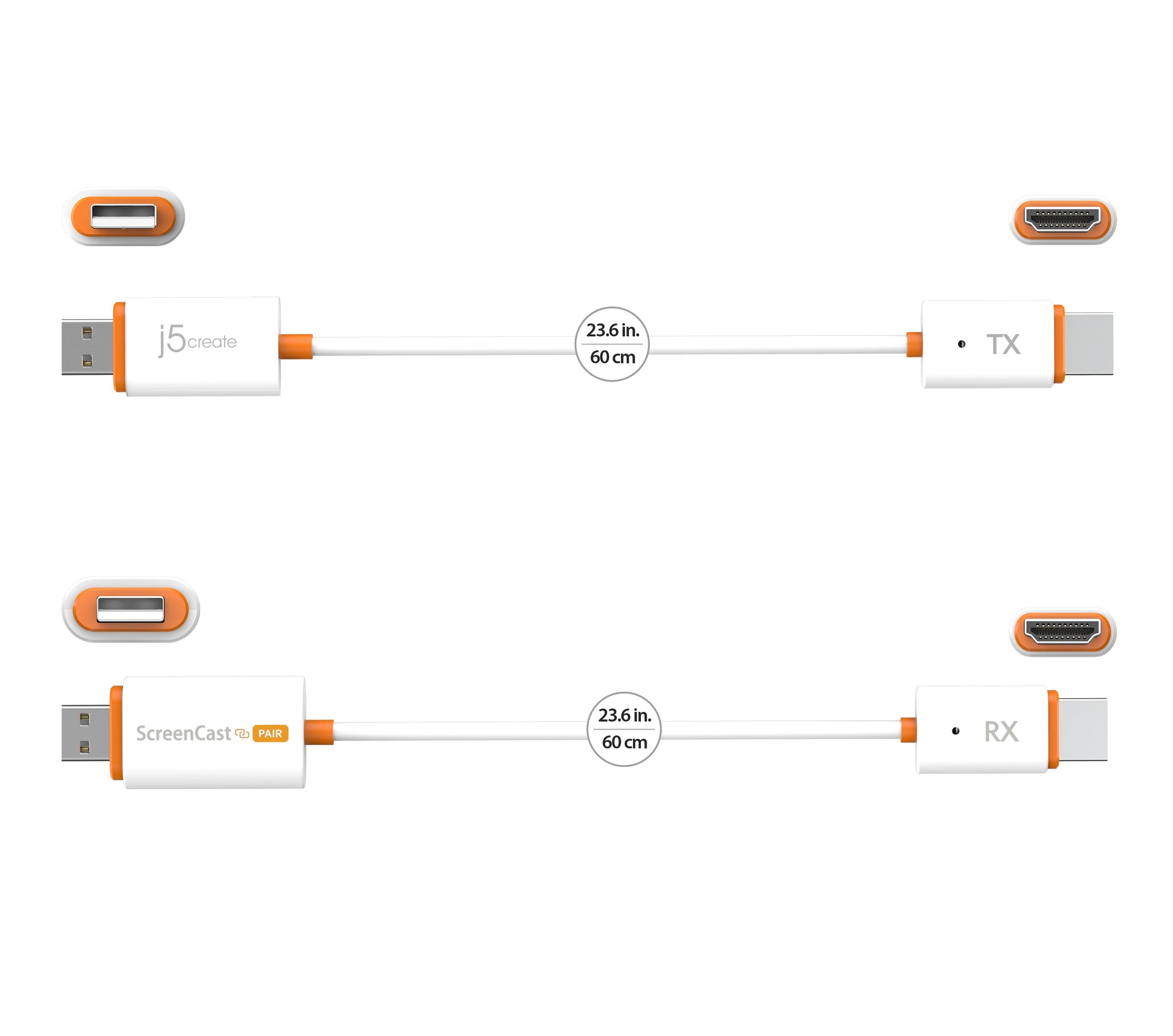

| Cable Length | TX 600 mm (23.6 in) / RX 600 mm (23.6 in) |
| Colour | White / Orange |
| Enclosure | Plastic |
| Operating Temperature | -10 to 40 C (14 to 104 F) |
| Storage Temperature | -20 to 50 C (-4 to 122 F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Windows 10 or later
- Android 8.0 or later
- macOS 10.15 or later (with AirPlay support)
- iOS 10.0 or later
- iPadOS 13 or later
- Intended to be used with an external wireless display
Compatibility
| Windows | 10 or later |
| macOS | 10.15 or later (with AirPlay support) |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 8.0 or later |
Package Contents & j5create ScreenCast Wireless Display Ordering Information
In the Box
- 1 x JVAW65 ScreenCast Mini - HDMI FHD Wireless Display Adapter
- 1 x USB Type-A extension cable (23.6 in)
- 1 x Quick Installation Guide
j5create ScreenCast Wireless Display at SourceIT
| Model | Product |
| JVAW62T76MAX | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| JVAW76-1T | ScreenCast 4K Wireless Display Adapter |
| JVAW76MAX | ScreenCast 4K Max Wireless Display Adapter |
| JVAW60 | ScreenCast Mini Duo |
| JVAW56 | ScreenCast Wireless Display Adapter |
| JVAW62 | ScreenCast USB-C Wireless Display HDMI Extender |
| JVAW65 (this listing) | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
Datasheet & Downloads
| j5create product page | JVAW65 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JVAW65.
Frequently Asked Questions — j5create JVAW65
What warranty do I get?
1-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JVAW65 and the quantity for volume pricing and delivery lead time.
