J5Create JVAW56 ScreenCast Wireless Display Adapter
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JVAW56 ScreenCast Wireless Display Adapter - 1 Year Local Warranty
A j5create ScreenCast wireless display solution for presenting from a laptop, tablet or phone to a TV, monitor or projector without running an HDMI cable across the room.
Key Features
- HDMI dongle that casts Full HD 1080p video with HD audio
- Supports Miracast, AirPlay and Google Cast from Windows, macOS, iOS and Android
- Dual-band 2.4/5 GHz Wi-Fi; can cast offline without internet
- USB-powered from the TV or a USB adapter; extension cable included
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JVAW56 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 1-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JVAW56 |
| Product Name | ScreenCast Wireless Display Adapter |
| EAN | 4712795085471 |
Video
| Max Resolution | 1920 x 1080 |
| Supported Output Resolutions | 1920 x 1080, 1280 x 720, 720 x 480 |
| HDMI Compliance | HDMI v1.3 |
| Audio Channel | 2.1 via HDMI |
Wireless
| Standard | IEEE 802.11ac |
| Frequency | Dual-band 2.4 GHz / 5 GHz |
| Channel Width | 20 MHz, 40 MHz |
| Range | Up to 10-15 m |
| Casting Protocols | Miracast, AirPlay, Chromecast (Google Cast) |
Hardware
| Power Source | USB Type-A male |
Compatibility
| Windows | Windows 10 / 8.1 |
| macOS | 10.15 or later with AirPlay support |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 4.0 or later |

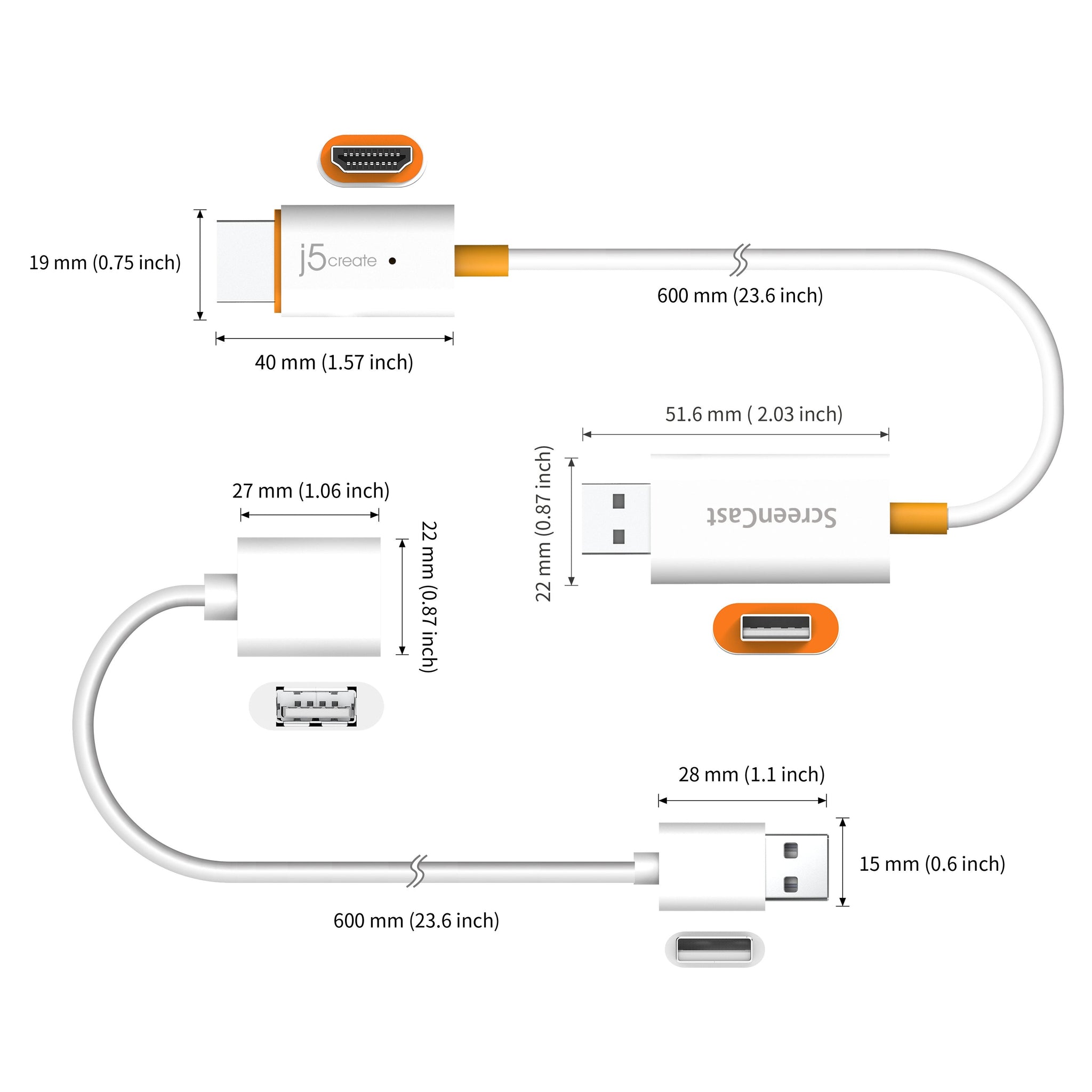

Physical
| Dimensions (W x H x D) | 24 x 57 x 10.5 mm (0.95 x 2.2 x 0.41 in) |
| Weight | 31.5 g |
| Cable Length | 60 cm (23.6 in) USB extension |
| Operating Temperature | -10 to +40 C (+14 to +104 F) |
Compatibility & System Requirements
System Requirements
- Windows 10 / 8.1
- Android 4.0 or later
- macOS 10.15 or later with AirPlay support
- iOS 10.0 or later
- iPadOS 13 or later
Compatibility
| Windows | Windows 10 / 8.1 |
| macOS | 10.15 or later with AirPlay support |
| iOS | 10.0 or later |
| iPadOS | 13 or later |
| Android | 4.0 or later |
Package Contents & j5create ScreenCast Wireless Display Ordering Information
In the Box
- 1 x JVAW56 ScreenCast Wireless Display Adapter
- 1 x USB Type-A extension cable (23.6 in)
- 1 x Quick Installation Guide
j5create ScreenCast Wireless Display at SourceIT
| Model | Product |
| JVAW62T76MAX | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| JVAW76-1T | ScreenCast 4K Wireless Display Adapter |
| JVAW76MAX | ScreenCast 4K Max Wireless Display Adapter |
| JVAW60 | ScreenCast Mini Duo |
| JVAW56 (this listing) | ScreenCast Wireless Display Adapter |
| JVAW62 | ScreenCast USB-C Wireless Display HDMI Extender |
| JVAW65 | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
Datasheet & Downloads
| j5create product page | JVAW56 on j5create.com |
| Quick Install Guide (JVAW54/56/76) | Quick Install Guide (JVAW54/56/76) (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JVAW56.
Frequently Asked Questions — j5create JVAW56
What warranty do I get?
1-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JVAW56 and the quantity for volume pricing and delivery lead time.
