J5Create JVAW62T76MAX ScreenCast USB-C Wireless Display Extender (with Antenna)
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JVAW62T76MAX ScreenCast USB-C Wireless Display Extender (with Antenna) - 1 Year Local Warranty

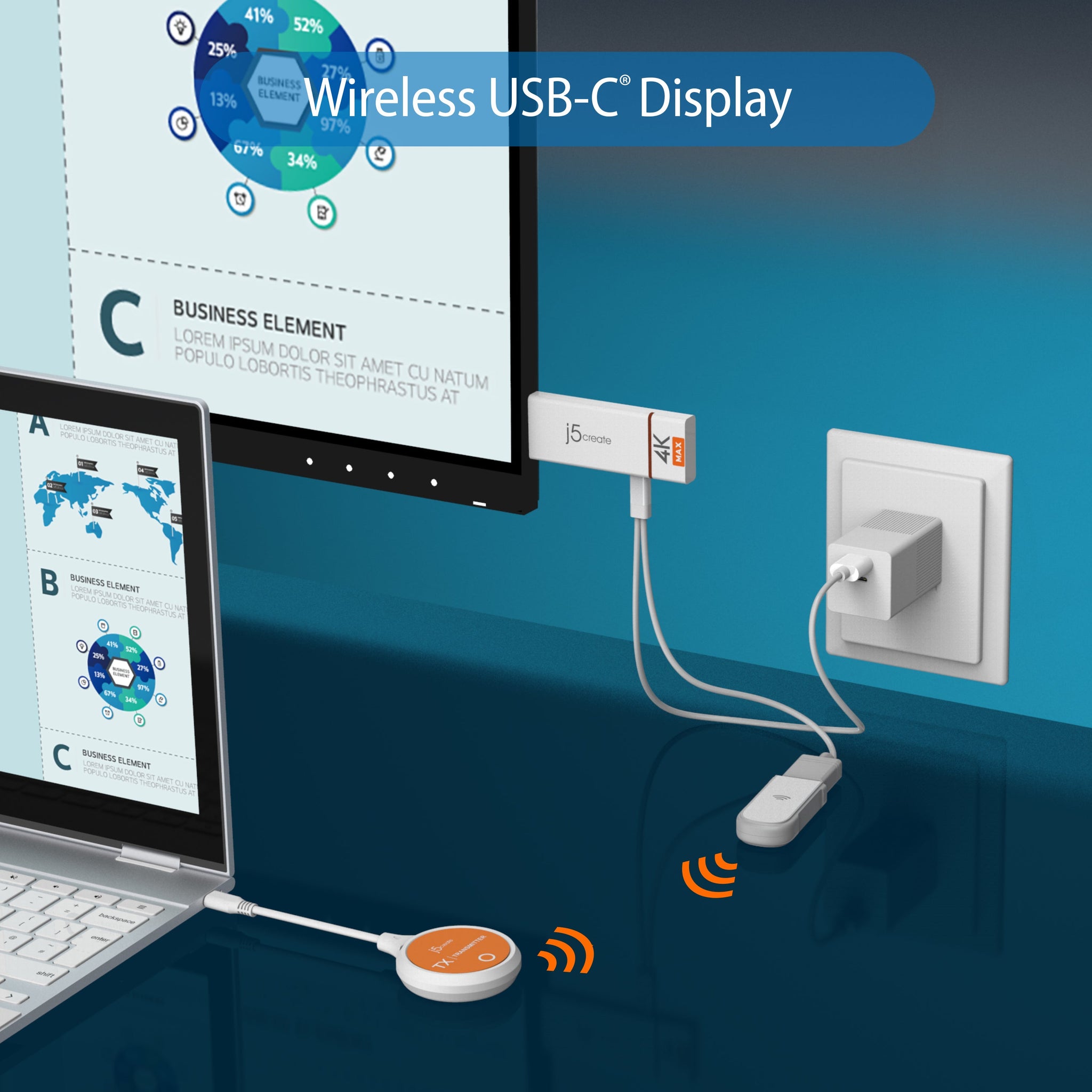

A j5create ScreenCast wireless display solution for presenting from a laptop, tablet or phone to a TV, monitor or projector without running an HDMI cable across the room.
Key Features

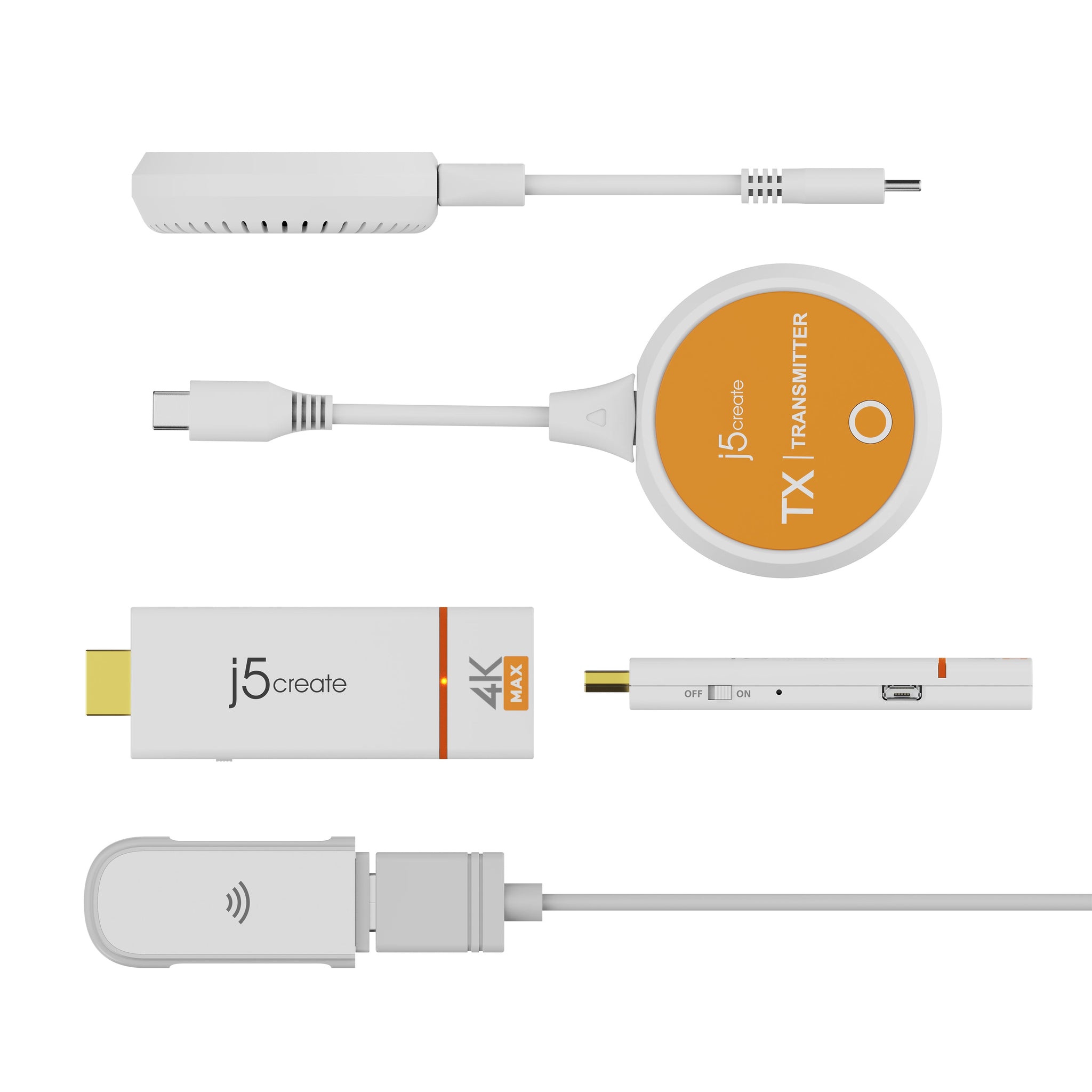

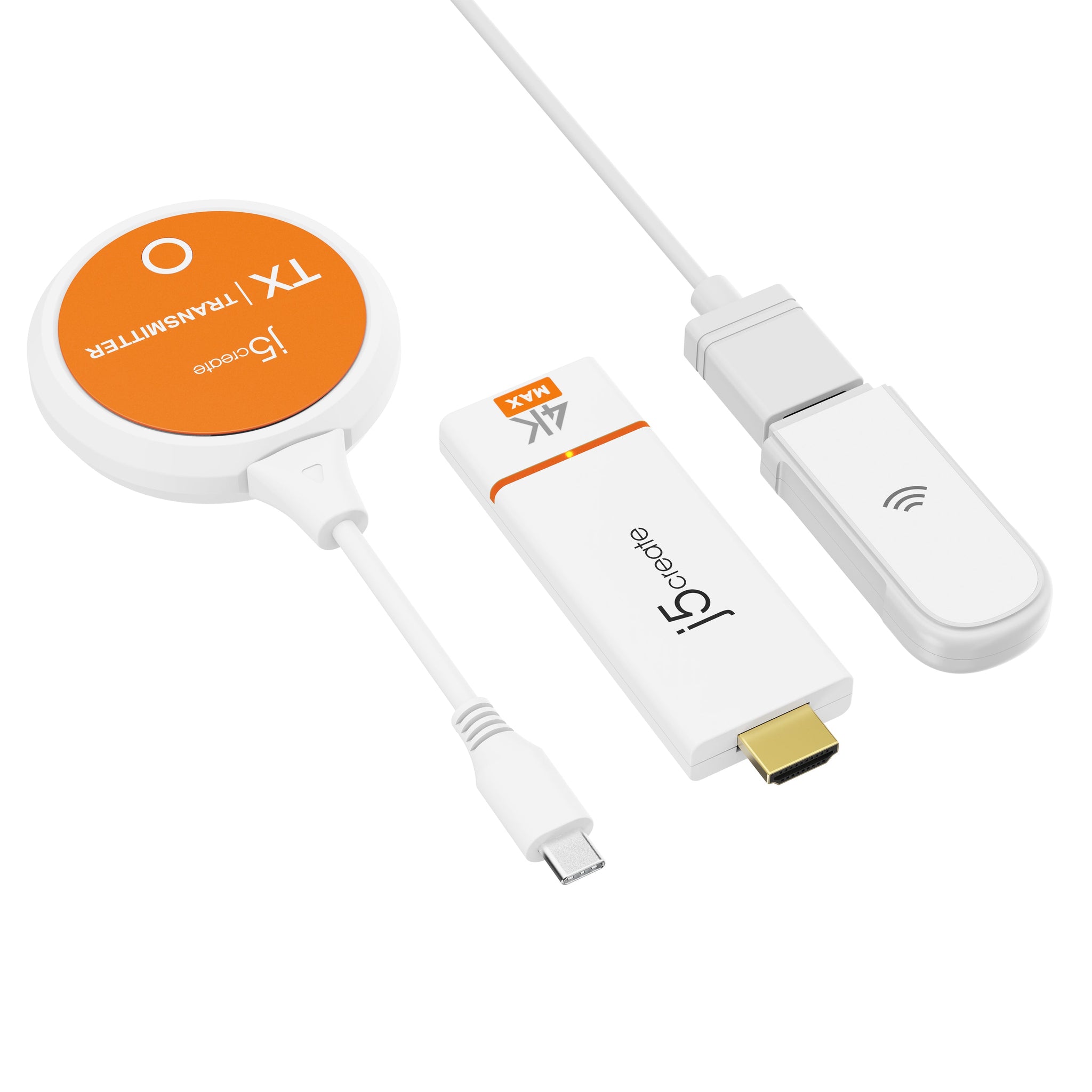

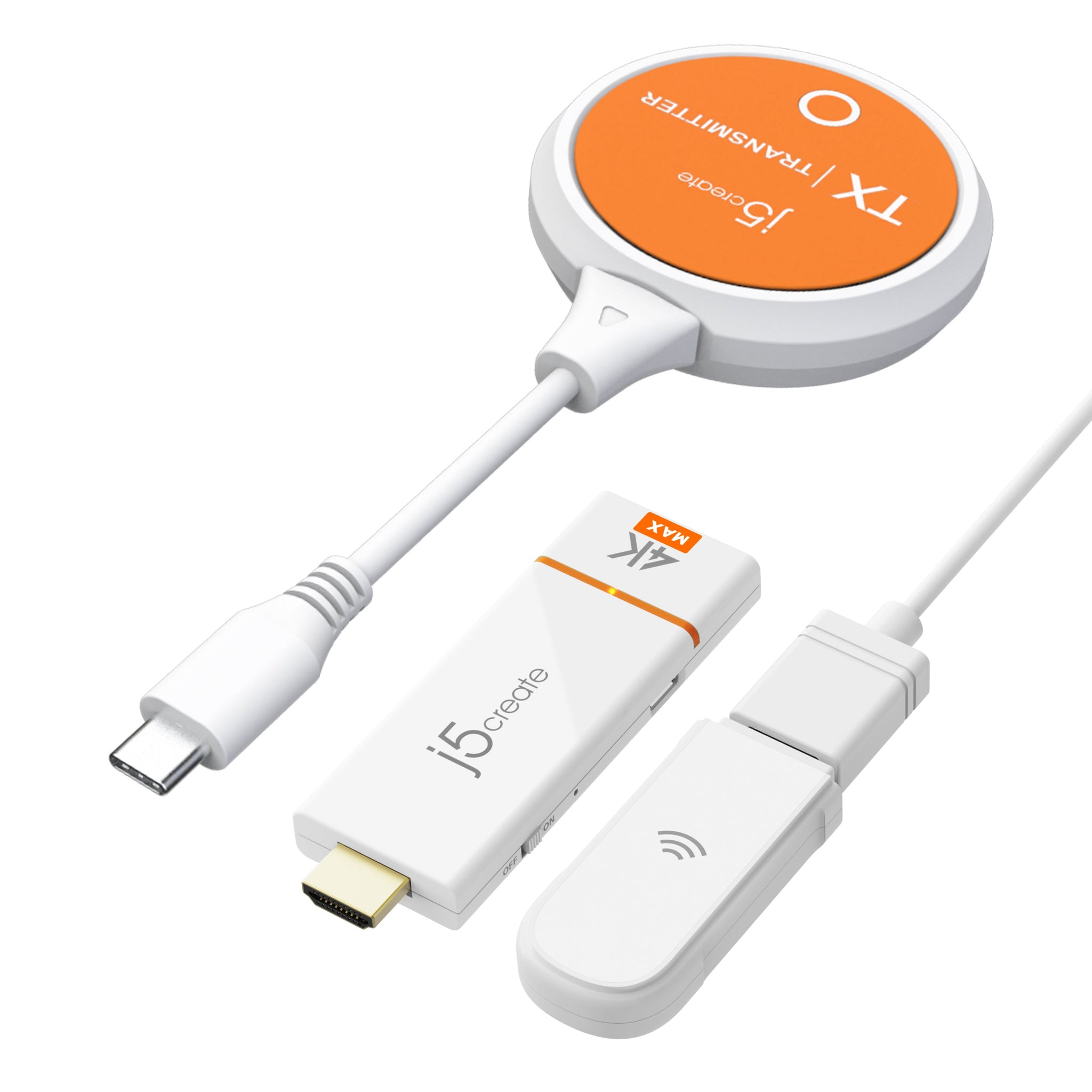

- Kit of a USB-C wireless transmitter plus HDMI receiver with external antenna

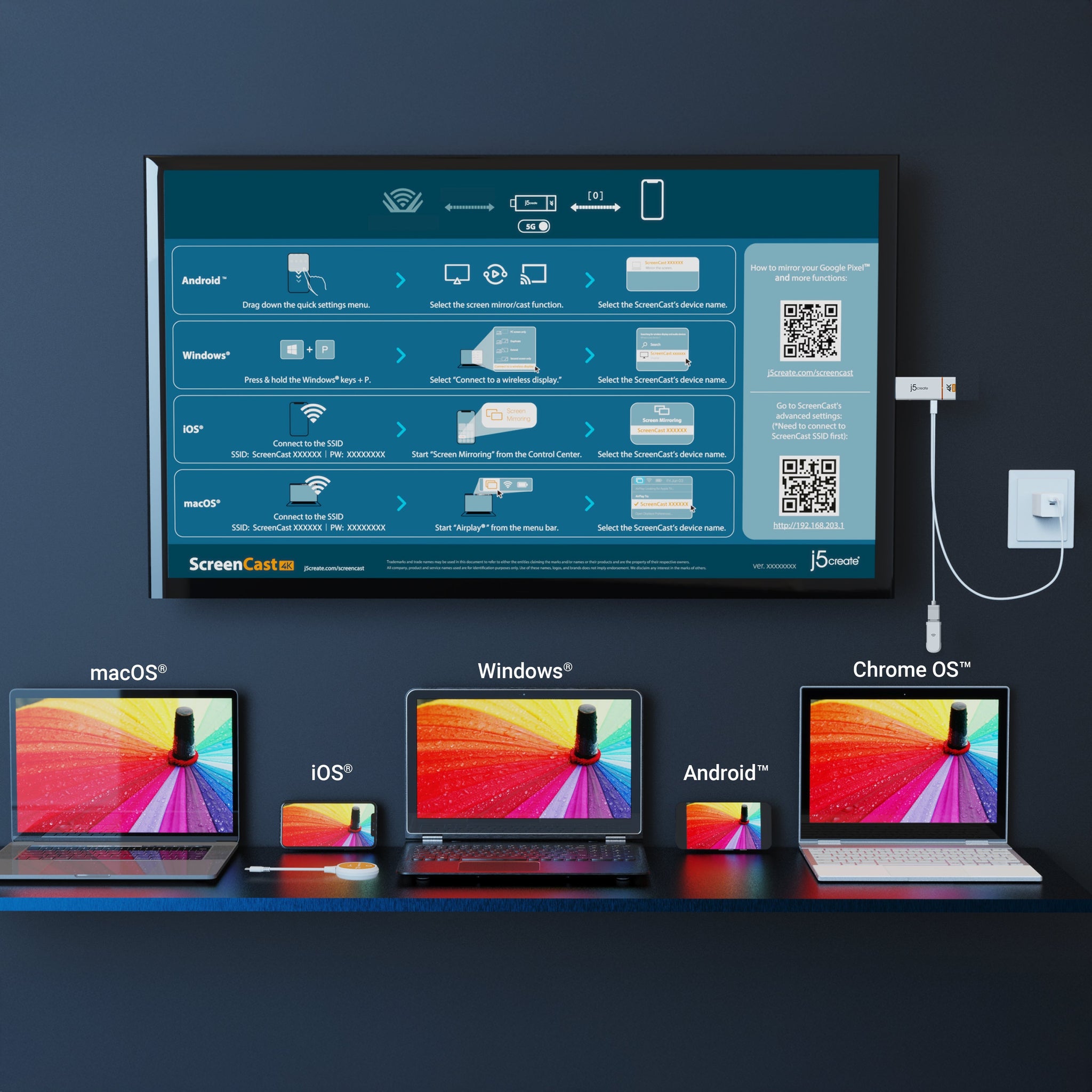

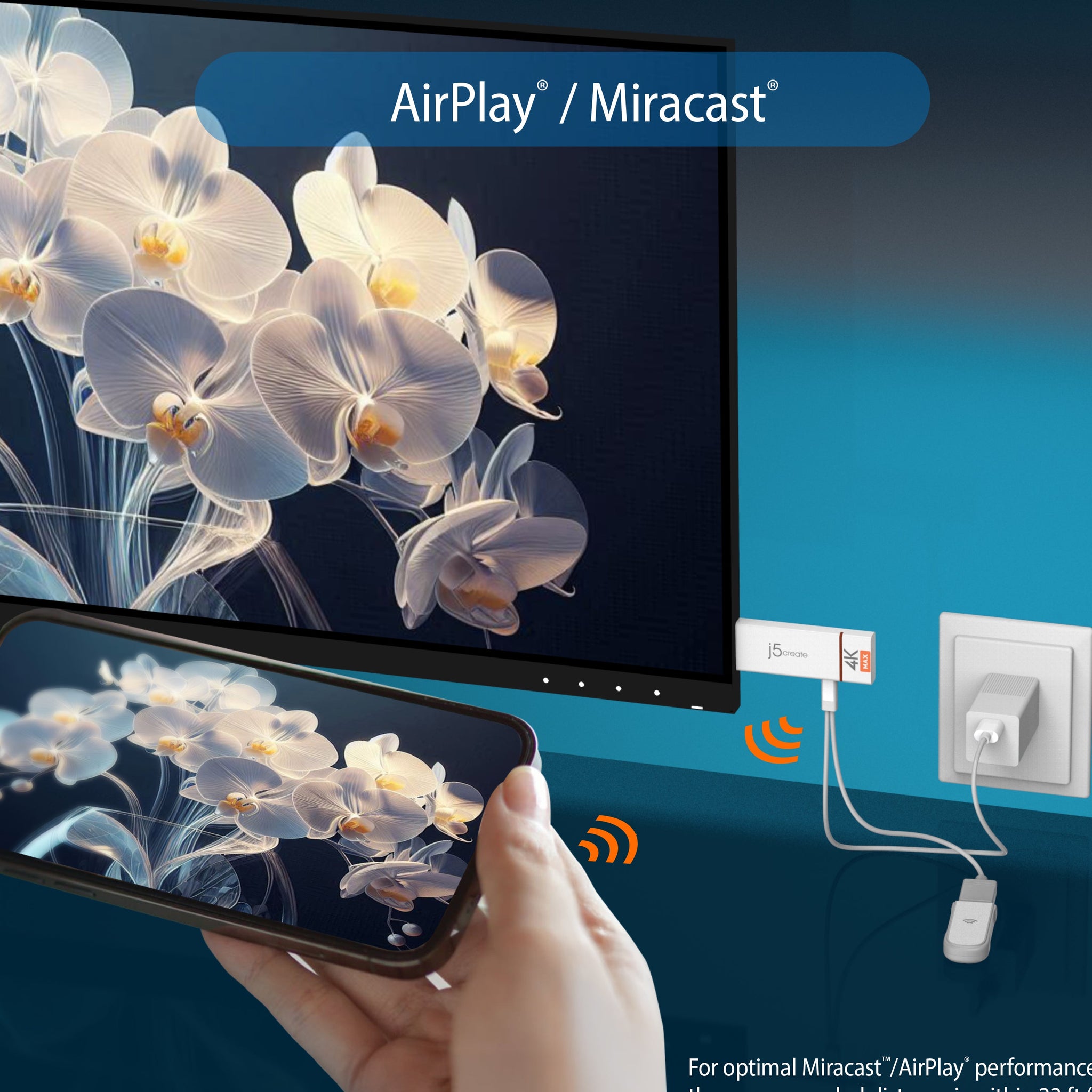

- Casts natively via AirPlay, Miracast and Chromecast (Google Cast); AirPlay/Miracast work without Wi-Fi
- Up to 1080p from the USB-C transmitter, up to 4K when casting
- Dual-band 2.4/5 GHz, range up to 10-15 m, HDCP supported
- Admin password, Miracast PIN and custom background for business/education
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JVAW62T76MAX Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 1-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JVAW62T76MAX |
| Product Name | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| EAN | 4712795089707 |
Ports
| Receiver connector | HDMI male |
| Transmitter | USB-C (requires DP Alt Mode on host) |
| Receiver power | USB micro-B to USB Type-A |
Video Output
| Supported output resolutions | 3840 x 2160; 1920 x 1080; 1280 x 720 |
| USB-C transmitter | Up to 1080p |
| Casting (AirPlay/Miracast/Chromecast) | Up to 4K |
| HDMI compliance | HDMI v1.4 |
| Audio | 2.1 via HDMI |
| Modes | Mirror and extend |
| Content protection | HDCP |
Wireless
| Frequency | 2.4 GHz, 5 GHz |
| Channel width | 20 MHz, 40 MHz |
| Range | Up to 10-15 m |
| Antenna | External |
| Encryption | WPA2 |
| Protocols | AirPlay, Miracast, Chromecast (Google Cast) |
Physical
| Colour | White / Orange |
| Enclosure | Plastic |
| Transmitter cable length | 100 mm (3.9 in.) |
| Transmitter weight | 46.5 g (1.64 oz) |
| Receiver weight | 79.5 g (2.8 oz) |
| Receiver dimensions | 32 x 95 x 11 mm (W x H x D) |
| Transmitter dimensions | 69.2 mm W x 56.11 mm D (height listed inconsistently on page) |
| Operating temperature | -10 to +40°C |
| Storage temperature | -20 to +50°C |
| Humidity | <85% non-condensing |
Compatibility
| OS | Windows 10+, macOS 10.15+ (AirPlay), iOS 10.0+, iPadOS 13+, Android 8.0+, Chrome OS |
Compatibility & System Requirements
System Requirements
- Windows 10 or later
- macOS 10.15 or later with AirPlay
- iOS 10.0 or later; iPadOS 13 or later
- Android 8.0 or later
- Chrome OS
- USB-C transmitter needs a host USB-C port with DisplayPort Alt Mode
- Device must support AirPlay or Miracast to cast without Wi-Fi; Chromebooks/Pixel phones may need Wi-Fi
- Intended for use with an external display
Compatibility
| OS | Windows 10+, macOS 10.15+ (AirPlay), iOS 10.0+, iPadOS 13+, Android 8.0+, Chrome OS |
Package Contents & j5create ScreenCast Wireless Display Ordering Information
In the Box
- 1 x JVAW62T76MAX ScreenCast USB-C Wireless Display Extender
- 1 x External antenna with USB Type-A power cable (100 cm / 39 in.)
- 1 x HDMI extension cable (13 cm / 5.11 in.)
- 1 x Quick Installation Guide (QIG)
j5create ScreenCast Wireless Display at SourceIT
| Model | Product |
| JVAW62T76MAX (this listing) | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| JVAW76-1T | ScreenCast 4K Wireless Display Adapter |
| JVAW76MAX | ScreenCast 4K Max Wireless Display Adapter |
| JVAW60 | ScreenCast Mini Duo |
| JVAW56 | ScreenCast Wireless Display Adapter |
| JVAW62 | ScreenCast USB-C Wireless Display HDMI Extender |
| JVAW65 | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
Datasheet & Downloads
| j5create product page | JVAW62T76MAX on j5create.com |
| Drivers | Drivers |
Need a document sent directly? Email sales@sourceit.com.sg quoting JVAW62T76MAX.
Frequently Asked Questions — j5create JVAW62T76MAX
What warranty do I get?
1-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JVAW62T76MAX and the quantity for volume pricing and delivery lead time.
