J5Create JVAW62 ScreenCast USB-C Wireless Display HDMI Extender
Shipping calculated at checkout.
PRODUCT DESCRIPTION
J5Create JVAW62 ScreenCast USB-C Wireless Display HDMI Extender - 1 Year Local Warranty

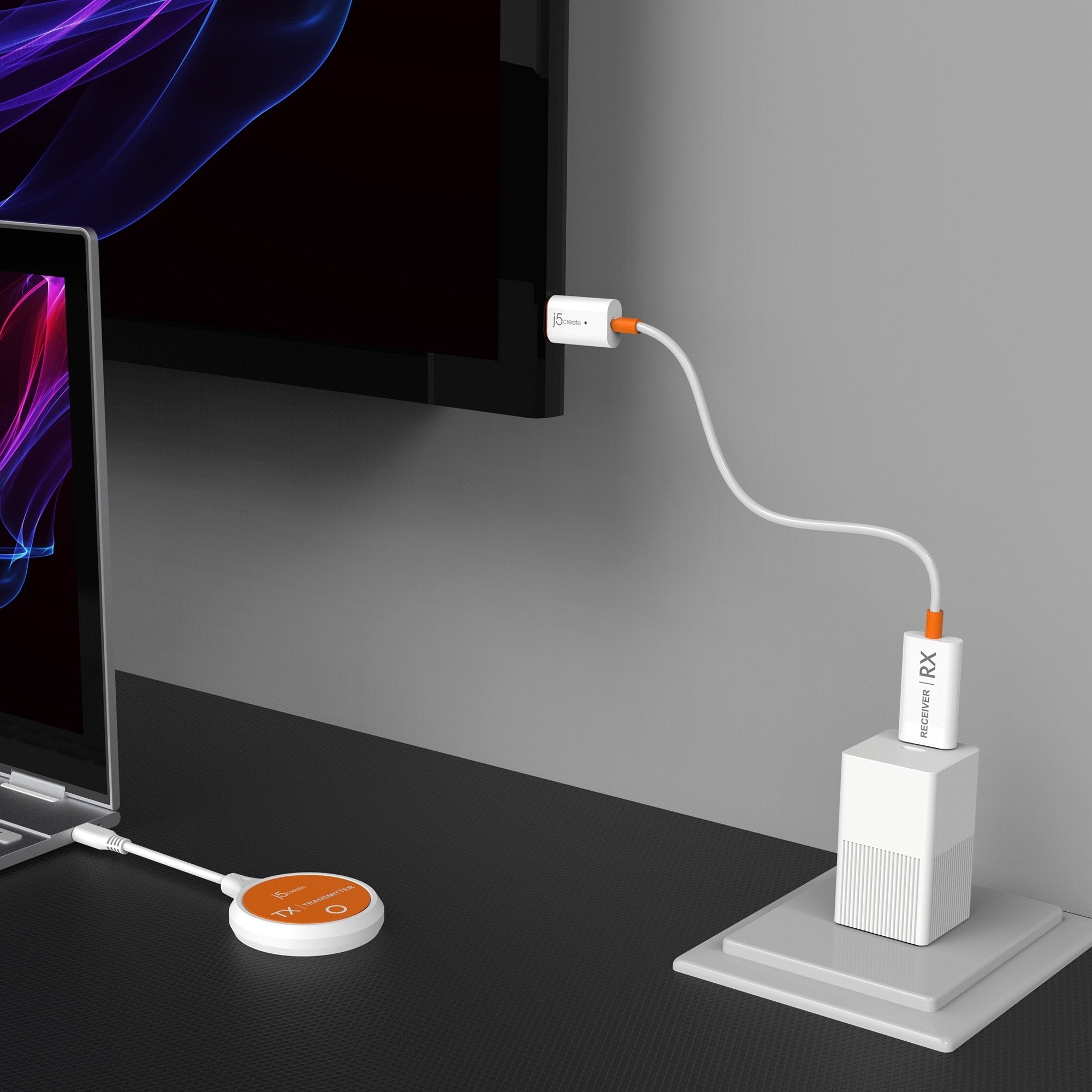

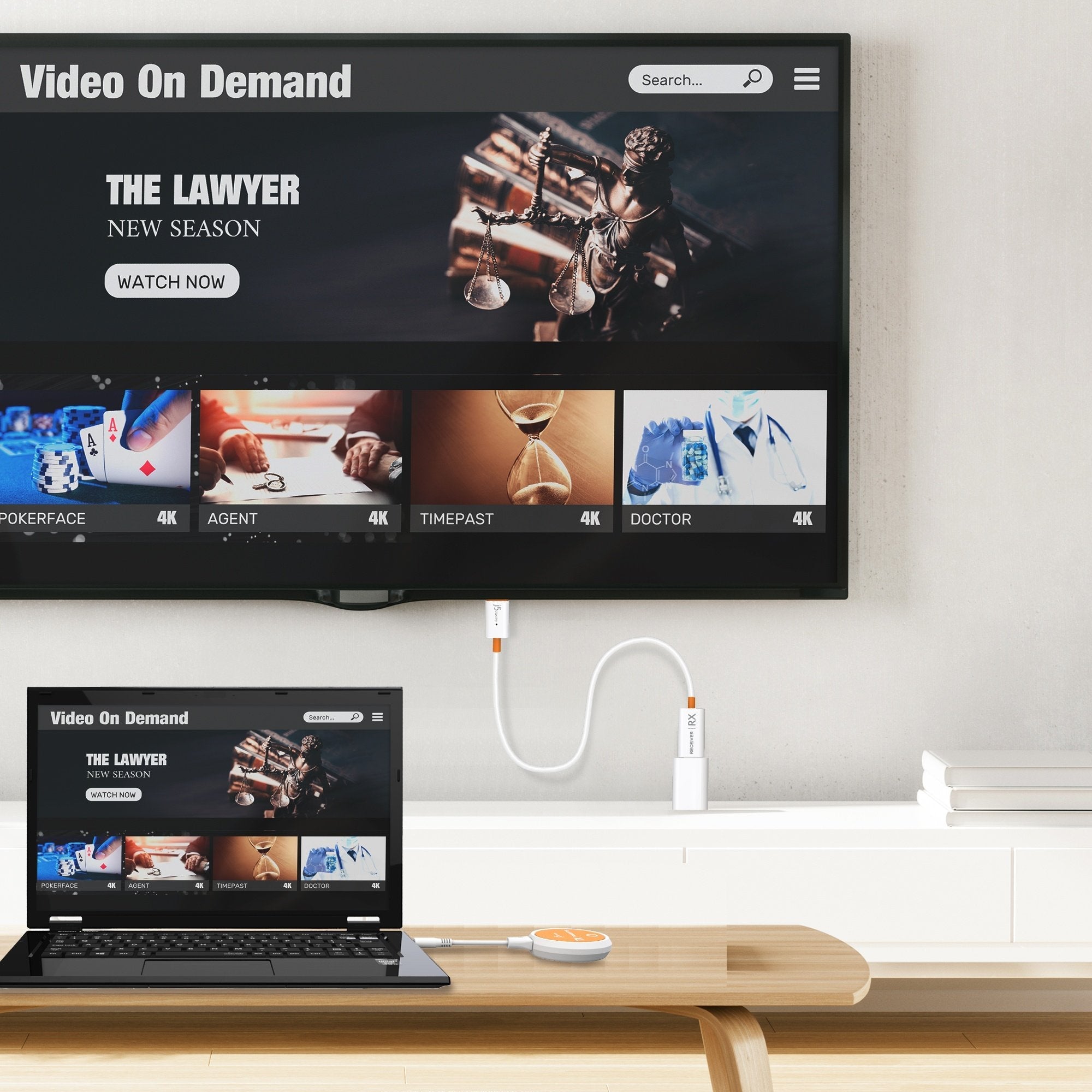

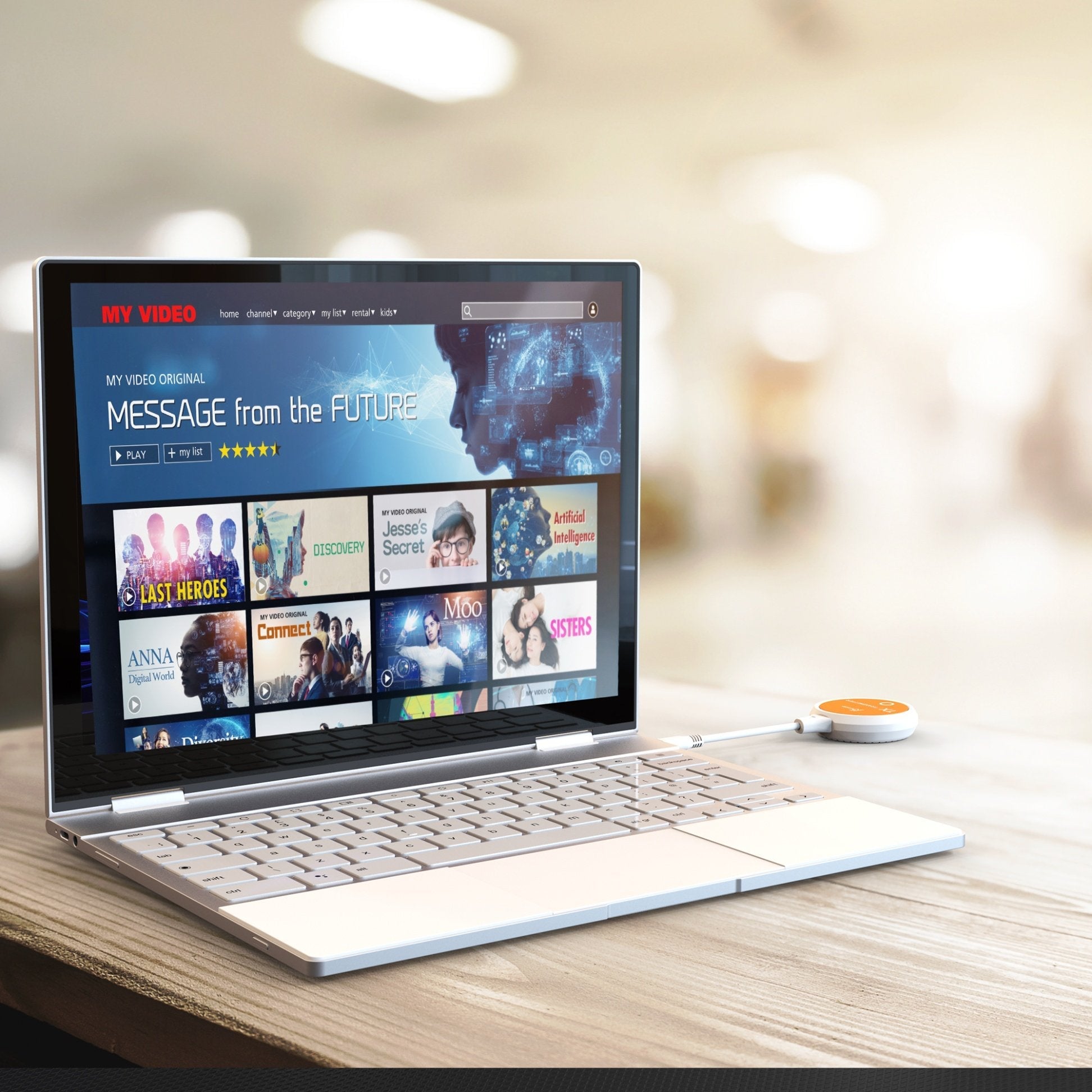

A j5create ScreenCast wireless display solution for presenting from a laptop, tablet or phone to a TV, monitor or projector without running an HDMI cable across the room.
Key Features

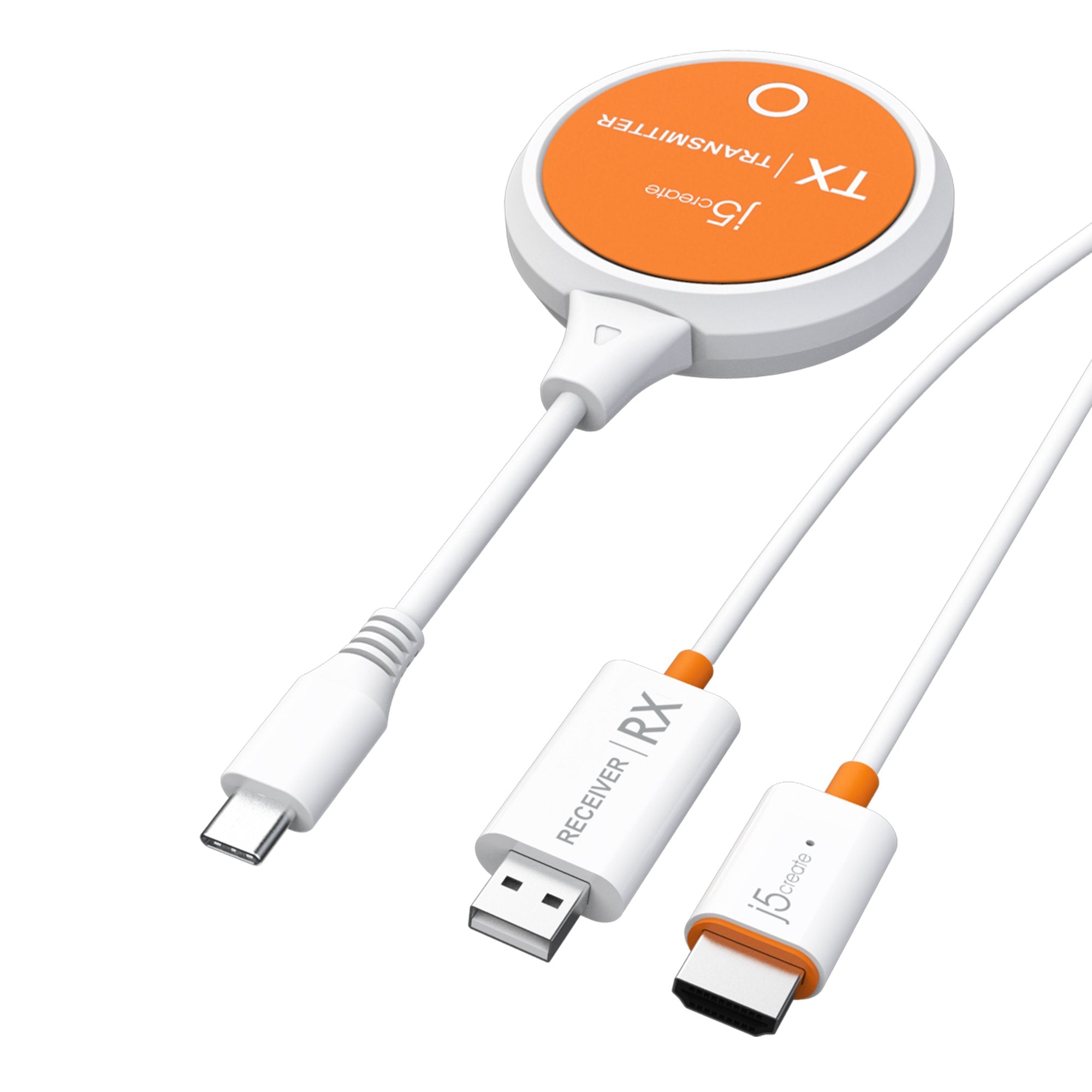

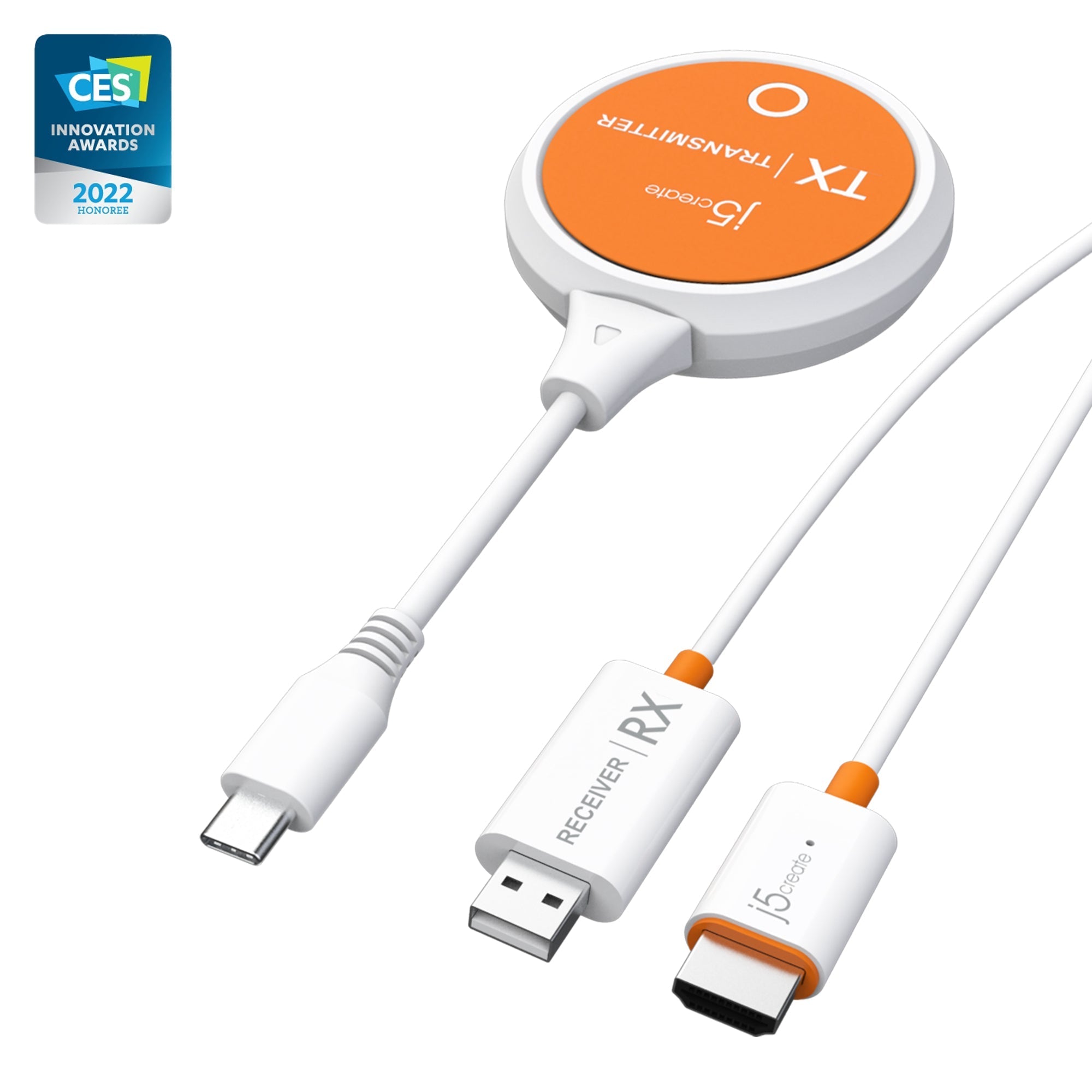

- Pre-paired USB-C transmitter and HDMI receiver kit for 1080p wireless display
- No software, Wi-Fi setup or extra power needed for the direct USB-C link
- HDCP 1.4 / DRM support for protected content
- Receiver also accepts AirPlay, Miracast and Google Cast without the transmitter; up to 10-15 m range
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
j5create JVAW62 Datasheet — Technical Specifications
General
| Local Warranty (Singapore) | 1-year limited warranty (j5create), supplied by SourceIT with a GST invoice |
| Brand | j5create |
| Model | JVAW62 |
| Product Name | ScreenCast USB-C Wireless Display HDMI Extender |
| EAN | 4712795086140 |
Video
| Max Resolution | 1920 x 1080 |
| Supported Output Resolutions | 1920 x 1080, 1280 x 720 |
| HDMI Compliance | HDMI v1.3 |
| HDCP Compliance | HDCP 1.4 |
| Audio Channel | 2.1 via HDMI |
Wireless
| Standard | IEEE 802.11ac |
| Frequency | Dual-band 2.4 GHz / 5 GHz |
| Channel Width | 20 MHz, 40 MHz |
| Range | Up to 10-15 m (up to 50 ft / 15 m) |
| Antenna | Internal |
| Security / Encryption | WPA2 |
| Casting Protocols | AirPlay, Miracast, Chromecast (Google Cast) |
Hardware

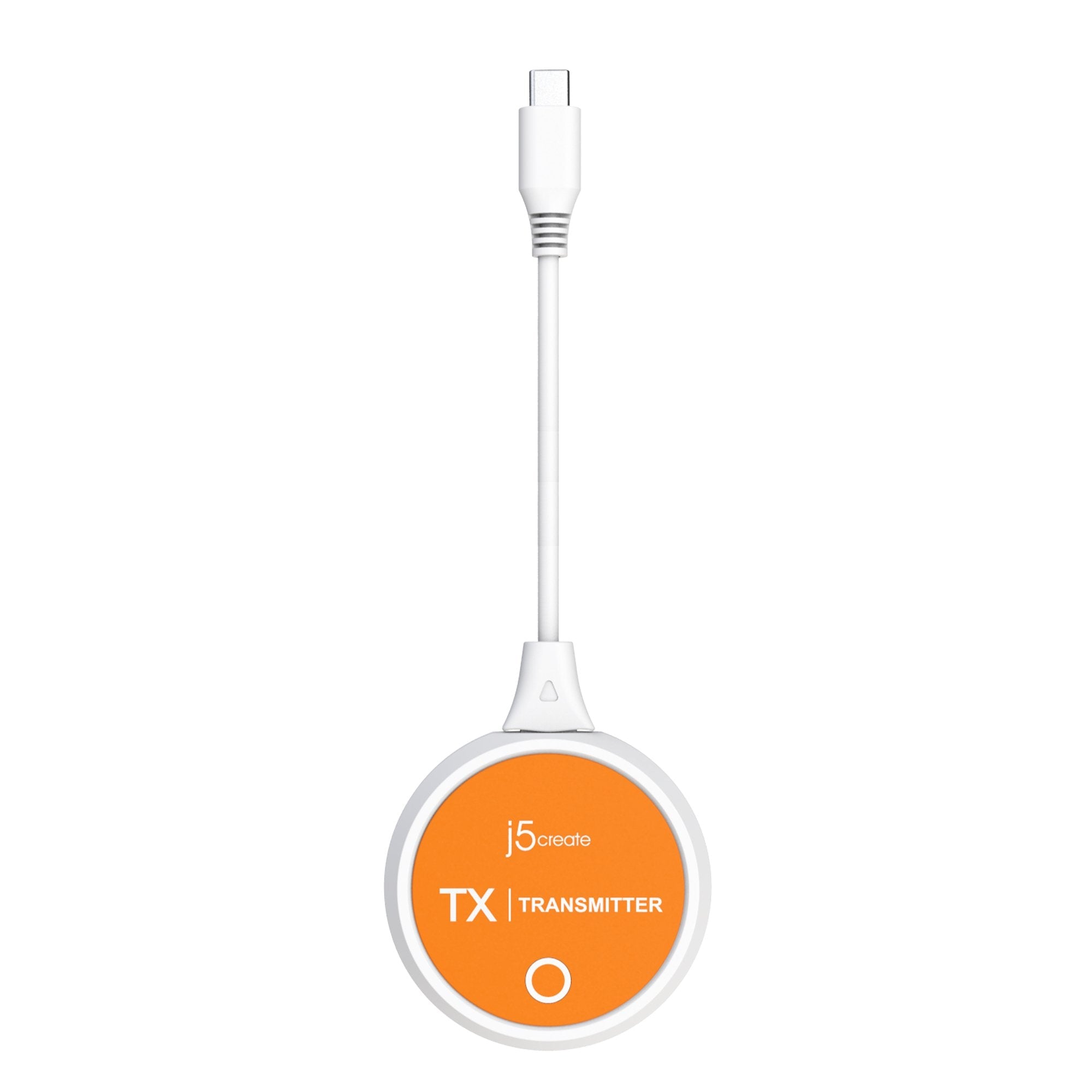

| Transmitter Connector | USB-C with DisplayPort Alt Mode |
| Receiver | HDMI |
| Power Source | USB Type-A male |
Physical
| Transmitter (W x H x D) | 65 x 65 x 17 mm (2.56 x 2.56 x 0.66 in) |
| Receiver (W x H x D) | 24 x 57 x 10.5 mm (0.95 x 2.2 x 0.41 in) |
| Transmitter Weight | 54 g (1.9 oz) |
| Receiver Weight | 31.5 g (1.11 oz) |
| Cable Length | TX 85 mm (3.34 in) / RX 600 mm (23.6 in) |
| Colour | White |
| Operating Temperature | -10 to +40 C (+14 to +104 F) |
| Storage Temperature | -20 to +50 C (-4 to +122 F) |
| Humidity | < 85% non-condensing |
Compatibility & System Requirements
System Requirements
- Available USB-C port that supports DisplayPort Alt Mode
Package Contents & j5create ScreenCast Wireless Display Ordering Information
In the Box

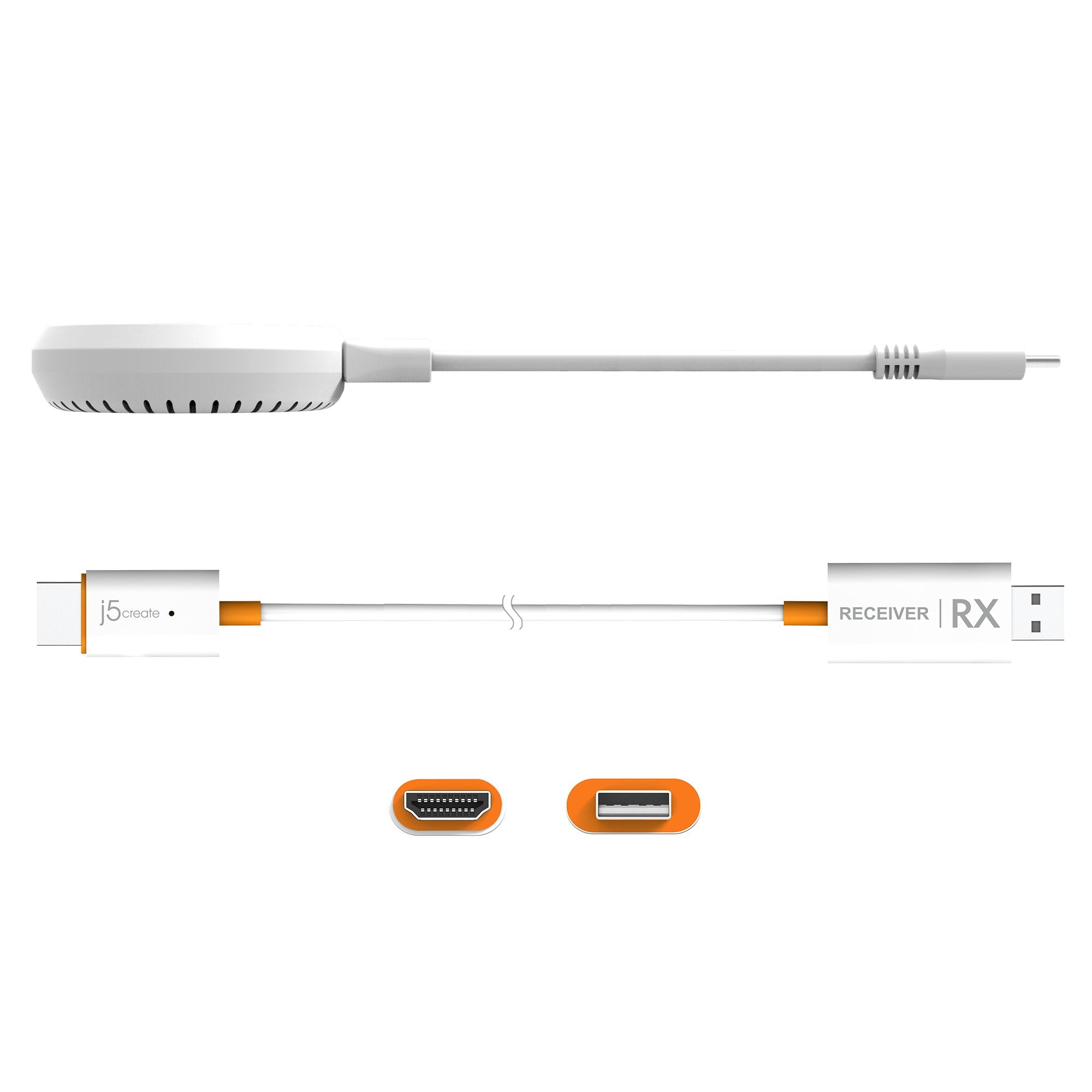

- 1 x JVAW62 ScreenCast USB-C Wireless Display HDMI Extender (1 x Transmitter & 1 x Receiver)
- 1 x USB Type-A extension cable (23.6 in)
- 1 x Quick Installation Guide
j5create ScreenCast Wireless Display at SourceIT
| Model | Product |
| JVAW62T76MAX | ScreenCast USB-C Wireless Display Extender (with Antenna) |
| JVAW76-1T | ScreenCast 4K Wireless Display Adapter |
| JVAW76MAX | ScreenCast 4K Max Wireless Display Adapter |
| JVAW60 | ScreenCast Mini Duo |
| JVAW56 | ScreenCast Wireless Display Adapter |
| JVAW62 (this listing) | ScreenCast USB-C Wireless Display HDMI Extender |
| JVAW65 | ScreenCast Mini - HDMI FHD Wireless Display Adapter |
Datasheet & Downloads
| j5create product page | JVAW62 on j5create.com |
| Quick Install Guide | Quick Install Guide (PDF) |
Need a document sent directly? Email sales@sourceit.com.sg quoting JVAW62.
Frequently Asked Questions — j5create JVAW62
What warranty do I get?
1-year limited warranty from j5create, supplied locally in Singapore by SourceIT with a GST invoice.
Can SourceIT quote for bulk or corporate orders?
Yes. Email sales@sourceit.com.sg quoting JVAW62 and the quantity for volume pricing and delivery lead time.
