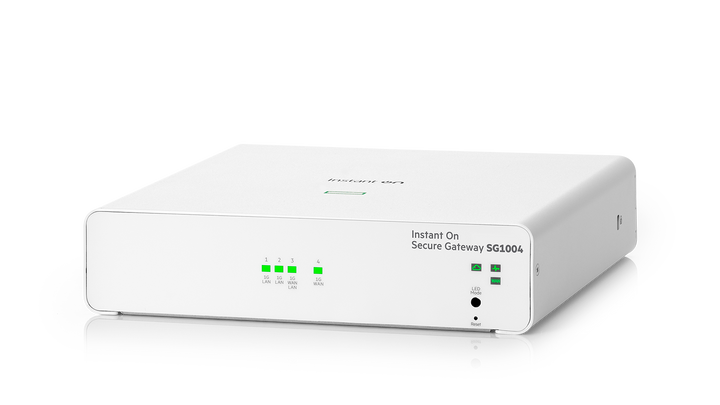

HPE Networking Instant On Secure Gateway SG1004, 4-Port Gigabit Firewall with IDS/IPS and VPN
PRODUCT DESCRIPTION
HPE Networking Instant On Secure Gateway SG1004 (S0G33A) - 2 Years Local Warranty
Firewall, IDS/IPS and VPN for Offices of Up to 100 Users
The HPE Networking Instant On Secure Gateway SG1004 (S0G33A) is a compact, cloud-managed security gateway from HPE's Instant On small-business range. It combines a firewall, intrusion detection and prevention (IDS/IPS), site-to-site and client VPN, and WAN failover, and HPE recommends it for networks of up to 100 users.
HPE quotes 980 Mbps firewall and IDS/IPS throughput and 930 Mbps IPsec VPN throughput, so threat inspection keeps pace with typical Gigabit broadband plans.
Four Gigabit Ports with Dual-WAN Failover
One Gigabit WAN port, one port configurable as WAN or LAN and two Gigabit LAN ports let you add a second internet line for failover or load balancing. The gateway is powered by an included external adapter and can sit on a desk or mount on a wall.
Managed from the Same App as Your Instant On Switches and Wi-Fi
The gateway is set up and monitored from the HPE Networking Instant On mobile app or cloud portal, alongside Instant On switches and access points. HPE highlights an AI-powered network assistant for creating policies, plus application visibility, VLANs (up to 22) and TPM 2.0 hardware security.
Supplied in Singapore with a 2-Year Warranty
SourceIT supplies the Instant On Secure Gateways locally with a GST invoice and a 2-year warranty. Not sure whether the SG1004 or SG2505P fits your site? Email sales@sourceit.com.sg with your user count, internet speed and PoE needs.
HPE Instant On Secure Gateway SG1004 S0G33A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Secure Gateway 4-port Gigabit SG1004 |
| Part Number | S0G33A |
| Series | HPE Networking Instant On Secure Gateway |
| Warranty | 2 years |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| WAN | 1 x 10/100/1000-Base-T |
| WAN/LAN (configurable) | 1 x 10/100/1000-Base-T |
| LAN | 2 x 10/100/1000-Base-T |
| PoE | None |
Performance
| Firewall Throughput | 980 Mbps |
| IDS/IPS Throughput | 980 Mbps |
| VPN (IPsec) Throughput | 930 Mbps |
| Max Concurrent Sessions | 16,384 |
| Recommended Users | Up to 100 |
Power
| Power Supply | External power adapter (included) |
| Max Power | 12 W |
| Idle Power | 2.3 W |
Physical & Environmental
| Dimensions | 4.39 x 16.41 x 19.00 cm (1.73 x 6.46 x 7.48 in) |
| Weight | 1.03 kg |
| Mounting | Tabletop and wall |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 15% to 95% |
Security & Networking Features
| Security | Firewall, IDS/IPS detection and prevention, TPM 2.0 |
| VPN | Site-to-site VPN and client VPN |
| WAN | WAN failover and WAN load balancing |
| Networking | VLAN support (up to 22), application visibility |
| Other | Locator LED, quiet LED mode |
Management
| Options | HPE Networking Instant On mobile app and cloud portal |
Compatibility & Software Support
What It Is Suited To
Small offices, shops, clinics and home offices with up to 100 users and Gigabit-class internet. It works alongside HPE Networking Instant On switches and access points, which are managed from the same app.
Management Software
Set up and manage with the HPE Networking Instant On app (iOS and Android) or the Instant On web portal. Check HPE's Instant On pages for any security feature subscriptions available in your region before ordering.
Package Contents & Secure Gateway Ordering Information
In the Box
HPE Networking Instant On Secure Gateway 4-port Gigabit SG1004 with external power adapter and documentation. HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us before ordering if it matters to your installation.
HPE Networking Instant On Secure Gateway — Ordering Information
| Instant On Secure Gateway SG1004 (this listing) | 1 x 1GbE WAN, 1 x 1GbE WAN/LAN, 2 x 1GbE LAN | None | Up to 100 users | S0G33A |
| Instant On Secure Gateway SG2505P | 1 x 2.5GbE WAN, 1 x 2.5GbE WAN/LAN, 1 x 1GbE WAN/LAN, 2 x 1GbE LAN | 4 x Class 4 PoE, 64 W | Up to 300 users | S0G34A |
Warranty Upgrade
Ask us about HPE support services available for the Instant On Secure Gateways.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Secure Gateway QuickSpecs |
| HPE product page | HPE Networking Instant On Secure Gateway SG1004 |
| Startup guide | HPE Networking Instant On Secure Gateways Startup Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S0G33A.
Frequently Asked Questions — HPE Instant On Secure Gateway SG1004 S0G33A
How many users does it support?
HPE recommends it for up to 100 users.
Does it include a firewall and IDS/IPS?
Yes. HPE lists a firewall and IDS/IPS detection and prevention, with 980 Mbps IDS/IPS throughput.
Can I connect two internet lines?
Yes. It supports WAN failover and WAN load balancing using its configurable WAN/LAN port.
Does it provide PoE?
No. For built-in PoE choose the SG2505P (S0G34A), or pair it with an Instant On PoE switch.
What warranty do I get?
A 2-year warranty, supplied by SourceIT with local support and a GST invoice.
