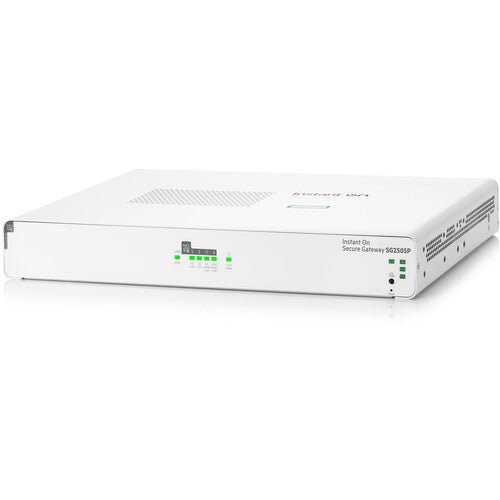

HPE Networking Instant On Secure Gateway SG2505P (S0G34A)
HPE Networking Instant On Secure Gateway SG2505P (S0G34A)
HPE Networking Instant On Secure Gateway SG2505P (S0G34A)

HPE Networking Instant On Secure Gateway SG2505P (S0G34A)

  • Save $145.36
Shipping calculated at checkout.

HPE Networking Instant On Secure Gateway SG2505P (S0G34A) - 2 Year Local Warranty Aruba | SourceIT

HPE Instant On SG2505P – Next‑Gen Multi‑Gig Secure Gateway
Tailored for growing small‑to‑mid‑sized businesses, the SG2505P brings robust enterprise‑grade security into a sleek, compact form.
It delivers 2.5 GbE uplink speeds, integrated firewall, IDS/IPS, and site‑to‑site VPN—all fully managed via the Instant On cloud portal.
It’s optimized for high-throughput environments and built to handle increasing bandwidth needs with zero subscription fees.

Power‑over‑Ethernet and Flexible Ports for Smart Deployments

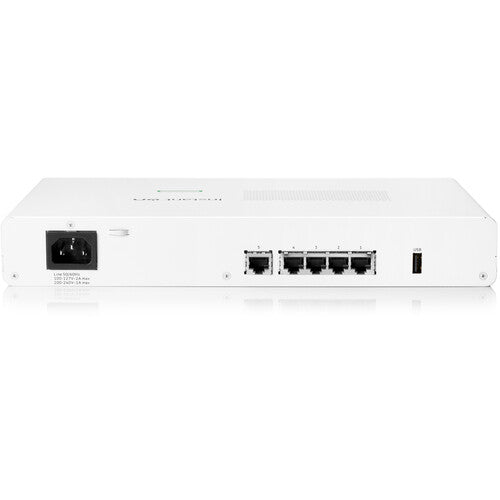

Equipped with five ports—two multi‑gig (2.5 GbE), one configurable 1 GbE, and two dedicated 1 GbE LAN ports.
It includes PoE+ with a 60–64 W budget, enabling direct power to access points or IP cameras without separate switches.
Ideal for simplified deployments in branch offices or lean SMB setups.

Cloud‑Managed for Seamless Setup & Ongoing Ease
No licensing fees. Just plug it in, access the Instant On mobile or web portal, then monitor performance, update firmware, and tweak settings—all from anywhere.
Perfect for businesses looking for simple, centralized management without needing a full-time IT team.

High Performance with Smart Resilience
Delivers 2.4 Gbps IDS/IPS throughput and up to 2.3 Gbps VPN performance—ideal for networks with over 1 Gbps ISP connections.
Supports multi‑WAN failover and load balancing to ensure continuous connectivity even during ISP disruptions.
Smart traffic filtering and deep packet inspection keep your network secure without bottlenecks.

Technical Specification
GTIN: 190017744872
Model: HPE Instant On Secure Gateway SG2505P (S0G34A)
Ports: 1× 2.5 GbE WAN, 1× 2.5 GbE WAN/LAN, 1× 1 GbE WAN/LAN, 2× 1 GbE LAN
PoE Power: 60–64 W PoE+ budget
IDS/IPS Throughput: 2.4 Gbps
VPN Throughput: 2.3 Gbps
Max Users: Up to 300 users
Memory/Storage: 4 GB RAM, eMMC flash
Form Factor: Tabletop / Rack / Wall Mount
Dimensions: 12.2 × 9.2 × 1.7 in
Weight: 2.4 kg (5.3 lb)
Security Features: Stateful firewall, DPI, domain blocking, site‑to‑site VPN
Management: Instant On cloud and app (no license required)
Certifications: RoHS, CE, FCC
Warranty: 2 years hardware support

The Best Connections for Distributed Workforces and more IoT devices
