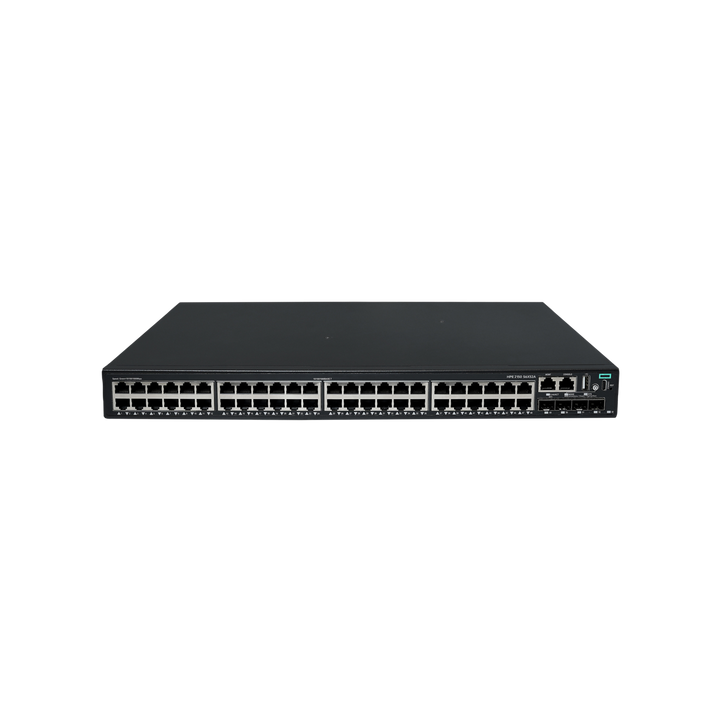

HPE Networking CW 2150 48-Port Gigabit Layer 3 Managed Switch with 4 SFP+ 10G, Fanless
PRODUCT DESCRIPTION
HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch (S6X52A) - Limited Lifetime Local Warranty
Fully Managed Stackable Layer 3 Switching for SMB and Branch Offices
The HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch (S6X52A) belongs to HPE's CW 2150 Switch Series, which HPE describes as fully managed, stackable Layer 3 switches for small and medium-sized businesses and branch offices. It provides 48 x 10M/100M/1G RJ-45 + 4 x 1G/10G SFP+.
HPE rates the CW 2150 series at up to 176 Gbps of nonblocking bandwidth, and this model adds four 1G/10G SFP+ uplinks for fibre or 10G links back to the core.
Silent, Fanless Gigabit Access
A non-PoE model for desktops, printers, servers and other wired devices. HPE lists the non-PoE CW 2150 models as fanless, so it runs silently in offices, classrooms and retail spaces, with IEEE 802.3az Energy Efficient Ethernet and 6 kV service-port surge protection.
Dynamic Layer 3 Routing and Nine-Switch IRF Stacking
Unlike Layer 2-only access switches, the CW 2150 supports IPv4 and IPv6 with dynamic Layer 3 protocols (RIP and OSPF) and advanced QoS. Up to nine switches can be stacked with Intelligent Resilient Fabric (IRF) for resilience, redundancy and a single point of management. Manage it through the Web GUI, CLI, the Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP or REST APIs.
Built-In Security
HPE lists multi-layer access protection with granular ACLs (IPv4/IPv6, VLAN and port-based), IEEE 802.1X, MAC, Web, RADIUS and TACACS+ authentication, encrypted access over SSHv2, SSL, SNMPv3 and TLS, plus control plane policing (DoS protection) and ARP and DHCP protection.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the CW 2150 series locally with a GST invoice and a Limited Lifetime local warranty.
Need help choosing between the CW 2150, CW 2050 and CX 6000 switches? Email sales@sourceit.com.sg with your port count, PoE devices, routing and uplink needs.
HPE Networking CW 2150 S6X52A Datasheet — Technical Specifications
General
| Product Name | HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch |
| Part Number | S6X52A |
| Series | HPE Networking CW 2150 Switch Series (fully managed, stackable Layer 3 switch) |
| Manufacturer Warranty | Limited Lifetime |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 48 x 10M/100M/1G RJ-45 + 4 x 1G/10G SFP+ |
| PoE Budget | None (non-PoE model) |
| Surge Protection | 6 kV service-port surge protection |
Performance
| Switching Capacity | Refer to HPE QuickSpecs for this model (series: up to 176 Gbps nonblocking) |
| Throughput | Refer to HPE QuickSpecs |
| MAC Address Table | Refer to HPE QuickSpecs |
Power
| Power Consumption | Refer to HPE QuickSpecs |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
Physical & Environmental
| Dimensions | Refer to HPE QuickSpecs |
| Weight | Refer to HPE QuickSpecs |
| Cooling | Fanless |
| Operating Temperature | Refer to HPE QuickSpecs |
Management
| Options | Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE IMC, SNMP, REST APIs |
| Stacking | Up to 9-switch Intelligent Resilient Fabric (IRF) stack |
Layer 2 / Layer 3
| Layer 3 | IPv4 and IPv6 routing with RIP and OSPF |
| QoS | Advanced Quality of Service (QoS) |
| Security | Granular ACLs (IPv4/IPv6, VLAN, port-based), IEEE 802.1X, MAC, Web, RADIUS, TACACS+, SSHv2/SSL/SNMPv3/TLS, control plane policing (DoS protection), ARP and DHCP protection |
Compatibility & Software Support
What It Is Suited To
Small and medium-sized businesses, branch offices, retail stores, clinics and schools that need a fully managed, stackable Gigabit switch with 10G uplinks and dynamic Layer 3 routing (RIP/OSPF), without the cost or complexity of a campus core platform.
Management Software
Manage locally through the Web GUI, CLI or the SmartMC web dashboard, or from HPE IMC, SNMP managers or REST APIs. The SFP+ uplinks run at 1G or 10G; ask us to confirm the right HPE Networking transceiver for your fibre run.
Package Contents & CW 2150 Series Ordering Information
In the Box
HPE Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch with documentation. HPE does not list the carton contents on its readable product pages, so confirm rack-mount hardware and power cord with us before ordering if it matters to your installation.
HPE Networking CW 2150 Series — Ordering Information
| CW 2150 8p 2p SFP 2p SFP+ | 8 x 10M/100M/1G RJ-45 + 2 x 1G SFP + 2 x 1G/10G SFP+ | None | S6X56A |
| CW 2150 8p PoE+ 2p SFP 2p SFP+ 125W | 8 x 10M/100M/1G RJ-45 PoE+ + 2 x 1G SFP + 2 x 1G/10G SFP+ | PoE+ (Class 4), 125 W | S6X57A |
| CW 2150 16p PoE+ 4p SFP+ 248W | 16 x 10M/100M/1G RJ-45 PoE+ + 4 x 1G/10G SFP+ | PoE+ (Class 4), 248 W | S6X55A |
| CW 2150 24p 4p SFP+ | 24 x 10M/100M/1G RJ-45 + 4 x 1G/10G SFP+ | None | S6X50A |
| CW 2150 24p PoE+ 4p SFP Combo 4p SFP+ 405W | 24 x 10M/100M/1G RJ-45 PoE+ + 4 x 1G SFP combo + 4 x 1G/10G SFP+ | PoE+ (Class 4), 405 W | S6X51A |
| CW 2150 48p 4p SFP+ (this listing) | 48 x 10M/100M/1G RJ-45 + 4 x 1G/10G SFP+ | None | S6X52A |
| CW 2150 48p PoE+ 4p SFP+ 390W | 48 x 10M/100M/1G RJ-45 PoE+ + 4 x 1G/10G SFP+ | PoE+ (Class 4), 390 W | S6X53A |
| CW 2150 48p PoE+ 4p SFP+ 770W | 48 x 10M/100M/1G RJ-45 PoE+ + 4 x 1G/10G SFP+ | PoE+ (Class 4), 770 W | S6X54A |
Warranty Upgrade
HPE offers support services for the CW 2150 series. Ask us to quote them with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking CW 2150 Switch Series QuickSpecs |
| HPE data sheet | HPE Networking CW 2150 Switch Series Data Sheet |
| HPE Store series page | HPE Networking CW 2150 Switch Series |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S6X52A.
Frequently Asked Questions — HPE Networking CW 2150 S6X52A
Is this a Layer 3 switch?
Yes. HPE positions the CW 2150 as a fully managed Layer 3 switch with IPv4/IPv6 routing, RIP and OSPF.
Do I need a subscription to manage it?
No subscription is listed by HPE for local management. The Web GUI, CLI and SmartMC web dashboard are built in.
Can I stack it?
Yes. Up to nine CW 2150 switches can be stacked with IRF.
Does it support PoE?
No, this is a non-PoE model. Choose the S6X53A or S6X54A for PoE+.
What warranty do I get?
Limited Lifetime local warranty, supplied by SourceIT with local support and a GST invoice.
