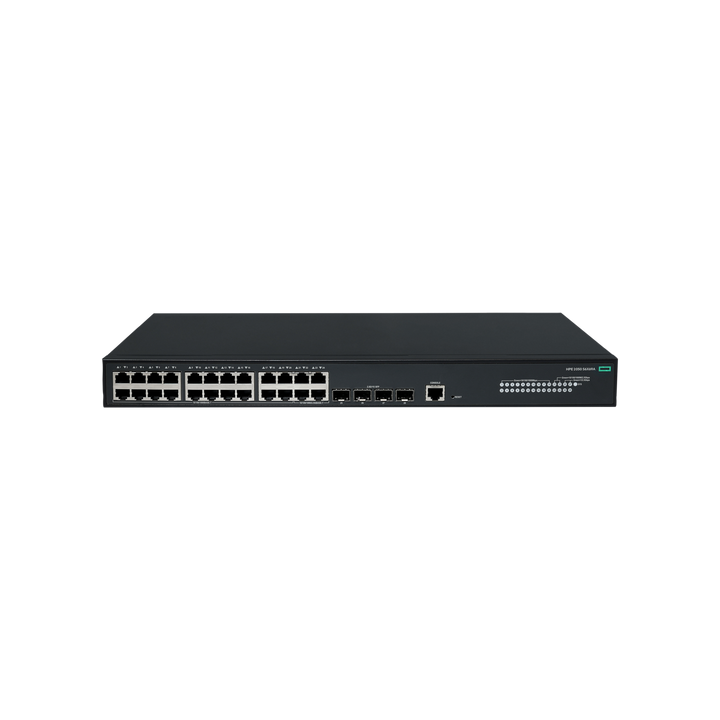

HPE Networking CW 2050 20-Port Gigabit + 4-Port 2.5G Smart Rate Managed Switch with 4 SFP 2.5G, Fanless
PRODUCT DESCRIPTION
HPE Networking CW 2050 20p 10/100/1000BASE-T 4p Smart Rate 1/2.5GbE 4p SFP 1G/2.5G Switch (S6X69A) - Limited Lifetime Local Warranty
Fully Managed Stackable Switching for SMB and Branch Offices
The HPE Networking CW 2050 20p 10/100/1000BASE-T 4p Smart Rate 1/2.5GbE 4p SFP 1G/2.5G Switch (S6X69A) belongs to HPE's CW 2050 Switch Series, which HPE describes as the next-generation Layer 2 access switch for branch offices and small and medium-sized businesses. It provides 20 x 10/100/1000BASE-T + 4 x 1G/2.5G BASE-T (Smart Rate) + 4 x 1G/2.5G BASE-X SFP.
HPE rates this model at 80 Gbps switching capacity and 59.52 Mpps throughput, with four dedicated 1G/2.5G SFP uplinks for fibre or faster links back to the core.
Reliable Non-PoE Gigabit Access
A non-PoE model for desktops, printers, servers and other wired devices that do not need power from the switch. This model is fanless, so it runs silently in offices, classrooms and retail spaces.
Simple Management and Two-Switch IRF Stacking
Manage the switch through its Web GUI, the standard CLI or the embedded CW Dashboard at no additional cost, with HPE Intelligent Management Center (IMC), SNMP, Aruba AirWave and REST API also supported. Two switches can be stacked with Intelligent Resilient Fabric (IRF) for high availability and a single point of management.
Built-In Security and Enterprise Layer 2 Features
HPE lists secure boot, multi-layer ACLs, IEEE 802.1X authentication, encrypted access over SSHv2, SSL, SNMPv3 and TLS, and control plane policing for DoS protection. Layer 2 features include IEEE 802.1Q VLANs, STP/RSTP/MSTP/PVST+/RPVST+, link aggregation, IGMP and MLD snooping, LLDP and classifier-based QoS, plus static IPv4 and IPv6 routing.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the CW 2050 series locally with a GST invoice. HPE covers the CW 2050 series with its Limited Lifetime Warranty.
Need help choosing between the CW 2050, CX 6000 and Instant On switches? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
HPE Networking CW 2050 S6X69A Datasheet — Technical Specifications
General
| Product Name | HPE Networking CW 2050 20p 10/100/1000BASE-T 4p Smart Rate 1/2.5GbE 4p SFP 1G/2.5G Switch |
| Part Number | S6X69A |
| Series | HPE Networking CW 2050 Switch Series (fully managed, stackable Layer 2 access switch) |
| Manufacturer Warranty | Limited Lifetime (HPE) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 20 x 10/100/1000BASE-T + 4 x 1G/2.5G BASE-T (Smart Rate) + 4 x 1G/2.5G BASE-X SFP |
| Console | 1 x RJ-45 console port |
Performance
| Switching Capacity | 80 Gbps |
| Throughput | 59.52 Mpps |
| MAC Address Table | 16K |
| Memory / Flash | 1 GB SDRAM / 256 MB flash |
Power
| Power Input | 90 to 264 VAC, 47–63 Hz |
| Power Consumption | Min 8 W / Typical 16 W / Max 19 W |
Physical & Environmental
| Dimensions | 440 x 160 x 44 mm (L x D x H) |
| Weight | ≤ 2.0 kg |
| Cooling | Fanless |
| Operating Temperature | –5 °C to 45 °C (23 °F to 113 °F) |
Management
| Options | Web GUI, CLI, embedded CW Dashboard, HPE IMC, SNMP, Aruba AirWave, REST API |
| Stacking | Up to 2-member Intelligent Resilient Fabric (IRF) |
Layer 2 / Layer 3
| Layer 2 | IEEE 802.1Q (4,094 VLAN IDs, 512 VLANs simultaneously), STP/RSTP/MSTP/PVST+/RPVST+, MVRP, link aggregation, IGMP/PIM snooping, MLD v1/v2 snooping, IEEE 802.1AB LLDP |
| Layer 3 | IPv4 and IPv6 static routing, dual stack |
| QoS | Classifier-based QoS with SP, WRR and SP+WRR scheduling |
| Security | Secure boot, multi-layer ACLs, IEEE 802.1X, SSHv2/SSL/SNMPv3/TLS, control plane policing (DoS protection) |
Compatibility & Software Support
What It Is Suited To
Small and medium-sized businesses, branch offices, retail stores, clinics and schools that want a fully managed, stackable Gigabit access switch with 2.5G uplinks, without the cost or complexity of a campus core platform.
Management Software
Manage locally through the Web GUI, CLI or embedded CW Dashboard at no extra cost, or from HPE IMC, Aruba AirWave, SNMP managers or the REST API. The 1G/2.5G SFP uplinks accept HPE Networking SFP transceivers such as the X120 1G SFP range; ask us to confirm the right optic for your fibre run.
Package Contents & CW 2050 Series Ordering Information
In the Box
HPE Networking CW 2050 20p 10/100/1000BASE-T 4p Smart Rate 1/2.5GbE 4p SFP 1G/2.5G Switch with documentation. HPE does not list the carton contents in the QuickSpecs, so confirm rack-mount hardware and power cord with us before ordering if it matters to your installation.
HPE Networking CW 2050 Series — Ordering Information
| CW 2050 20p Smart Rate 4p SFP (this listing) | 20 x 1G RJ-45 + 4 x 1G/2.5G Smart Rate RJ-45 + 4 x 1G/2.5G SFP | None | S6X69A |
| CW 2050 24p PoE+ 4p SFP 420W | 20 x 1G RJ-45 PoE+ + 4 x 1G/2.5G RJ-45 PoE++ + 4 x 1G/2.5G SFP | PoE+/PoE++, 420 W | S6X72A |
| CW 2050 48p 4p SFP | 48 x 1G RJ-45 + 4 x 1G/2.5G SFP | None | S6X70A |
| CW 2050 48p PoE+ 4p SFP 410W | 48 x 1G RJ-45 PoE+ + 4 x 1G/2.5G SFP | PoE+, 410 W | S6X71A |
Warranty Upgrade
HPE offers support services for the CW 2050 series. Ask us to quote them with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking CW 2050 Switch Series QuickSpecs |
| HPE data sheet | HPE Networking CW 2050 Switch Series Data Sheet |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S6X69A.
Frequently Asked Questions — HPE Networking CW 2050 S6X69A
Is this a Layer 3 switch?
HPE positions the CW 2050 as a Layer 2 access switch. It also supports IPv4 and IPv6 static routing.
Do I need a subscription to manage it?
No. The Web GUI, CLI and embedded CW Dashboard are included at no additional cost.
Can I stack it?
Yes. Up to two CW 2050 switches can be stacked with IRF.
Does it support PoE?
No, this is a non-PoE model. Choose the S6X72A or S6X71A for PoE+.
What warranty do I get?
HPE Limited Lifetime Warranty, supplied by SourceIT with local support and a GST invoice.
