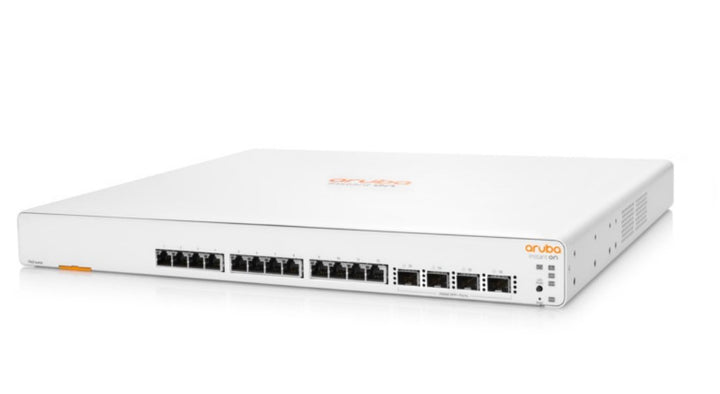

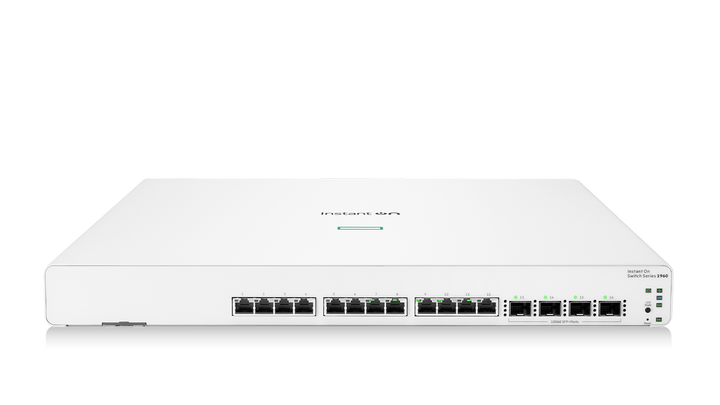

HPE Networking Instant On 1960 12-Port 10GBASE-T Stackable Smart-Managed Switch with 4 SFP+
PRODUCT DESCRIPTION
HPE Networking Instant On 1960 12XGT 4SFP+ Switch (JL805A) - Limited Lifetime Local Warranty
Stackable Smart-Managed Switching for Growing Businesses
The HPE Networking Instant On 1960 12XGT 4SFP+ Switch (JL805A) is a smart-managed Layer 2+ switch from HPE's Instant On range, the small-business line designed to be deployed and run without a dedicated IT team. It provides 12 x 100/1000/10GBASE-T RJ-45 and 4 x 10GbE SFP+ ports, with a switching capacity of 320 Gbps and throughput of 238 Mpps.
HPE positions the 1960 series at the top of the Instant On switch range, for businesses that have outgrown a single switch and need 10GbE uplinks, stacking and basic Layer 3 routing while keeping Instant On's simple app-based management.
True Stacking of up to Four Switches
Up to four Instant On 1960 switches can be stacked and managed as a single unit, and HPE supports cloud-managed stacking set up directly from the Instant On mobile app. Access and aggregation models can be mixed in the same stack, so a 1960 12XGT 4SFP+ can sit at the core with 24- and 48-port access switches beneath it.
A 10GbE Aggregation Switch for the Instant On Stack
With every port running at up to 10 Gbps, the 12XGT 4SFP+ is the aggregation model of the 1960 series: use it to connect servers, NAS and other high-bandwidth devices at 10GbE, or to aggregate the 10GbE uplinks of other 1960 switches in the building. It has no PoE and is powered by an internal power supply.
Layer 2+ Features with Static Routing
HPE lists static IPv4/IPv6 routing (512 routes), VLANs, access control lists (up to 1,024 ACEs), QoS, IEEE 802.1X and MAC authentication and port security, so guest, staff, voice and IoT traffic can be kept apart and routed between VLANs without a separate router.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the 1960 series locally with a GST invoice. HPE covers Instant On switches with its Limited Lifetime warranty, which includes 24x7 phone support for the first 90 days and chat support for the life of the warranty.
Need help choosing between the 1830, 1930 and 1960? Email sales@sourceit.com.sg with your port count, PoE devices, stacking and uplink needs.
HPE Instant On 1960 JL805A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Switch Series 1960 12XGT 4SFP+ |
| Part Number | JL805A |
| Series | HPE Networking Instant On 1960 (smart-managed Layer 2+, stackable) |
| Manufacturer Warranty | Limited Lifetime (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 12 x 100/1000/10GBASE-T RJ-45, 4 x 10GbE SFP+ |
| PoE | None |
Performance
| Switching Capacity | 320 Gbps |
| Throughput | 238 Mpps |
| MAC Address Table | 16,000 entries |
| Static Routes | 512 (IPv4/IPv6) |
| ACL Entries | Up to 1,024 ACEs |
Power
| Power Supply | Internal |
| Max Power | 130 W (100–127 V) / 160 W (200–220 V) |
| Idle Power | 60 W (100–127 V) / 80 W (200–220 V) |
Physical & Environmental
| Dimensions | 442.5 (W) x 350.5 (D) x 43.95 (H) mm |
| Weight | 4.3 kg |
| Acoustics | LWAd = 4.0 Bel |
| Operating Temperature | 0 °C to 40 °C |
Management
| Options | HPE Networking Instant On mobile app, Instant On cloud portal, local web browser, SNMP manager |
| Stacking | True stacking of up to 4 units, including cloud-managed stacking from the Instant On app |
| Licensing | No extra licence or subscription fees for Instant On management |
Compatibility & Software Support
What It Is Suited To
Small and mid-sized offices that need a 10GbE core or aggregation switch for servers, storage and other 1960 access switches. It pairs naturally with HPE Networking Instant On access points and Secure Gateways, which are managed from the same app.
Management Software
Set up and manage with the free HPE Networking Instant On app (iOS and Android) or the Instant On web portal, with no subscription. Alternatively, run the switch or stack locally from its web interface, with SNMP available for third-party monitoring.
Stacking Compatibility
Stacks only with other Instant On 1960 series switches (up to four units per stack). It does not stack with the 1830 or 1930 series.
Package Contents & 1960 Series Ordering Information
In the Box
HPE Networking Instant On 1960 switch with internal power supply and documentation. HPE's QuickSpecs do not list the full carton contents, so confirm the power cord type and rack-mount hardware with us before ordering if it matters to your installation.
HPE Networking Instant On 1960 Series — Ordering Information
| Instant On 1960 12XGT 4SFP+ (this listing) | 12 x 100/1000/10GBASE-T + 4 x 10G SFP+ | None | JL805A |
| Instant On 1960 24G 2XGT 2SFP+ | 24 x 10/100/1000 RJ-45 + 2 x 10GBASE-T + 2 x 10G SFP+ | None | JL806A |
| Instant On 1960 24G 20p Class 4 4p Class 6 PoE 2XGT 2SFP+ 370W | 24 x 10/100/1000 RJ-45 + 2 x 10GBASE-T + 2 x 10G SFP+ | 20 x Class 4 + 4 x Class 6, 370 W budget | JL807A |
| Instant On 1960 48G 2XGT 2SFP+ | 48 x 10/100/1000 RJ-45 + 2 x 10GBASE-T + 2 x 10G SFP+ | None | JL808A |
| Instant On 1960 48G 40p Class 4 8p Class 6 PoE 2XGT 2SFP+ 600W | 48 x 10/100/1000 RJ-45 + 2 x 10GBASE-T + 2 x 10G SFP+ | 40 x Class 4 + 8 x Class 6, 600 W budget | JL809A |
| Instant On 1960 8p 1G Class 4 4p SR1G/2.5G Class 6 PoE 2p 10GBASE-T 2p SFP+ 480W | 8 x 10/100/1000 RJ-45 + 4 x 1/2.5G Smart Rate + 2 x 10GBASE-T + 2 x 10G SFP+ | 8 x Class 4 + 4 x Class 6, 480 W budget | S0F35A |
Warranty Upgrade
Ask us whether an HPE Care Pack service upgrade is available for your 1960 model, and we will quote it together with the switch. 10G SFP+ transceivers and DAC cables are sold separately.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Switch 1960 QuickSpecs |
| HPE data sheet | HPE Networking Instant On Switch Series 1960 Data Sheet |
| Series overview | HPE Networking Instant On 1960 Series |
| Installation guide | HPE Networking Instant On Switch 1960 Installation and Getting Started Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JL805A.
Frequently Asked Questions — HPE Instant On 1960 JL805A
Is this a managed switch?
Yes. It is a smart-managed Layer 2+ switch with VLANs, QoS, ACLs, 802.1X and static IPv4/IPv6 routing, managed through the Instant On app, cloud portal or local web interface.
Can I stack it?
Yes. Up to four Instant On 1960 switches can be stacked and managed as one, including cloud-managed stacking set up from the Instant On app.
Is there a subscription fee for cloud management?
No. HPE states there are no extra licensing or subscription fees for Instant On management.
Does it provide PoE?
No. The 12XGT 4SFP+ is a non-PoE 10GbE aggregation switch. For PoE, choose the 1960 24G or 48G PoE models.
What warranty do I get?
HPE Limited Lifetime warranty with 24x7 phone support for the first 90 days and chat support for the warranty period, supplied by SourceIT with local support and a GST invoice.
