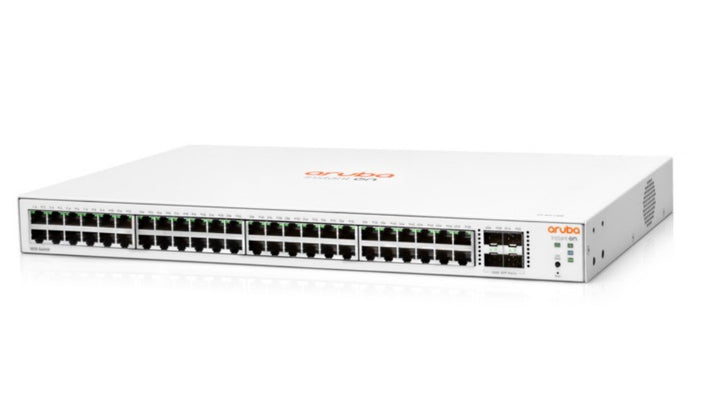

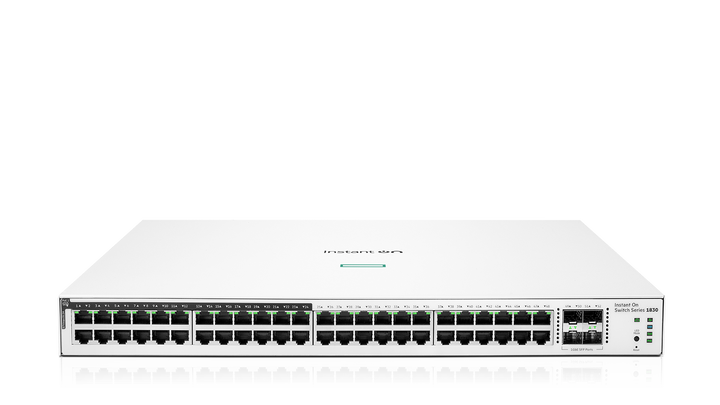

HPE Networking Instant On 1830 48-Port Gigabit Smart-Managed Switch, 24x Class 4 PoE 370W, 4 SFP
PRODUCT DESCRIPTION
HPE Networking Instant On 1830 48G 24p Class 4 PoE 4SFP 370W Switch (JL815A) - Limited Lifetime Local Warranty
Smart-Managed Gigabit Switching Built for Small Business
The HPE Networking Instant On 1830 48G 24p Class 4 PoE 4SFP 370W (JL815A) is a smart-managed Layer 2 Gigabit switch from HPE's Instant On range, the small-business line designed to be set up and run without a dedicated IT team. It provides 48 x 10/100/1000 RJ-45 + 4 x 1G SFP, with a switching capacity of 104 Gbps and throughput of 77.37 Mpps.
HPE positions the 1830 series as an affordable, easy-to-deploy switch for small businesses that need VLANs, traffic prioritisation and basic security but do not want the licensing and configuration overhead of an enterprise switch.
Manage It from the Instant On App, the Cloud Portal or a Local Web GUI
Instant On switches are set up and monitored from the HPE Networking Instant On mobile app or the Instant On cloud portal, with no extra licence or subscription fee. If you prefer to keep management on-site, the switch can instead be run from its local web GUI.
The same app manages Instant On access points and Secure Gateways, so a small office can run its wired and wireless network from one place.
370 W of Class 4 PoE for Access Points, Cameras and Phones
24 of the RJ-45 ports deliver Class 4 PoE from a 370 W budget, enough to power Wi-Fi access points, IP cameras and VoIP phones directly from the switch without separate injectors. Uplinks to the core or a second switch run over the Gigabit SFP ports.
Layer 2 Features Small Networks Actually Use
HPE lists VLANs for segmenting guest, staff and device traffic, IEEE 802.1p and DSCP-based QoS so voice and video get priority, LACP link aggregation, 802.1D STP and 802.1w RSTP, IGMP snooping, LLDP and LLDP-MED, jumbo frames, access control, storm control and automatic denial-of-service protection.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the 1830 series locally with a GST invoice. HPE covers Instant On switches with its Limited Lifetime warranty.
Need help choosing between the 1830, 1930 and 1960? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
HPE Instant On 1830 JL815A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Switch 1830 48G 24p Class4 PoE 4SFP 370W |
| Part Number | JL815A |
| Series | HPE Networking Instant On 1830 (smart-managed Layer 2) |
| Manufacturer Warranty | Limited Lifetime (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 48 x 10/100/1000 RJ-45 + 4 x 1G SFP |
| PoE Ports | 24 (ports 1–24), Class 4 |
| PoE Budget | 370 W |
Performance
| Switching Capacity | 104 Gbps |
| Throughput | 77.37 Mpps |
| MAC Address Table | 16,000 entries |
| CPU / Memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash |
Power
| Power Supply | Internal |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Max Power (200–240 V) | 452.5 W |
| Max Power (100–127 V) | 462.5 W |
| Idle Power | 25.4 W (200–240 V) / 25.8 W (100–127 V) |
Physical & Environmental
| Dimensions | 443.0 (W) x 351.0 (D) x 43.9 (H) mm |
| Weight | 4.94 kg |
| Acoustics | Variable-speed fan; LWAd 4.0 Bel, LpAm (bystander) 25 dB at 50% PoE and 100% traffic |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
Management
| Options | HPE Networking Instant On mobile app, Instant On cloud portal, or local web GUI |
| Licensing | No extra licence or subscription fees |
Compliance
| Safety | EN/IEC 60950-1, EN/IEC 62368-1, UL 62368-1, CAN/CSA C22.2 |
| Emissions | EN 55032:2015 / CISPR 32 Class A, FCC CFR 47 Part 15 Class A |
Compatibility & Software Support
What It Is Suited To
Small offices, shops, clinics, classrooms and branch sites that need a managed Gigabit PoE switch. It pairs naturally with HPE Networking Instant On access points and Secure Gateways, which are managed from the same app.
Management Software
Set up and manage with the free HPE Networking Instant On app (iOS and Android) or the Instant On web portal, with no subscription. Alternatively, run the switch stand-alone from its local web GUI.
SFP Uplinks
The SFP ports are 1GbE. Ask us to confirm a compatible HPE transceiver or cable for your uplink distance before ordering.
Package Contents & 1830 Series Ordering Information
In the Box
HPE Networking Instant On Switch 1830 48G 24p Class4 PoE 4SFP 370W switch and documentation. HPE's QuickSpecs do not list the full carton contents, so confirm the power cord type and rack-mount hardware with us before ordering if it matters to your installation.
HPE Networking Instant On 1830 Series — Ordering Information
| Instant On 1830 8G | 8 x 10/100/1000 RJ-45 | None | JL810A |
| Instant On 1830 8G 4p Class 4 PoE 65W | 8 x 10/100/1000 RJ-45 | Class 4 PoE on ports 1–4, 65 W budget | JL811A |
| Instant On 1830 24G 2SFP | 24 x 10/100/1000 RJ-45 + 2 x 1G SFP | None | JL812A |
| Instant On 1830 24G 12p Class 4 PoE 2SFP 195W | 24 x 10/100/1000 RJ-45 + 2 x 1G SFP | Class 4 PoE on ports 1–12, 195 W budget | JL813A |
| Instant On 1830 48G 4SFP | 48 x 10/100/1000 RJ-45 + 4 x 1G SFP | None | JL814A |
| Instant On 1830 48G 24p Class 4 PoE 4SFP 370W (this listing) | 48 x 10/100/1000 RJ-45 + 4 x 1G SFP | Class 4 PoE on ports 1–24, 370 W budget | JL815A |
Warranty Upgrade
HPE offers a 3-year Foundation Care Next Business Day Exchange service for each 1830 model. Ask us to quote it with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Switch 1830 QuickSpecs |
| HPE data sheet | HPE Networking Instant On Switch Series 1830 Data Sheet |
| Installation guide | HPE Networking Instant On 1830 Installation and Getting Started Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JL815A.
Frequently Asked Questions — HPE Instant On 1830 JL815A
Is this a managed switch?
Yes. It is a smart-managed Layer 2 switch with VLANs, QoS, link aggregation, spanning tree, IGMP snooping and access control, managed through the Instant On app, cloud portal or local web GUI.
Is there a subscription fee for cloud management?
No. HPE states there are no extra licensing or subscription fees for Instant On management.
How much PoE does it provide?
It supplies Class 4 PoE on 24 ports from a 370 W budget.
Is it fanless?
No. It uses a variable-speed fan; HPE quotes a bystander sound pressure of 25 dB at 50% PoE and 100% traffic.
What warranty do I get?
HPE Limited Lifetime warranty, supplied by SourceIT with local support and a GST invoice.
