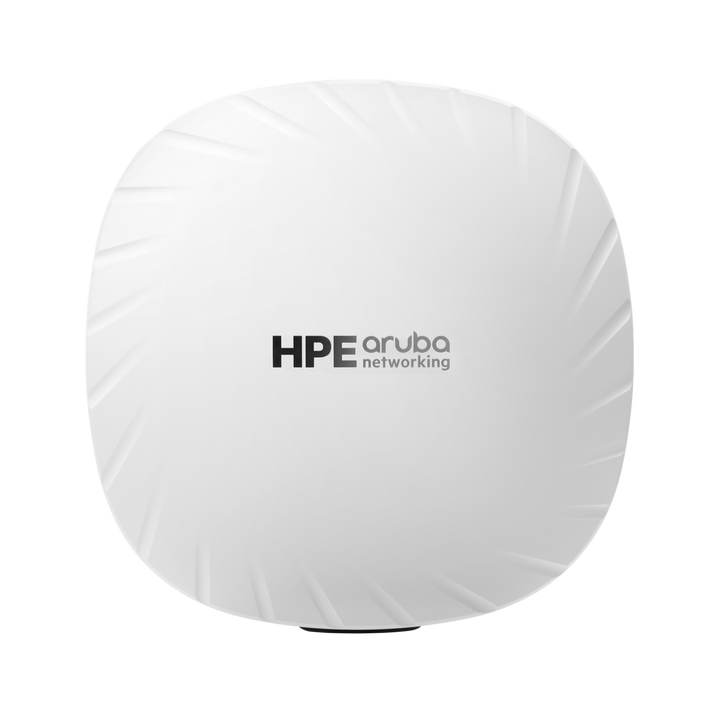

HPE Aruba Networking AP-535 Dual-Radio 4x4 Wi-Fi 6 Indoor Campus Access Point with Dual 5GbE
PRODUCT DESCRIPTION
HPE Aruba Networking AP-535 (RW) Wi-Fi 6 Campus Access Point (JZ336A) - Limited Lifetime Local Warranty
High-Performance 4x4 Wi-Fi 6 for Dense Environments
The HPE Aruba Networking AP-535 (RW) is a dual-radio 802.11ax (Wi-Fi 6) campus access point with four spatial streams on both radios. HPE rates it at up to 2.4 Gbps on 5 GHz (4SS HE80 or 2SS HE160) and 1,147 Mbps on 2.4 GHz (4SS HE40), for a combined peak data rate of up to 2.97 Gbps.
It supports up to 1,024 associated client devices per radio and up to 16 BSSIDs per radio.
Two 5 Gbps Smart Rate Ethernet Ports
Both E0 and E1 are HPE Smart Rate RJ-45 ports that auto-negotiate 100/1000/2500/5000BASE-T, giving multi-gigabit uplink capacity over existing copper cabling.
IoT and USB Ready
An integrated Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio supports IoT and location use cases, and a USB 2.0 host port can source up to 1A / 5W.
Deploy It Your Way: Cloud, Controller or Stand-Alone
HPE lists the AP-535 as able to run stand-alone (Instant) or with a gateway or controller for greater scalability, security and manageability, managed from HPE Aruba Networking Central in the cloud or on-premises.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the AP-535 (RW) locally with a GST invoice. HPE covers its HPE Aruba Networking campus access points with a hardware limited lifetime warranty.
Not sure which access point fits your site? Email sales@sourceit.com.sg with your floor area, user count and switch PoE budget and we will recommend a model.
HPE Aruba Networking AP-535 JZ336A Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking AP‑535 (RW) Dual Radio 4x4 802.11ax Internal Antennas Unified Campus AP |
| Part Number | JZ336A (RW — worldwide/rest-of-world regulatory variant) |
| Series | HPE Aruba Networking 530 Series Campus Access Points |
| Manufacturer Warranty | HPE Aruba Networking hardware limited lifetime warranty |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Radios & Data Rates
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Radios | Dual radio, 2.4 GHz and 5 GHz, 4x4 MIMO |
| 5 GHz | Up to 2.4 Gbps (4SS HE80 or 2SS HE160) |
| 2.4 GHz | Up to 1,147 Mbps (4SS HE40) |
| Combined Data Rate | Up to 2.97 Gbps |
| Antennas | Four integrated dual-band downtilt omnidirectional antennas; peak gain 3.5 dBi (2.4 GHz), 5.4 dBi (5 GHz) |
| Clients | Up to 1,024 associated client devices per radio; up to 16 BSSIDs per radio |
Interfaces
| Ethernet | 2 x HPE Smart Rate RJ-45 (E0, E1), auto-sensing 100/1000/2500/5000BASE-T |
| USB | USB 2.0 host (Type A), sourcing up to 1A / 5W |
| IoT Radio | Bluetooth 5.0 Low Energy and Zigbee (802.15.4) radio |
| Console | Micro-B console port (AP-CBL-SERU cable) |
Power
| PoE | 802.3at/bt PoE (class 4 or higher) |
| Unrestricted Operation | 802.3bt (class 5) PoE or 2 x 802.3at (class 4) PoE, or DC |
| 802.3at (class 4), IPM disabled | USB port and the second Ethernet port are disabled; no other restrictions |
| DC Input | 48 Vdc (nominal, +/- 5%) |
| Max Power | 23.3 W (DC); 26.4 W (802.3bt or dual 802.3at PoE) |
| Idle Power | 13.3 W |
Physical & Environmental
| Dimensions | 240 (W) x 240 (D) x 57 (H) mm |
| Weight | 1,270 g |
| Mounting | Mounting bracket pre-installed; mount kits sold separately |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 5% to 93% non-condensing |
| Storage Temperature | -40 °C to +70 °C |
Security & Software
| Security | WPA3 and Enhanced Open; WPA2-MPSK; Trusted Platform Module (TPM) |
| Deployment | Controller-managed, Instant (stand-alone) or HPE Aruba Networking Central |
Compatibility & Software Support
What It Is Suited To
High-density venues — auditoriums, lecture halls, open-plan offices, hospitals and airports — where a 4x4 Wi-Fi 6 AP with redundant multi-gigabit uplinks is justified. Pair it with an HPE Aruba Networking CX or Instant On PoE switch that can deliver the PoE class listed in the specifications.
Management Options
Managed through HPE Aruba Networking Central (cloud or on-premises), or with an HPE Aruba Networking gateway/controller. Confirm the minimum AOS 8 / AOS 10 software release with us before deployment. Ask us about Central licensing for your deployment.
PoE Switch Requirement
Use an 802.3bt (class 5) port, or two 802.3at ports, for unrestricted operation. A single 802.3at port runs the AP with USB and the second Ethernet port disabled (IPM off). 802.3af is not sufficient.
Package Contents & Campus Access Point Ordering Information
In the Box
HPE Aruba Networking AP-535 (RW) access point with its mounting bracket pre-installed on the back. No power adapter or ceiling-rail kit is included — HPE sells mount kits separately.
HPE Aruba Networking Campus Access Points at SourceIT — Ordering Information
| HPE Aruba Networking AP-505 (RW) | Wi-Fi 6, dual radio 2x2 (2.4 + 5 GHz), 1.49 Gbps | 1 x 1GbE | R2H28A |
| HPE Aruba Networking AP-515 (RW) | Wi-Fi 6, dual radio 4x4 5 GHz / 2x2 2.4 GHz, 2.69 Gbps | 1 x 2.5GbE Smart Rate + 1 x 1GbE | Q9H62A |
| AP-535 (RW) (this listing) | Wi-Fi 6, dual radio 4x4 (2.4 + 5 GHz), 2.97 Gbps | 2 x 5GbE Smart Rate | JZ336A |
| HPE Aruba Networking AP-615 (RW) | Wi-Fi 6E, dual radio tri-band 2x2, 3.6 Gbps | 1 x 2.5GbE Smart Rate | R7J49A |
| HPE Aruba Networking AP-635 (RW) | Wi-Fi 6E, tri radio 2x2 (2.4 + 5 + 6 GHz), 3.9 Gbps | 2 x 2.5GbE Smart Rate | R7J27A |
Mounting & Support Services
HPE lists optional AP-MNT-A, B, C, D, E and U mount kits (9/16" and 15/16" ceiling rails, profile rail, solid surface, wall box and universal). Ask us to quote the right mount kit, and HPE support services if you need them, together with the access point.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking 530 Series Campus Access Points QuickSpecs |
| HPE data sheet | HPE Aruba Networking 530 Series Access Points Data Sheet |
| Installation guide | AP-530 Series Installation Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JZ336A.
Frequently Asked Questions — HPE Aruba Networking AP-535 JZ336A
How fast is the AP-535?
Up to 2.4 Gbps on 5 GHz and 1,147 Mbps on 2.4 GHz, with a combined peak data rate of up to 2.97 Gbps.
What PoE does it need?
802.3bt (class 5) or two 802.3at ports for unrestricted operation. On one 802.3at port (IPM disabled) the USB and second Ethernet port are disabled. 802.3af is not enough.
How many uplink ports does it have?
Two HPE Smart Rate ports, each auto-negotiating up to 5 Gbps.
Is it Wi-Fi 6E?
No. The AP-535 is Wi-Fi 6 (2.4 and 5 GHz). For 6 GHz, see the AP-615 or AP-635.
What warranty do I get?
HPE Aruba Networking hardware limited lifetime warranty, supplied by SourceIT with local support and a GST invoice.
