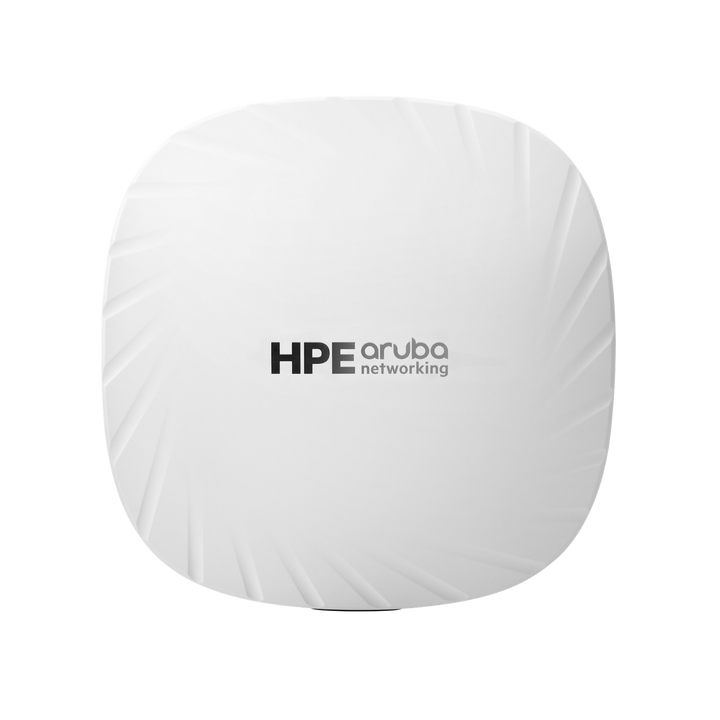

HPE Aruba Networking AP-505 Dual-Radio 2x2 Wi-Fi 6 Indoor Campus Access Point
PRODUCT DESCRIPTION
HPE Aruba Networking AP-505 (RW) Wi-Fi 6 Campus Access Point (R2H28A) - Limited Lifetime Local Warranty
Entry-Level Enterprise Wi-Fi 6 for Mid-Density Spaces
The HPE Aruba Networking AP-505 (RW) is a dual-radio 802.11ax (Wi-Fi 6) indoor campus access point with 2x2 MIMO on both the 5 GHz and 2.4 GHz radios. HPE rates it at up to 1.2 Gbps on 5 GHz and 574 Mbps on 2.4 GHz, for a maximum combined data rate of 1.49 Gbps.
It supports up to 256 associated client devices per radio and up to 16 BSSIDs per radio, making it a sensible choice for offices, meeting rooms and classrooms that need reliable Wi-Fi 6 without paying for 4x4 radios.
Wi-Fi 6 Efficiency: OFDMA, MU-MIMO and Target Wake Time
OFDMA and multi-user MIMO let the AP serve several Wi-Fi 6 clients in the same transmission, improving efficiency when many devices are connected. Target Wake Time (TWT) helps battery-powered and IoT client devices save power.
Built-In Bluetooth 5 and Zigbee IoT Radio
An integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) lets the AP double as an IoT and location gateway, and a USB 2.0 host port can supply up to 5W to an attached device.
Deploy It Your Way: Cloud, Controller or Stand-Alone
HPE lists the AP-505 as able to run stand-alone (Instant) or with a gateway or controller for greater scalability, security and manageability, managed from HPE Aruba Networking Central in the cloud or on-premises.
Runs on Standard 802.3af or 802.3at PoE
The AP-505 draws PoE from a standard 802.3af/at (class 3 or 4) switch port or a 12 Vdc adapter. On 802.3af with HPE's Intelligent Power Monitoring (IPM) disabled, the AP disables its USB port; all other functions continue to run.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the AP-505 (RW) locally with a GST invoice. HPE covers its HPE Aruba Networking campus access points with a hardware limited lifetime warranty.
Not sure which access point fits your site? Email sales@sourceit.com.sg with your floor area, user count and switch PoE budget and we will recommend a model.
HPE Aruba Networking AP-505 R2H28A Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking AP‑505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP |
| Part Number | R2H28A (RW — worldwide/rest-of-world regulatory variant) |
| Series | HPE Aruba Networking 500 Series Campus Access Points |
| Manufacturer Warranty | HPE Aruba Networking hardware limited lifetime warranty |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Radios & Data Rates
| Wi-Fi Standard | 802.11ax (Wi-Fi CERTIFIED 6) |
| Radios | Dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO |
| 5 GHz | Up to 1.2 Gbps (2SS HE80) |
| 2.4 GHz | Up to 574 Mbps (2SS HE40) |
| Combined Data Rate | Up to 1.49 Gbps |
| Antennas | Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO; peak gain 4.9 dBi (2.4 GHz), 5.7 dBi (5 GHz) |
| Clients | Up to 256 associated client devices per radio; up to 16 BSSIDs per radio |
Interfaces
| Ethernet | 1 x 10/100/1000BASE-T RJ-45, auto-sensing, MDI/MDIX (PoE-PD) |
| USB | USB 2.0 host, sourcing up to 1A / 5W |
| IoT Radio | Integrated Bluetooth 5 and 802.15.4 radio (Zigbee support) |
| Console | Micro-B console port |
Power
| PoE | 48 Vdc (nominal) 802.3af/at PoE (class 3 or 4) |
| DC Input | 12 Vdc (nominal, +/- 5%), 2.1 mm/5.5 mm center-positive circular plug; DC takes priority over PoE |
| Max Power (DC) | 8.9 W (14.2 W with USB device) |
| Max Power (802.3at PoE) | 11.0 W (16.5 W with USB device) |
| 802.3af Operation | With IPM disabled, the USB port is disabled |
Physical & Environmental
| Dimensions | 160 (W) x 161 (D) x 37 (H) mm |
| Weight | 500 g |
| Mounting | Mounting bracket pre-installed; ceiling-rail and wall mount kits sold separately |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 5% to 93% non-condensing |
| Plenum | UL2043 plenum rating |
Security & Software
| Security | WPA3 and Enhanced Open; Trusted Platform Module (TPM) |
| Deployment | Stand-alone (Instant) or with a gateway/controller; HPE Aruba Networking Central (cloud or on-premises) |
| Minimum Software | InstantOS / AOS 8.6.0.0; AOS 10.1.0.0 |
Compatibility & Software Support
What It Is Suited To
Offices, classrooms, clinics, retail and hospitality spaces with moderate client density that want enterprise-grade Wi-Fi 6 at an entry price point. Pair it with an HPE Aruba Networking CX or Instant On PoE switch that can deliver the PoE class listed in the specifications.
Management Options
Managed through HPE Aruba Networking Central (cloud or on-premises), or with an HPE Aruba Networking gateway/controller. HPE lists minimum software as InstantOS / AOS 8.6.0.0 and AOS 10.1.0.0. Ask us about Central licensing for your deployment.
PoE Switch Requirement
Any 802.3af (class 3) or 802.3at (class 4) PoE port will power the AP-505; use 802.3at for full USB power without IPM.
Package Contents & Campus Access Point Ordering Information
In the Box
HPE Aruba Networking AP-505 (RW) access point with its mounting bracket pre-installed on the back. No power adapter or ceiling-rail kit is included — HPE sells mount kits separately.
HPE Aruba Networking Campus Access Points at SourceIT — Ordering Information
| AP-505 (RW) (this listing) | Wi-Fi 6, dual radio 2x2 (2.4 + 5 GHz), 1.49 Gbps | 1 x 1GbE | R2H28A |
| HPE Aruba Networking AP-515 (RW) | Wi-Fi 6, dual radio 4x4 5 GHz / 2x2 2.4 GHz, 2.69 Gbps | 1 x 2.5GbE Smart Rate + 1 x 1GbE | Q9H62A |
| HPE Aruba Networking AP-535 (RW) | Wi-Fi 6, dual radio 4x4 (2.4 + 5 GHz), 2.97 Gbps | 2 x 5GbE Smart Rate | JZ336A |
| HPE Aruba Networking AP-615 (RW) | Wi-Fi 6E, dual radio tri-band 2x2, 3.6 Gbps | 1 x 2.5GbE Smart Rate | R7J49A |
| HPE Aruba Networking AP-635 (RW) | Wi-Fi 6E, tri radio 2x2 (2.4 + 5 + 6 GHz), 3.9 Gbps | 2 x 2.5GbE Smart Rate | R7J27A |
Mounting & Support Services
HPE lists optional mount kits for 9/16" and 15/16" ceiling rails, profile rails, solid surfaces and wall boxes (for example R3J18A, Type D solid surface). Ask us to quote the right mount kit, and HPE support services if you need them, together with the access point.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking 500 Series Campus Access Points QuickSpecs |
| HPE data sheet | HPE Aruba Networking 500 Series Access Points Data Sheet |
| Installation guide | AP-500 Series Installation Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R2H28A.
Frequently Asked Questions — HPE Aruba Networking AP-505 R2H28A
Is the AP-505 Wi-Fi 6?
Yes. It is a dual-radio 802.11ax (Wi-Fi 6) access point with 2x2 MIMO on both 5 GHz and 2.4 GHz, up to 1.49 Gbps combined.
What PoE does it need?
802.3af (class 3) or 802.3at (class 4). With 802.3af and IPM disabled, the USB port is turned off.
Does it need a controller?
No. It can run stand-alone (Instant), with a gateway/controller, or be managed from HPE Aruba Networking Central.
Is a power adapter or mount kit included?
No. The mounting bracket is pre-installed; ceiling-rail/wall mount kits and a 12 Vdc adapter are sold separately. Most sites power it by PoE.
What warranty do I get?
HPE Aruba Networking hardware limited lifetime warranty, supplied by SourceIT with local support and a GST invoice.
