HP Series 5 Pro 549pm 49-inch DQHD Curved Conferencing Monitor
PRODUCT DESCRIPTION
HP Series 5 Pro 49-inch DQHD Conferencing Monitor 549pm (B7GV8AA) - 3 Years Local Warranty
Two QHD Screens in One Curve

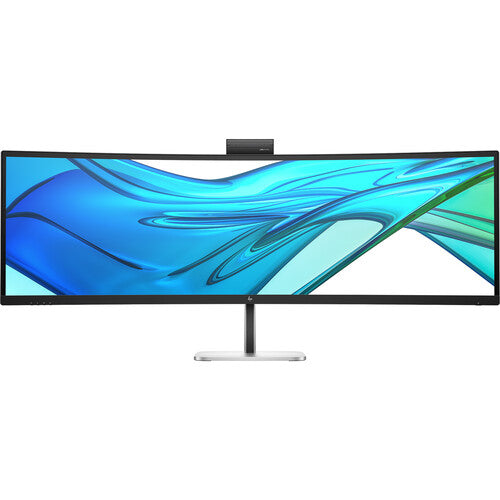

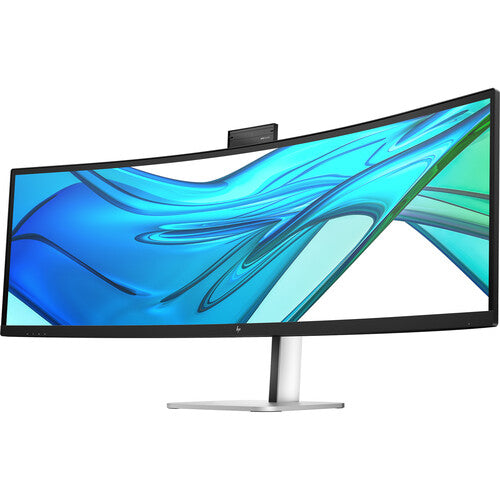

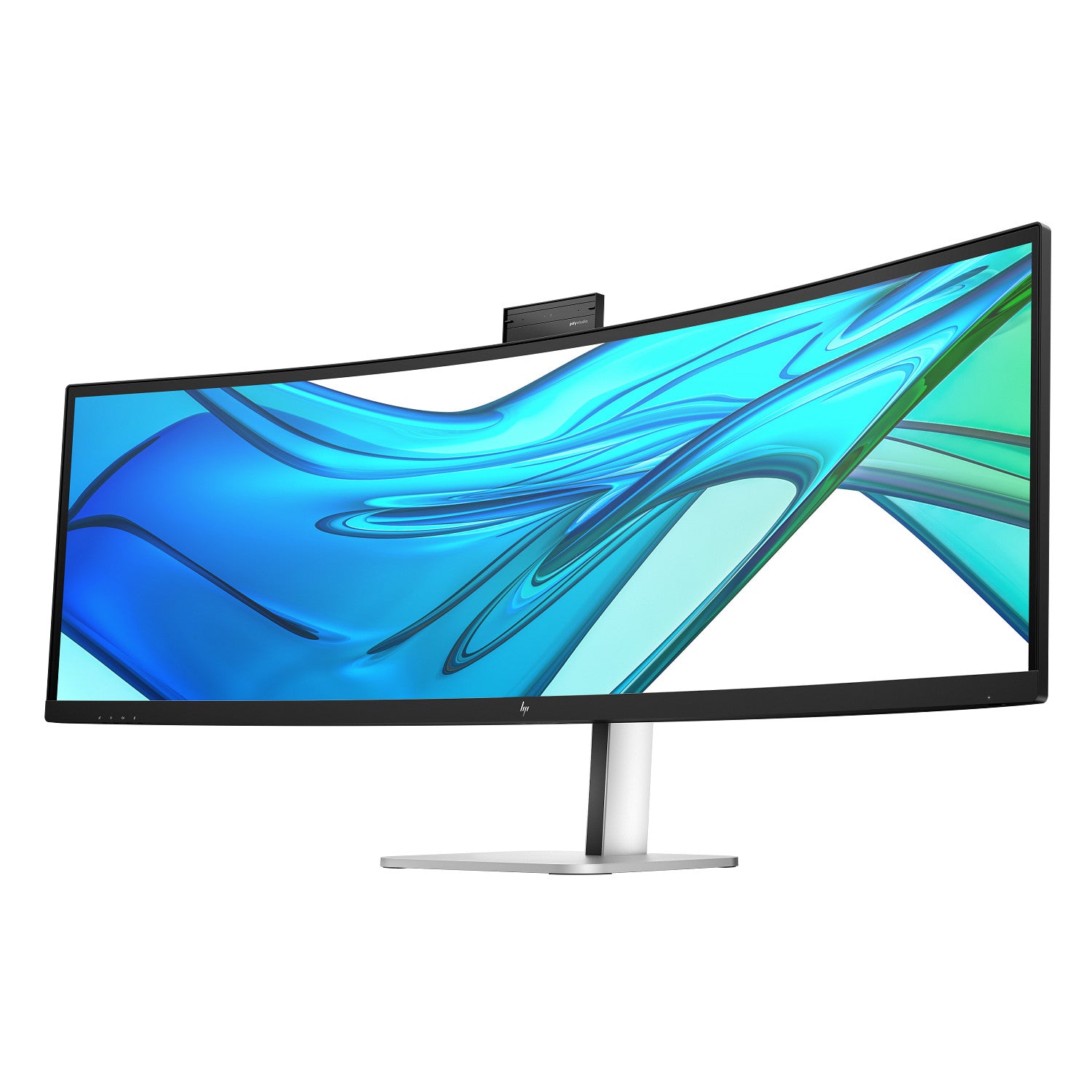

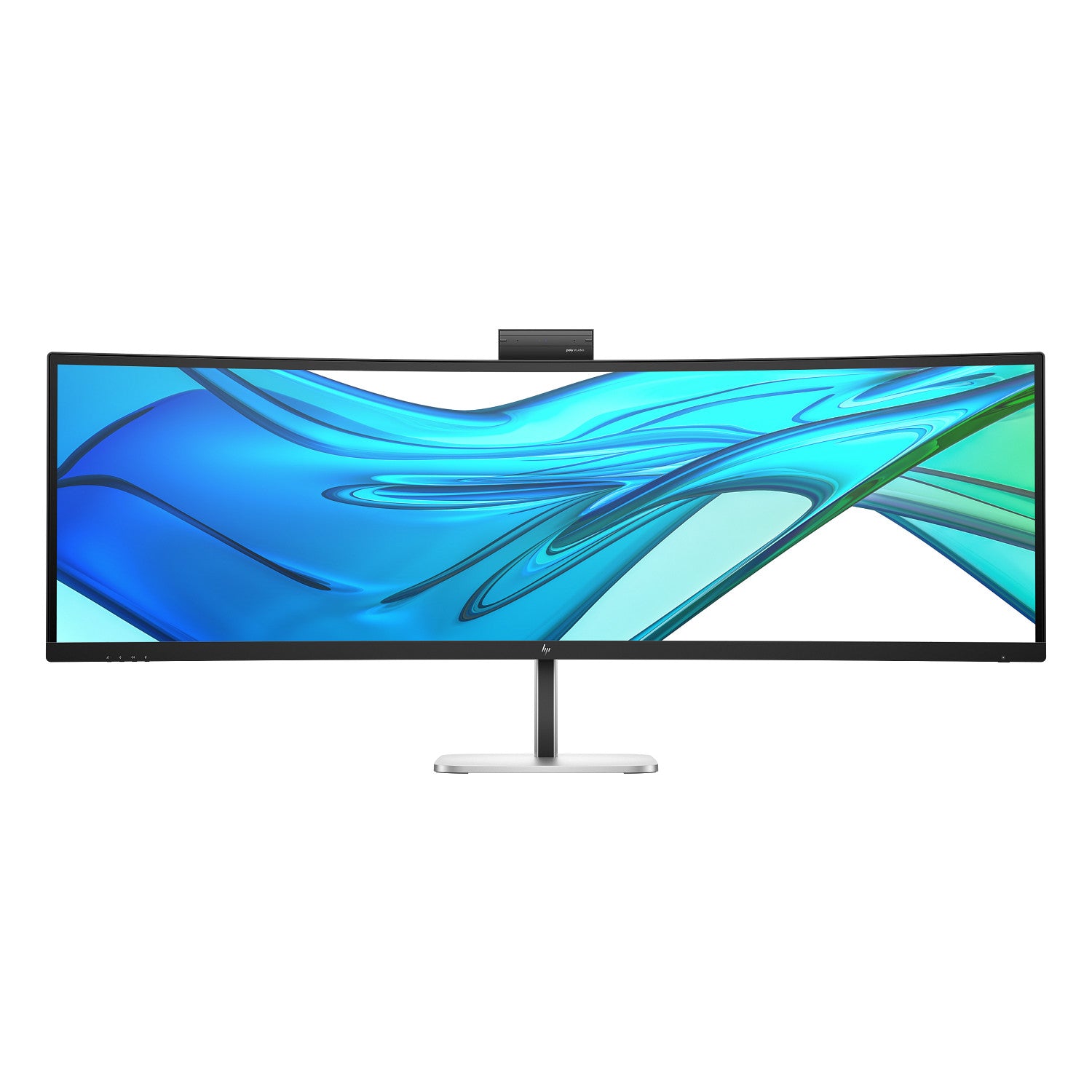

The HP Series 5 Pro 549pm is a 49-inch 32:9 curved (1800R) VA display with 5120 x 1440 resolution, the equivalent of two 27-inch QHD screens with no bezel between them. It runs at up to 165 Hz with 400 nits brightness, 4000:1 contrast and 99% sRGB.
Camera, Microphones and Speakers Built In
A 5 MP camera, dual microphones with DNN noise cancellation and a down-firing speaker system (2 x 3 W woofers plus 2 x 5 W tweeters) are integrated for video calls without extra accessories.
Dual USB-C with Up to 140 W
Two USB-C video inputs support DisplayPort 1.4 Alt Mode and up to 140 W USB Power Delivery, alongside HDMI 2.1 and DisplayPort 1.4. RJ-45 Gigabit Ethernet, three charging USB-A 5Gbps ports and a 15 W USB-C data port complete the dock.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 549pm Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 49 inch DQHD Conferencing Monitor - 549pm |
| Model | 549pm |
| HP Part Number | B7GV8AA |
| Product Line | HP Series 5 Pro (conferencing / docking monitor) |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 124.5 cm (49") diagonal, 32:9 |
| Panel Technology | VA; LCD |

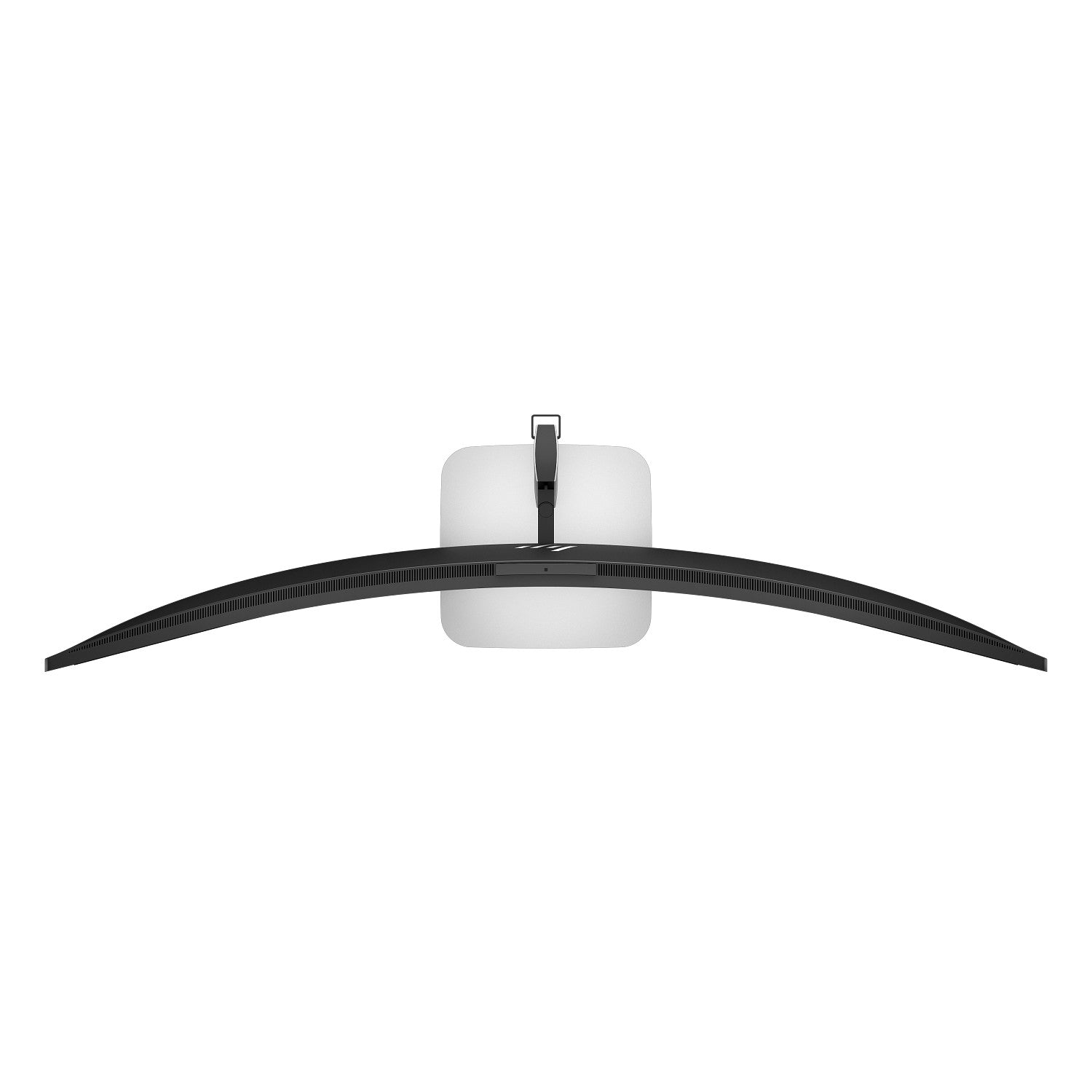

| Curvature | 1800R |
| Native Resolution | DQHD (5120 x 1440) |
| Maximum Resolution | DQHD (5120 x 1440 @ 165 Hz) |
| Brightness | 400 nits |
| Contrast Ratio | 4000:1 |
| Colour Gamut | 99% sRGB |
| Panel Bit Depth | True 8 bit |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.2328 x 0.2328 mm / 109 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free (TÜV certified) |
| Bezel | 3-sided borderless |
Conferencing
| Camera | 5 MP camera |
| Microphone | Dual microphones with DNN noise cancellation |
| Speakers | Built-in, down-firing; 2 x 3 W (woofer), 2 x 5 W (tweeter) |
| Audio Port | 1 x 3.5 mm audio jack (audio in/out combo) |

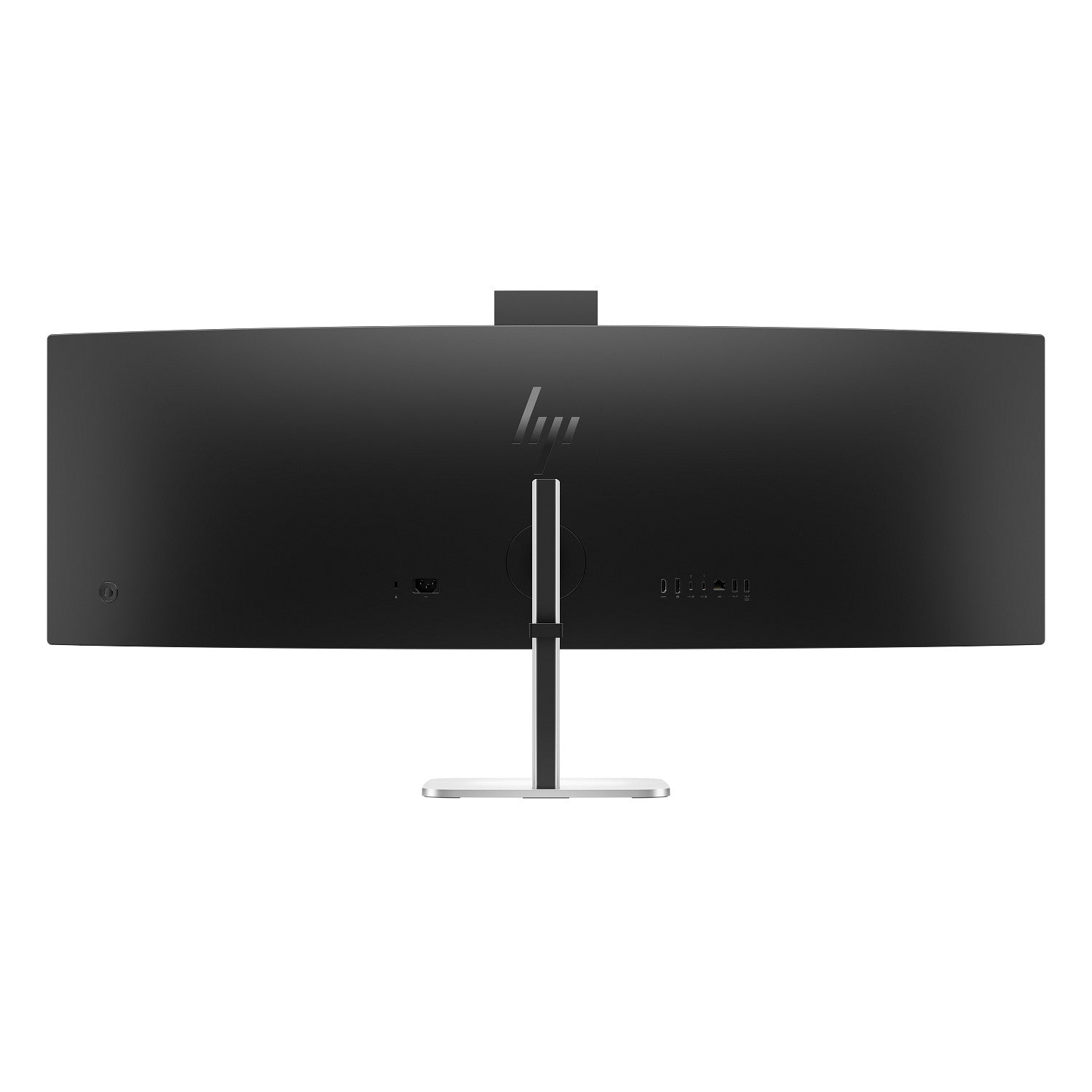

Connectivity
| USB-C Upstream (video) | 2 x USB Type-C 5Gbps (up to 140 W USB Power Delivery, Alt Mode DisplayPort 1.4) |
| USB-C Data | 1 x USB Type-C 5Gbps (up to 15 W USB Power Delivery) |
| USB-A Downstream | 3 x USB Type-A 5Gbps (3 charging) |
| DisplayPort | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.1 |
| Ethernet | 1 x RJ-45 (10/100/1000 Mbps) |
| HDCP | Yes, DisplayPort, HDMI and USB Type-C |
Ergonomics

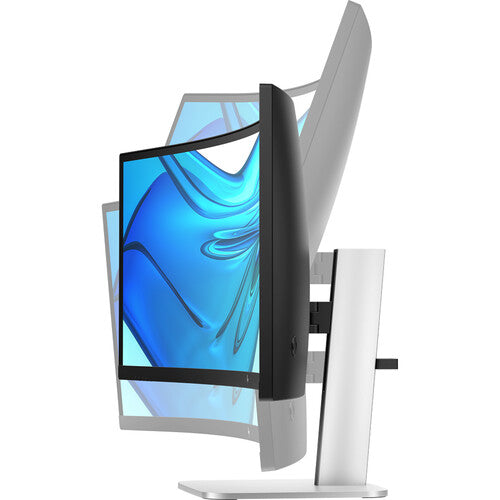

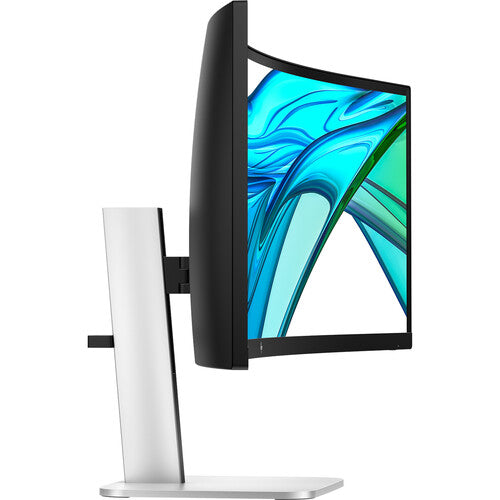

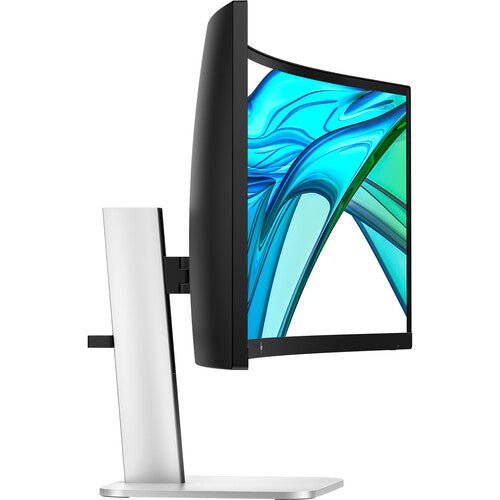

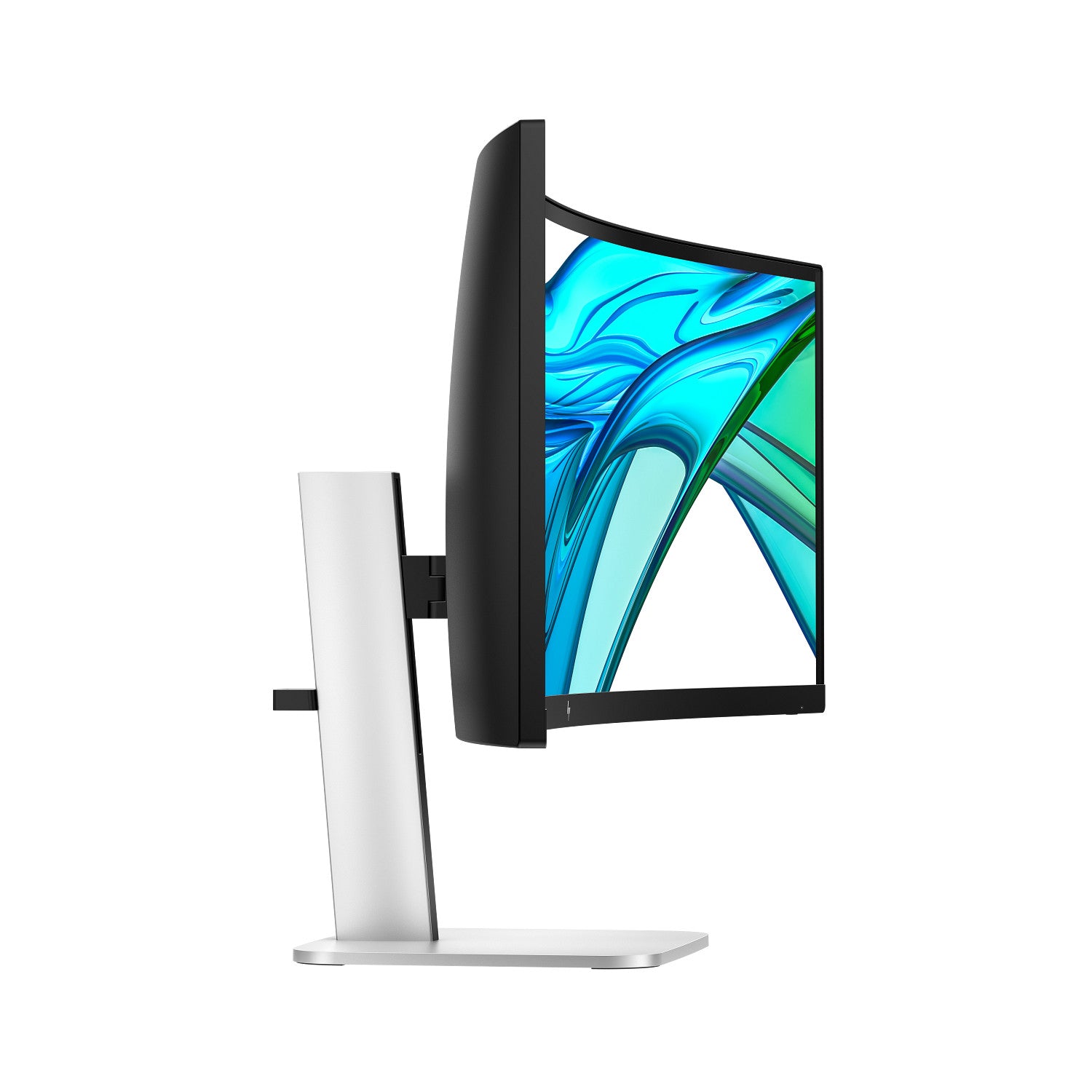

| Height Adjustment | 150 mm |
| Tilt | -5 to +20° |

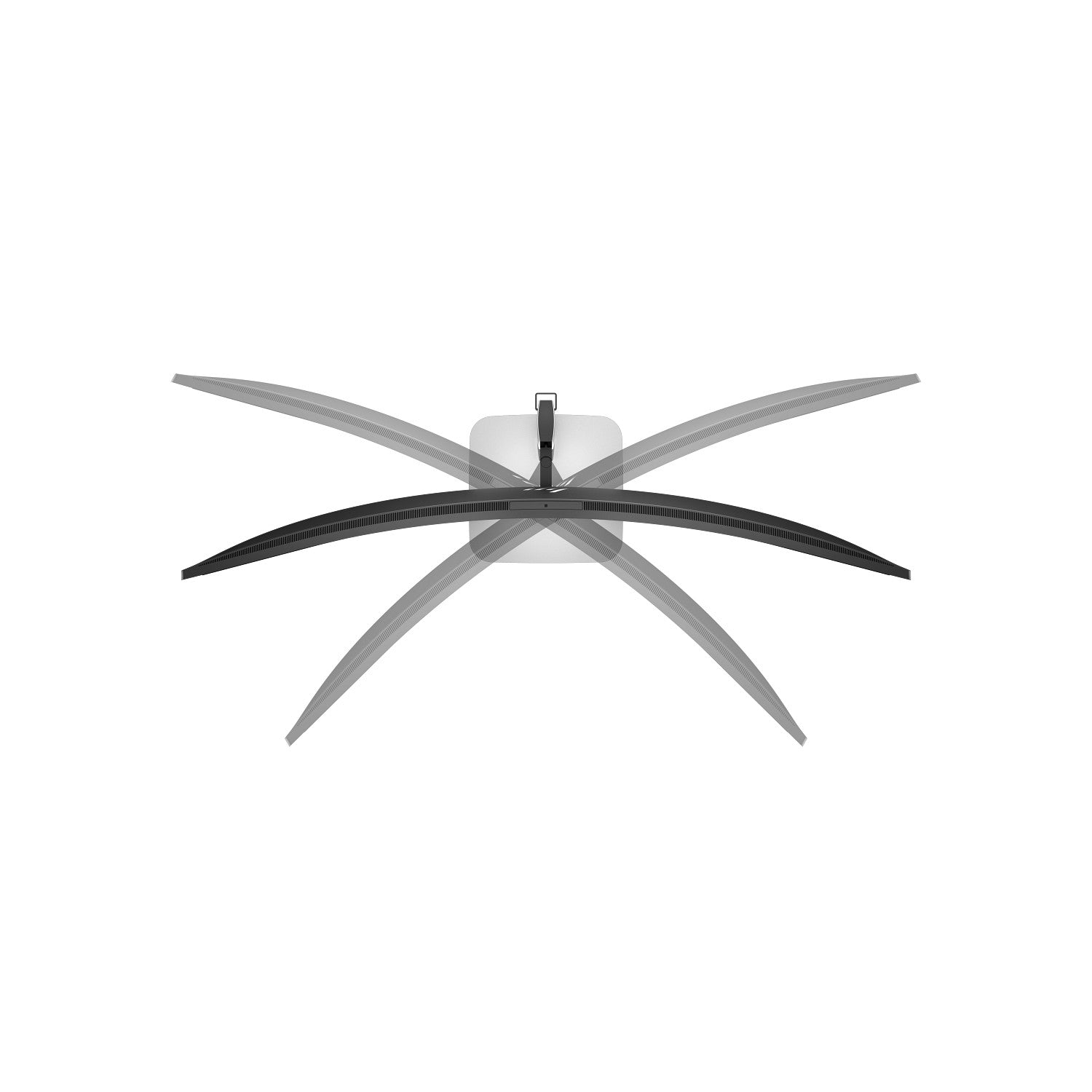

| Swivel | ±30° |
| VESA Mount | 100 x 100 mm (VESA mount adapter included); detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 375 W (maximum), 65 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 119.35 x 30.91 x 58.73 cm |
| Weight | 17.18 kg (with stand); 13.74 kg (without stand) |
| Package Weight | 26.66 kg |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt Mode can drive the 549pm over one cable, which also carries the camera, audio, Ethernet and USB hub and delivers up to 140 W of power. A second USB-C video input allows two notebooks to stay connected. PCs without USB-C connect over DisplayPort 1.4 or HDMI 2.1.
Software
HP Display Center handles display settings and screen partitioning, which is useful for dividing the 32:9 panel into zones; the HP Client Management Script Library supports remote management by IT.
Typical Use
Executive desks, trading, analytics and timeline work, and video-first roles replacing a dual-monitor, webcam and dock set-up with one display.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, 2 x USB Type-C to Type-C cables, AC power cord, VESA mount adapter, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm (this listing) | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP product page | HP Series 5 Pro 549pm on hp.com Singapore |
| Specifications | HP 549pm full specifications |
| Manuals & drivers | HP Customer Support Singapore (search B7GV8AA) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting B7GV8AA.
Frequently Asked Questions — HP 549pm
How large is the 549pm's workspace?
5120 x 1440 on a 49-inch 32:9 panel, equal to two 27-inch QHD screens side by side.
What refresh rate does it support?
Up to 165 Hz at 5120 x 1440.
How much power does USB-C deliver?
Up to 140 W USB Power Delivery through the USB-C video inputs; two USB-C to USB-C cables are in the box.
What conferencing hardware is built in?
A 5 MP camera, dual microphones with DNN noise cancellation and down-firing speakers (2 x 3 W woofers, 2 x 5 W tweeters).
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
