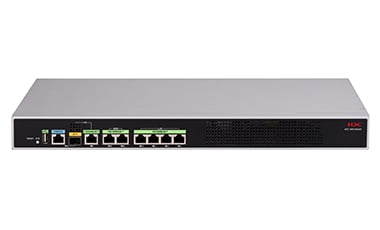

H3C WSG1840X 8-Port Wireless Services Gateway, 1 x 5GE + 1 x SFP+, 128 APs Max
PRODUCT DESCRIPTION
H3C WSG1840X 8-Port Wireless Integrated Services Gateway (EWP-WSG1840X) - 5 Years Local Warranty
Gateway, Security and Wi-Fi Controller in One
The H3C WSG1840X combines gateway, security and wireless access controller (AC) functions in one 1U unit for SMB and SME networks, running H3C's Comware V7 platform.
64 APs Built In, Up to 128
64 AP licences are included by default — 64 ordinary APs or 128 wall-plate APs — with up to 128 managed APs. H3C rates wireless throughput at 4 Gbps.
Multi-Gig and 10G Uplinks
Alongside six Gigabit ports, a 2.5G/5GBASE-T port and a 10G SFP+ port give headroom for Wi-Fi 6 uplinks and a fibre core link.
VPN, Routing and Threat Protection
SSL, IPsec and L2TP VPN and GRE; static, RIP, OSPF and BGP routing; link load balancing; firewall with ACLs and ASPF, IPS, antivirus, URL filtering, DoS/DDoS protection and WIDS/WIPS.
H3C WSG1840X Datasheet — Technical Specifications
General
| Product Name | H3C WSG1840X Wireless Integrated Services Gateway |
| Model | EWP-WSG1840X |
| Part Number (BOM) | 9801A40N |
| Device Type | Wireless integrated multi-service gateway (gateway + security + AC) |
| Operating System | Comware V7 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 2 x 100/1000BASE-T (WAN 5–6) |
| LAN | 4 x 100/1000BASE-T (LAN 1–4) + 1 x 2.5G/5GBASE-T |
| SFP+ | 1 x SFP+ |
| Management | 1 x console, 1 x USB, reset button |
| PoE | Not listed by H3C for this model |
Performance
| Wireless Throughput | 4 Gbps |
| AP Licences | 64 built in (64 ordinary APs or 128 wall-plate APs) |
| Maximum Managed APs | 128 (additional licences required) |
| Wireless Standards | 802.11a/b/g/ac/ax AP management; 802.11k/v/r roaming |
Power & Physical
| Power Supply | 100–240 V AC, 50/60 Hz |
| System Power Consumption | 14.4 W |
| Dimensions (H x W x D) | 43.6 x 440 x 165 mm |
| Weight | 1.8 kg |
| Installation | 19-inch rack (mounting brackets included) |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Relative Humidity | 5% to 95% |
| MTBF | 50,000 hours or more |
Specifications from H3C's official WSG1840X product page and the WSG1840X Installation Guide (Appendix A, Chassis views and technical specifications).
Compatibility & Software Support
Management
Per H3C's product page: web interface, CLI, Telnet and FTP for deployment, SNMP v1/v2/v3 and RMON for network management, plus cloud management. The gateway runs H3C's Comware V7 platform.
Supported Access Points
H3C lists these SMB APs as supported: WA6020, WA6120, WA6126, WA6120X, WA6120H, WA6022H and WA7130. Ordinary APs use 1 licence each and wall-plate APs use 0.5.
AP Licence Add-Ons
Extra AP capacity is added with H3C LIS-WX-1/4/8/16-SME-OVS licences, up to 128 managed APs.
Package Contents & H3C WSG1800X Ordering Information
H3C WSG1800X Models
| Model | Key Ports | PoE | Part No. |
| EWP-WSG1808X-PWR | 2 x GE WAN, 7 x GE LAN, 1 x SFP+ | 8 x PoE+, 80 W | 9801A5NN |
| EWP-WSG1812X-PWR | 2 x GE WAN, 12 x GE LAN, 2 x SFP+ | 12 x PoE+, 150 W | 9801A40Q |
| EWP-WSG1840X (this listing) | 2 x GE WAN, 4 x GE + 1 x 5GE LAN, 1 x SFP+ | — | 9801A40N |
The WSG1840X supports rack mounting, and mounting brackets are included with the unit. SFP+ transceivers are not included.
H3C does not publish a full package-contents list on the product page — ask us if you need confirmation of what ships in the box.
Datasheet & Downloads
| H3C product page | WSG1840X on h3c.com |
| H3C datasheet | WSG1840X Datasheet (download.h3c.com) |
| Installation guide | WSG1840X Installation Guide — Chassis Views and Technical Specifications |
| Technical documents & software | WSG1800X Series Resource Center (h3c.com) |
Frequently Asked Questions — H3C WSG1840X
Does the WSG1840X provide PoE?
H3C does not list PoE for the WSG1840X. If you need the gateway to power APs, look at the WSG1808X-PWR (80 W) or WSG1812X-PWR (150 W), or pair it with a PoE switch.
How many access points can it manage?
64 licences are built in (64 ordinary APs or 128 wall-plate APs). Up to 128 APs can be managed by adding LIS-WX-SME-OVS licences.
What is the 5GE port for?
It is a 2.5G/5GBASE-T autosensing LAN port, useful for a multi-gig uplink to a switch or Wi-Fi 6 AP.
Can it be rack mounted?
Yes. Mounting brackets are included.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
