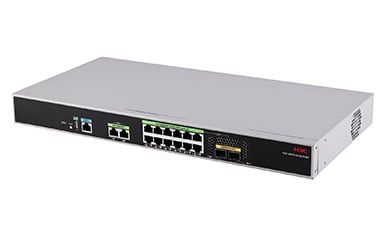

H3C WSG1812X-PWR 16-Port Gigabit Wireless Services Gateway, 12 x PoE+, 2 x SFP+
PRODUCT DESCRIPTION
H3C WSG1812X-PWR 16-Port Wireless Integrated Services Gateway (EWP-WSG1812X-PWR) - 5 Years Local Warranty
Gateway, Security and Wi-Fi Controller in One
The H3C WSG1812X-PWR integrates gateway, security and wireless access controller (AC) functions in one 1U unit for SMB and SME networks, running H3C's Comware V7 platform.
12 PoE+ Ports, 150 W
Twelve LAN ports deliver PoE+ at up to 30 W each with a 150 W total budget for APs, IP phones and cameras, plus two 10G SFP+ ports for uplinks.
32 APs Out of the Box
32 AP licences are built in — 32 ordinary APs or 64 wall-plate APs — scaling to 64 managed APs. H3C rates wireless throughput at 4 Gbps, with per-SSID centralized or distributed forwarding.
VPN, Routing and Threat Protection
IPsec, L2TP, GRE and SSL VPN; PPPoE, DDNS, RIP, OSPF, BGP and policy routing; link load balancing; firewall, ACLs, NAT, antivirus, Layer 4–7 DPI and WIDS/WIPS.
H3C WSG1812X-PWR Datasheet — Technical Specifications
General
| Product Name | H3C WSG1812X-PWR Wireless Integrated Services Gateway |
| Model | EWP-WSG1812X-PWR |
| Part Number (BOM) | 9801A40Q |
| Device Type | Wireless integrated multi-service gateway (gateway + security + AC) |
| Operating System | Comware V7 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 2 x 100/1000BASE-T (WAN 1–2) |
| LAN | 12 x 100/1000BASE-T PoE+ (LAN 3–14) |
| SFP+ | 2 x 10GBASE-R SFP+ |
| Management | 1 x console, 1 x USB, reset button |
| PoE | 12 x PoE+, up to 30 W per port, 150 W total |
Performance
| Wireless Throughput | 4 Gbps |
| AP Licences | 32 built in (32 ordinary APs or 64 wall-plate APs) |
| Maximum Managed APs | 64 (additional licences required) |
| Wireless Standards | 802.11a/b/g/ac/ax AP management; 802.11k/v/r roaming |
Power & Physical
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max Power Consumption | 173 W (including 150 W PoE output) |
| Dimensions (H x W x D) | 43.6 x 440 x 220 mm |
| Weight | 2.9 kg |
| Installation | 19-inch rack (mounting brackets included) |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Relative Humidity | 5% to 95% |
| MTBF | 50,000 hours or more |
Specifications from H3C's official WSG1812X-PWR product page and the WSG1812X-PWR Installation Guide (Appendix A, Chassis views and technical specifications).
Compatibility & Software Support
Management
Per H3C's product page: web interface, CLI, Telnet and FTP for deployment, SNMP v1/v2/v3 and RMON for network management, plus cloud management. The gateway runs H3C's Comware V7 platform.
Supported Access Points
H3C lists these SMB APs as supported: WA6020, WA6120, WA6126, WA6120X, WA6120H, WA6022H and WA7130. Ordinary APs use 1 licence each and wall-plate APs use 0.5.
AP Licence Add-Ons
Extra AP capacity is added with H3C LIS-WX-1/4/8/16-SME-OVS licences, up to 64 managed APs.
Package Contents & H3C WSG1800X Ordering Information
H3C WSG1800X Models
| Model | Key Ports | PoE | Part No. |
| EWP-WSG1808X-PWR | 2 x GE WAN, 7 x GE LAN, 1 x SFP+ | 8 x PoE+, 80 W | 9801A5NN |
| EWP-WSG1812X-PWR (this listing) | 2 x GE WAN, 12 x GE LAN, 2 x SFP+ | 12 x PoE+, 150 W | 9801A40Q |
| EWP-WSG1840X | 2 x GE WAN, 4 x GE + 1 x 5GE LAN, 1 x SFP+ | — | 9801A40N |
The WSG1812X-PWR supports rack mounting, and mounting brackets are included with the unit. SFP+ transceivers are not included.
H3C does not publish a full package-contents list on the product page — ask us if you need confirmation of what ships in the box.
Datasheet & Downloads
| H3C product page | WSG1812X-PWR on h3c.com |
| H3C datasheet | WSG1812X-PWR Datasheet (download.h3c.com) |
| Installation guide | WSG1812X-PWR Installation Guide — Chassis Views and Technical Specifications |
| Technical documents & software | WSG1800X Series Resource Center (h3c.com) |
Frequently Asked Questions — H3C WSG1812X-PWR
Can it be rack mounted?
Yes. It is a 1U, 440 mm wide unit and mounting brackets are included.
How many access points can it manage?
32 licences are built in (32 ordinary APs or 64 wall-plate APs). Up to 64 APs can be managed by adding LIS-WX-SME-OVS licences.
How much PoE power is available?
12 PoE+ ports at up to 30 W each, with a 150 W total budget.
Which H3C APs are supported?
H3C lists the WA6020, WA6120, WA6126, WA6120X, WA6120H, WA6022H and WA7130 SMB APs.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
