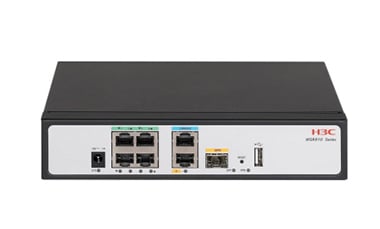

H3C MSR610 6-Port Gigabit Enterprise Router, GE + SFP WAN, 4 x GE LAN/WAN
PRODUCT DESCRIPTION
H3C MSR610 Enterprise 6-Port Gigabit Router (RT-MSR610) - 5 Years Local Warranty
Compact Router for Small Business Edges
The H3C MSR610 is an enterprise-level router in the MSR600 series for small and medium-sized enterprise edge networks, with a Gigabit copper WAN, an SFP WAN and four Gigabit LAN ports that can be set as extra WANs.
Performance
H3C rates the MSR610 at 300 Mbps forwarding with ACL, NAT and QoS enabled (IMIX) and 1 Gbps NGFW throughput (1518-byte), on an 800 MHz CPU with 1 GB memory.
VPN, Routing and Multi-WAN
IPsec, L2TP and GRE VPN; static, RIP, OSPF, BGP and IS-IS routing; bandwidth- and IP-based load balancing and backup across links with NQA and BFD.
Cloud Managed with Built-In AC
Supports H3C's Oasis cloud platform and Cloudnet app, zero-touch USB/URL auto-configuration, and a built-in wireless controller for up to 64 APs (8–16 suggested; AP licences sold separately).
H3C MSR610 Datasheet — Technical Specifications
General
| Product Name | H3C MSR610 Enterprise-Level 6-Port Gigabit Ethernet Router |
| Model | RT-MSR610 |
| Part Number (BOM) | 9801A426 |
| Series | MSR600 |
| Operating System | Comware |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 1 x Gigabit copper + 1 x SFP |
| LAN | 4 x Gigabit (configurable as WAN) |
| USB | 1 (no SIM card function) |
| Console | 1 |
Performance
| Forwarding with ACL + NAT + QoS (IMIX) | 300 Mbps |
| NGFW Throughput (1518B) | 1 Gbps |
| CPU | 800 MHz |
| Memory | 1 GB |
| Flash | 256 MB internal |
| Wireless AC | Up to 64 APs (8–16 suggested); no AP licence by default |
Power & Physical
| Power Supply | External adapter, 100–240 V AC, 50/60 Hz; device input 12 V DC, 2 A |
| Max Power Consumption | 24 W |
| Dimensions (H x W x D) | 44 x 210 x 140 mm |
| Installation | Workbench or wall; 19-inch rack with the optional RTU-FL-F mount kit |
| Operating Temperature | 0 to 40 °C |
| Relative Humidity | 5% to 95%, non-condensing |
Specifications from H3C's official MSR610 product page and the H3C MSR600 Router Series Hardware Information and Specifications; mounting from the H3C MSR600 Router Series Installation Guide.
Compatibility & Software Support
Management
Per H3C: Cloudnet app and Oasis cloud platform, SNMP v1/v2c/v3, Syslog, RMON, CLI and console/Telnet/SSH/FTP login, with dual-image support.
Security
Firewall, ACLs, NAT/NAPT, IPsec, L2TP, GRE, PKI, SSH, RBAC, RADIUS/TACACS+, 802.1X/MAC/portal authentication and ARP attack protection.
AP Licences
The built-in AC needs H3C LIS-WX-1/4/8/16-SME-OVS AP licences, sold separately.
Package Contents & H3C MSR Router Ordering Information
H3C MSR Router Models
| Model | Key Ports | PoE | Part No. |
| RT-MSR610 (this listing) | 1 x GE + 1 x SFP WAN, 4 x GE LAN/WAN | — | 9801A426 |
| RT-MSR830-10HI-GL | 4 x GE WAN (1 combo), 6 x GE LAN/WAN | — | 9801A1S0 |
| RTU-FL-F | Rack mount kit for MSR610 (2 brackets, 8 screws) | — | 9821A0AW |
The MSR610 ships with its power adapter. H3C's installation guide states no mounting brackets or screws are provided with the router; for 19-inch rack installation buy the RTU-FL-F mount kit (9821A0AW) separately.
For the complete package-contents list, ask us.
Datasheet & Downloads
| H3C product page | MSR610 on h3c.com |
| H3C datasheet | MSR610 Datasheet (download.h3c.com) |
| Hardware specifications | H3C MSR600 Router Series Hardware Information and Specifications |
| Installation guide | H3C MSR600 Router Series Installation Guide |
Frequently Asked Questions — H3C MSR610
Can I rack mount the MSR610?
Yes, but brackets are not included. Order the H3C RTU-FL-F mount kit (part 9821A0AW, 2 brackets and 8 screws). Without it, the router can sit on a desk or be wall mounted.
How many WAN links can it use?
It has a Gigabit copper WAN and an SFP WAN, and the four LAN ports can be configured as WAN interfaces for multi-WAN load balancing and backup.
Does it support 4G/5G SIM?
No. H3C states the USB port has no SIM card function.
Can it manage Wi-Fi APs?
Yes. The built-in AC supports up to 64 APs (8–16 suggested); AP licences are sold separately.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
