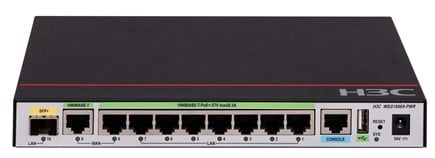

H3C WSG1808X-PWR 10-Port Gigabit Wireless Services Gateway, 8 x PoE+, 1 x SFP+
PRODUCT DESCRIPTION
H3C WSG1808X-PWR 10-Port Wireless Integrated Services Gateway (EWP-WSG1808X-PWR) - 5 Years Local Warranty
Gateway, Security and Wi-Fi Controller in One
The H3C WSG1808X-PWR is a wireless integrated multi-service gateway for SMB networks. It combines router/gateway, firewall security and wireless access controller (AC) functions in one compact desktop unit running Comware V7.
PoE+ for Your Access Points
Eight ports supply 802.3af/at PoE+ at up to 30 W per port, with an 80 W total PoE budget, so APs, IP phones and cameras can be powered straight from the gateway.
Manage Up to 24 APs
12 AP licences are built in — enough for 12 standard APs or 24 wall-plate APs — with up to 24 managed APs as licences are added. H3C rates wireless throughput at 2 Gbps.
VPN, Routing and Threat Protection
NAT, PPPoE, DDNS, DHCP, IPsec and SSL VPN, GRE, static/OSPF/BGP/policy routing, link load balancing, plus firewall, ACLs, DPI, antivirus, URL filtering and WIDS/WIPS rogue-AP protection.
H3C WSG1808X-PWR Datasheet — Technical Specifications
General
| Product Name | H3C WSG1808X-PWR Wireless Integrated Services Gateway |
| Model | EWP-WSG1808X-PWR |
| Part Number (BOM) | 9801A5NN |
| Device Type | Wireless integrated multi-service gateway (gateway + security + AC) |
| Operating System | Comware V7 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 2 x 1000BASE-T (WAN 8 with PoE+, WAN 9); LAN/WAN switchable |
| LAN | 7 x 1000BASE-T PoE+ (LAN 1–7) |
| SFP+ | 1 x 10GBASE-R SFP+ (port 10, LC; transceiver not included) |
| Management | 1 x console, 1 x USB 2.0, reset button |
| PoE | 8 x PoE+ (802.3af/at), up to 30 W per port, 80 W total; PoE on port 8 is off by default |
Performance
| Wireless Throughput | 2 Gbps |
| AP Licences | 12 built in (12 standard APs or 24 wall-plate APs) |
| Maximum Managed APs | 24 (additional licences required) |
| Wireless Standards | 802.11a/b/g/n/ac/ax AP management; 802.11k/v/r roaming, 802.11w, Hotspot 2.0 |
Power & Physical
| Power Supply | External power adapter: 100–240 V AC, 50/60 Hz input; 54 V DC, 1.85 A output |
| Max Power Consumption | 97 W |
| Dimensions (H x W x D) | 27 x 220 x 145.5 mm |
| Weight | 1.1 kg (including power adapter) |
| Installation | Workbench or wall mount (rack mounting not supported) |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Relative Humidity | 5% to 95% |
Specifications from H3C's official WSG1808X-PWR product page and the WSG1808X-PWR Installation Guide (Appendix A, Chassis views and technical specifications).
Compatibility & Software Support
Management
Per H3C's product page: web interface, CLI, Telnet and FTP for deployment, SNMP v1/v2/v3 and RMON for network management, plus cloud management. The gateway runs H3C's Comware V7 platform.
Supported Access Points
H3C lists these SMB APs as supported: WA6020, WA6120, WA6126, WA6120X, WA6120H, WA6022H and WA7130. Ordinary APs use 1 licence each and wall-plate APs use 0.5.
AP Licence Add-Ons
Extra AP capacity is added with H3C LIS-WX-1-SME-OVS, LIS-WX-4-SME-OVS or LIS-WX-8-SME-OVS licences, up to 24 managed APs.
Package Contents & H3C WSG1800X Ordering Information
H3C WSG1800X Models
| Model | Key Ports | PoE | Part No. |
| EWP-WSG1808X-PWR (this listing) | 2 x GE WAN, 7 x GE LAN, 1 x SFP+ | 8 x PoE+, 80 W | 9801A5NN |
| EWP-WSG1812X-PWR | 2 x GE WAN, 12 x GE LAN, 2 x SFP+ | 12 x PoE+, 150 W | 9801A40Q |
| EWP-WSG1840X | 2 x GE WAN, 4 x GE + 1 x 5GE LAN, 1 x SFP+ | — | 9801A40N |
The WSG1808X-PWR does not support rack mounting and no mounting brackets are included; H3C's installation guide covers workbench (rubber feet) and wall mounting. It is powered by an external 54 V power adapter. SFP+ transceivers are not included.
H3C does not publish a full package-contents list on the product page — ask us if you need confirmation of what ships in the box.
Datasheet & Downloads
| H3C product page | WSG1808X-PWR on h3c.com |
| H3C datasheet | WSG1808X-PWR Datasheet (download.h3c.com) |
| Installation guide | WSG1808X-PWR Installation Guide — Chassis Views and Technical Specifications |
| Technical documents & software | WSG1800X Series Resource Center (h3c.com) |
Frequently Asked Questions — H3C WSG1808X-PWR
Can the WSG1808X-PWR be rack mounted?
No. It is a desktop unit for workbench or wall mounting; rack mounting is not supported and no brackets are included. For rack installation choose the WSG1812X-PWR or WSG1840X.
How many access points can it manage?
12 licences are built in, covering 12 standard APs or 24 wall-plate APs. Up to 24 APs can be managed by adding LIS-WX-SME-OVS licences.
How much PoE power is available?
Eight ports support PoE+ at up to 30 W each, with an 80 W total budget. PoE on port 8 (WAN) is off by default.
Does it include a VPN?
Yes. H3C lists IPsec VPN, SSL VPN and GRE for the WSG1808X-PWR.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
