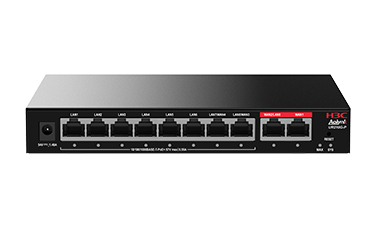

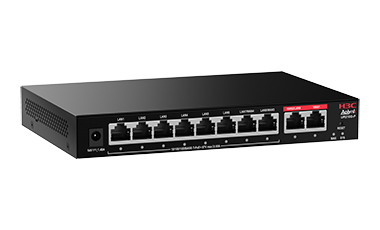

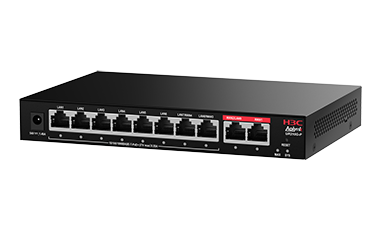

H3C Aolynk UR210G-P 10-Port Gigabit PoE Router, 8 x PoE+ LAN, 75W Budget
PRODUCT DESCRIPTION
H3C Aolynk UR210G-P 10-Port Gigabit PoE Router (AOLYNK-UR210G-P) - 3 Years Local Warranty
All-Gigabit Gateway with PoE+
The H3C Aolynk UR210G-P is an enterprise PoE gateway for small and medium businesses, schools, hotels and retail. Its 8 Gigabit LAN ports deliver PoE+ (up to 30 W per port, 75 W total) to power access points and cameras directly.
Dual-Core Performance
A dual-core 880 MHz processor with 256 MB RAM handles 1 Gbps of bandwidth, 40,000 NAT sessions and a recommended 200 clients, per H3C.
Multi-WAN and Enterprise VPN
Load-balance multiple WAN links by carrier destination, bandwidth or user, with link detection and backup. IPSec VPN supports up to 100 tunnels at 100 Mbps encryption, plus L2TP (LAC and LNS).
Manages Your Aolynk APs
The UR210G-P manages up to 120+ Aolynk access points from its web interface, and the whole site can be monitored remotely on the Aolynk Cloud platform.
H3C UR210G-P Datasheet — Technical Specifications
General
| Product Name | H3C Aolynk UR210G-P Enterprise PoE Gateway |
| Model | UR210G-P |
| Part Number (BOM) | 9801A7X6 |
| Recommended Clients | 200 |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN Ports | 2 x GE (1 WAN port switchable to LAN) |
| LAN Ports | 8 x GE PoE+ (max 30 W per port; 2 LAN ports switchable to WAN) |
| Reset Button | Yes |
Performance
| Bandwidth | 1 Gbps |
| NAT Sessions | 40,000 |
| NAT Mapping Entries | 100 |
| IPSec VPN Tunnels | 100 |
| IPSec Encryption Performance | 100 Mbps |
| Supported Aolynk APs | 120+ |
| Max. VLANs | 16 |
| CPU | Dual-core 880 MHz |
| RAM / Flash | 256 MB / 128 MB |
Power & Physical
| PoE Budget | 75 W (PoE+, max 30 W per port) |
| Power Consumption | 80 W (whole device) |
| Power Supply | External power adapter, 100–240 V AC 50/60 Hz; device input 54 V ± 5% / 1.48 A |
| Dimensions (W x D x H) | 190 x 125 x 27 mm |
| Weight | 0.5 kg (per H3C installation guide) |
| Installation | Desktop (H3C's installation guide lists wall mounting as not supported) |
| Operating Temperature | 0 to 40 °C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, CB, RoHS |
Specifications from H3C's official UR210G-P product page on h3c.com; power input, weight and installation from H3C's Aolynk UR Series Routers Installation Guide. Client and bandwidth figures are H3C recommended values and may vary on site.
Compatibility & Software Support
Management
Per H3C: local web management pages and remote management through the Aolynk Cloud platform. Aolynk access points can be managed from the router's web interface.
Routing & WAN
Static IP, DHCP and PPPoE WAN access; ICMP/DNS/NTP link-state detection; static and policy-based routing; multi-WAN load balancing; DHCP server, NTP client, DDNS, IPTV and IPv6.
Security & VPN
Firewall filtering by source/destination IP and port, MAC filtering and whitelist, ARP detection and protection, DDoS defence (SYN/UDP/ICMP flood, Land, Smurf, Ping of Death, IP spoofing and more), per-IP and user-group rate limiting, connection limits and per-IP traffic statistics. IPSec VPN (AH/ESP, IKE, 3DES/AES, MD5/SHA-1, NAT-T) and L2TP VPN. Multiple SSIDs can each be bound to a different VLAN.
Package Contents & H3C Aolynk UR PoE Router Ordering Information
H3C Aolynk UR PoE Router Models
| Model | Ports | PoE | Part No. |
| UR105G-P | 1 x GE WAN + 4 x GE LAN | 4 x PoE+, 58 W | 9801A7X7 |
| UR210G-P (this listing) | 2 x GE WAN + 8 x GE LAN | 8 x PoE+, 75 W | 9801A7X6 |
H3C's installation guide refers to the power adapter supplied with the device; a full package-contents list is not published — ask us if you need confirmation of other included items.
Datasheet & Downloads
| H3C product page | UR210G-P on h3c.com |
| H3C datasheet | UR210G-P Datasheet Download (h3c.com) |
| Technical documents | UR210G-P technical documents (h3c.com) |
| Software download | UR210G-P software (h3c.com) |
| Installation guide | H3C Aolynk UR Series Routers Installation Guide (h3c.com) |
Frequently Asked Questions — H3C UR210G-P
Can it power my access points?
Yes. All 8 LAN ports are PoE+ (max 30 W each) with a 75 W total budget, enough to power Aolynk UAP access points directly.
Can I use two internet connections?
Yes. It has 2 WAN ports and 2 LAN ports can be switched to WAN, with multi-WAN load balancing and link backup.
Does it support site-to-site VPN?
Yes. H3C lists IPSec VPN with up to 100 tunnels (100 Mbps encryption performance) and L2TP VPN.
Can it be wall mounted?
H3C's installation guide lists desktop installation; wall mounting is listed as not supported for the UR210G-P.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
