Ricoh fi-800R Compact A4 Duplex Scanner
PRODUCT DESCRIPTION
Ricoh fi-800R Compact A4 Duplex Scanner, 40 ppm / 80 ipm, Return Scan for ID Cards & Passports, USB 3.2 (PA03795-B001) - 1 Year Local Warranty
Ultra-Compact Dual-Path Scanner for the Front Desk
The Ricoh fi-800R is a compact A4 duplex scanner that measures just 296 x 105 x 83 mm. It scans at 40 pages per minute simplex and 80 images per minute duplex (A4, 200/300 dpi) through a 20-sheet ADF and is rated by Ricoh for an expected daily volume of 4,500 sheets.
Return Scan for Cards, Passports and Thick Items

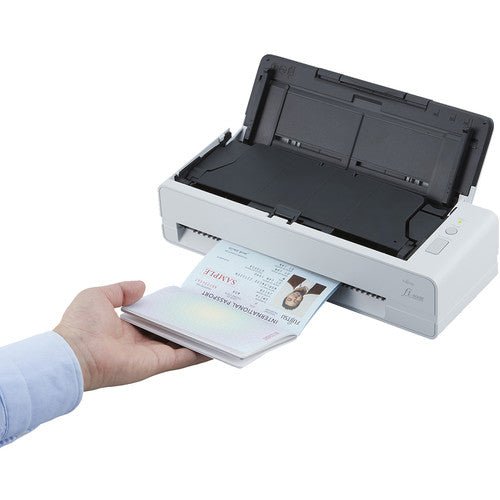

Alongside the ADF, a manual Return Scan path handles plastic cards up to 1.4 mm, booklets such as passports up to 5 mm thick and paper from 20 to 413 g/m², scanning each item in 3.5 seconds (200/300 dpi). It is designed for fast customer onboarding at service counters.
Accurate Feeding in a Small Footprint
Two CIS sensors with RGB LED light sources capture both sides in one pass at 600 dpi optical resolution. Ultrasonic overlap detection helps catch multifeeds, and the ADF accepts 20 sheets of A4 80 g/m² or 30 sheets of A4 52 g/m².
USB 3.2 with Windows, macOS and Linux Drivers
The fi-800R connects by USB 3.2 Gen1x1. PaperStream IP (TWAIN/ISIS), WIA, macOS (ICA) and Linux (SANE) drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied for scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh fi-800R Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-800R Image Scanner |
| Part Number | PA03795-B001 |
| Series | Ricoh fi Series (compact) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed (Return Scan), Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait, ADF) | Simplex 40 ppm / Duplex 80 ipm (200/300 dpi) |
| Scanning Speed (Manual Feed / Return Scan) | 3.5 seconds per sheet (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White |
Paper Handling
| Maximum Document Size | 215.9 x 355.6 mm (8.5 x 14 in) |
| Minimum Document Size | 50.8 x 50.8 mm (2 x 2 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight (ADF) | 40 to 127 g/m² (11 to 34 lb); A6 or smaller 40 to 209 g/m² (11 to 56 lb); A8 or smaller 127 to 209 g/m² (34 to 56 lb) |
| Paper Weight (Manual Feed / Return Scan) | 20 to 413 g/m² (5.4 to 110 lb) |
| Plastic Cards (Return Scan) | 1.4 mm or less |
| Booklets (Return Scan) | 5 mm or less |
| ADF Capacity | 20 sheets (A4 80 g/m²), 30 sheets (A4 52 g/m²) |
| Expected Daily Volume | 4,500 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor) |
Connectivity & Power
| Interface | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 19 W or less; Sleep 1.7 W or less; Auto Standby (Off) 0.15 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 296 x 105 x 83 mm |
| Weight | 2.0 kg (4.4 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, macOS and Linux (Ubuntu), per Ricoh's fi-800R datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS), WIA driver, Image Scanner Driver for macOS (ICA) and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, de-screen, dropout colour, cropping, index-tab cropping, split image, de-skew, edge correction, vertical streak reduction, character extraction and background pattern removal.
Package Contents & fi Series Ordering Information
In the Box (per Ricoh)
fi-800R scanner, AC cable, AC adapter, USB cable and setup DVD-ROM.
Compact vs. Desktop fi Series Models
| Model | Speed (ppm / ipm) | ADF Capacity | Part No. |
| fi-800R (this listing) | 40 / 80 | 20 sheets | PA03795-B001 |
| fi-8150U | 50 / 100 | 100 sheets | PA03810-B151 |
| fi-8150 | 50 / 100 | 100 sheets | PA03810-B101 |
Scanning larger daily volumes? The fi-8000 A4 ADF models (fi-8150U, fi-8150, fi-8170, fi-8190) have a 100-sheet ADF.
Datasheet & Downloads
| Ricoh datasheet | fi-800R Datasheet (PDF) |
| Ricoh product page | fi-800R on pfu-asia.ricoh.com |
| Drivers & software | fi-800R downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03795-B001.
Frequently Asked Questions — Ricoh fi-800R
How fast is the fi-800R?
40 ppm simplex and 80 ipm duplex through the ADF on A4 portrait at 200/300 dpi. Single items fed through Return Scan take 3.5 seconds per sheet.
Can it scan ID cards and passports?
Yes. Return Scan (manual feed) takes plastic cards up to 1.4 mm and booklets such as passports up to 5 mm thick, and paper from 20 to 413 g/m².
How much desk space does it need?
The fi-800R measures 296 x 105 x 83 mm and weighs 2.0 kg, making it suited to counters and service desks.
Does it work with a Mac or Linux?
Yes. Ricoh supplies an ICA driver for macOS and a SANE driver for Linux (Ubuntu) alongside the Windows TWAIN/ISIS drivers.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
