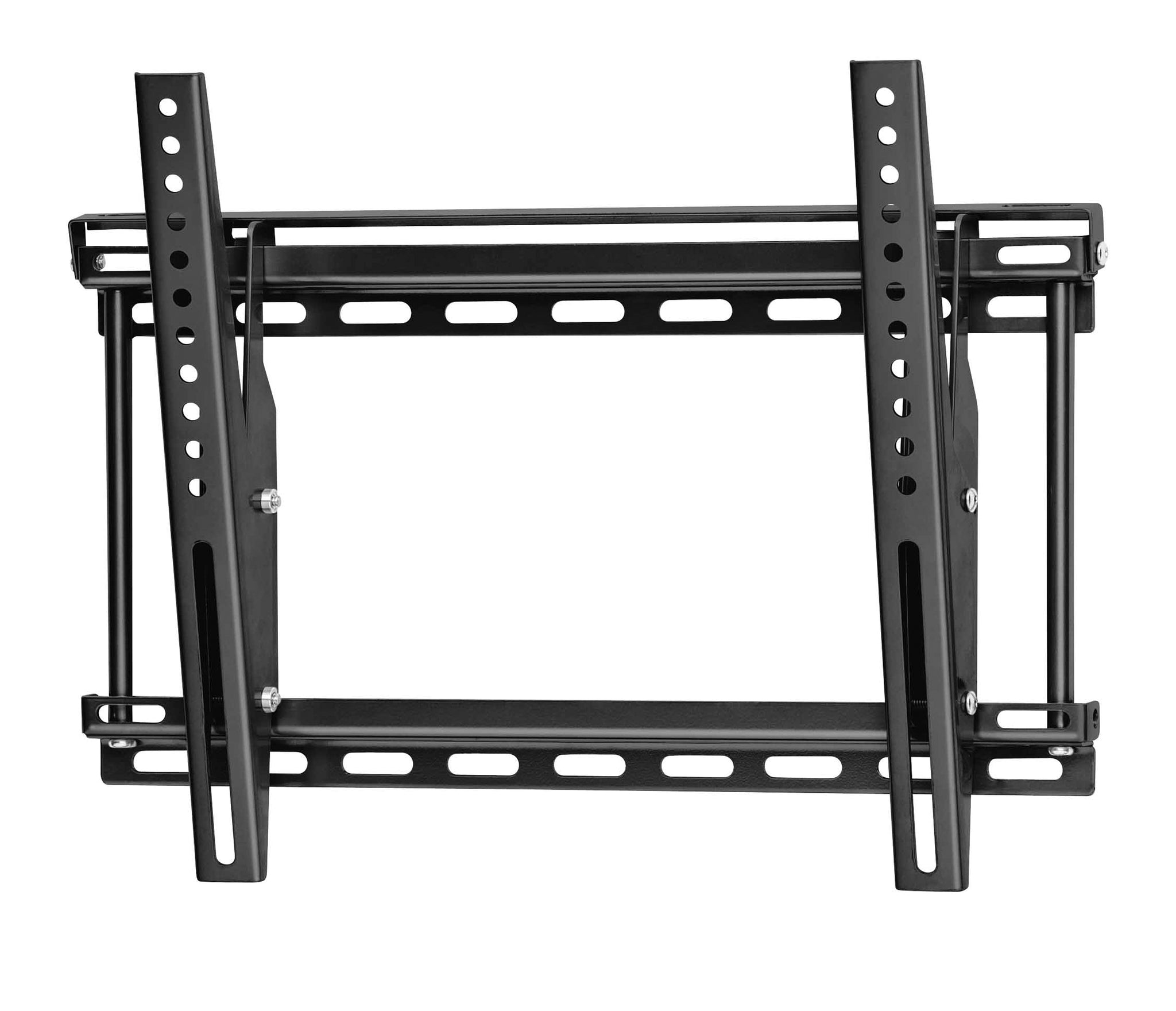

Ergotron Neo-Flex® Tilting Wall Mount, VHD
PRODUCT DESCRIPTION
Ergotron Neo-Flex® Tilting Wall Mount, VHD (60-613) - 3 Years Local Warranty
Very Heavy-Duty Tilting Mount for 23–42 Inch Displays
The Ergotron Neo-Flex Tilting Wall Mount, VHD (60-613) is engineered for the mid-size display class, fitting most 23 to 42 inch flat panels and TVs and carrying up to 80 lb (36.3 kg). That covers the meeting-room screens, ward and clinic displays, reception panels and wayfinding monitors that make up the bulk of a typical Singapore commercial deployment.
20° Tilt — More Angle Than the Larger UHD Mount
The VHD delivers 20 degrees of tilt, five degrees more than its larger UHD sibling. On smaller panels mounted high — above a reception counter, at the end of a ward bay, or in a lift lobby — that extra angle matters, because the viewing position sits further below the screen centreline. Tilting the panel down keeps text legible and removes reflections from overhead lighting.
Slim 1.9-Inch Profile for Tight Circulation Spaces
At just 1.9 in (4.9 cm) from the wall, the VHD is one of Ergotron's slimmest tilting mounts. In corridors, lift lobbies and clinical circulation spaces where projection into the walkway is a real constraint, keeping the display tight to the wall is not merely cosmetic — it protects clearance and reduces the risk of knocks in high-traffic areas.
VESA 100 x 100 to 400 x 300 mm for Mixed Display Fleets
VESA coverage from 100 x 100 mm to 400 x 300 mm spans the standard patterns used across mainstream monitor and TV brands in this size class. Standardising on one mount across a mixed fleet simplifies procurement, keeps spares interchangeable and means a display refresh does not force a re-specification of the mounting hardware.
Ergotron Neo-Flex Tilting Wall Mount, VHD Datasheet — Technical Specifications
General
| Part Number | 60-613 |
| Product Name | Ergotron Neo-Flex Tilting Wall Mount, VHD |
| Mount Type | Tilting wall mount (Very Heavy Duty) |
| Number of Displays | One |
| 3-Year Manufacturer Warranty (Ergotron) | Included |
| Local Warranty (Singapore) | Supported by SourceIT Pte Ltd |
Display Compatibility
| Screen Size Range | 23–42 in |
| Weight Capacity | 80 lb (36.3 kg) |
| VESA Pattern, Minimum | 100 x 100 mm |
| VESA Pattern, Maximum | 400 x 300 mm |
Adjustment & Motion
| Tilt | 20° |
| Pan / Swivel | Not applicable |
| Height Adjustment | Not applicable |
| Profile from Wall | 1.9 in (4.9 cm) |
Design & Durability
| Mount Class | Very Heavy Duty (VHD) |

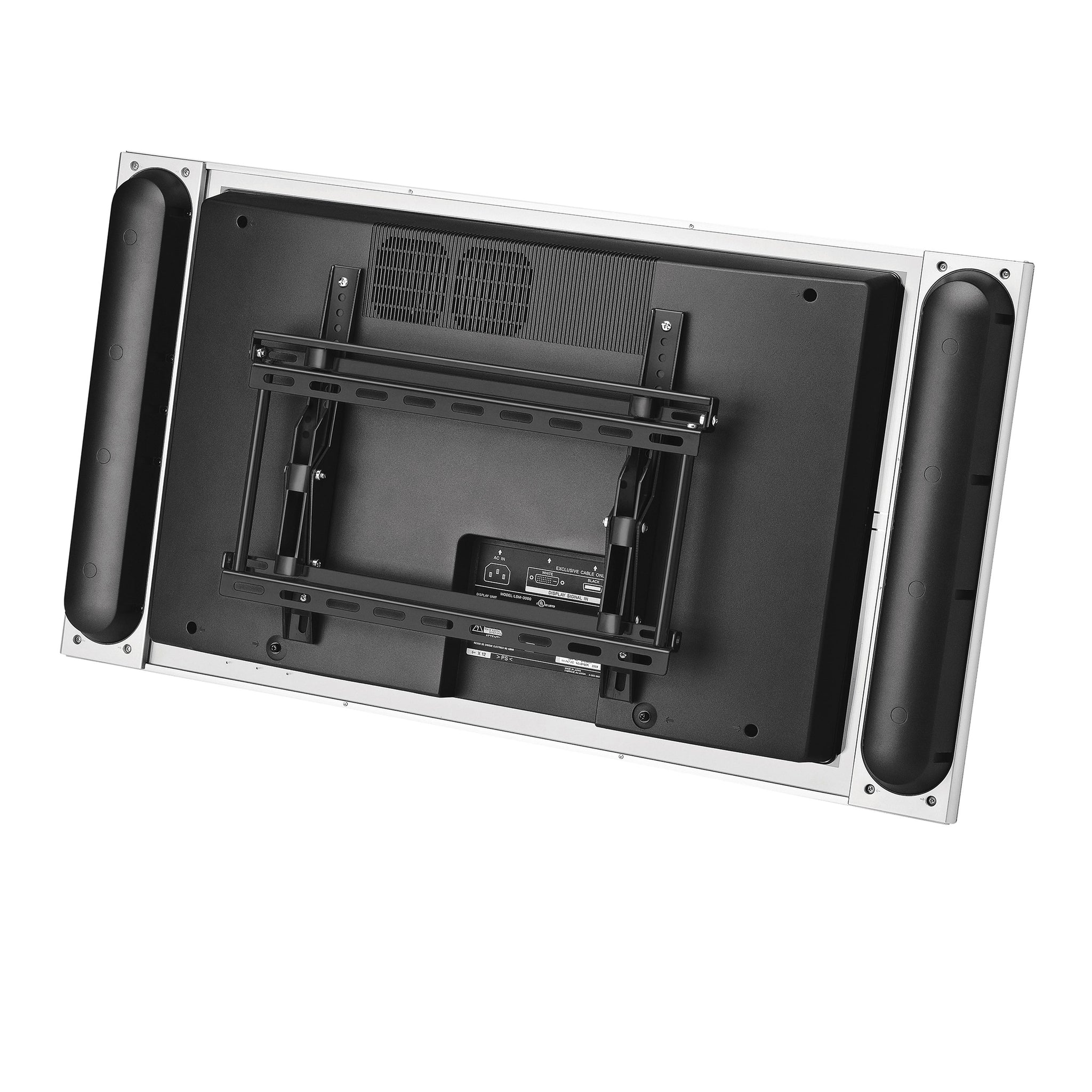

| Display Attachment | Tilt rails with locking bar |
Ergotron publishes no standalone installation manual or dimensional drawing for the 60-613, so mounting surface requirements, stud spacing, supplied fixing sizes, construction materials, assembled dimensions and unboxed product weight are not stated here. Do not assume they match the larger UHD (60-612), which uses a different and larger wall plate. Contact SourceIT if you need the installation detail confirmed before a site survey.
Compatibility & Fit
VESA fit. The 60-613 accepts VESA patterns from 100 x 100 mm up to 400 x 300 mm. This covers the standard patterns on most 23–42 in monitors and commercial displays. If your panel uses a larger pattern such as 600 x 400 mm, specify the UHD (60-612) instead.
Screen size and weight. Single display, 23–42 in, up to 80 lb (36.3 kg). Both Ergotron's product page and its product catalogue agree on these figures. Confirm your panel's weight from its own datasheet — a heavy commercial-grade 42 in panel can approach the limit where a consumer TV of the same size will not.
Ultrawide and curved displays. Ergotron does not publish a separate ultrawide or curved rating for the 60-613. As the load sits on a fixed wall plate rather than a cantilevered arm, the governing limits remain the VESA pattern and the 80 lb weight rating. Contact SourceIT if you are specifying a curved panel so bracket clearance can be checked.
Mounting surface. Ergotron does not publish substrate requirements for this specific part number, so SourceIT will not state them here. As a general principle, a mount carrying up to 80 lb needs structural backing — solid concrete or properly located timber studs. Lightweight plasterboard partitions without backing are not suitable. Speak to SourceIT before ordering if your site uses partition walls.
Package Contents & Neo-Flex Ordering Information
In the Box
- Neo-Flex Tilting Wall Mount, VHD wall plate
- Two tilt rails
- One locking bar
- Installation and display-attachment hardware
- Installation guide
Neo-Flex Wall Mount Range in the SourceIT Catalogue
| Neo-Flex Tilting Wall Mount, UHD — 60-612 | Tilting, up to 175 lb (79.4 kg) |
| Neo-Flex Tilting Wall Mount, VHD — 60-613 (this listing) | Tilting, up to 80 lb (36.3 kg) |
| Neo-Flex Fixed Wall Mount, UHD — 60-614 | Fixed (no tilt) |
Related Ergotron Fixed Wall Mounts
| WM Low Profile Wall Mount — 60-604-003 | Fixed, low profile |
| WM Low Profile Wall Mount, XL — 60-602-003 | Fixed, low profile, XL |
Datasheet & Downloads
- Ergotron Neo-Flex Tilting Wall Mount, VHD product page (60-613)
- Official Ergotron product catalogue — Neo-Flex wall mount specification table (PDF)
Ergotron does not publish a product-specific datasheet PDF, installation manual or dimensional drawing for the 60-613. The product page and the catalogue specification table above are the only official sources SourceIT was able to verify. The itemised box contents listed above reflect the mount's documented component architecture rather than a published Ergotron packing list — confirm with SourceIT if exact contents matter to your order.
Frequently Asked Questions — Ergotron Neo-Flex Tilting Wall Mount, VHD
What size display does the 60-613 fit?
Ergotron states it fits most 23–42 in flat panels and TVs, up to 80 lb (36.3 kg). Both Ergotron's product page and its catalogue agree on this, so it is a well-confirmed figure.
How is the VHD different from the UHD version?
Capacity and size class. The VHD (60-613) handles 23–42 in screens up to 80 lb (36.3 kg) with 20° tilt and a slim 1.9 in profile. The UHD (60-612) steps up to 175 lb (79.4 kg) and screens up to 80 in, with 15° tilt and a 2.7 in profile. Interestingly the smaller VHD tilts further — 20° against 15°.
Does it swivel or extend from the wall?
No. The 60-613 tilts only. There is no pan, no extension and no height adjustment. For height adjustment look at the Glide Wall Mount, HD; for a fixed installation with no motion at all, the Neo-Flex Fixed Wall Mount, UHD (60-614).
Will it fit my monitor's VESA pattern?
If your display uses a pattern between 100 x 100 mm and 400 x 300 mm, yes. That covers the great majority of 23–42 in monitors and commercial panels. Larger patterns need the UHD (60-612).
Can I mount two screens on it?
No — the 60-613 is a single-display mount. For multi-screen wall mounting, ask SourceIT about Ergotron's LX and HX wall-mount arm families, or consider the Glide range if height adjustment is also required.
Is it suitable for a clinic or ward environment?
Yes. The slim 1.9 in profile keeps the display out of circulation space, and 20° of tilt suits displays mounted above eye level at the end of a bay or above a counter. For a full clinical workstation with a locking enclosure and sit-stand height adjustment, look at the Ergotron CareFit Enclosure instead.
Does the Neo-Flex Tilting Wall Mount, VHD come with a Singapore warranty?
Yes. Every Ergotron Neo-Flex Tilting Wall Mount, VHD sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Neo-Flex Tilting Wall Mount, VHD with a 3-year manufacturer warranty.
