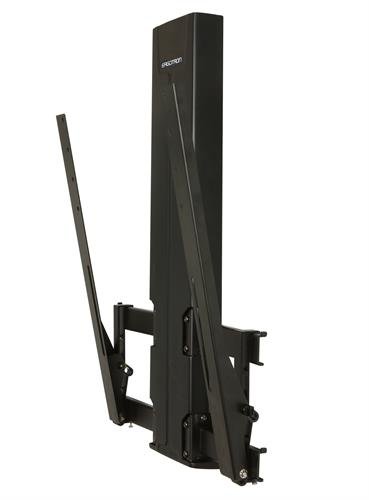

Ergotron Glide Wall Mount, HD
PRODUCT DESCRIPTION
Ergotron Glide Wall Mount, HD (61-061-085) - 5 Years Local Warranty

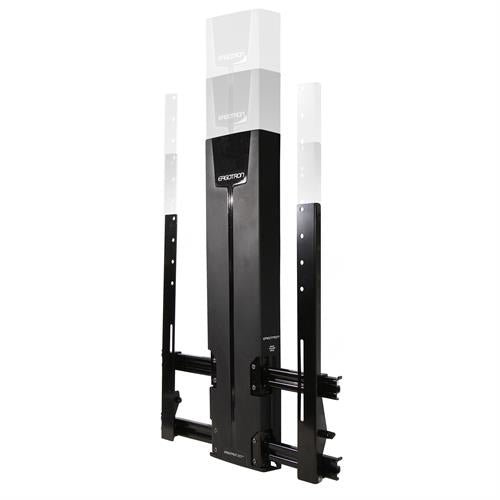

18 Inches of Constant Force Height Adjustment
The Ergotron Glide Wall Mount, HD (61-061-085) is not a static bracket — it is a counterbalanced lift. Ergotron's Constant Force (CF) technology gives the display 18 in (45.7 cm) of smooth vertical travel, so a screen can be repositioned with a fingertip and stays exactly where it is placed. In a shared meeting room, teaching space or clinical bay, that means the same display serves a seated presenter and a standing clinician without tools, motors or a second mount.
Built for Shared Rooms Where Every User Is a Different Height
Fixed wall mounts force a compromise: hang the screen for the tallest user and everyone else looks up. The Glide HD removes that compromise. Because the counterbalance holds the display at any point in its 18-inch range, each user sets their own eye-level position in a second. For Singapore's hot-desked offices, shared consult rooms and training facilities, this is the difference between an ergonomic installation and a merely tidy one.
10° Tilt and a 2-Inch Profile
On top of the lift, the Glide HD adds 10 degrees of tilt for glare control, and holds the display just 2 in (5 cm) from the wall. Cable management hardware is included in the box, so power and signal cabling travels with the display through its full range of movement instead of being pulled taut at the top of the stroke — a detail that matters a great deal for long-term reliability in a room used every day.
Specify the Wall Correctly — Ergotron Is Explicit About It
The Glide HD mounts to timber studs or solid walls, and Ergotron's installation guide states a firm minimum: drywall must be at least 5/8 in (16 mm) thick, and the product must not be mounted to 1/2 in (13 mm) drywall. In Singapore fit-outs where partition specifications vary between floors, this is the single most important thing to confirm before ordering. SourceIT can help you check the substrate at survey stage.
Ergotron Glide Wall Mount, HD Datasheet — Technical Specifications
General
| Part Number | 61-061-085 |
| Product Name | Ergotron Glide Wall Mount, HD |
| Mount Type | Height-adjustable, tilting wall mount (Heavy Duty) |
| Number of Displays | One |
| Colour | Black |
| 5-Year Manufacturer Warranty (Ergotron) | Included |
| Local Warranty (Singapore) | Supported by SourceIT Pte Ltd |
Display Compatibility
| Screen Size Range | 30–55 in (Ergotron product sheet) |
| Absolute Maximum Screen Size | 70 in (installation guide 888-61-015-W rev. E) |
| Weight Capacity | 20–40 lb (9.1–18.1 kg) |
| VESA Standard | MIS-D / MIS-E / MIS-F |
| VESA Horizontal | 200 mm minimum to 400 mm maximum |
| VESA Vertical | 100 mm minimum to 400 mm maximum |
Adjustment & Motion
| Height Adjustment (Lift) | 18 in (45.7 cm) |
| Lift Technology | Constant Force (CF) counterbalance |
| Tilt | 10° |
| Pan / Swivel | Not applicable |
| Profile from Wall | 2 in (5 cm) |
Design & Durability
| Mounting Surfaces | Wood stud and solid wall |
| Minimum Drywall Thickness | 5/8 in (16 mm) — do NOT mount to 1/2 in (13 mm) drywall |
| Cable Management | Cable management hardware included |
| Shipping Weight | 30 lb (13.5 kg) |
| Shipping Dimensions | 32.25 x 18 x 5 in (82 x 46 x 12.5 cm) |
| Regional SKU | Americas and APAC |
Specification note: Ergotron's product sheet states a 30–55 in screen range while its installation guide states a 70 in maximum. Both are official Ergotron documents; SourceIT lists both figures rather than choosing between them. Assembled product dimensions, unboxed product weight and construction materials are not published by Ergotron and are therefore omitted.
Compatibility & Fit
VESA fit. The Glide HD supports VESA MIS-D, MIS-E and MIS-F, with a horizontal range of 200–400 mm and a vertical range of 100–400 mm. Note the horizontal minimum of 200 mm: a small monitor with a 100 x 100 mm pattern falls below the minimum horizontal spacing and is not a direct fit. Check your display's pattern before ordering.
Screen size and weight. Weight is the critical figure here and the window is narrower than on a fixed mount: 20–40 lb (9.1–18.1 kg). A counterbalance has to be loaded within its designed range to work — too light and the display drifts upward, too heavy and it sinks. If your panel weighs less than 20 lb or more than 40 lb, the Glide HD is the wrong specification; the Glide VHD (61-128-085) covers 45–70 lb.
Single screen only. The Glide HD carries one display. Ergotron does not publish a dual-screen configuration for this mount.
Wall substrate — read this before ordering. Ergotron supports timber stud and solid wall installation, and explicitly prohibits mounting to 1/2 in (13 mm) drywall; 5/8 in (16 mm) is the stated minimum. Because the Glide carries a moving load rather than a static one, substrate matters more than it does for a fixed bracket. Singapore fit-outs frequently mix solid concrete cores with lightweight partitions, so confirm the wall construction at the exact mounting position, not just the room.
Ultrawide and curved displays. Ergotron publishes no separate ultrawide or curved rating. The binding constraints remain the VESA pattern and the 20–40 lb counterbalance window. An ultrawide panel that sits in that weight band and matches the VESA range will mount, but contact SourceIT to confirm clearance for deeply curved panels.
Package Contents & Glide Ordering Information
In the Box
- Low-profile lift module (lift assembly)
- Two vertical rails and four horizontal rails
- Two tilt tension knobs
- Tilt brackets
- Wall mounting template
- Installation and mounting hardware
- Cable management hardware
Glide Wall Mount Range in the SourceIT Catalogue
| Glide Wall Mount, HD — 61-061-085 (this listing) | 18 in (45.7 cm) lift, 20–40 lb (9.1–18.1 kg) |
| Glide Wall Mount, VHD — 61-128-085 | 16 in (40.6 cm) lift, 45–70 lb (20.4–31.8 kg) |
Neo-Flex Wall Mount Range in the SourceIT Catalogue
| Neo-Flex Tilting Wall Mount, UHD — 60-612 | Tilting, up to 175 lb (79.4 kg) |
| Neo-Flex Tilting Wall Mount, VHD — 60-613 | Tilting, up to 80 lb (36.3 kg) |
| Neo-Flex Fixed Wall Mount, UHD — 60-614 | Fixed (no tilt) |
Related Ergotron Fixed Wall Mounts
| WM Low Profile Wall Mount — 60-604-003 | Fixed, low profile |
| WM Low Profile Wall Mount, XL — 60-602-003 | Fixed, low profile, XL |
Datasheet & Downloads
Frequently Asked Questions — Ergotron Glide Wall Mount, HD
How far up and down does the display actually move?
18 inches (45.7 cm). Ergotron's Constant Force counterbalance means the display glides through that range with light finger pressure and holds position anywhere along it — no motors, no gas struts to re-tension, no tools.
What size and weight display does it take?
Ergotron's product sheet gives a 30–55 in screen range and its installation guide states a 70 in absolute maximum. The weight window is 20–40 lb (9.1–18.1 kg), and weight is the figure that really governs fit, because a counterbalance must be loaded within its designed range to hold position correctly.
What happens if my monitor is lighter than 20 lb?
It falls below the counterbalance range and the mechanism will not hold position properly — the display will tend to rise. Stay inside the published 20–40 lb window. If your display is heavier than 40 lb, specify the Glide Wall Mount, VHD instead, which covers 45–70 lb (20.4–31.8 kg).
Will it fit my display's VESA pattern?
It supports VESA MIS-D, MIS-E and MIS-F with a horizontal range of 200–400 mm and a vertical range of 100–400 mm. Watch the 200 mm horizontal minimum — a small monitor using a 100 x 100 mm pattern is below the minimum horizontal spacing and will not mount directly.
Can I fit this to a plasterboard partition wall?
Only if the drywall is at least 5/8 in (16 mm) thick. Ergotron's installation guide explicitly states you must not mount this product to 1/2 in (13 mm) drywall. Timber studs and solid walls are both supported. In Singapore fit-outs we strongly recommend confirming the substrate at the exact mounting position before ordering — SourceIT can advise at survey stage.
How does the Glide HD compare with the TM Tilting Wall Mount?
They solve different problems. The Glide HD is a two-axis product — 18 in of counterbalanced height adjustment plus 10° tilt — for shared rooms where users differ in height. The TM Tilting Wall Mount (61-143-003) is tilt-only at 20°, but carries far more weight (175 lb / 79.4 kg) on much larger screens (32–120 in). Choose Glide for ergonomics, TM for large-format signage and boardroom panels.
Is cable management included?
Yes. Cable management hardware ships in the box. It matters on a height-adjustable mount, because cabling has to travel with the display through the full 18-inch stroke without being pulled tight.
Does the Glide Wall Mount, HD come with a Singapore warranty?
Yes. Every Ergotron Glide Wall Mount, HD sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the Glide Wall Mount, HD with a 5-year manufacturer warranty.
