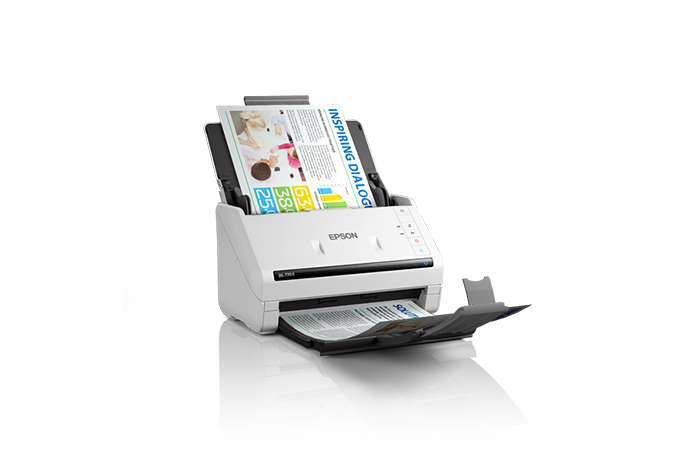

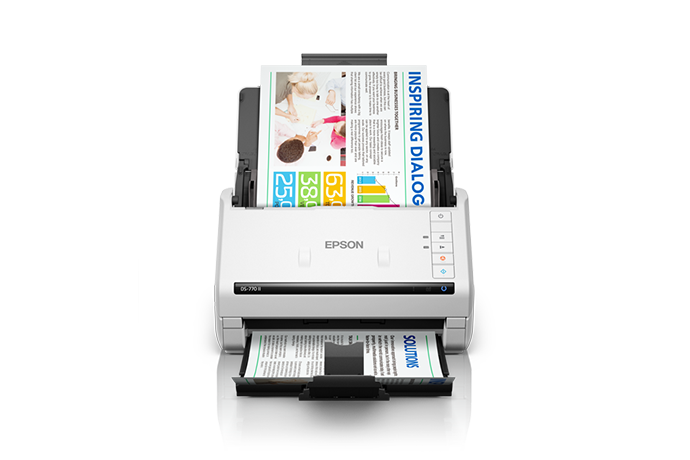

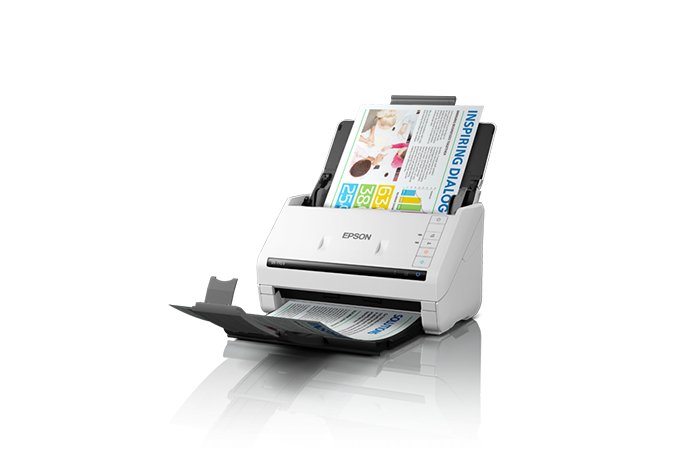

Epson WorkForce DS-770II A4 Duplex Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-770II A4 Duplex Sheet-fed Document Scanner (B11B262503) - 1 Year Local Warranty
The Epson WorkForce DS-770II A4 Duplex Sheet-fed Document Scanner.
Durable, High-speed and High-Volume Scanning
Boasting a scan speed of up to 45 ppm / 90 ipm, the DS-770II offers one-pass duplex scanning that brings added convenience in your daily use. Enhance productivity with daily duty cycle of up to 7,000 sheets per day.
Impressive Media Handling
The DS-770II can handle a wide variety of media types between 27 - 413 gsm, so you can scan anything from paper documents to plastic cards such as ID, credit and business cards efficiently and seamlessly.
Flatbed Option*
With the optional Flatbed Dock, the Epson Perfection V39II can be used together with the DS-770II to provide a flatbed option for users who need to scan thick objects such as books, or small and fragile documents that can be easily damaged such as receipts.
Scan Fragile and A3 Documents Easily
Scan small and fragile documents, as well as large size documents of up to A3-sized, using a carrier sheet that can be automatically detected by the DS-770II. Alternatively, you may scan fragile documents without using a carrier sheet by turning on the Slow Scan Mode.
Automatic Feeding Mode
The Automatic Feeding Mode enables large volumes of documents to be scanned continuously. In addition, this mode allows you to scan documents of different sizes at once without needing to arrange them by size and saving them as a single PDF.
Automatic Size Recognition
Place documents of different sizes into the feeding tray and the DS-770II will automatically detect and scan everything in the correct size, all in a single scan.
Paper Protection Function
Upon detection of any abnormal paper feeding or stapled/ folded paper, the DS-770II will automatically stop scanning operation to prevent damage to important documents.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-770II Datasheet — Technical Specifications
General
| Model | WorkForce DS-770II |
| Official Product Name | Epson WorkForce DS-770II A4 Duplex Sheet-fed Document Scanner |
| Epson Product Code | B11B262503 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanner
| Scanner Type | A4 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Fixed carriage and moving document |
| Light Source | RGB LED x 2 |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 - 1,200 dpi (1 dpi increments) |
| Bit Depth | Colour: 30-bit input, 24-bit output; Grayscale: 10-bit input, 8-bit output; Black and White: 10-bit input, 1-bit output |
| Supported Paper Weight | 27 - 413 g/m2 (A8 or less 127 - 413 g/m2) |
| ADF Capacity | 100 sheets (80g/m2) |
| Daily Scan Volume | Up to 7,000 pages / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
| Interface | USB 3.2 Gen 1 |
| Max Document Size | 215.9 x 6096 mm |
| Min Document Size | 50.8 x 50.8 mm |
Scanning Speed
| Resolution (A4, Colour/Monochrome) | 300 dpi: 45 ppm / 90 ipm; 600 dpi: 12 ppm / 24 ipm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 / 2025; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG; Document Capture Pro: JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Options & Consumables
| Flatbed Dock | Order Code: B12B819011 |
| Roller Assembly Kit | Durability: 200,000 scans; Order Code: B12B819671 |
| Carrier Sheet | Durability: 3,000 scans; Order Code: B12B819051 |
| Cleaning Kit | Order Code: B12B819291 |
Dimensions and Weight
| Dimensions (W x D x H) | 296 x 169 x 176 mm |
| Weight | 3.7 kg / 8.16 lb |
Environmental Conditions
| Temperature | Operating: 5 - 35°C; Storage: -25 - 60°C |
| Humidity | Operating: 15 - 80% (No condensation); Storage: 15 - 85% (No condensation) |
Electrical Specifications
| Rated Voltage | AC 100 - 240 V |
| Rated Frequency | 50 - 60 Hz |
| Power Consumption | Operating: 12W; Ready Mode: 5.4W; Sleep Mode: 1.0W; Power Off: 0.1W |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-770II. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 3.2 Gen 1 |
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 / 2025; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-770II |
| Epson Product Code | B11B262503 |
| Recommended Retail Price (incl. GST) | S$1,134.00 |
| Consumables | Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291; optional Flatbed Dock B12B819011 |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-770II
What warranty does the WorkForce DS-770II come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-770II use?
Roller Assembly Kit B12B819671 (200,000 scans); Carrier Sheet B12B819051 (3,000 scans); Cleaning Kit B12B819291; optional Flatbed Dock B12B819011 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
