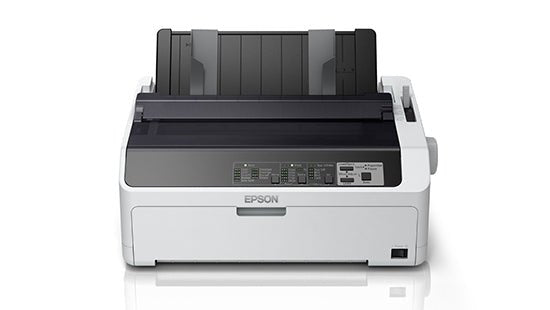

Epson LQ-590IIN Impact Printer

Name: Epson LQ-590IIN Impact Printer
Brand: Epson
SKU: C11CF39502
Price: 1079.16 SGD
Availability: InStock

SKU: C11CF39502 Brand: Epson

~~S$1,172.27~~ Save 7%

Prices in SGD, excluding 9% GST.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

Epson LQ-590IIN Impact Printer (C11CF39502) - 1 Year Local Warranty

The Epson LQ-590IIN Impact Printer - An efficient, reliable and affordable printer you can rely on.

Improved Efficiency, Proven Reliability

24-pins Impact Printer; Print speeds of up to 487 cps (10 cpi); 128 kb memory buffer; MTBF of 25,000 POH; Built-in network connectivity

Increased Productivity

Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.

Long-life Reliability

Enjoy cost savings, superior print quality and minimal downtime with a MTBF of 25,000 POH.

Absolute Convenience

Experience fuss-free printing with built-in network connectivity via Ethernet cable.

Ideal For

Logistics, warehousing, accounts and government counters in Singapore printing multi-part forms, invoices and delivery orders. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.

LQ-590IIN Datasheet — Technical Specifications

General

Model	LQ-590IIN
Official Product Name	Epson LQ-590IIN Impact Printer
Epson Product Code	C11CF39502
Brand	Epson
Warranty	1 Year Local Warranty (Singapore) - 12 months

Printing Technology

Print Method	Impact dot matrix
Control Panel	6 switches and 10 LEDs
Print Direction	Bi-direction
Control Code	ESC/P2, IBM PPDS
Number of Pins	24

Print Speed

Ultra High Speed Draft	10 cpi: 550cps
High Speed Draft	10 / 12 cpi: 487 / 584 cps
Draft	10 / 12 cpi: 366 / 439 cps
NLQ	10 / 12 cpi: 121 / 145 cps

Reliability

Printhead Life	400 million strokes / wire
Mean Print Volume Between Failure (MVBF)	50 million lines (except print head)
Mean Time Between Failure (MTBF)	25,000 Power On Hours (POH) (25% Duty)

Print Characteristics

Character Sets	1 Italic and 7 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC865 (Nordic), PC863 (Canadian-French), PC858, ISO 8859-15
Bitmap Fonts	10, 12, 15 cpi
Scalable Fonts	Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt - 32pt. (every 2pt.)
Barcode	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Path

Manual Insertion	Front or Rear in-Top out
Push Tractor	Front or rear in, top out
Pull Tractor	Front, rear or bottom in, top out

Paper Media

Cut Sheet (Single Sheet) - Entry: Front	Length: 100 - 364 mm (3.9 - 14.3"); Width: 100 - 257 mm (3.9 - 10.1"); Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055")
Cut Sheet (Single Sheet) - Entry: Rear	Length: 100 - 364 mm (3.9 - 14.3"); Width: 100 - 257 mm (3.9 - 10.1"); Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055")
Cut Sheet (Multi-part Forms) - Entry: Front	Length: 100 - 364 mm (3.9 - 14.3"); Width: 100 - 257 mm (3.9 - 10.1"); Thickness: 0.12 - 0.46 mm (0.0047 - 0.018"); Copies: 1 Original + 5 copies
Continuous Paper (Single Sheet / Multi-part) - Entry: Front, Rear, Bottom	Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 101.6 - 254 mm (4.0 - 10.0"); Thickness: 0.065 - 0.49 mm (0.0025 - 0.019"); Copies: Original + 6 copies
Envelope (No.6) - Entry: Rear	Length: 92mm (3.6"); Width: 165mm (6.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205")
Envelope (No.10) - Entry: Rear	Length: 105mm (4.1"); Width: 241mm (9.5"); Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205")
Label (Base Sheet) - Entry: Bottom	Length: 101.6 - 558.8 mm (4.0 - 22.0"); Width: 100 - 148 mm (3.9 - 5.8"); Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075")
Card - Entry: Front, Rear	Length: 100 - 148 mm (3.9 - 5.8"); Width: 100 - 148 mm (3.9 - 5.8"); Thickness: 0.22mm (0.0087")
Roll Paper - Entry: Rear	Diameter: 127mm (5"); Width: 216mm (8.5"); Thickness: 0.07 - 0.09 mm (0.0028 - 0.035")
Line Spacing	4.23mm (1/6") or programmable in increments of 0.0706mm (1/360")

Options

Single Bin Cut Sheet Feeder	C12C806372
Pull Tractor Unit	C12C933761
Ribbon Cartridge	C13S015589
High Capacity Cut Sheet Feeder	C12C806382

Environmental Conditions (Operating)

Temperature	5 - 35 °C
Humidity	10 - 80% RH

Acoustic Noise

55dB

Input Data Buffer

128KB

Interface

USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN

Printable Columns

Pitch

10cpi: 80 columns

Ribbon Cartridge

Standard	Fabric Ribbon Cartridge (Black)
Ribbon Life	Approx. 5 million Characters

Supported Operating System

Printer Driver	Microsoft Windows XP / Vista / 7 / 8 / 10
Utility - Epson Status Monitor 3	Microsoft Windows XP / Vista / 7 / 8 / 10
Utility - Epson Setting Utility	Microsoft Windows XP / Vista / 7 / 8 / 10

From official brochure (download.epson.com.sg)

Dimensions (as printed in brochure)	176.5mm (7") x 414mm (17.2") x 320mm (14.8")
Weight	Approx. 7.2kg (15.9lbs)
Rated Voltage	AC 220 - 240 V
Rated Frequency	50Hz - 60Hz
Power Consumption - Operating	49W
Power Consumption - Sleep Mode	0.5W
Power Consumption - Power Off	0.1W in power off mode

Compatibility & Software Support

Compatibility details below are taken from Epson Singapore's published specification for the LQ-590IIN. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).

Interface	USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN
Printer Driver	Microsoft Windows XP / Vista / 7 / 8 / 10

Package Contents & Ordering Information

Ordering Information

Model	LQ-590IIN
Epson Product Code	C11CF39502
Recommended Retail Price (incl. GST)	S$1,274.21
Consumables	Fabric Ribbon Cartridge (Black) C13S015589 - approx. 5 million characters

In the Box

Main Unit
CD-ROM
Set-up Manual
AC Power Cable
Ribbon Cartridge
Guide Stacker
Wing
Tractor

Datasheet & Downloads

Official Epson LQ-590IIN product page

Brochure LQ-590II/LQ-590IIN (PDF)

Support / drivers page

Epson Singapore support

Frequently Asked Questions — LQ-590IIN

What warranty does the LQ-590IIN come with?

1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.

Which consumables does the LQ-590IIN use?

Fabric Ribbon Cartridge (Black) C13S015589 - approx. 5 million characters Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.

Is stock held locally?

SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.

Can SourceIT quote for multiple units or a project?

Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
