Epson WorkForce DS-32000 A3 Duplex Sheet-fed Document Scanner
PRODUCT DESCRIPTION
Epson WorkForce DS-32000 A3 Duplex Sheet-fed Document Scanner (B11B255505) - 1 Year Local Warranty
The Epson WorkForce DS-32000 A3 Duplex Sheet-fed Document Scanner - HIGH-SPEED A3 SCANNER FOR YOUR BUSINESS.
Durable, High-speed Scanning
Designed for fast, high-volume scanning, enjoy scanning speeds of up to 90 ppm / 180 ipm on the DS-32000. With a 120-sheet Automatic Document Feeder for A4 media and high daily duty cycle of up to 40,000 pages, this scanner provides the robust reliability that businesses need.

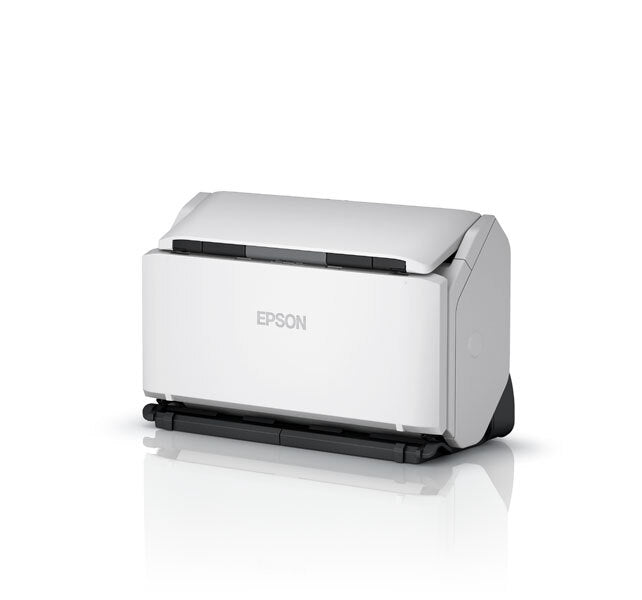

Compact size
Compact in size for better mobility and smaller footprint.
High Quality Image
With built-in functions to improve colour production, the scanner can also remove crease marks, reduce bleed through and even select background colour based on paper type.
2.7" Colour LCD
Equipped with a large screen size of 2.7", users get a clear display of job contents at a glance and can even view and assign up to 30 jobs at a time on the panel. Operate the scanner easily using push scan functions and change the scan settings directly from the panel without having to use a PC.
Automatic Size Recognition

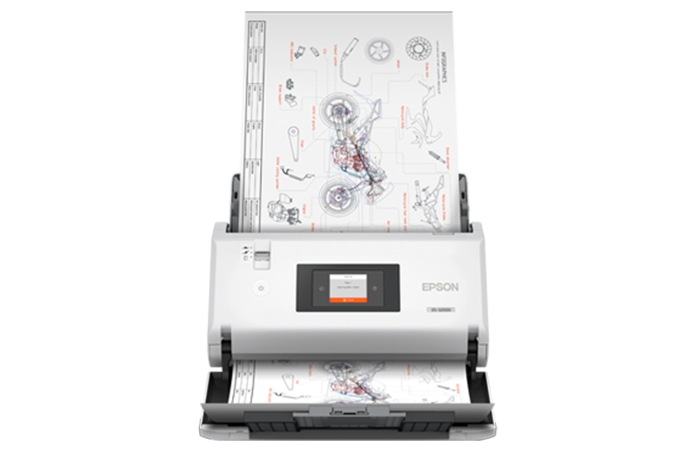

Place documents of different sizes up to A3 in the middle of the feeding tray and the DS-32000 will automatically detect and scan everything in the correct size, all in a single batch.
Diverse Media Handling with Flexible Scanning Modes

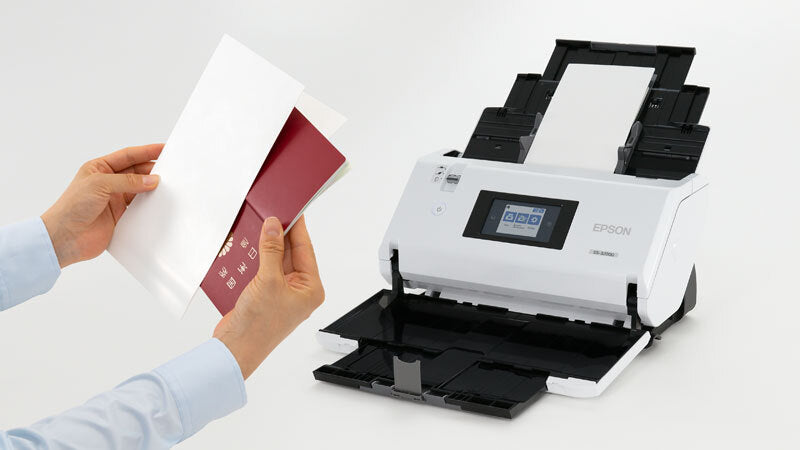

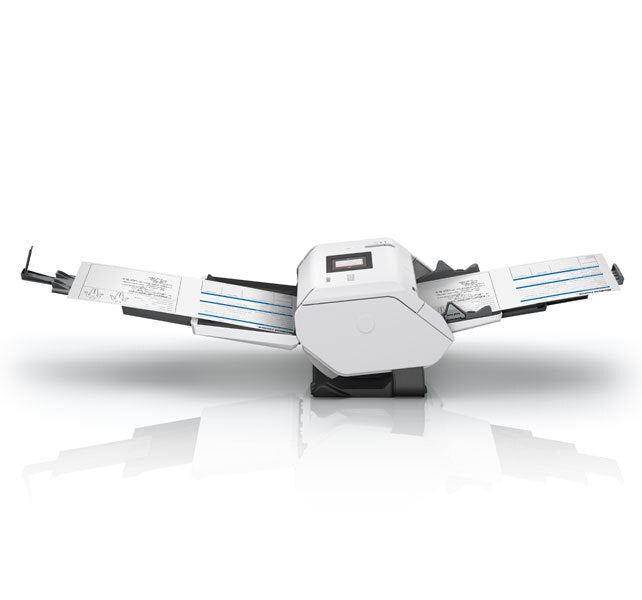

With Epson's smart design, it is able to scan up to A3 on a wide range of media types of varying thickness (up to 413 g/m2) and up to paper length of 5,588 mm. Scanning passports with a special carrier sheet will be automatically detected by the scanners when using Manual Feed mode. This Manual Feed mode can also be used to stitch A2 documents and documents with post-its.
Automatic Feeding Mode

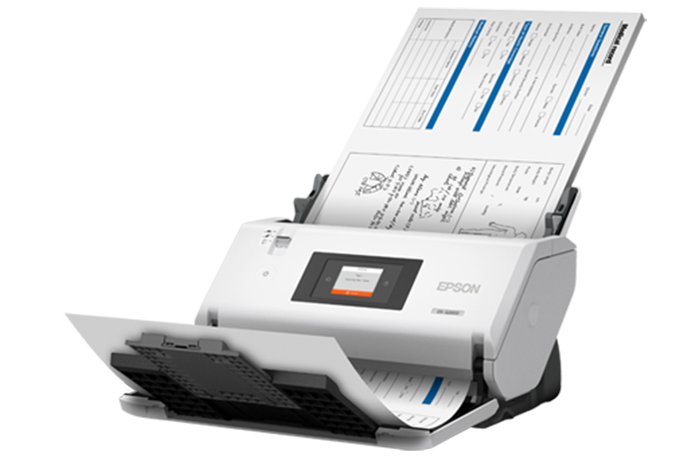

The Automatic Feeding Mode enables large volumes of documents to immediately be scanned continuously. In addition, this mode allows you to scan documents one at a time without needing to arrange them by size and they will be saved into a single PDF.
Ideal For
Offices, clinics, accounts and admin teams in Singapore that digitise documents, receipts and records at volume. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce DS-32000 Datasheet — Technical Specifications
General
| Model | WorkForce DS-32000 |
| Official Product Name | Epson WorkForce DS-32000 A3 Duplex Sheet-fed Document Scanner |
| Epson Product Code | B11B255505 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 12 months |
Scanner
| Scanner Type | A3 sheet-fed, one-pass duplex colour scanner |
| Sensor Type | Contact Image Sensor (CIS) x 2 |
| Scanning Method | Fixed carriage and moving document |
| Light Source | White LED x 4 |
| Optical Resolution | 600 x 600 dpi |
| Output Resolution | 50 – 1,200 dpi (in 1 dpi increments) |
| Bit Depth | Colour: 30-bit input, 24-bit output; Grayscale: 10-bit input, 8-bit output; Black and White: 10-bit input, 1-bit output |
| Supported Paper Weight | 20 – 413 g/m2 (Less than A8 size: 127 – 413 g/m2) |
| ADF Capacity | A4: 120 sheets (80 g/m2); A3: 60 sheets (80 g/m2); Delicate Feed Mode: 20 sheets (A4), 10 sheets (A3) |
| Daily Scan Volume | Up to 40,000 sheets / day |
| Multi-feed Detection | Ultrasonic Sensor and Length Detection |
| Interface | USB 3.0 |
| Max Document Size | 304.8 x 5,588 mm |
| Min Document Size | 50.8 x 69 mm |
Scanning Speed
| Resolution (A4, Colour/Monochrome) 300 dpi | 90 ppm / 180 ipm |
| Resolution (A4, Colour/Monochrome) 600 dpi | 26 ppm / 52 ipm |
Drivers and Software
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 / 2025; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin; Epson Remote Services |
| File Format | Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG; Document Capture Pro: JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX |
Options & Consumables
| Carrier Sheet | Order Code: B12B819051 |
| Pickup Roller | Durability: 300,000 scans; Order Code: B12B819611 |
| Separation Roller | Durability: 300,000 scans; Order Code: B12B819631 |
| Passport Carrier Sheet | Order Code: B12B819651 |
| Cleaning Kit | Order Code: B12B819291 |
Control Panel
| LCD Screen | 2.7" Colour LCD Touchscreen |
Dimensions and Weight
| Dimensions (W x D x H) | Storage Position: 371 x 167 x 245 mm; Normal Feed Position: 371 x 208 x 219 mm |
| Weight | 6.9kg |
Environmental Conditions
| Temperature | Operating: 5 to 35°C; Storage: -25 to 60°C |
| Humidity | Operating: 15 to 80% (No condensation); Storage: 15 to 85% (No condensation) |
Electrical Specifications
| Rated Voltage | AC 100-240V |
| Rated Frequency | 50 - 60Hz |
| Power Consumption | Operating: 20W; Ready Mode: 9.5W; Sleep Mode: 1.4W; Power Off: 0.1W |
Footnotes
| *1 | Scanning resolution as defined by ISO14473. |
| *2 | Based on A4 size documents. |
| *3 | For Windows version only. |
| ** | Limited functionality for Mac version of Document Capture software. |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce DS-32000. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 3.0 |
| Supported OS (Scanner Driver) | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11; Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 / 2025; Mac OS X 10.6.8 or later, macOS 11 or later |
| Driver Compatibility | TWAIN, SANE, WIA, ICA, ISIS |
| Bundled Software | Epson Scan 2; ISIS Driver (Web Download); Epson Scan OCR Component; Epson Scan PDF Extensions; Document Capture Pro (Windows) / Document Capture (Mac) |
| Software Solutions Compatibility | Epson Device Admin; Epson Remote Services |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce DS-32000 |
| Epson Product Code | B11B255505 |
| Recommended Retail Price (incl. GST) | S$5,939.00 |
| Consumables | Pickup Roller B12B819611 (300,000 scans); Separation Roller B12B819631 (300,000 scans); Carrier Sheet B12B819051; Passport Carrier Sheet B12B819651; Cleaning Kit B12B819291 |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce DS-32000
What warranty does the WorkForce DS-32000 come with?
1 Year Local Warranty from Epson Singapore: 12 months. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce DS-32000 use?
Pickup Roller B12B819611 (300,000 scans); Separation Roller B12B819631 (300,000 scans); Carrier Sheet B12B819051; Passport Carrier Sheet B12B819651; Cleaning Kit B12B819291 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
