Eaton Maintenance Bypass with PDU for 9SX 15-20kVA UPS, 3U Rack/Tower, IEC Outlets
PRODUCT DESCRIPTION
Eaton 9SX 15-20kVA Maintenance Bypass with PDU (MBP20KPDU, 9001-2044) - 3 Years Local Warranty
Service the UPS Without Dropping the Load
The Eaton MBP20KPDU is a 3U rack/tower maintenance bypass for the Eaton 9SX 15 kVA and 20 kVA UPS. A rotary maintenance bypass switch transfers the load to utility power so the UPS can be serviced, replaced or moved without shutting down connected equipment — the practical way to keep a Singapore server or comms room running through UPS maintenance.
Output Distribution Built In
Rated 20 kVA / 20 kW, the MBP20KPDU adds IEC output sockets directly on the bypass: a non-programmable group of 2 x IEC 10 A and 1 x IEC 16 A sockets and a programmable group of 4 x IEC 10 A and 2 x IEC 16 A sockets, each protected by breakers, alongside terminal-block output for hardwired loads.
Rack or Tower, 3U, 19-inch

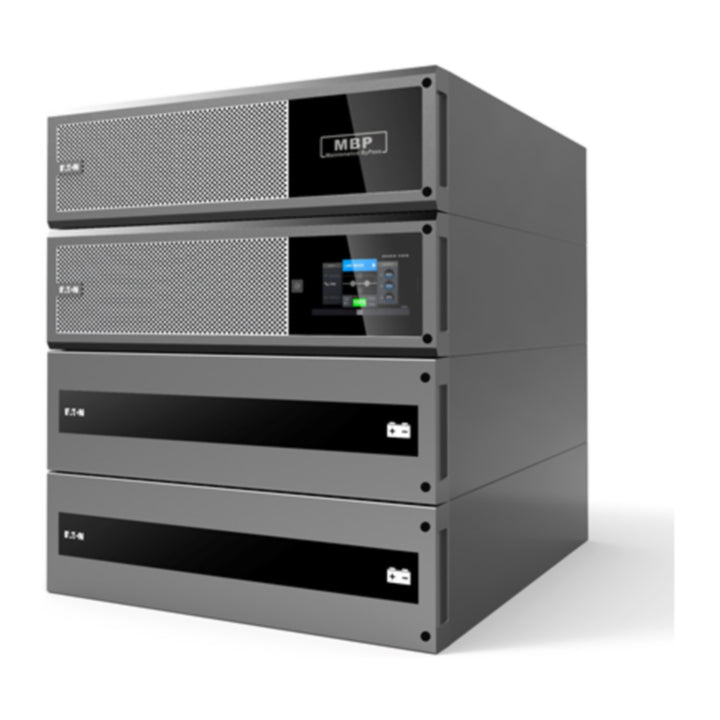

Like the 9SX 15/20 kVA power module, the bypass is rack/tower installable, 3U high and 438 mm wide, with IP20 protection and a 0–50 °C operating range. Eaton's Singapore price list notes that one set of 733-82048 rail kit must be purchased for rack mounting.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9SX maintenance bypass in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives it 3 years. Email sales@sourceit.com.sg for a UPS + bypass + battery bundle quote.
Eaton MBP20KPDU Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX 15-20kVA Maintenance Bypass with PDU |
| Catalogue Number | MBP20KPDU |
| Part Number (SKU) | 9001-2044 |
| Function | Bypass + power distribution |
| Compatible UPS | Eaton 9SX 15 kVA and 20 kVA |
| Installation | Rack/tower, 3U, 438 mm wide |
| Controls | Input switch; rotary maintenance bypass switch |
| Manufacturer Warranty | 3 years (Eaton Singapore price list) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Electrical
| Rated Power | 20 kVA / 20 kW |
| Power Connection | Terminal blocks |
| Input Rated Current | 129 A max (single-phase); 43 A max (three-phase) |
| Output Sockets — Not Programmable | 2 x IEC 10 A + 1 x IEC 16 A |
| Output Sockets — Programmable | 4 x IEC 10 A + 2 x IEC 16 A |
| Output Terminals | Segment 1 (not programmable) and segment 2 (programmable), terminal blocks |
| Socket Protection | Breakers for IEC output sockets |
Environmental
| Operating Temperature | 0–50 °C |
| Protection Level | IP20 |
Compatibility & Software Support
Compatible UPS
Designed for the Eaton 9SX 15 kVA and 20 kVA UPS (9SX15KPM / 9SX20KPM); for the 9SX/9PX 5–11 kVA ranges, ask us about the Eaton HotSwap MBP G2 instead.
Installation Notes
Input and output are wired on terminal blocks, so installation should be done by a licensed electrician. Eaton's user manual gives recommended upstream circuit-breaker ratings for single-phase and three-phase input. Rack mounting needs one set of 733-82048 rail kit (Eaton Singapore price list).
Package Contents & 9SX 15–20 kVA Ordering Information
In the Box
Per Eaton's MBP user manual: MBP detection cable, cable to UPS1, cable locker (for IEC outlets), copper bus-bar, rack ears, user manual. The 733-82048 rail kit is ordered separately.
Eaton 9SX 15–20 kVA — Ordering Information
| 9SX15KPM | 15 kVA / 15 kW UPS power module (EBM sold separately) | 9106-52226EA1 |
| 9SX20KPM | 20 kVA / 20 kW UPS power module (EBM sold separately) | 9106-52217EA1 |
| MBP20KPDU (this listing) | Maintenance bypass with IEC output sockets, 20 kVA | 9001-2044 |
| MBP20KPARA | 1+1 parallel maintenance bypass, 40 kVA | 9001-2045 |
Datasheet & Downloads
| Eaton specification | Eaton 9SX 15-20kVA MBP Technical Specification (PDF) |
| Eaton user manual | Eaton 9SX 15-20K Series Maintenance Bypass (MBP) User Manual (PDF) |
| Eaton UPS brochure | Eaton 9SX 15/20 kVA UPS brochure (PDF, Spanish) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP20KPDU.
Frequently Asked Questions — Eaton MBP20KPDU
What does a maintenance bypass do?
It lets you switch the load to utility power with a rotary switch so the UPS can be serviced or replaced without shutting down connected equipment. During bypass the load is not battery-protected.
Which UPS models does it fit?
Eaton specifies it for the 9SX 15 kVA and 20 kVA UPS.
Does it have power sockets?
Yes: 2 x IEC 10 A + 1 x IEC 16 A (not programmable) and 4 x IEC 10 A + 2 x IEC 16 A (programmable), plus terminal-block outputs.
Is a rail kit included?
Rack ears are included. Eaton's Singapore price list states one set of 733-82048 rail kit must be purchased for rack mounting.
What warranty do I get?
3 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
