Eaton 1+1 Parallel Maintenance Bypass for 9SX 15-20kVA UPS, 3U Rack/Tower, 40kVA
PRODUCT DESCRIPTION
Eaton 9SX 15-20kVA 1+1 Parallel Maintenance Bypass (MBP20KPARA, 9001-2045) - 3 Years Local Warranty
Build a Redundant 1+1 9SX Pair with Maintenance Bypass
The Eaton MBP20KPARA is Eaton's 1+1 parallel version of the 9SX 15/20 kVA maintenance bypass. It connects two 9SX power modules (cables to UPS1 and UPS2 are included) and is rated 40 kVA / 40 kW, giving a redundant or capacity-parallel pair with a rotary maintenance bypass switch so either UPS can be serviced while the load stays up.
Terminal Output for Hardwired Distribution
Output is on terminal blocks in two segments — one non-programmable and one programmable — for connection to a downstream distribution board or rack PDUs. There are no IEC sockets on this model.

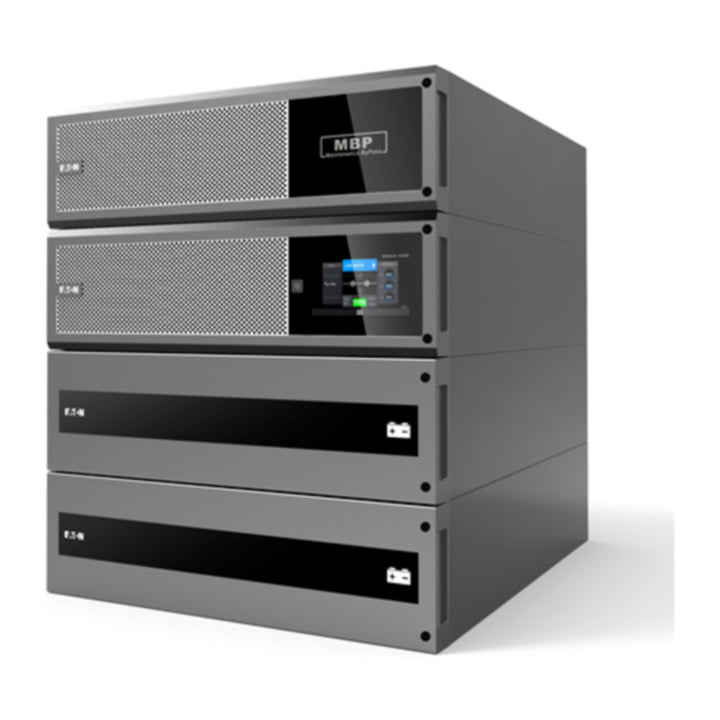

Rack or Tower, 3U, 19-inch
Like the 9SX 15/20 kVA power module, the bypass is rack/tower installable, 3U high and 438 mm wide, with IP20 protection and a 0–50 °C operating range. Eaton's Singapore price list notes that one set of 733-82048 rail kit must be purchased for rack mounting.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9SX maintenance bypass in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives it 3 years. Email sales@sourceit.com.sg for a UPS + bypass + battery bundle quote.
Eaton MBP20KPARA Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX 15-20kVA 1+1 Parallel Maintenance Bypass |
| Catalogue Number | MBP20KPARA |
| Part Number (SKU) | 9001-2045 |
| Function | Bypass + parallel (1+1) |
| Compatible UPS | Eaton 9SX 15 kVA and 20 kVA |
| Installation | Rack/tower, 3U, 438 mm wide |
| Controls | Input switch; rotary maintenance bypass switch |
| Manufacturer Warranty | 3 years (Eaton Singapore price list) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Electrical
| Rated Power | 40 kVA / 40 kW |
| Power Connection | Terminal blocks |
| Input Rated Current | 258 A max (single-phase); 86 A max (three-phase) |
| Output Sockets | None (terminal output only) |
| Output Terminals | Segment 1 (not programmable) and segment 2 (programmable), terminal blocks |
Environmental
| Operating Temperature | 0–50 °C |
| Protection Level | IP20 |
Compatibility & Software Support
Compatible UPS
Designed for the Eaton 9SX 15 kVA and 20 kVA UPS (9SX15KPM / 9SX20KPM); for the 9SX/9PX 5–11 kVA ranges, ask us about the Eaton HotSwap MBP G2 instead.
Installation Notes
Input and output are wired on terminal blocks, so installation should be done by a licensed electrician. Eaton's user manual gives recommended upstream circuit-breaker ratings for single-phase and three-phase input. Rack mounting needs one set of 733-82048 rail kit (Eaton Singapore price list).
Package Contents & 9SX 15–20 kVA Ordering Information
In the Box
Per Eaton's MBP user manual: MBP detection cable, cable to UPS1, cable to UPS2, copper bus-bar, rack ears, user manual. The 733-82048 rail kit is ordered separately.
Eaton 9SX 15–20 kVA — Ordering Information
| 9SX15KPM | 15 kVA / 15 kW UPS power module (EBM sold separately) | 9106-52226EA1 |
| 9SX20KPM | 20 kVA / 20 kW UPS power module (EBM sold separately) | 9106-52217EA1 |
| MBP20KPDU | Maintenance bypass with IEC output sockets, 20 kVA | 9001-2044 |
| MBP20KPARA (this listing) | 1+1 parallel maintenance bypass, 40 kVA | 9001-2045 |
Datasheet & Downloads
| Eaton specification | Eaton 9SX 15-20kVA MBP Technical Specification (PDF) |
| Eaton user manual | Eaton 9SX 15-20K Series Maintenance Bypass (MBP) User Manual (PDF) |
| Eaton UPS brochure | Eaton 9SX 15/20 kVA UPS brochure (PDF, Spanish) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP20KPARA.
Frequently Asked Questions — Eaton MBP20KPARA
What does a maintenance bypass do?
It lets you switch the load to utility power with a rotary switch so the UPS can be serviced or replaced without shutting down connected equipment. During bypass the load is not battery-protected.
Which UPS models does it fit?
Eaton specifies it for the 9SX 15 kVA and 20 kVA UPS.
Does it have power sockets?
No. The MBP20KPARA has terminal-block outputs only. For IEC sockets on the bypass, choose the MBP20KPDU.
Is a rail kit included?
Rack ears are included. Eaton's Singapore price list states one set of 733-82048 rail kit must be purchased for rack mounting.
What warranty do I get?
3 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
