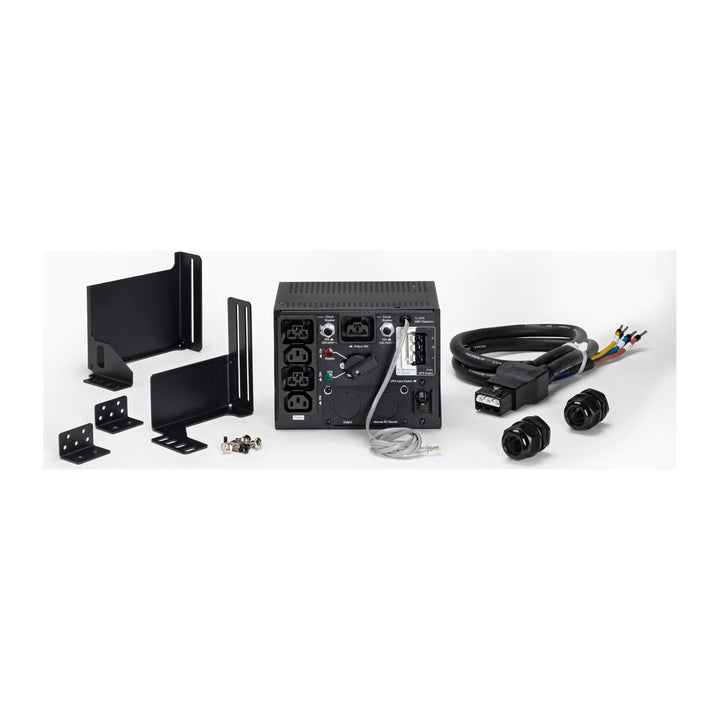

Eaton HotSwap MBP 11kVA 3:1 Maintenance Bypass for 9PX 6-11kVA UPS, 4x IEC C19
PRODUCT DESCRIPTION
Eaton HotSwap MBP 11000i 3:1 Maintenance Bypass (MBP11KI31, MBP11Ki31) - 2 Years Local Warranty
Service the UPS Without Shutting Down the Load
The Eaton HotSwap MBP11Ki31 is the maintenance bypass for Eaton's 9PX 6, 8 and 11 kVA 3:1 (three-phase in, single-phase out) UPS. It lets the load be transferred to utility power while the UPS is serviced or replaced, so critical equipment in a Singapore server room or lab keeps running during maintenance.
Rated for the Full 9PX 3:1 Range
Eaton rates the MBP11Ki31 at 11000 VA with a 346–415 V three-phase input, covering the 9PX6KiRT31, 9PX8KiRT31 and 9PX11KiRT31. Eaton lists its outlets as 4 x IEC C19 plus a hardwired connection.
Nothing to Configure
There is no network interface, serial port or outlet switching to set up. The unit weighs 5.96 kg, is finished in black and mounts horizontally.
Supplied Locally with GST Invoice
SourceIT supplies the MBP11Ki31 in Singapore with a GST invoice and a 2-year local warranty per Eaton's Singapore price list. Installation on a three-phase supply should be done by a qualified electrician.
Eaton MBP11KI31 Datasheet — Technical Specifications
General
| Product Name | Eaton HotSwap MBP maintenance bypass |
| Model Code | Eaton HotSwap MBP 11000i 3:1 |
| Catalogue Number | MBP11KI31 |
| Part Number (SKU) | MBP11Ki31 |
| UPC | 743172040169 |
| Type | HotSwap MBP |
| Form Factor | 3U (Eaton), horizontal mounting |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| VA Rating | 11000 VA |
| Input Voltage | 346–415 V |
| Phase | Three-phase |
| Outlets | 4 x IEC C19, hardwired |
| Outlet Control / Switchable | No |
| Over-voltage Category | 2 |
Communications
| Communication | None (no SNMP, Ethernet or serial interface) |
Physical & Environmental
| Dimensions (W x H x D) | 410 x 270 x 185 mm |
| Weight | 5.96 kg |
| Colour | Black |
| Operating Temperature | 0–40 °C |
| Certifications | CE |
Compatibility & Software Support
Compatible UPS
Eaton's 9PX 5–11 kVA brochure lists MBP11Ki31 as the HotSwap maintenance bypass for the 9PX6KiRT31, 9PX8KiRT31 and 9PX11KiRT31 (3:1 models). Eaton lists different MBP part numbers for other 9PX models; ask us for the matching bypass if you run a different UPS.
Software
None required. The bypass has no communication interface.
Package Contents & 9PX 3:1 Ordering Information
In the Box
Eaton does not publish the carton contents for the MBP11Ki31 on its product page; confirm with us before ordering if cables or brackets matter to your installation.
Eaton 9PX 6–11 kVA 3:1 Range — Ordering Information
| 9PX6KiRT31 | 6000 VA / 5400 W | 3-phase in / 1-phase out, RT6U | 9PX6KiRT31 |
| 9PX8KiRT31 | 8000 VA / 7200 W | 3-phase in / 1-phase out, RT6U | 9PX8KiRT31 |
| 9PX11KiRT31 | 11000 VA / 10000 W | 3-phase in / 1-phase out, RT6U | 9PX11KiRT31 |
| MBP11Ki31 (this listing) | HotSwap maintenance bypass, 11 kVA 3:1 | 4 x IEC C19 + hardwired | MBP11Ki31 |
| 9PXEBM240RT | Extended battery module (with rack kit) | 3U, 65 kg | Ask us |
Datasheet & Downloads
| Eaton product page | Eaton MBP11KI31 specifications |
| Eaton brochure | Eaton 9PX UPS 5–11 kVA Brochure — East Asia (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP11Ki31.
Frequently Asked Questions — Eaton MBP11Ki31
What does a maintenance bypass do?
It lets you move the load onto utility power so the UPS can be serviced or swapped without shutting the connected equipment down.
Which UPS does it fit?
Eaton's 9PX 6, 8 and 11 kVA 3:1 models (9PX6KiRT31, 9PX8KiRT31, 9PX11KiRT31).
What outlets does it have?
4 x IEC C19 plus a hardwired output, per Eaton's specifications.
What warranty do I get?
2 years, supplied by SourceIT with local Singapore support and a GST invoice.
