Eaton HotSwap MBP 6000i G2 Maintenance Bypass for 9PX/9SX Gen2 5-6kVA, 3U, 2x C13 + 3x C39
PRODUCT DESCRIPTION
Eaton HotSwap MBP 6000i G2 Maintenance Bypass (MBP6KIG2, 9001-2054) - 2 Years Local Warranty
Service Your UPS Without Shutting Down the Load

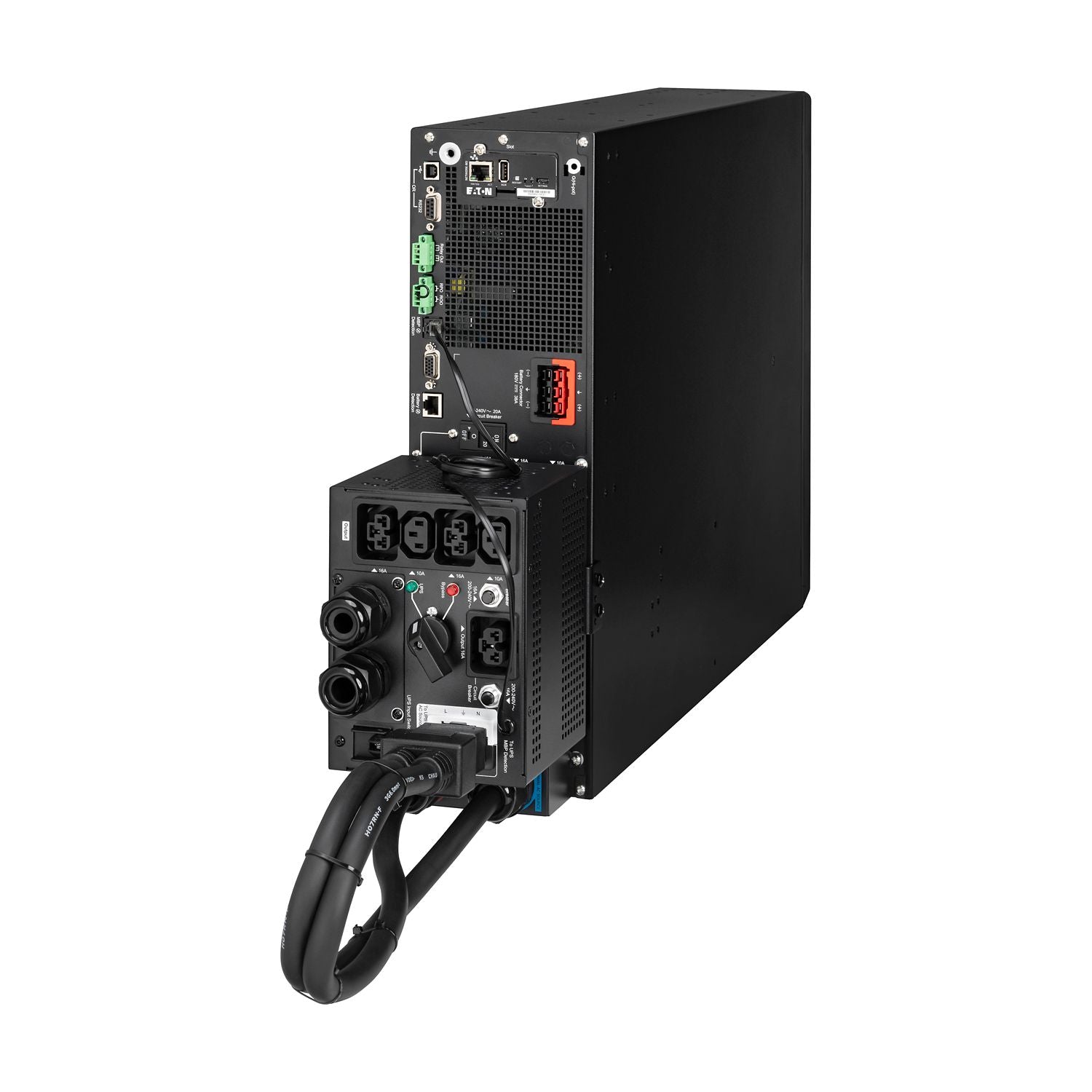

The Eaton HotSwap MBP MBP6KIG2 is a maintenance bypass for the 9PX Gen2 (5/6 kVA) and 9SX Gen2 (5/6 kVA). It lets you transfer connected equipment to utility power so the UPS can be serviced, replaced or upgraded without an outage — useful for Singapore server rooms and branch sites where a shutdown window is hard to get.
Outlets on the Bypass, Not the UPS
Loads plug into the MBP (2 x IEC C13 + 3 x IEC C39, plus 1 hardwired output) rather than into the UPS, so the UPS itself can be swapped out while equipment stays connected and powered.
19-Inch, 3U Installation
Eaton lists the MBP6KIG2 as a 482.6 mm (19-inch), 3U device with a rack-mounting kit included, operating from 0 to 40 °C.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies Eaton HotSwap MBPs in Singapore with a full GST invoice. Eaton's Singapore price list gives this item a 2-year warranty. Email sales@sourceit.com.sg to quote the MBP together with your 9PX or 9SX Gen2 UPS.
Eaton MBP6KIG2 Datasheet — Technical Specifications
General
| Product Name | Eaton HotSwap MBP maintenance bypass |
| Model Code | Eaton HotSwap MBP 6000i G2 |
| Catalogue Number | MBP6KIG2 |
| Part Number (SKU) | 9001-2054 |
| EAN | 3553340684746 |
| Type of Accessory | Bypass |
| Used With | 9PX Gen2 (5/6 kVA) and 9SX Gen2 (5/6 kVA) |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Electrical
| Output Receptacles | 2 x IEC C13 + 3 x IEC C39 |
| Hardwired Outputs | 1 |
Physical & Environmental
| Rack Size | 3U |
| Construction Type | 482.6 mm (19-inch) device |
| Rack Mounting Kit | Included |
| Dimensions (W x H x D) | 177 x 130 x 125 mm |
| Weight | 2 kg |
| Operating Temperature | 0–40 °C |
| Compliances | LVD Directive (CB), EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, UKCA, Cm, Ukr, RCM |
Compatibility & Software Support
Compatible UPS
Eaton lists the MBP6KIG2 for the 9PX Gen2 (5/6 kVA) and 9SX Gen2 (5/6 kVA). It is not intended for other UPS ranges — for the 9SX 1–3 kVA range Eaton offers the HotSwap MBP3KI.
Software
Eaton lists no communication interface on the MBP; monitoring and shutdown remain with the UPS and its Eaton software or network card.
Outlets
2 x IEC C13 + 3 x IEC C39 plus 1 hardwired output. IEC outlets are not BS 1363 (Type G) sockets; hardwired connections should be made by a licensed electrician.
Package Contents & 9SX Gen2 Ordering Information
In the Box

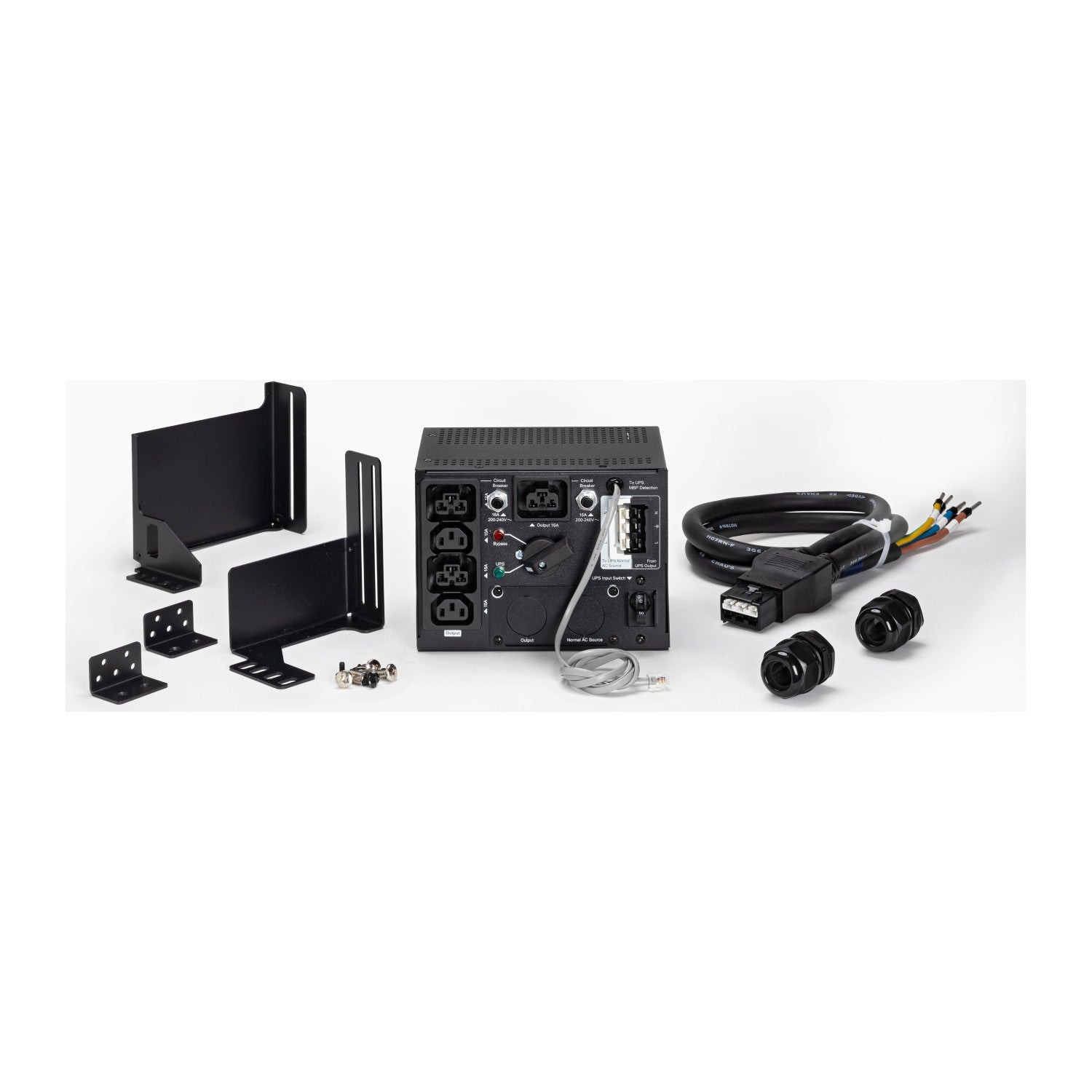

Per Eaton: maintenance bypass, connection cable to the UPS, rack-mounting kit and quick start guide.
Eaton 9SX Gen2 5–20 kVA Range — Ordering Information
| 9SX5KIRT3UG2 | 5000 VA / 5000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-52007 |
| 9SX6KIRT3UG2 | 6000 VA / 6000 W | Rack/tower 3U, 8 x IEC C13 + 3 x IEC C19 + hardwired | 9104-12943 |
| 9SX8KIG2 | 8 kVA / 8 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-22017 |
| 9SX11KIG2 | 11 kVA / 11 kW | Free-standing, 8 x IEC C13 + 4 x IEC C19 + hardwired; rail kit 744-A1994 sold separately | 9104-32729 |
| 9SX15KPM | 15 kVA | Power module; external battery module purchased separately | 9106-52226EA1 |
| 9SX20KPM | 20 kVA | Power module; external battery module purchased separately | 9106-52217EA1 |
| MBP6KIG2 (this listing) | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 5–6 kVA | 9001-2054 |
| MBP11KIG2 | HotSwap maintenance bypass | For 9PX Gen2 / 9SX Gen2 8–11 kVA | 9001-2051 |
Datasheet & Downloads
| Eaton specifications | Eaton MBP6KIG2 specifications (eaton.com) |
| Eaton spec sheet | Eaton MBP6KIG2 product specifications (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP6KIG2.
Frequently Asked Questions — Eaton MBP6KIG2
What does a maintenance bypass do?
It routes connected equipment to utility power while the UPS is serviced or replaced, so the load stays on without an outage. Note that while on bypass the load is not battery-protected.
Which UPS models does it fit?
Eaton lists the 9PX Gen2 (5/6 kVA) and 9SX Gen2 (5/6 kVA).
Does it include rack rails?
Eaton lists a rack-mounting kit in the box.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
