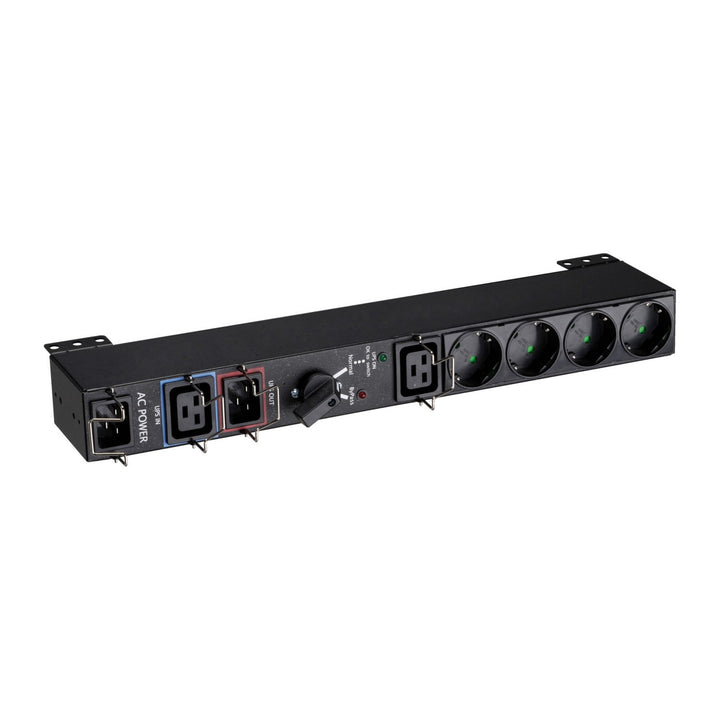

Eaton HotSwap MBP 3000VA Maintenance Bypass, 1U, IEC C20 Input, 4x Schuko + 1x C19
PRODUCT DESCRIPTION
Eaton HotSwap MBP DIN Maintenance Bypass 3000VA (MBP3KID) - 2 Years Local Warranty
Service or Replace Your UPS Without Shutting Down
The Eaton HotSwap MBP (MBP3KID) is a 1U maintenance bypass that sits between the mains, your UPS and your loads. Turn the rotary bypass switch and the connected equipment stays powered from the mains while the UPS is serviced, hot-swapped or upgraded, avoiding a planned outage.
DIN (Schuko) Outlets Plus a 16 A IEC Socket
This DIN version is rated 3000 VA at 200–240 V and provides 4 x Schuko (CEE 7) outlets plus 1 x IEC C19 from an IEC C20 input. It suits equipment fitted with Schuko plugs; for BS 1363 (Type G) or IEC-corded rack equipment, the IEC version MBP3KI is usually the better fit in Singapore.
Flexible Mounting
The HotSwap MBP mounts horizontally or vertically in a 19-inch rack (1U), and Eaton also lists wall mounting or mounting on Eaton 9PX/SX UPSs. A rack-mounting kit, cable locking system and the connection cable to the UPS are included.
Supplied Locally with GST Invoice
SourceIT supplies Eaton HotSwap MBP units in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives this accessory 2 years. Not sure which bypass suits your UPS? Email sales@sourceit.com.sg with your UPS model.
Eaton MBP3KID Datasheet — Technical Specifications
General
| Product Name | Eaton HotSwap MBP maintenance bypass (Eaton HotSwap MBP DIN) |
| Catalogue Number | MBP3KID |
| EAN | 3553340684203 |
| Type | HotSwap maintenance bypass (MBP), rotary bypass switch |
| Form Factor | 1U, 19-inch (482.6 mm); horizontal or vertical mounting |
| Colour | Black |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Electrical
| Rating | 3000 VA |
| Input Voltage | 200–240 V, single-phase |
| Input Connection | IEC C20 (16 A) |
| Output Outlets | 4 x Schuko, 1 x IEC C19 (C19 with circuit breaker per Eaton datasheet) |
| Outlets with Earth Pin | 5 |
| Switchable / Outlet Control | No |
| Metering / Communication | No (no SNMP, Ethernet or serial interface) |
| Over-Voltage Category | 2 |
| Fitted With | LED indication, mounting material |
Physical & Environmental
| Width / Height / Depth (Eaton spec page) | 439 / 50 / 76.5 mm |
| Weight | 2.134 kg |
| Operating Temperature | 0–40 °C |
| Compliances / Certifications | CE |
Compatibility & Software Support
Which UPS Does It Suit?
Eaton's Singapore price list offers the MBP3KID with the Eaton 5PX range. Eaton describes the HotSwap MBP family as compatible with Eaton UPSs and UPSs from other suppliers, with the range covering UPSs up to 11 kVA; this model is rated 3000 VA, so size it to a UPS of 3000 VA or less. Send us your UPS model and we will confirm the fit.
Software
The HotSwap MBP is a passive bypass with no communication interface or software. Monitoring stays with your UPS and its network card.
Outlets
4 x Schuko (CEE 7) outputs and 1 x IEC C19, with an IEC C20 input. Singapore BS 1363 (Type G) plugs do not fit Schuko sockets; choose the IEC version MBP3KI if your equipment uses IEC or Type G leads.
Package Contents & HotSwap MBP 3000VA Ordering Information
In the Box
Eaton lists: maintenance bypass, cable locking system, connection cable to the UPS, rack-mounting kit and user manual.
Eaton HotSwap MBP 3000VA — Ordering Information
| MBP3KI | 3000 VA, IEC version | 6 x C13 + 1 x C19 | MBP3KI |
| MBP3KID (this listing) | 3000 VA, DIN (Schuko) version | 4 x Schuko + 1 x C19 | MBP3KID |
Datasheet & Downloads
| Eaton specifications | Eaton MBP3KID specifications (eaton.com) |
| Eaton spec sheet | Eaton MBP3KID product specifications (PDF) |
| Eaton datasheet | Eaton FlexPDU and HotSwap MBP datasheet (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP3KID.
Frequently Asked Questions — Eaton MBP3KID
What does a maintenance bypass do?
It lets you switch the connected load to mains power so the UPS can be removed, serviced or replaced without shutting down your equipment. Eaton states UPSs can be hot-swapped or upgraded without interrupting the power supply.
Will Singapore plugs fit?
Not directly. The four main outlets are Schuko (CEE 7); BS 1363 (Type G) plugs need the IEC version MBP3KI or IEC leads on the C19 socket.
Is the load protected while in bypass?
No. In bypass the equipment runs directly from the mains, so schedule UPS work outside critical periods.
Can it be monitored over the network?
No. Eaton lists no SNMP, Ethernet or serial interface on this model.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
