Eaton HotSwap MBP 3000VA Maintenance Bypass, 1U, IEC C20 Input, 6x C13 + 1x C19
PRODUCT DESCRIPTION
Eaton HotSwap MBP IEC Maintenance Bypass 3000VA (MBP3KI) - 2 Years Local Warranty
Service or Replace Your UPS Without Shutting Down

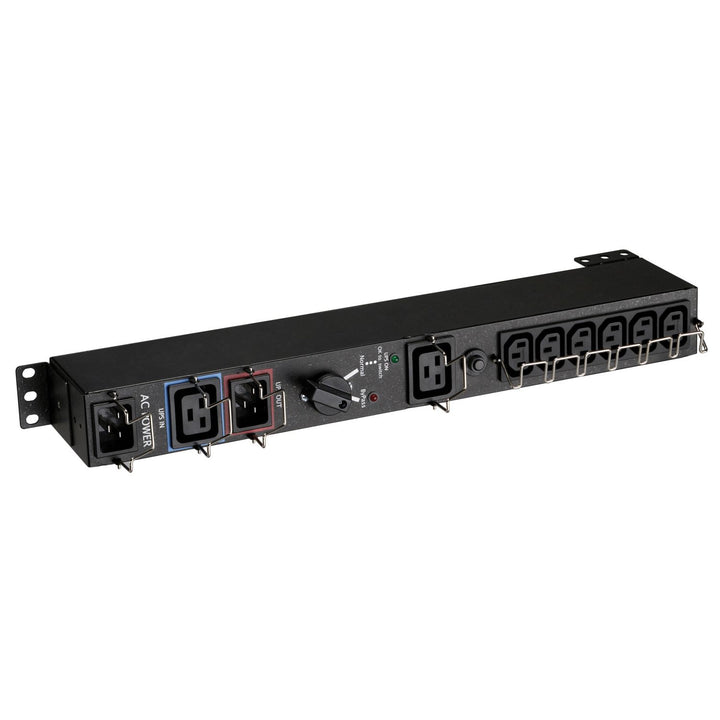

The Eaton HotSwap MBP (MBP3KI) is a 1U maintenance bypass that sits between the mains, your UPS and your IT loads. Turn the rotary bypass switch and the connected equipment stays powered from the mains while the UPS is serviced, hot-swapped or upgraded, so Singapore server rooms and network cabinets avoid a planned outage.
IEC Outlets Ready for Rack Equipment
This IEC version is rated 3000 VA at 200–240 V and provides 6 x IEC C13 plus 1 x IEC C19 outputs from an IEC C20 input. Eaton specifies retaining clips on the IEC output sockets, colour-coded input/output sockets and LED indication, with a cable locking system in the box.
Flexible Mounting
The HotSwap MBP mounts horizontally or vertically in a 19-inch rack (1U), and Eaton also lists wall mounting or mounting on Eaton 9PX/SX UPSs. A rack-mounting kit and the connection cable to the UPS are included.
Supplied Locally with GST Invoice
SourceIT supplies Eaton HotSwap MBP units in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives this accessory 2 years. Not sure which bypass suits your UPS? Email sales@sourceit.com.sg with your UPS model.
Eaton MBP3KI Datasheet — Technical Specifications
General
| Product Name | Eaton HotSwap MBP maintenance bypass (Eaton HotSwap MBP IEC) |
| Catalogue Number | MBP3KI |
| Type | HotSwap maintenance bypass (MBP), rotary bypass switch |
| Form Factor | 1U, 19-inch (482.6 mm); horizontal or vertical mounting |
| Colour | Black |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Electrical
| Rating | 3000 VA |
| Input Voltage | 200–240 V, single-phase |
| Input Connection | IEC C20 (16 A) |
| Output Outlets | 6 x IEC C13, 1 x IEC C19 (C19 with circuit breaker per Eaton datasheet) |
| Outlets with Earth Pin | 7 |
| Switchable / Outlet Control | No |
| Metering / Communication | No |
| Over-Voltage Category | 2 |
| Fitted With | LED indication, mounting material |
Physical & Environmental
| Width / Height / Depth (Eaton spec page) | 439 / 50 / 76.5 mm |
| Weight | 1.9 kg |
| Operating Temperature | 0–40 °C |
| Compliances / Certifications | CE |
Compatibility & Software Support
Which UPS Does It Suit?
Eaton's Singapore price list offers the MBP3KI with the Eaton 5PX range. Eaton describes the HotSwap MBP family as compatible with Eaton UPSs and UPSs from other suppliers, with the range covering UPSs up to 11 kVA; this model is rated 3000 VA, so size it to a UPS of 3000 VA or less. Send us your UPS model and we will confirm the fit.
Software
The HotSwap MBP is a passive bypass with no communication interface or software. Monitoring stays with your UPS and its network card.
Outlets
6 x IEC C13 and 1 x IEC C19 outputs with an IEC C20 input. Equipment with a BS 1363 (Type G) plug needs an IEC lead or an IEC-input power strip.
Package Contents & HotSwap MBP 3000VA Ordering Information
In the Box
Eaton lists: maintenance bypass, cable locking system, connection cable to the UPS, rack-mounting kit and user manual.
Eaton HotSwap MBP 3000VA — Ordering Information
| MBP3KI (this listing) | 3000 VA, IEC version | 6 x C13 + 1 x C19 | MBP3KI |
| MBP3KID | 3000 VA, DIN (Schuko) version | 4 x Schuko + 1 x C19 | MBP3KID |
Datasheet & Downloads
| Eaton specifications | Eaton MBP3KI specifications (eaton.com) |
| Eaton spec sheet | Eaton MBP3KI product specifications (PDF) |
| Eaton datasheet | Eaton FlexPDU and HotSwap MBP datasheet (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MBP3KI.
Frequently Asked Questions — Eaton MBP3KI
What does a maintenance bypass do?
It lets you switch the connected load to mains power so the UPS can be removed, serviced or replaced without shutting down your equipment. Eaton states UPSs can be hot-swapped or upgraded without interrupting the power supply.
Is the load protected while in bypass?
No. In bypass the equipment runs directly from the mains, so schedule UPS work outside critical periods.
Does it include the cable to the UPS?
Yes. Eaton lists a connection cable to the UPS, a cable locking system and a rack-mounting kit in the box.
Can it be monitored over the network?
No. Eaton lists no communication interface on the HotSwap MBP.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
