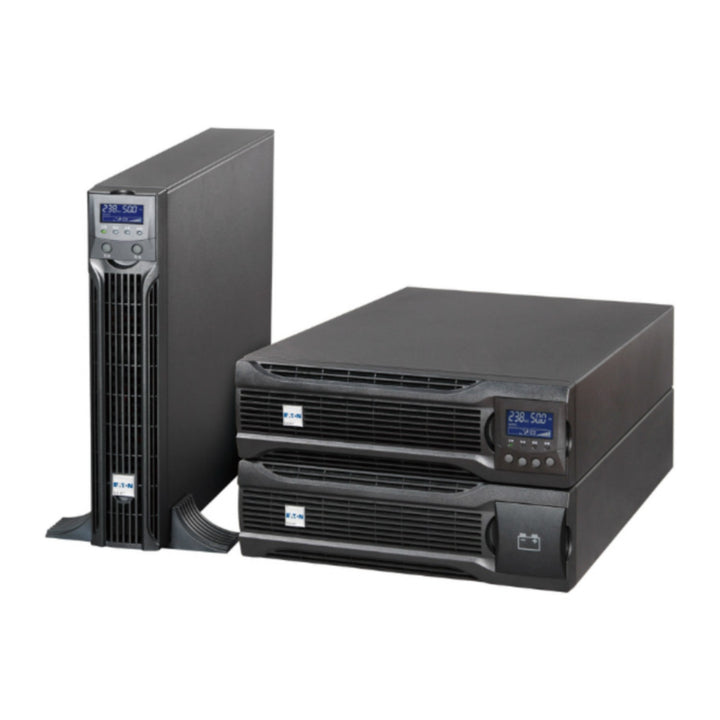

Eaton DX-RT XL 10kVA 10kW Online Double-Conversion Rack/Tower UPS, No Internal Battery
PRODUCT DESCRIPTION
Eaton DX-RT 10kVA/10kW XL Long-Backup Online Rack/Tower UPS (DXRT10KIXL-AP, 9104-32687EA1) - 3 Years Local Warranty
10 kW Online Protection Built for Long Runtime
The Eaton DXRT10KIXL-AP is the XL (long-backup) version of Eaton's 10 kVA / 10 kW DX-RT online double-conversion UPS. XL models carry no internal battery, so you connect an external battery string sized to the runtime you need, making it a good fit for Singapore comms rooms, CCTV, telecom, medical and banking equipment that must ride through long outages.
Unity Power Factor and Wide Input Range
Output power factor is 1, so the full 10 kW is usable. The input accepts 110–275 VAC and 40–70 Hz, with input power factor ≥0.995 and THDi below 3%, and output THDv is under 1%. Output voltage is selectable at 208 / 220 / 230 / 240 VAC (220 V default).
Double-conversion efficiency is up to 95%, rising to 98% in ECO mode.
Flexible Battery Configuration
The DC bus is adjustable to 192 / 204 / 216 / 228 / 240 VDC with 20 VRLA batteries as the reference configuration, and the charger is adjustable from 0 to 12 A (4 A default) so larger battery banks recharge in a sensible time. Tell us the load and backup time and we will size the battery bank and cabinet.
Rack or Tower, Parallel-Ready
The DX-RT is rack/tower convertible, supports up to 3 units in parallel, and has a graphical LCD plus USB, RS232, EPO, dry contacts and a card slot for Eaton Network-M3, INDGW-M2 or Relay-MS cards. Eaton's Singapore price list notes that one set of 730-80176 rail kit is required for rack mounting.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the DX-RT in Singapore with a full GST invoice and local warranty support. Eaton's East Asia datasheet and Singapore price list both give 3 years. Email sales@sourceit.com.sg for a UPS + battery quote.
Eaton DXRT10KIXL-AP Datasheet — Technical Specifications
General
| Product Name | Eaton DX-RT 10KiXL |
| Catalogue Number | DXRT10KIXL-AP |
| Part Number (SKU) | 9104-32687EA1 |
| Range | Eaton DX-RT |
| Topology | Online double conversion |
| Form Factor | Rack/tower convertible |
| Display | Graphical LCD + LED indicators |
| Manufacturer Warranty | 3 years (Eaton DX-RT East Asia datasheet; Eaton Singapore price list) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Input
| Input Voltage Range | 110–275 VAC |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | ≥0.995 |
| Input Current THD (THDi) | <3% |
Output
| Rated Power | 10 kVA / 10 kW |
| Output Power Factor | 1 |
| Output Voltage | 208 / 220 / 230 / 240 VAC (220 V default) |
| Output Voltage THD | <1% |
| Output Frequency (battery mode) | 50/60 Hz ±0.1 Hz |
| Overload | 105–125%: 10 min; 125–150%: 30 s |
| Efficiency | 95% double conversion; 98% ECO mode |
| Parallel | Up to 3 units |
Battery
| Internal Battery | None (XL long-backup model) |
| Battery Type | Valve-regulated lead-acid (external) |
| Battery Voltage | 192 / 204 / 216 / 228 / 240 VDC, adjustable |
| Battery Configuration | 20 pcs (optional) |
| Charger Current | 0–12 A (default 4 A) |
| Backup Time | Depends on battery bank |
Communications
| Ports | USB, RS232, EPO, dry contact, card slot |
| Optional Cards | Network-M3, INDGW-M2, Relay-MS |
Environmental
| Operating Temperature | 0–40 °C |
| Humidity | 0–95% non-condensing |
| Approvals | CE |
Compatibility & Software Support
What It Is Suited To
IT, data centre, telecom, medical and banking loads up to 10 kW that need longer runtime than an internal battery can give. Size on watts and leave headroom.
Monitoring and Shutdown
USB and RS232 are built in, with EPO and dry contacts. Add an Eaton Network-M3 card for SNMP/web monitoring and network shutdown, INDGW-M2 for industrial protocols, or Relay-MS for relay signalling.
Batteries
XL models have no internal battery. The battery bank, cabinet and DC cabling are sized per project; Eaton's price list notes additional items (battery power cable) for XL installs — ask SourceIT to confirm the full bill of materials.
Package Contents & DX-RT Ordering Information
In the Box
Eaton DX-RT UPS with user documentation. Eaton's East Asia datasheet does not list the carton contents, so confirm accessories with us before ordering. Batteries and the 730-80176 rail kit are not included.
Eaton DX-RT 6–10 kVA — Ordering Information
| DXRT6KI-AP2 | 6 kVA / 6 kW, internal batteries | 9104-12896EA2 |
| DXRT10KI-AP2 | 10 kVA / 10 kW, internal batteries | 9104-32686EA2 |
| DXRT6KIXL-AP | 6 kVA / 6 kW, XL (no internal battery) | 9104-12897EA1 |
| DXRT10KIXL-AP (this listing) | 10 kVA / 10 kW, XL (no internal battery) | 9104-32687EA1 |
Datasheet & Downloads
| Eaton datasheet | Eaton DX-RT UPS Datasheet — East Asia (PDF) |
| Eaton product page | Eaton DX-RT UPS — Singapore product page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXRT10KIXL-AP.
Frequently Asked Questions — Eaton DXRT10KIXL-AP
What does XL mean?
XL is the long-backup version: no internal battery, designed to run from an external battery bank sized to your runtime.
How long will it run?
Backup time depends entirely on the battery bank. Send us your load in kW and target runtime and we will size it.
Can it be rack-mounted?
Yes, it is rack/tower convertible. Eaton's Singapore price list states one set of 730-80176 rail kit is required.
Can I run units in parallel?
Yes, up to 3 units per Eaton's datasheet.
What warranty do I get?
3 years per Eaton's East Asia datasheet and Singapore price list, supplied by SourceIT with local support and a GST invoice.
