Eaton ATS 16A 1U Rack Automatic Transfer Switch, Dual C20 Input, 8x C13 + 1x C19
PRODUCT DESCRIPTION
Eaton ATS 16A Rack Automatic Transfer Switch (EATS16, 9001-5017) - 2 Years Local Warranty
Power Redundancy for Single-Corded Equipment
The Eaton EATS16 is a 16 A, 1U rack automatic transfer switch (ATS) that feeds equipment from two independent power sources. If the primary source fails, the ATS transfers the load to the secondary source, so single-corded switches, firewalls, routers and servers in Singapore data cabinets gain source redundancy without buying dual power supplies.
Typical set-ups connect one input to a UPS and the other to a second UPS or utility feed, keeping the load up through a UPS fault or maintenance.

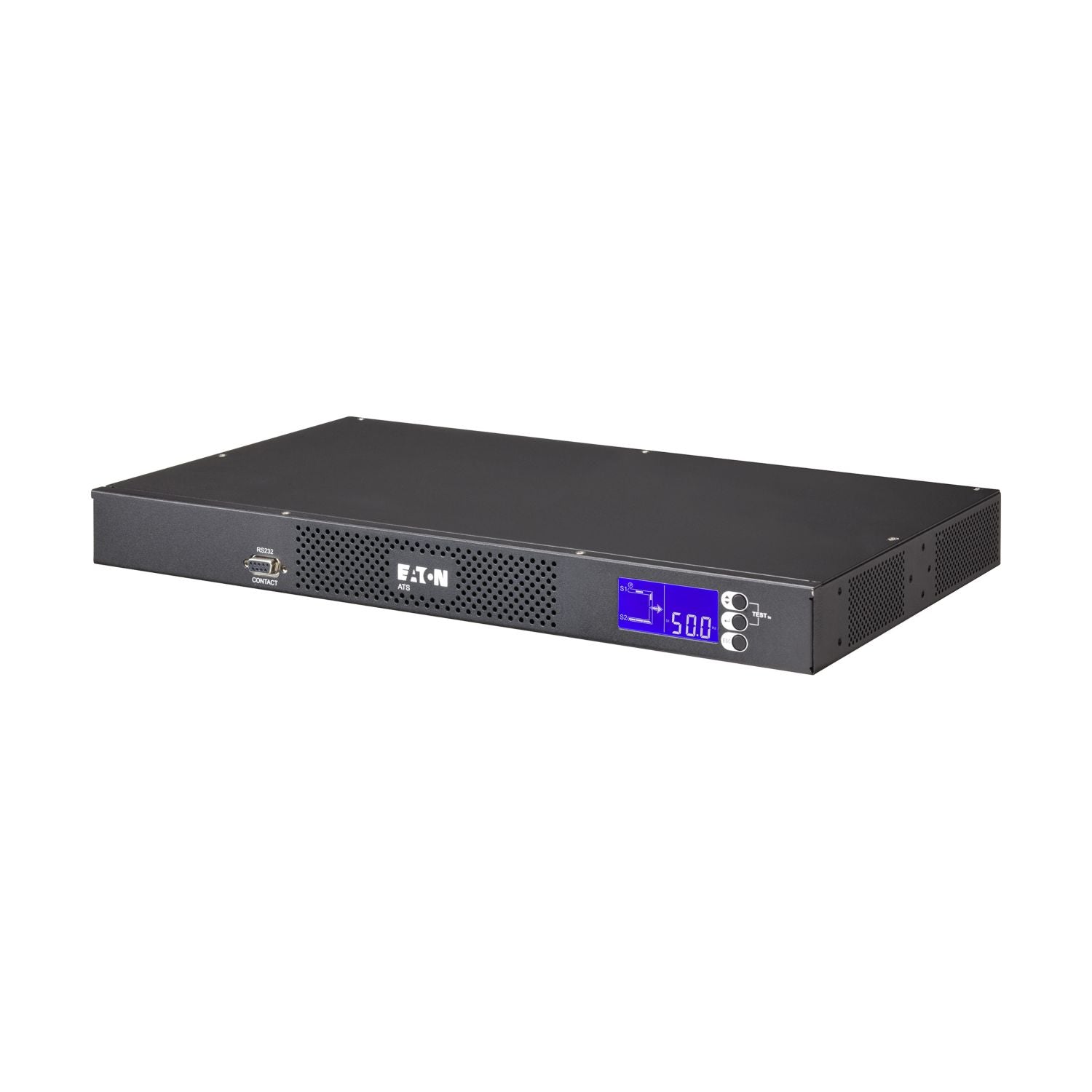

3.84 kW Capacity in a Compact 1U Chassis

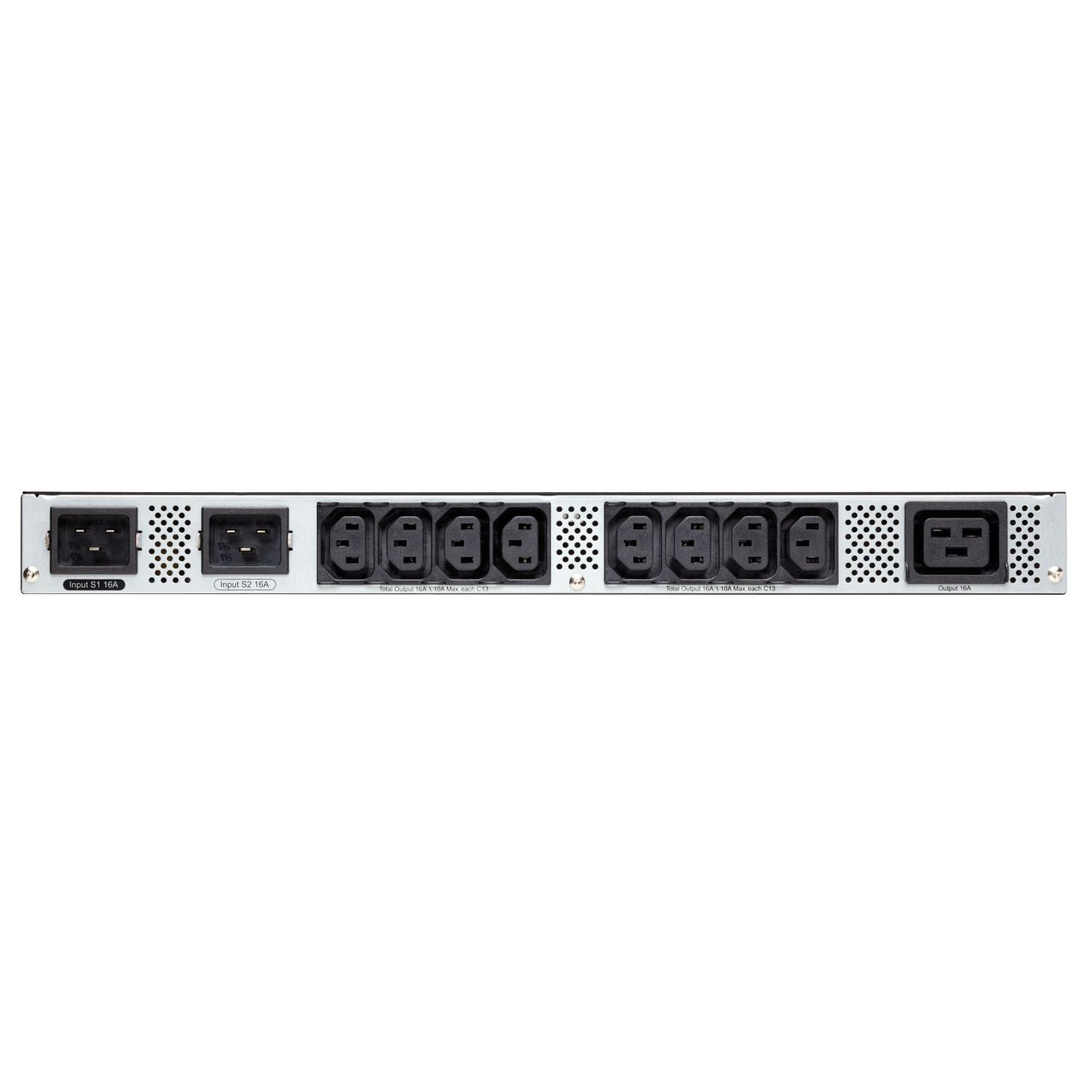

The EATS16 is rated 16 A at 200–240 V single-phase, for up to 3.84 kW, with two C20 inputs on 2 m cords. Output is on 8 IEC C13 and 1 IEC C19 outlets, all earthed, and the unit mounts horizontally in a standard 19-inch rack.
Simple, Unmanaged Operation
The EATS16 is the non-network version: no SNMP, Ethernet or serial interface and no outlet switching, which keeps it simple for cabinets that do not need remote monitoring. For network management, see the EATS16N.
Supplied Locally with GST Invoice and 2-Year Warranty
SourceIT supplies the Eaton ATS in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 2 years.
Planning redundant power for a rack? Email sales@sourceit.com.sg with your equipment list.
Eaton EATS16 Datasheet — Technical Specifications
General
| Product Name | Eaton ATS PDU |
| Catalogue Number | EATS16 |
| Part Number (SKU) | 9001-5017 |
| UPC | 743172079404 |
| Type | Automatic transfer switch (ATS) |
| Form Factor | 1U, horizontal, 482.6 mm (19 inch) |
| Colour | Black |
| Local Warranty (Singapore) | 2 years (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Electrical
| Input Voltage | 200–240 V, single-phase |
| Frequency | 50/60 Hz |
| Amperage Rating | 16 A |
| Maximum Power | 3.84 kW |
| Input Connection | 2 x C20 |
| Cord Length | 2 m |
| Outlets | 8 x IEC C13, 1 x IEC C19 (9 earthed outlets) |
| Outlet Control / Switchable | No |
| Over-voltage Category | 2 |
Management
| SNMP / Ethernet / Serial | No / No / No |
Physical & Environmental
| Dimensions (W x H x D) | 250 x 43 x 430 mm |
| Weight | 3.32 kg |
| Operating Temperature | 0–40 °C |
| Certifications | CE |
Compatibility & Software Support
What It Is Suited To
Single-corded network switches, firewalls, routers, KVMs and servers that need redundant power, up to 16 A / 3.84 kW total across both sources.
Power Sources
Connect each C20 input to a separate source (for example two UPS units, or a UPS plus utility) rated for 16 A. The upstream outlets need to be C19 or have suitable adapters.
Software
The EATS16 has no network or serial interface. If you need remote monitoring, SNMP traps or metering, choose the EATS16N.
Package Contents & Eaton ATS Ordering Information
In the Box
Eaton ATS 16A with attached 2 m input cords and documentation. Confirm rack hardware with us before ordering.
Eaton ATS 16A — Ordering Information
| EATS16 (this listing) | 16 A ATS, unmanaged | 9001-5017 |
| EATS16N | 16 A ATS, network managed (SNMP, web, LCD metering) | 9001-5018 |
Datasheet & Downloads
| Eaton specifications | Eaton EATS16 specifications |
| Eaton spec sheet | Eaton EATS16 product specification (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting EATS16.
Frequently Asked Questions — Eaton EATS16
What does an ATS do?
It takes two power inputs and supplies the connected equipment from one of them, switching to the other if the active source fails. It gives single-corded equipment power-source redundancy.
What is the difference between EATS16 and EATS16N?
The EATS16N adds network management (SNMP, HTTP/HTTPS, SMTP and more), an LCD with metering and an ampere meter. The EATS16 has no network interface.
How much load can it carry?
16 A at 200–240 V, up to 3.84 kW.
What warranty do I get?
2 years per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
