Eaton EATS16N ATS 16A Netpack IEC

Eaton EATS16N ATS 16A Netpack IEC 1P C19,C13/C19 EU 230V (9001-5018) -  2 Years Local Warranty

Eaton ATS 16A Netpack IEC – Efficient Power Switching Solution

The Eaton ATS 16A Netpack IEC (9001-5018) is a high-performance Automatic Transfer Switch designed for seamless and efficient power switching between two power sources. This device is ideal for applications where reliable, continuous power is critical. The ATS 16A Netpack is a perfect solution for ensuring that your equipment remains powered even during outages, providing protection for essential systems that require constant uptime. With its 16A capacity and IEC compatibility, it is well-suited for commercial, industrial, and mission-critical applications.

Automatic Power Switching for Uninterrupted Operation

Eaton’s ATS 16A Netpack IEC offers automatic switching capabilities that ensure an uninterrupted power supply to your equipment. In the event of a power failure or fluctuation, the ATS automatically transfers the load to the backup power source, minimizing downtime and ensuring that your systems continue to operate. This feature makes it an excellent choice for businesses or environments where power reliability is non-negotiable, such as data centers, healthcare facilities, or manufacturing plants.

Compact, Space-Saving Design for Easy Installation

The Eaton ATS 16A Netpack IEC features a compact and efficient design that fits easily into both rack-mounted and wall-mounted configurations. Its space-saving form factor allows it to be integrated into a variety of setups without taking up unnecessary space. Whether you are using the device in a small server room or a larger industrial setting, its versatility makes installation simple and convenient. The rugged construction ensures that the ATS 16A Netpack is built to last and can withstand the demanding conditions of critical infrastructure environments.

Enhanced User Interface and Remote Monitoring

Eaton’s ATS 16A Netpack IEC includes a user-friendly interface for monitoring the power status of your systems. The interface provides real-time updates on power sources, load conditions, and transfer activity, making it easier for operators to manage their power infrastructure. Additionally, Eaton offers the option for remote monitoring, allowing users to track power conditions and receive alerts from anywhere, ensuring proactive management of potential issues before they become critical.

Built-In Protection and Safety Features

Safety is a top priority with the Eaton ATS 16A Netpack IEC, which includes integrated surge protection, overcurrent protection, and other built-in safety features to safeguard your equipment. This ensures that your systems are protected against electrical surges, power fluctuations, and other anomalies that could damage sensitive equipment. With its adherence to IEC standards, the Eaton ATS 16A Netpack provides an added layer of security, ensuring that your infrastructure remains safe and stable even under challenging conditions.

Technical Specifications

General
Model: ATS 16 Netpack
Part Number: 9001-5018 / EATS16N
Product Name: Eaton ATS 16A Netpack IEC 1P C19, C13/C19 EU 230V
Manufacturer: Eaton
Product Type: Automatic Transfer Switch (ATS) Rack PDU
Form Factor: 1U Rack Mount
Power Distribution Type: Automatic Transfer Switch
Phase: Single-Phase (1P)
Input Voltage: 200–240V AC
Frequency: 50/60 Hz
Nominal Current: 16A
Maximum Power Capacity: 3.84 kW
Deployment: Data Centers, Server Rooms, Network Closets, Enterprise IT Infrastructure
Warranty: 2 Years Standard Warranty

Power Redundancy Features
Automatic Transfer Switching: Supported
Transfer Between Dual Power Sources: Supported
Primary Source Monitoring: Supported
Secondary Source Monitoring: Supported
Automatic Failover: Supported
Automatic Recovery: Supported
Power Source Priority Selection: Supported
Redundant Power Protection: Supported
Single Power Supply Equipment Protection: Supported
Seamless Power Transfer: Supported
Typical Transfer Time: 8 ms

Input Specifications
Input Quantity: 2 Inputs
Input Connector Type: IEC C20
Input Voltage Range: 200–240V AC
Frequency Range: 50/60 Hz
Input Cables Included: 2 × C19-C20 Power Cables
Cord Length: Approximately 2m
Input Source Monitoring: Supported

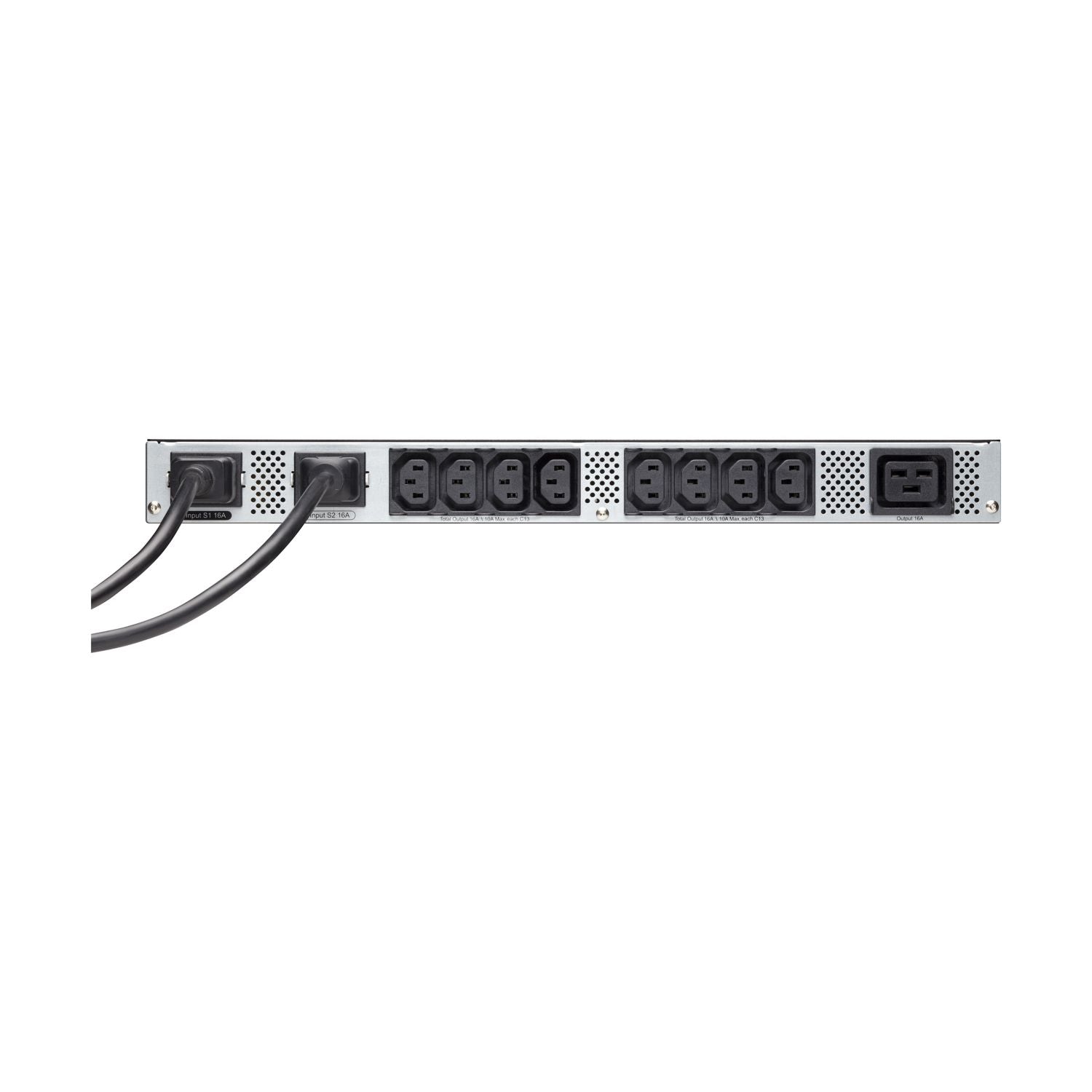

Output Specifications
Output Connections: 9 Total Outlets
IEC C13 Outlets: 8
IEC C19 Outlets: 1
Output Voltage: 200–240V AC
Output Current: Up to 16A
Outlet Locking Support: Supported
Load Distribution: Supported
Outlet Switching: Not Supported

Network & Remote Management
Netpack Version: Yes
Ethernet Connectivity: Supported
Remote Monitoring: Supported
Remote Configuration: Supported
Remote Management: Supported
Web Interface: Supported
SNMP Support: Supported
HTTP Support: Supported
HTTPS Support: Supported
SSL Support: Supported
SMTP Support: Supported
DNS Support: Supported
DHCP Support: Supported
LDAP Support: Supported
RADIUS Support: Supported
FTP Support: Supported
Telnet Support: Supported
Mass Configuration: Supported

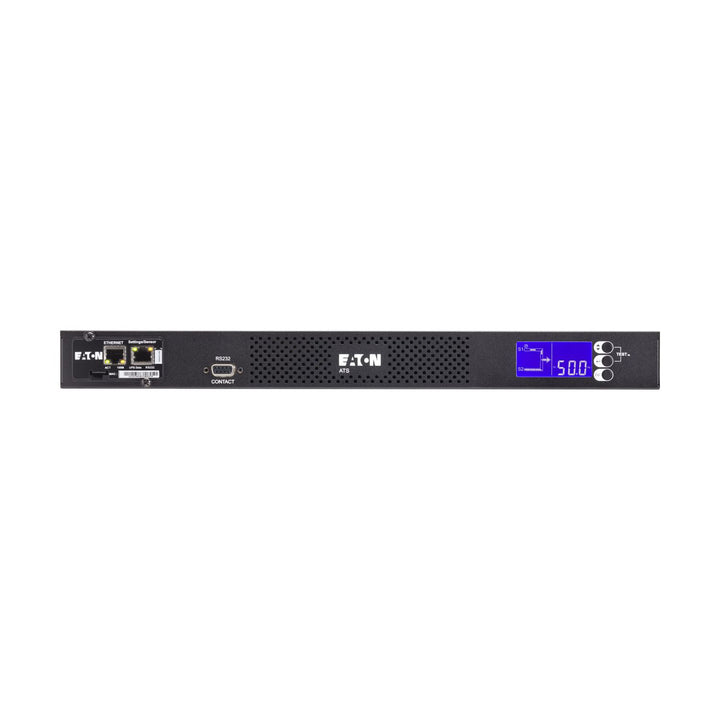

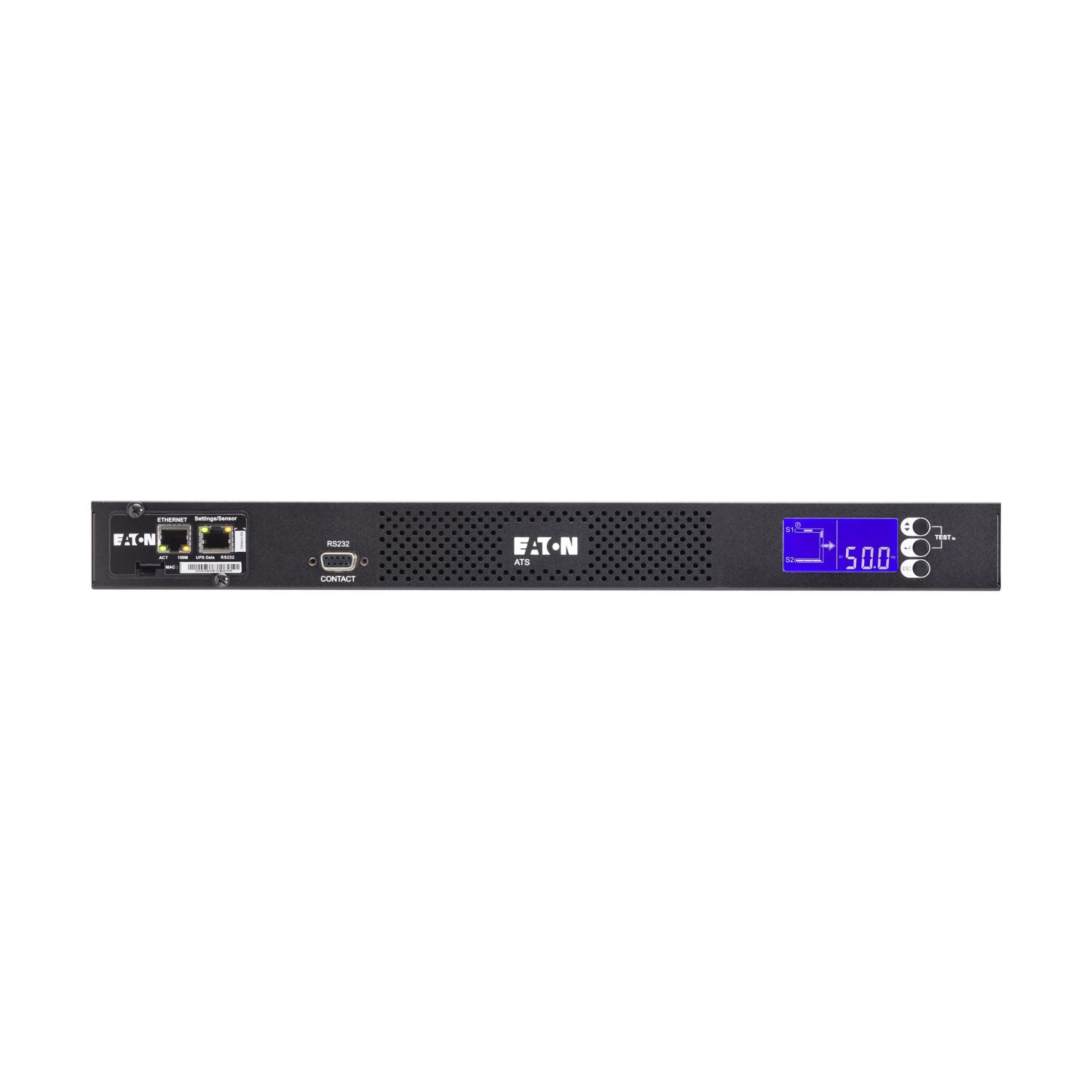

User Interface
Display Type: LCD Display
Power Flow Monitoring: Supported
Load Monitoring: Supported
Current Metering: Supported
Voltage Monitoring: Supported
Frequency Monitoring: Supported
Source Status Display: Supported
Event Logging: Supported
Basic Configuration Interface: Supported
Alarm Notification: Supported

Monitoring Features
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Output Current Monitoring: Supported
Source Availability Monitoring: Supported
Source Quality Monitoring: Supported
Power Flow Visualization: Supported
Event Tracking: Supported
Alarm Logging: Supported

Communication Interfaces
Ethernet Port: 1 x RJ45
Network Management Card: Integrated (Netpack Version)
Serial Interface: Configuration Support
Remote Access: Supported
Web Browser Access: Supported
SNMP Monitoring: Supported

Safety & Compliance
CE Marked: Yes
IEC 60950-1 Compliant: Yes
IEC/EN 62310-1: Supported
IEC/EN 62310-2: Supported
Overvoltage Category: Category II
Electrical Protection: Supported

Physical Specifications
Form Factor: 1U Rackmount
Rack Compatibility: 19-Inch Rack
Mounting Direction: Horizontal
Color: Black
Dimensions (H × W × D): 43 × 430 × 250 mm
Weight: Approximately 3.5 kg

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Environment: Indoor Use
Humidity: Non-Condensing Environment Recommended

Package Contents
Eaton ATS 16A Netpack Unit
2 × IEC C19-C20 Input Power Cables
Input Cable Lockers
Plastic Output Locking Strips
Rack Mounting Accessories
RS232 Serial Cable
Network Configuration Cable
Quick Start Guide
Safety Instructions

Key Features
16A Automatic Transfer Switch Rack PDU
Dual IEC C20 Power Inputs
8 × IEC C13 and 1 × IEC C19 Outputs
8ms Automatic Source Transfer Time
Integrated LCD Monitoring Display
Network Remote Management (Netpack Version)
SNMP and Web-Based Monitoring
1U Rack Mount Design
3.84 kW Maximum Capacity
Redundant Power Protection for Single-Power Devices
Enterprise Data Center Ready
Remote Monitoring and Configuration Support

Performance & Features
Provides automatic power redundancy for servers, switches, storage systems and network appliances with a single power supply input. In the event of a failure on the primary source, the ATS automatically transfers the load to the secondary source in approximately 8 milliseconds, helping maintain uptime for critical equipment. The Netpack version adds advanced remote monitoring and management capabilities, allowing administrators to monitor power conditions, configure settings and receive alerts remotely through a network connection.

Typical Use Cases
Server Rack Power Redundancy
Network Switch Protection
Firewall and Security Appliance Protection
Storage System Power Protection
Data Center Deployments
Edge Computing Installations
Telecommunications Equipment Rooms
Enterprise Server Rooms
Mission-Critical IT Infrastructure
UPS Redundancy Deployments
Business Continuity Applications
Remote IT Site Management
