Eaton 9SX 3000VA 2700W Online Tower UPS, No Internal Battery, 8x C13 + 1x C19
PRODUCT DESCRIPTION
Eaton 9SX 3000VA/2700W Online Tower UPS, No Internal Battery (9SX3000INB, 9103-83959) - 3 Years Local Warranty
Online Double-Conversion UPS Built for Long Runtimes

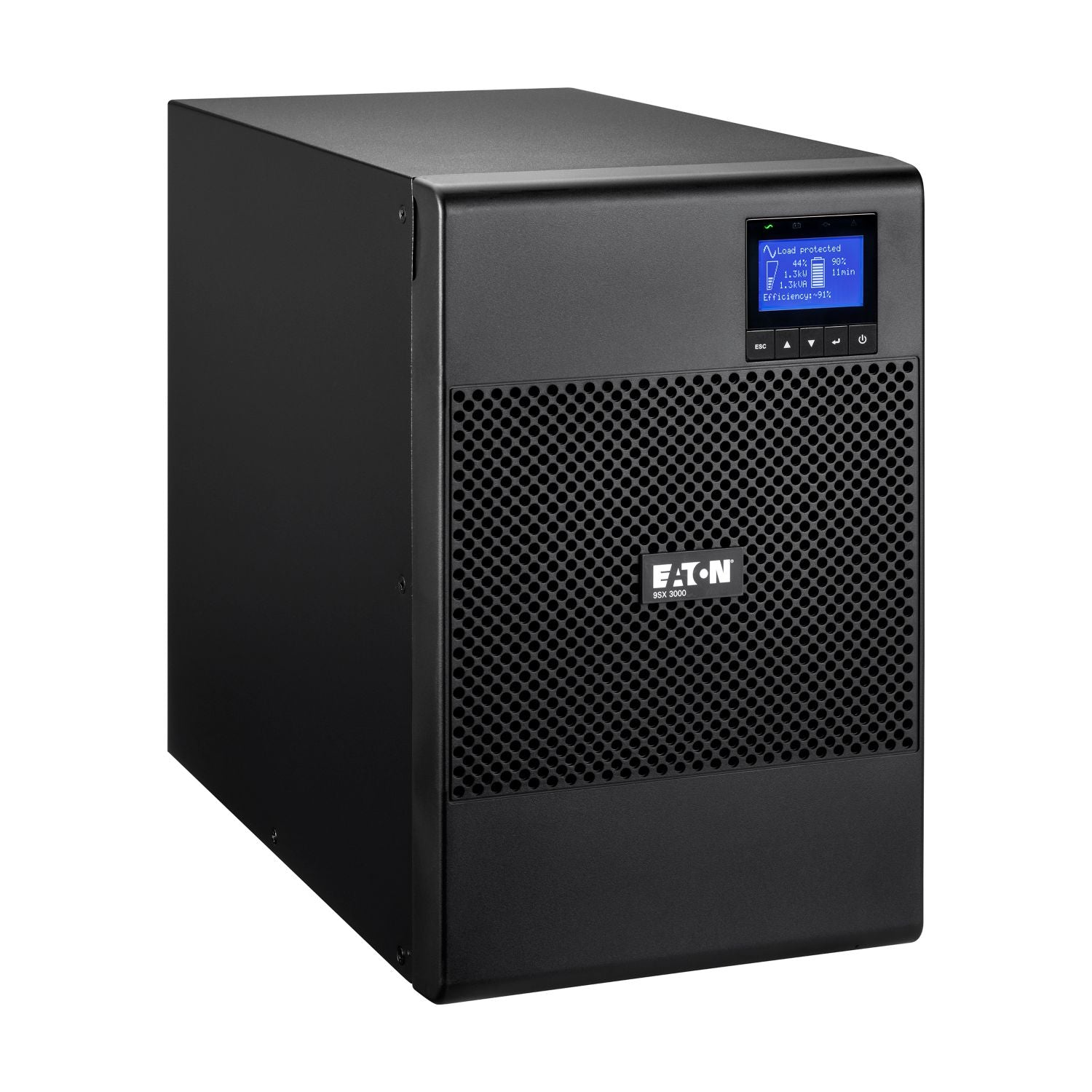

The Eaton 9SX3000INB is a 3000 VA / 2700 W online double-conversion tower UPS supplied without internal batteries. It is intended for installations that need long backup times: runtime comes entirely from Eaton 9SX external battery modules (EBMs), up to 4 packs per Eaton's specification, so you size the battery bank to the runtime you need rather than accepting a fixed internal pack.
For Singapore server rooms, telco cabinets and plant control panels that must ride through longer outages, this is the 9SX variant to build around. Note that it cannot provide any backup until at least one EBM is connected; EBMs are ordered separately.
0.9 Power Factor and High Efficiency
With a 0.9 output power factor, the 9SX3000INB delivers 2700 W of real power from its 3000 VA rating, more usable capacity than many UPSs of the same VA class. Eaton rates it at 92.4% efficiency at maximum load and 97.4% in eco-mode. Input power factor is above 0.99, and the input window is 200–276 V (140–276 V with derating), so routine voltage dips are absorbed without draining the battery.
Hot-Swappable Batteries and Expandable Runtime
EBMs are hot swappable and automatically recognised by the UPS. Battery management includes ABM or temperature-compensated charging (user selectable), automatic battery testing and deep-discharge protection. An internal bypass keeps the load powered if the UPS itself needs attention.
Graphical LCD, Monitoring Ports and a Card Slot

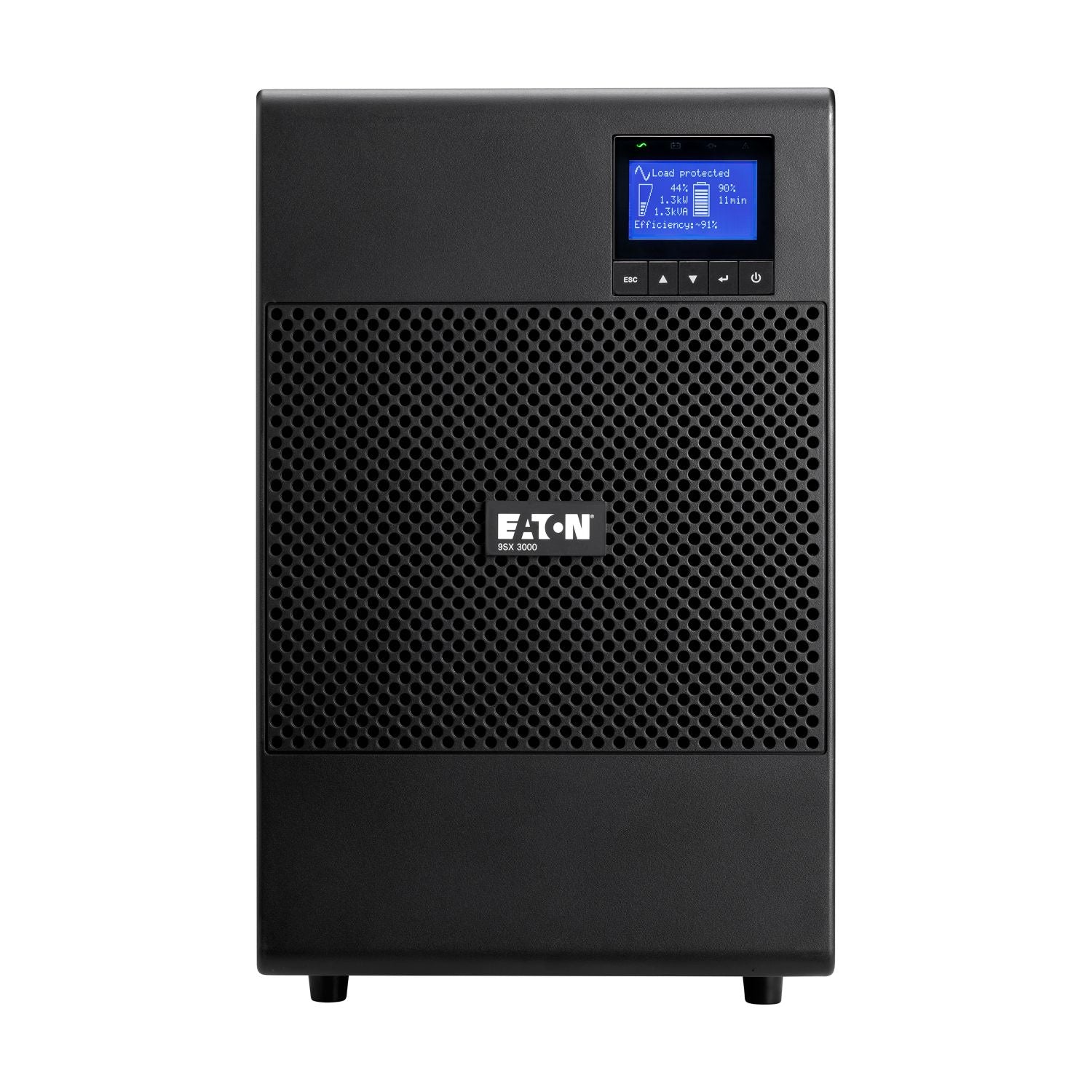

A multilingual graphical LCD shows status and measurements at a glance. Eaton lists 1 x USB, 1 x serial RS232, mini-terminal block for remote power off, mini-terminal block for output relay, plus one slot for an optional communication card for network monitoring. Eaton Intelligent Power Protector and Eaton Intelligent Power Manager handle orderly shutdown of servers and virtual machines.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9SX in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9SX3000INB Datasheet — Technical Specifications
General
| Product Name | Eaton 9SX UPS |
| Catalogue Number | 9SX3000INB |
| Part Number (SKU) | 9103-83959 |
| Range | Eaton 9SX |
| Topology | Online double-conversion |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on the UPS (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 3000 VA / 2700 W |
| Output Power Factor | 0.9 |
| Input Connection | IEC C20, 1.8 m input cord |
| Input Voltage Range | 200–276 V (140–276 V with derating) |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 200/208/220/230/240 V ±2% (230 V default) |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |
| Output Outlets | 8 x IEC C13 + 1 x IEC C19 |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 92.4% |
| Efficiency (Eco-mode) | 97.4% |
Battery
| Internal Battery | None — no internal batteries (battery quantity 0) |
| Battery Management | ABM or temperature-compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Battery Replacement | Hot-swappable extended battery modules (EBMs) |
| Extended Battery Capability | Yes, up to 4 EBMs |
Communications
| Communication Ports | 1 x USB, 1 x serial RS232, mini-terminal block for remote power off, mini-terminal block for output relay |
| Expansion Slot | One slot for optional communication card |
| Network Card Included | No |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Dimensions (W x H x D) | 214 x 346 x 412 mm |
| Weight | 19.3 kg |
| Noise Level | <45 dB at 1 m |
| Heat Dissipation | 818 BTU/h (online) |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 3000 m |
Compatibility & Software Support
What It Is Suited To
Servers, network cabinets, NAS, lab and control equipment that need a continuously regenerated sine-wave supply. The watt rating (2700 W) is the limit: total the continuous watts of everything you connect and leave headroom. Because this model has no internal batteries, it must be paired with Eaton 9SX EBMs.
Operating Systems and Software
USB and RS232 ports connect the UPS to a host for monitoring and shutdown. Eaton Intelligent Power Protector and Intelligent Power Manager handle orderly shutdown; the communication slot takes an optional Eaton network card for monitoring over the LAN.
Outlets
8 x IEC C13 + 1 x IEC C19 with an IEC C20 input. The C19 outlet suits higher-draw equipment such as larger servers or PDUs. Eaton lists a 1.8 m input cord for this model; confirm the plug type against your wall socket or rack PDU with us before ordering. IEC outlets are not BS 1363 (Type G) sockets — equipment with Type G plugs needs IEC leads or an IEC-input power strip.
Package Contents & 9SX Ordering Information
In the Box
Eaton lists: 9SX 3000VA UPS, quick start guide, 2 x IEC C13-C14 jumpers (1.8 m), serial cable and USB cable.
Eaton 9SX 700 VA – 3 kVA Range — Ordering Information
| 9SX700I | 700 VA / 630 W | Tower, 6 x IEC C13 | 9103-3374 |
| 9SX1000I | 1000 VA / 900 W | Tower, 6 x IEC C13 | 9103-53896 |
| 9SX1500I | 1500 VA / 1350 W | Tower, 6 x IEC C13 | 9103-63149 |
| 9SX2000I | 2000 VA / 1800 W | Tower, 8 x IEC C13 | 9103-73921 |
| 9SX3000I | 3000 VA / 2700 W | Tower, 8 x IEC C13 + 1 x IEC C19 | 9103-83957 |
| 9SX3000INB (this listing) | 3000 VA / 2700 W | Tower, no internal battery, 8 x IEC C13 + 1 x IEC C19 | 9103-83959 |
| 9SX1000IR | 1000 VA / 900 W | Rack 2U, 6 x IEC C13 | 9103-53900 |
| 9SX1500IR | 1500 VA / 1350 W | Rack 2U, 6 x IEC C13 | 9103-63152 |
| 9SX2000IR | 2000 VA / 1800 W | Rack 2U, 8 x IEC C13 | 9103-73924 |
| 9SX3000IR | 3000 VA / 2700 W | Rack 2U, 8 x IEC C13 + 1 x IEC C19 | 9103-83962 |
| 9SX1000IM (Marine) | 1000 VA / 900 W | Tower, DNV GL marine | 9103-53897 |
| 9SX3000IM (Marine) | 3000 VA / 2700 W | Tower, DNV GL marine | 9103-83958 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9SX3000INB specifications (eaton.com) |
| Eaton spec sheet | Eaton 9SX3000INB product specifications (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9SX3000INB.
Frequently Asked Questions — Eaton 9SX3000INB
What does online double-conversion mean?
The UPS converts incoming AC to DC and back to AC continuously, so the load always runs from the inverter. There is no transfer gap when the mains fails and the output stays regulated to ±2%.
How do I size it — VA or watts?
Use watts. This model is rated 2700 W (0.9 power factor). Total the continuous watts of your equipment and leave headroom for growth.
Will it work without batteries?
It will not provide backup until an Eaton 9SX EBM is connected. Eaton specifies up to 4 battery packs; runtime depends on how many you add. Ask us for EBM pricing and a runtime estimate.
Can I monitor it over the network?
Yes, with an optional Eaton network card in the communication slot (not included). USB and RS232 are built in.
What warranty do I get?
3 years on the UPS per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
