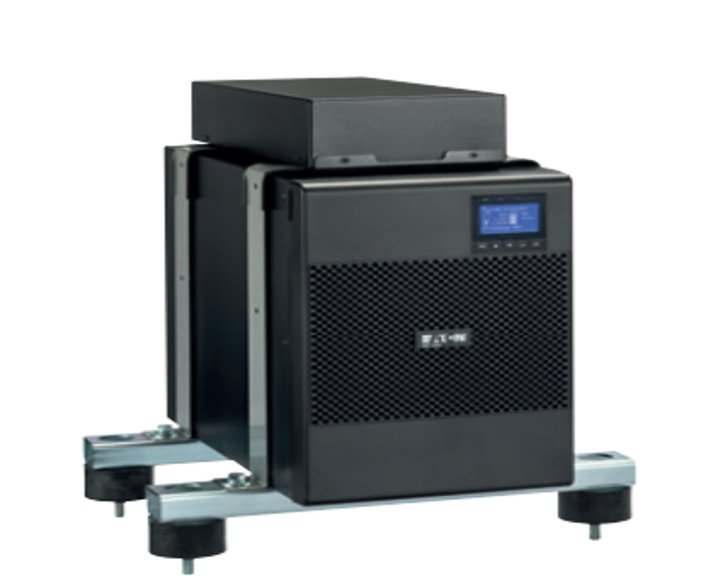

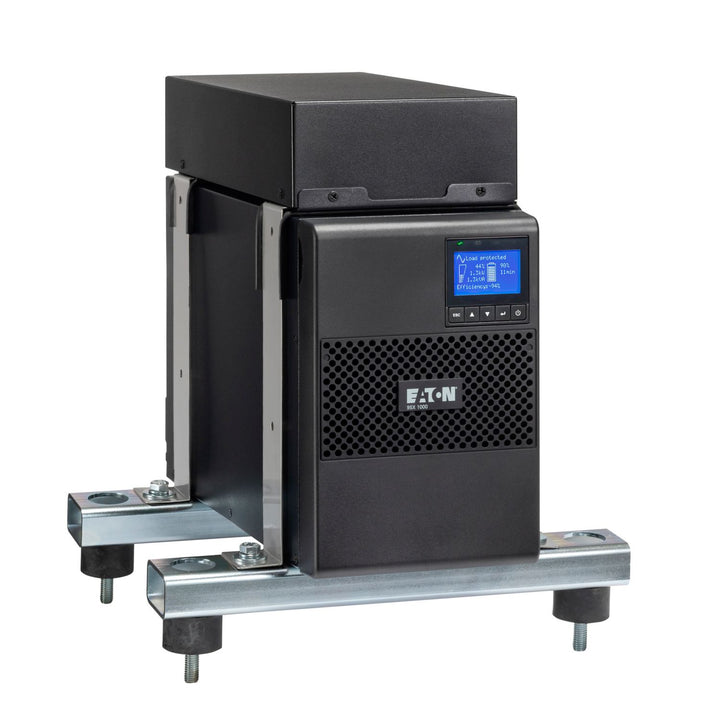

Eaton 9SX1000IM Marine 1000VA Tower Models 230V

Eaton 9SX1000IM Marine 1000VA Tower Models 230V (9103-53897) - 3 Years Local Warranty

Eaton 9SX Marine 1000VA Tower UPS – Reliable Power Protection for Marine Environments

The Eaton 9SX Marine 1000VA Tower UPS 230V is specifically engineered for marine applications, offering reliable and efficient power protection for critical onboard equipment. With a power capacity of 1000VA/900W, this uninterruptible power supply ensures that essential systems such as navigation, communication, and safety devices continue to operate smoothly even during power interruptions. Designed for maritime use, the Eaton 9SX Marine UPS delivers peace of mind with its robust performance and protection in challenging environments.

Marine-Grade Durability for Harsh Conditions

Constructed with marine-grade materials, the Eaton 9SX 1000VA Tower UPS is built to endure the rigors of marine environments. From saltwater exposure to humidity, this UPS is designed to handle the extreme conditions commonly encountered at sea. It meets stringent marine standards, making it the ideal solution for vessels requiring continuous, dependable power protection. Whether you're operating in coastal waters or offshore, this UPS ensures that your equipment stays protected from electrical disturbances, helping to maintain safe operations.

Lithium-Ion Battery Technology for Efficient Power and Longer Life

Equipped with advanced lithium-ion battery technology, the Eaton 9SX Marine 1000VA UPS provides extended battery life and faster recharge times. This technology offers a superior solution compared to traditional lead-acid batteries, reducing maintenance needs while ensuring that your systems remain protected during power outages. The lithium-ion batteries are designed for long-lasting performance, minimizing downtime and the need for frequent replacements, making it the perfect power solution for marine vessels with continuous operational demands.

User-Friendly Monitoring and Remote Management

The Eaton 9SX Marine 1000VA Tower UPS features an intuitive LCD display for real-time monitoring of UPS status, load levels, and battery health. The easy-to-read display provides clear insights into the performance of the UPS, allowing you to monitor vital information at a glance. Additionally, the UPS supports remote management options via network management cards, enabling users to monitor and control the system remotely for enhanced convenience and reliability. With these features, operators can ensure their equipment remains protected without the need for constant on-site supervision.

Flexible and Scalable Power Protection for Marine Applications

Designed with scalability in mind, the Eaton 9SX Marine 1000VA Tower UPS offers the flexibility to add external battery packs for extended runtime. This makes it easy to adjust the UPS system based on the specific power needs of your vessel. Whether you're looking to increase backup time for long voyages or need a compact solution for smaller marine setups, the Eaton 9SX can be customized to meet the power demands of your equipment. The flexible design of the UPS ensures reliable power protection for various marine applications.

Technical Specifications

General
Model: 9SX1000IM
Part Number: 9103-53897
Product Name: Eaton 9SX1000IM Marine 1000VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Marine Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Tower
Power Capacity: 1000VA / 900W
Output Power Factor: 0.9
Input Voltage: 230V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Marine Vessels, Offshore Platforms, Navigation Systems, Bridge Control Systems, Marine Communications, Industrial Marine Automation
Marine Certification: DNV GL Certified
Warranty: 2 Years Limited Warranty

Power Specifications
Rated Capacity: 1000VA / 900W
UPS Topology: Online Double Conversion
Output Power Factor: 0.9
Output Waveform: Pure Sine Wave
Input Nominal Voltage: 230V (200V / 208V / 220V / 230V / 240V Configurable)
Output Nominal Voltage: 230V (200V / 208V / 220V / 230V / 240V Configurable)
Input Voltage Range: 190V – 276V AC
Extended Input Voltage Range: 120V – 276V AC (with derating)
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50Hz / 60Hz
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 89%
Internal Automatic Bypass: Supported
Auto Restart: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 3 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Replacement: Hot-Swappable Internal Batteries
Automatic Battery Testing: Supported
Extended Battery Module (EBM) Support: Supported
Battery Runtime Expansion: Supported
Deep Discharge Protection: Supported

Runtime Specifications
Runtime at 50% Load: Approximately 16 Minutes
Runtime at 70% Load: Approximately 10 Minutes
Runtime at 100% Load: Approximately 6 Minutes
Extended Runtime Support: Supported with Optional EBM
Load Segment Runtime Optimization: Supported

Marine Features
DNV GL Type Approval: Supported
Marine Environment Certified: Supported
Marine & Offshore Deployment Ready: Supported
Conformal Coated Circuit Boards: Supported
Corrosion Resistant Design: Supported
High Temperature Environment Compatibility: Supported
Marine Filter Support: Supported
Shock Absorber Installation Kit Compatible: Supported
Deck Mounting Support: Supported
Bulkhead Mounting Support: Supported
Vibration Resistant Installation: Supported
Bridge Control System Protection: Supported
Navigation System Protection: Supported
Marine Communication System Protection: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Input Source Monitoring: Supported

Output Specifications
Total Output Outlets: 6
IEC C13 Outlets: 6
Output Voltage Range: 200V / 208V / 220V / 230V / 240V ±2%
Output Distortion: Less Than 3% (Linear Load)
Critical Load Management: Supported
Load Shedding: Supported
Programmable Load Control: Supported

Display & User Interface
Display Type: Multilingual Graphical LCD Display
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Alarm Notifications: Supported
Event Logging: Supported
Status Monitoring: Supported
Multi-Language Support: Supported

Management & Communication
USB Port (HID Compliant): Supported
RS232 Serial Port: Supported
Remote Power Off (RPO): Supported
Output Relay Contacts: Supported
Dry Contacts: 2 Outputs, 1 Input (DB9)
Communication Expansion Slot: 1
Network Management Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Monitoring: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Continuous Power Conditioning

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 41 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Marine-Grade Construction: Supported
Industrial Duty Design: Supported
Shock Absorber Compatible: Supported
Corrosion Resistant Components: Supported

Physical Specifications
Dimensions (H × W × D): 252 × 160 × 387 mm
Weight: 15 kg
Installation Type: Tower
Mounting Options: Shelf, Deck, Bulkhead (with Installation Kit)

Package Contents
Eaton 9SX1000IM Marine UPS
2 × IEC-to-IEC Output Cables
USB Communication Cable
RS232 Serial Cable
Quick Start Guide
Safety Documentation

Key Features
1000VA / 900W Capacity
DNV GL Marine Certification
Online Double Conversion UPS
Pure Sine Wave Output
ABM Battery Management Technology
Hot-Swappable Batteries
6 × IEC C13 Outputs
Graphical LCD Display
USB & RS232 Connectivity
Network Management Card Ready
Marine & Offshore Approved Design
Extended Battery Module Support
Marine Filter Compatibility
Vibration Resistant Installation Support

Performance & Features
Designed specifically for marine and offshore applications, the Eaton 9SX1000IM continuously regulates voltage and frequency to protect critical navigation, communication, automation, and monitoring equipment from power disturbances. The DNV GL certified design incorporates marine-ready construction, conformal-coated electronics, and support for vibration-resistant installation, making it suitable for vessels, offshore platforms, bridge systems, and mission-critical maritime environments. Eaton's ABM battery management technology helps extend battery service life while reducing maintenance requirements.

Typical Use Cases
Marine Navigation Systems
Bridge Control Systems
Radar Equipment
Marine Communication Systems
Vessel Automation Systems
Offshore Oil & Gas Platforms
Shipboard IT Infrastructure
Marine Security Systems
Industrial Marine Applications
Control Rooms
Remote Monitoring Systems
Critical Maritime Operations

Certifications & Compliance
DNV GL Certified
CE Marked
TÜV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
EAC Certified

UPC / GTIN
UPC: 743172090904
