Eaton 5E Gen2 1200VA 660W Line-Interactive Tower UPS, 6x IEC C13, USB
PRODUCT DESCRIPTION
Eaton 5E Gen2 1200VA/660W USB Tower UPS (5E1200UI-EA, 9C00-63019) - 3 Years Local Warranty
Affordable Line-Interactive Protection for Desktops and Small Networks

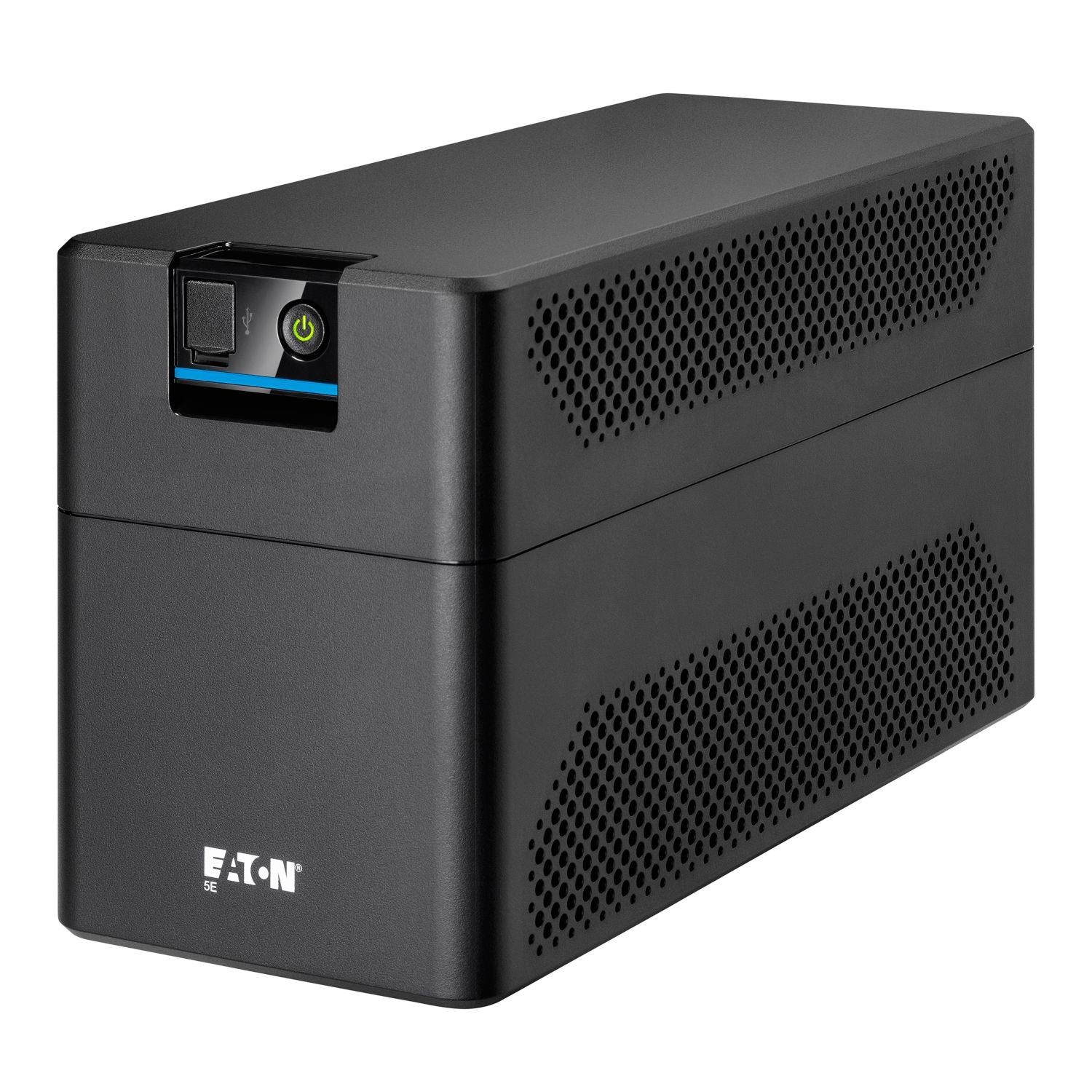

The Eaton 5E Gen2 5E1200UI-EA is a 1200 VA / 660 W line-interactive tower UPS built for the everyday power problems a Singapore home office, shop counter or small business sees: short outages, sags when heavy equipment starts on the same circuit, and surges on the incoming supply. It keeps a desktop PC, monitor, router or small NAS running long enough to save work and shut down cleanly.
The -EA suffix marks the East Asia build, specified by Eaton for 220–240 V networks. It is the model Eaton publishes for this region, so the datasheet, runtimes and warranty below are the East Asia figures rather than the European ones.
Wide 140–300 V Input Window with Automatic Voltage Regulation
Automatic Voltage Regulation (AVR) corrects under- and over-voltage without switching to battery. The unit accepts anything from 140 V to 300 V at the input, so routine voltage dips on a loaded riser or older building are handled by the regulator and the battery is kept in reserve for a genuine outage — which also means fewer charge cycles and longer battery life.
Output is 230 V by default and can be set to 220 V or 240 V, at 50 or 60 Hz with a 45–65 Hz working range.
6 IEC C13 Outlets and a USB Port for Automatic Shutdown

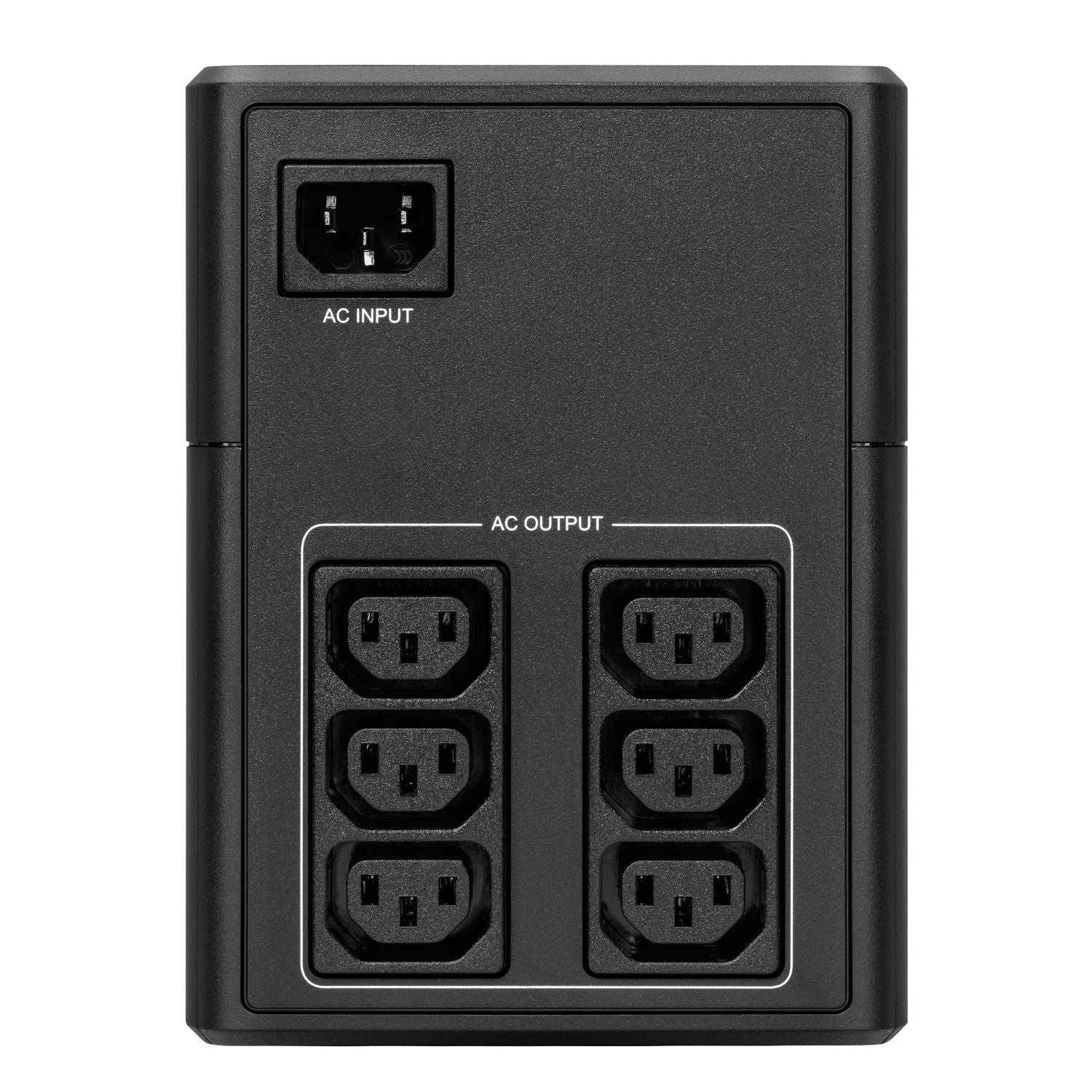

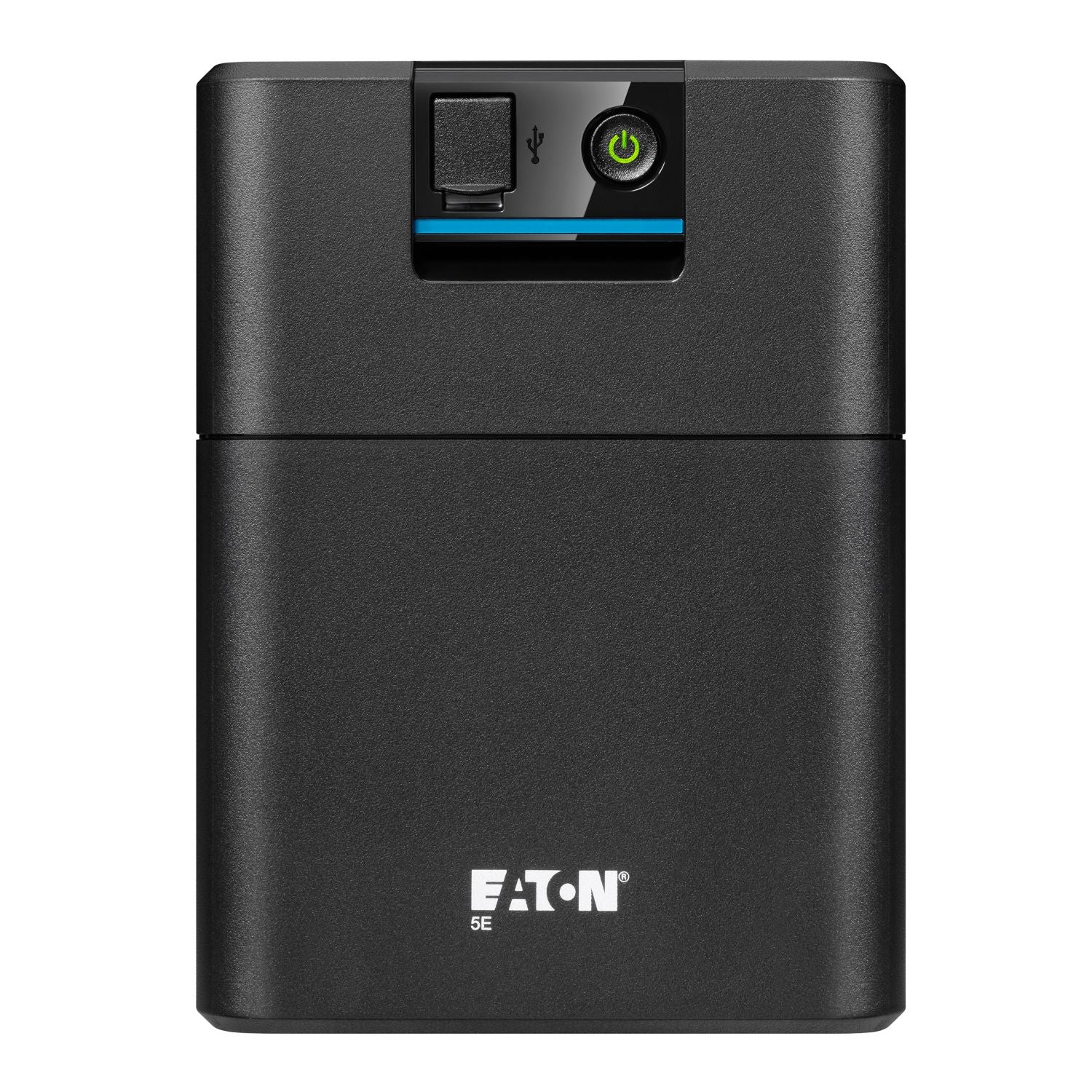

Output is on 6 IEC C13 sockets, so standard IEC power leads for PCs, monitors and network gear plug straight in. The HID-compliant USB port lets most operating systems see the UPS as a power source without extra drivers, and it works with Eaton UPS Companion software for automatic, unattended shutdown and energy monitoring.
Note that IEC C13 outlets are not BS 1363 (Type G) sockets: an adapter-free setup needs IEC leads on the equipment side, which most PCs, monitors and NAS units already use.
Runtime You Can Plan Around
Eaton publishes backup times for typical PC loads: 40 min with 1 PC, 15 min with 2 PC, 6 min with 3 PC. Runtime depends on the actual load, battery age and room temperature, so treat these as planning figures and size with headroom.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 5E Gen2 in Singapore with a full GST invoice and local warranty support. Eaton's datasheet gives the 5E Gen2 East Asia range a 3-year warranty, and Eaton's Singapore price list confirms 3 years on the UPS and its internal battery.
Unsure which size you need? Email sales@sourceit.com.sg with what you want to protect and how long you need it to run.
Eaton 5E1200UI-EA Datasheet — Technical Specifications
General
| Product Name | Eaton 5E Gen2 1200 USB IEC (East Asia) |
| Catalogue Number | 5E1200UI-EA |
| Part Number (SKU) | 9C00-63019 |
| Range | Eaton 5E Gen2 |
| Topology | Line-interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Tower |
| Manufacturer Warranty | 3 years (Eaton 5E Gen2 East Asia datasheet) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Power
| Rated Power | 1200 VA / 660 W |
| Input Nominal Voltage | 220–240 V |
| Input Voltage Window | 140–300 V |
| Output Voltage | 230 V, adjustable to 220 V / 230 V / 240 V |
| Frequency | 50/60 Hz (45–65 Hz working range) |
| Output Outlets | 6 x IEC C13 |
Backup Time (Eaton published)
| 1 PC | 40 min |
| 2 PC | 15 min |
| 3 PC | 6 min |
Communications
| Communication Port | 1 x USB (HID compliant) |
| Shutdown Software | Eaton UPS Companion |
Physical & Environmental
| Dimensions (W x H x D) | 330 x 180 x 133 mm |
| Weight | 8.2 kg |
| Noise Level | <25 dBA in line mode; <40 dBA on battery or AVR |
| Operating Temperature | 0–40 °C |
| Certifications | CE, CB report |
Compatibility & Software Support
What It Is Suited To
The 5E1200UI-EA is sized for single workstations and small network corners: a desktop PC and monitor, a router and switch, a small NAS, a POS terminal or a CCTV recorder. Add up the continuous watts of everything you plan to connect and keep the total comfortably under 660 W; the watt figure, not the VA figure, is the limit.
Operating Systems and Software
The USB port is HID-compliant, so Windows, macOS and Linux see the UPS as a native power source and can shut down on low battery without extra drivers. Eaton UPS Companion adds shutdown scheduling and energy-use reporting. There is no network card slot on the 5E Gen2; for SNMP monitoring look at the 5P, 5PX or 9-series ranges.
Outlets
All outlets are IEC C13. Equipment with a BS 1363 (Type G) plug needs an IEC C14 lead or a small IEC-input power strip; ask us if you need one quoted.
Package Contents & 5E Gen2 Ordering Information
In the Box
Eaton 5E Gen2 UPS with user documentation. Eaton's East Asia datasheet does not list the carton contents, so confirm cables with us before ordering if they matter to your installation.
Eaton 5E Gen2 East Asia Range — Ordering Information
| 5E700UI-EA | 700 VA / 360 W | 4 x IEC C13 | 9C00-53250 |
| 5E900UI-EA | 900 VA / 480 W | 4 x IEC C13 | 9C00-53252 |
| 5E1200UI-EA (this listing) | 1200 VA / 660 W | 6 x IEC C13 | 9C00-63019 |
| 5E1600UI-EA | 1600 VA / 900 W | 6 x IEC C13 | 9C00-73010 |
| 5E2200UI-EA | 2200 VA / 1200 W | 6 x IEC C13 | 9C00-83009 |
Extended Warranty
Eaton offers 1-year extended warranty packs for the 5E series (EEW15ES001 for 1 kVA and below, EEW15ES003 for 1–3 kVA), purchased together with the UPS, up to 5 years in total. Ask us for pricing.
Datasheet & Downloads
| Eaton datasheet | Eaton 5E Gen2 UPS Datasheet — East Asia (PDF) |
| Eaton user guide | Eaton 5E Gen2 Advanced User Guide — East Asia (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5E1200UI-EA.
Frequently Asked Questions — Eaton 5E1200UI-EA
What is the difference between VA and watts, and how do I size it?
VA is apparent power; watts is the real power your equipment draws, and it is the watt rating that limits the load. This model is rated 660 W. Total the continuous watts of everything you plan to connect and leave headroom for start-up surge.
How long will it run on battery?
Eaton publishes 40 min with 1 PC, 15 min with 2 PC, 6 min with 3 PC. Real runtime depends on load, battery age and temperature — send us your load in watts and we will estimate it.
Does it have a network card slot or SNMP?
No. The 5E Gen2 communicates over USB only. For SNMP or network shutdown, consider the Eaton 5P, 5PX or 9-series UPS, which take a Network-M3 card.
Will my equipment plug in directly?
The outlets are 6 x IEC C13, which suits PCs, monitors, NAS units and most network gear using IEC leads. BS 1363 (Type G) plugs need an IEC C14 lead or an IEC-input power strip.
What does "-EA" mean?
It is the East Asia build of the 5E Gen2, specified for 220–240 V supplies and documented in Eaton's East Asia datasheet.
What warranty do I get?
3 years from Eaton on the UPS and internal battery, supplied by SourceIT with local Singapore support and a GST invoice. Extended warranty packs are available when bought together with the UPS.
