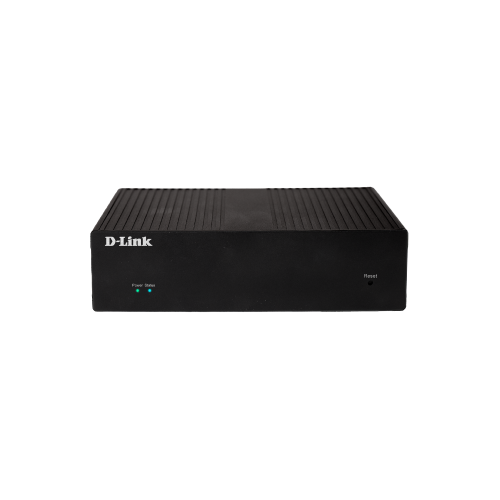

D-Link DNH-3000 Nuclias Network Controller (1500 Devices)
PRODUCT DESCRIPTION
D-Link DNH-3000 Nuclias Network Controller for up to 1500 Devices (DNH-3000) - 5 Years Local Warranty
Built for Large Networks
The D-Link DNH-3000 is D-Link's largest Nuclias hardware controller, running Nuclias Connect on-premises to manage up to 1500 access points and aggregation/edge switches.
10G SFP and Gigabit Connectivity
Two 10G SFP ports and four 1G Ethernet ports connect it directly into your core, with a USB 3.2 port for external data backup storage.
Centralised, Role-Based Control
Batch configuration, online firmware upgrades for APs and switches, multi-site management and multi-tenant role-based administration, all from a web interface.
Real-Time Monitoring
Monitoring dashboards, alerts, auto RF management and bandwidth optimisation keep a large wireless estate performing.
Need help choosing? Email sales@sourceit.com.sg with your AP and switch count and we will size the right Nuclias controller for you.
D-Link DNH-3000 Datasheet — Technical Specifications
General
| Product Name | D-Link DNH-3000 Nuclias Network Controller |
| Part Number | DNH-3000 |
| Management System | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Hardware

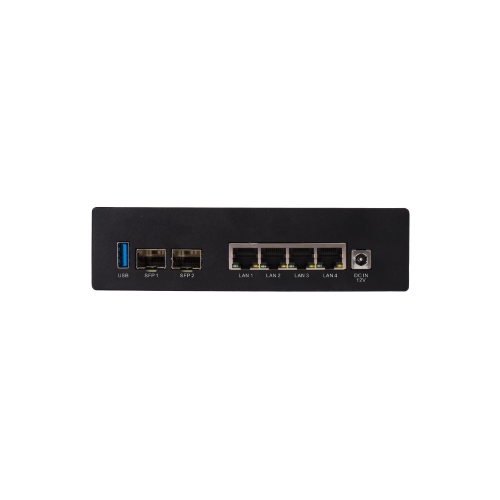

| Interfaces | 4 x 1G Ethernet; 2 x 10G SFP; 1 x USB 3.2 |
| LEDs | Power/Status, LAN |
| Power | External adapter, 12 V / 2 A, 100-240 V AC in |
| Max Power Consumption | 24 W (D-Link product page) |
Management Capacity & Features
| Managed Devices | Up to 1500 devices (large networks) |
| Supported Devices | Nuclias Connect APs and aggregation/edge switches (see D-Link's supported devices list) |
| Key Features | Batch configuration, online firmware upgrades, role-based administration, multi-site management, VLAN groups, MAC ACLs, captive portal authentication, auto RF management, bandwidth optimisation, monitoring dashboards |
Physical & Environmental
| Dimensions | 160 x 105 x 40 mm |
| Weight | 483 g (datasheet) |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | Operating 10% to 90%; storage 5% to 95% (non-condensing) |
| MTBF | >30,000 hours |
| Certifications | CE, FCC, RoHS |
Compatibility & Software Support
Supported Devices
D-Link states the DNH-3000 manages all Nuclias Connect access points and aggregation/edge switches. Check D-Link's supported-devices list or ask us before mixing older models.
SFP Modules
The 10G SFP ports need SFP/SFP+ modules or DAC cables, sold separately — ask us for a compatible D-Link option.
Typical Use
Universities, hospitals, large hotels and enterprise campuses running hundreds of APs and switches on-premises.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices, 1 x 2.5GE |
| DNH-3000 (this listing) | Nuclias Network Controller, up to 1500 devices, 4 x 1GE + 2 x 10G SFP |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Package contents are not listed in D-Link's datasheet; it uses an external 12 V / 2 A power adapter — ask us to confirm what is in the box.
Datasheet & Downloads
| D-Link datasheet | DNH-3000 Datasheet (PDF) |
| D-Link product page | DNH-3000 on dlink.com |
| D-Link Singapore product page | DNH-3000 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DNH-3000.
Frequently Asked Questions — D-Link DNH-3000
How many devices can it manage?
Up to 1500 access points and switches.
What ports does it have?
Four 1G Ethernet ports, two 10G SFP ports and one USB 3.2 port.
Is it cloud-based?
No. It runs Nuclias Connect on-premises and is managed through a web interface.
DNH-1000 or DNH-3000?
Choose the DNH-1000 for up to 500 devices with a single 2.5GbE port; the DNH-3000 for up to 1500 devices with 10G SFP uplinks.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
