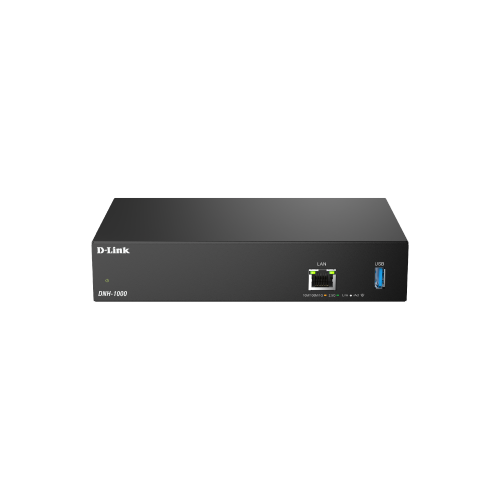

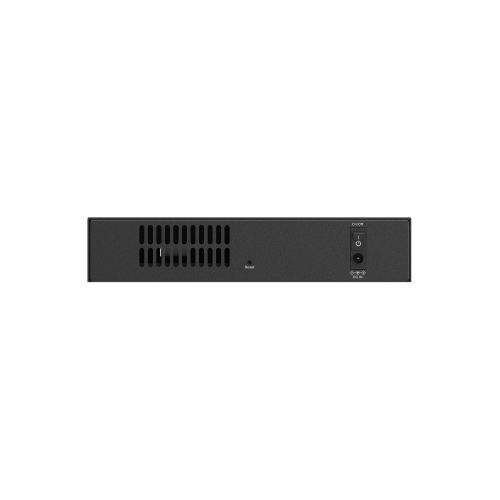

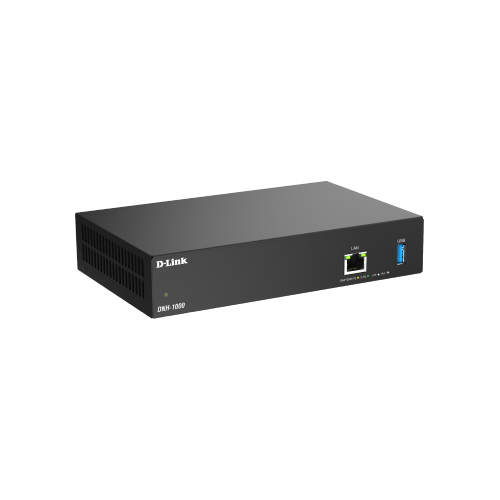

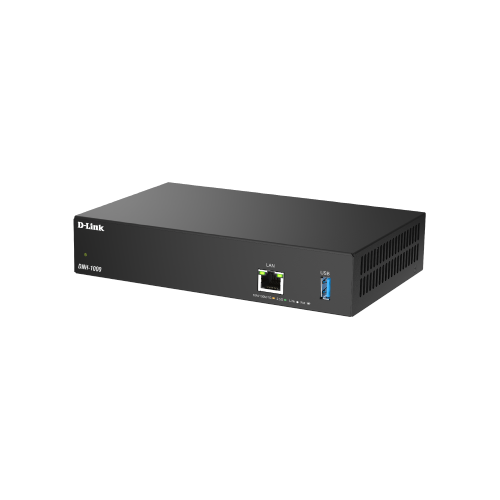

D-Link DNH-1000 Nuclias Network Controller (500 Devices)
PRODUCT DESCRIPTION
D-Link DNH-1000 Nuclias Network Controller for up to 500 Devices (DNH-1000) - 5 Years Local Warranty
Centralised Device Management
The D-Link DNH-1000 is an on-premises hardware controller running Nuclias Connect. It manages up to 500 Nuclias Connect access points and aggregation/edge switches for medium and large networks from one web interface.
Role-Based Administration
Multi-site management with multi-tenant, role-based administrator control and single sign-on, plus a REST API for integration.
Real-Time Monitoring & Alerts
Network topology, device and client lists, event alarms, system/device/audit logs and network reports keep you informed, with online firmware upgrades for APs and switches.
Traffic Reporting & Analytics
Traffic reports, auto RF management and bandwidth optimisation, with a 2.5 Gigabit LAN port and a USB 3.0 port for external backup storage.
Need help choosing? Email sales@sourceit.com.sg with your AP and switch count and we will size the right Nuclias controller for you.
D-Link DNH-1000 Datasheet — Technical Specifications
General
| Product Name | D-Link DNH-1000 Nuclias Network Controller |
| Part Number | DNH-1000 |
| Management System | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Hardware
| Interfaces | 1 x 2.5G Ethernet port; 1 x USB 3.0 |
| LEDs | Power/Status, LAN |
| Power | External adapter, 12 V / 2 A, 100-240 V AC in |
Management Capacity & Features
| Managed Devices | Up to 500 devices (medium/large networks) |
| Supported Devices | Nuclias Connect APs and aggregation/edge switches (see D-Link's supported devices list) |
| Configuration | Batch configuration, online firmware upgrades, configuration backup/restore, AP reboot scheduling, wireless scheduling, PoE scheduling |
| Administration | Role-based administration, multi-site management, single sign-on, REST API |
| Network & Access | VLAN groups, MAC ACL, IGMP snooping, captive portal authentication, MAC filtering |
| Wireless Optimisation | Auto RF management, bandwidth optimisation |
| Monitoring | Network topology, device/client lists, network reports, system/device/audit logs, event alarms |
Physical & Environmental
| Dimensions | 190 x 120 x 38 mm |
| Weight | 640 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | Operating 10% to 90%; storage 5% to 95% (non-condensing) |
| MTBF | >30,000 hours |
| Certifications | CE, FCC, RoHS |
Compatibility & Software Support
Supported Devices
D-Link states the DNH-1000 manages Nuclias Connect access points and aggregation/edge switches. Models named on D-Link's product page include the DAP-X3060 access point and DXS-1210-12SC, DMS-1250-18P, DMS-1250-18 and DXS-3130-28 switches. Check D-Link's supported-devices list or ask us before mixing older models.
Typical Use
Medium to large campuses, hotels, schools and multi-site businesses that have outgrown the 100-device DNH-100 hub and want on-premises control without a server.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 (this listing) | Nuclias Network Controller, up to 500 devices, 1 x 2.5GE |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices, 4 x 1GE + 2 x 10G SFP |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Package contents are not listed in D-Link's datasheet; it uses an external 12 V / 2 A power adapter — ask us to confirm what is in the box.
Datasheet & Downloads
| D-Link datasheet | DNH-1000 Datasheet (PDF) |
| D-Link product page | DNH-1000 on dlink.com |
| D-Link Singapore product page | DNH-1000 on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DNH-1000.
Frequently Asked Questions — D-Link DNH-1000
How many devices can it manage?
Up to 500 access points and switches.
DNH-100, DNH-1000 or DNH-3000?
DNH-100 manages up to 100 devices, DNH-1000 up to 500 and DNH-3000 up to 1500 with 10G SFP uplinks.
Is it cloud-based?
No. It runs Nuclias Connect on-premises; you access it through a web browser, remotely if you allow it.
Can I back up the configuration?
Yes, configuration backup/restore is supported, and the USB 3.0 port takes external backup storage.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
