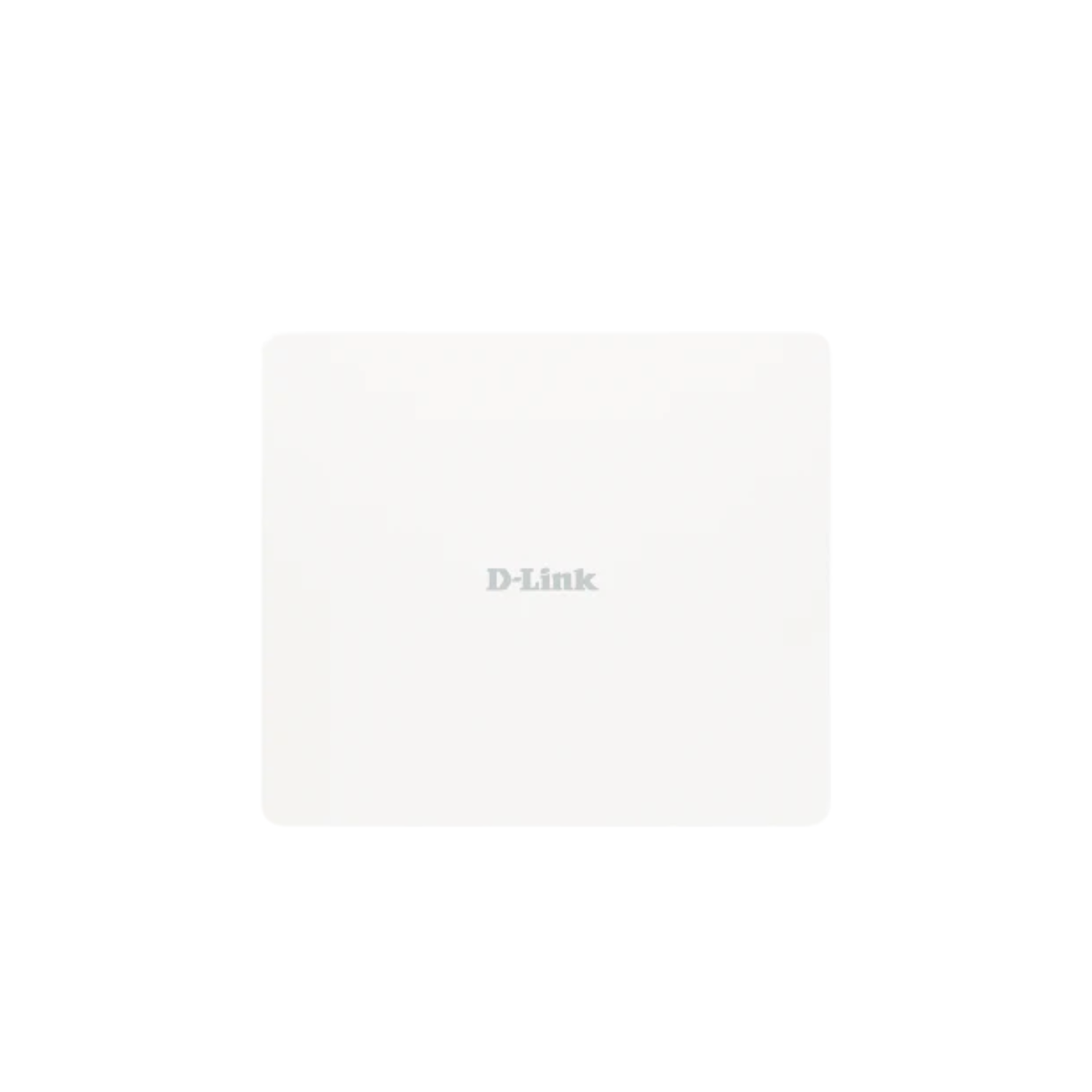

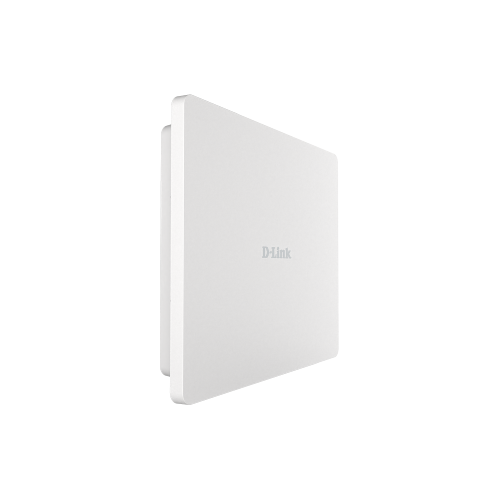

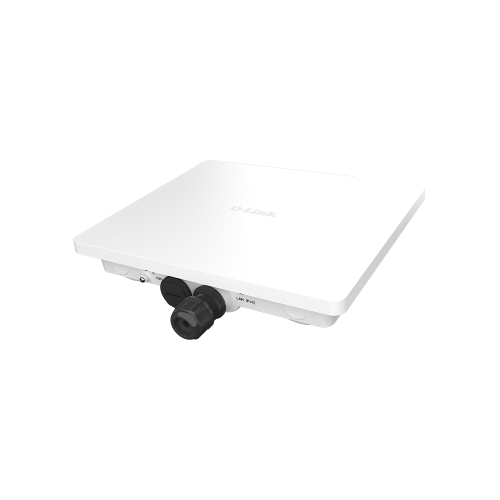

D-Link DAP-X3060OU Nuclias Connect AX3000 Wi-Fi 6 Outdoor Access Point
PRODUCT DESCRIPTION
D-Link DAP-X3060OU Nuclias Connect AX3000 Wi-Fi 6 Outdoor PoE Access Point (DAP-X3060OU) - 5 Years Local Warranty
AX3000 Wi-Fi 6 Outdoors
The D-Link DAP-X3060OU brings dual-band IEEE 802.11ax (Wi-Fi 6) to outdoor spaces, delivering up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz with four internal high-gain antennas (5 dBi / 7.9 dBi).
IP68 Weather-Resistant Housing
An IP68-rated, water- and dust-proof enclosure operates from -30 to 60 °C, with wall- and pole-mounting options for courtyards, campuses, car parks and building perimeters.
2.5 Gigabit PoE+ Uplink
One 10/100/1000/2500 Mbps Ethernet port with IEEE 802.3at PoE input carries data and power over a single outdoor cable run, drawing at most 16.7 W.
Managed with Nuclias Connect
Manage it alongside indoor APs with D-Link's free Nuclias Connect software or D-View 8, or locally via web, with WPA3 security and a customisable captive portal.
Need help choosing? Email sales@sourceit.com.sg with your outdoor area and mounting points and we will plan the coverage for you.
D-Link DAP-X3060OU Datasheet — Technical Specifications
General
| Product Name | D-Link DAP-X3060OU Nuclias Connect AX3000 Outdoor Access Point |
| Part Number | DAP-X3060OU |
| Series | Nuclias Connect |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.4 - 2.483 GHz; 5.15 - 5.35 GHz, 5.47 - 5.85 GHz |
| Data Rate | 2.4 GHz up to 574 Mbps; 5 GHz up to 2402 Mbps |
| Antennas | 4 internal: 5 dBi (2.4 GHz), 7.9 dBi (5 GHz) |
| Max Output Power | 23 dBm (2.4 GHz); 22 dBm (5 GHz) |
Interfaces & Power

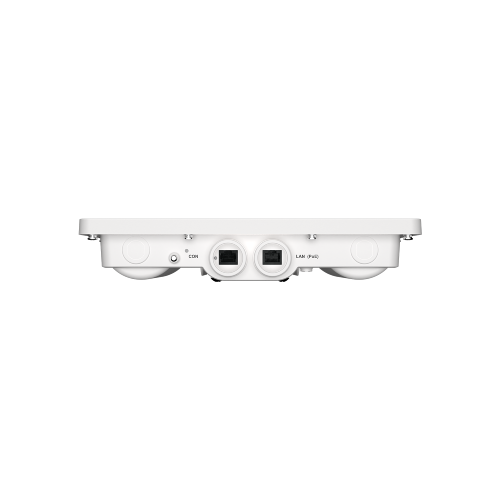

| Ethernet | 1 x 10/100/1000/2500 Mbps Ethernet (PoE) LAN |
| Console | 1 x RJ45 |
| Wired Standards | IEEE 802.3u/ab, IEEE 802.3az EEE, IEEE 802.3at PoE |
| Power Input | IEEE 802.3at PoE (54 V DC ±10%, as published) |
| Max Power Consumption | 16.7 W |
Security & Management
| Encryption | WPA/WPA2/WPA3 Personal/Enterprise, WEP 64/128-bit |
| Management | Web, SSL, D-Link Nuclias Connect, D-View 8 |
Physical & Environmental
| Dimensions | 277 x 240 x 50 mm |
| Weight | 1159 g |
| Ingress Protection | IP68 |

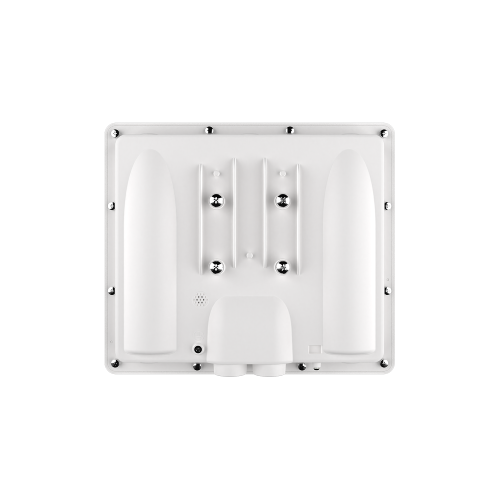

| Mounting | Wall mounting and pole mounting |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -30 to 65 °C |
| Humidity | Operating 10% to 90%; storage 5% to 95% |
| MTBF | >30,000 hours |
| Certifications | CE, FCC, UL, IP68, EN 60601-1-2 |
Compatibility & Software Support
Management
Local web interface, D-Link's free Nuclias Connect software or D-View 8. For hardware controllers (DNH-100/DNH-1000/DNH-3000), check D-Link's supported-devices list or ask us.
Installation
Power it from an IEEE 802.3at PoE switch port or injector; use outdoor-rated cabling and weatherproof the RJ45 entry as instructed in D-Link's installation guide.
Typical Use
School fields, hotel pools and gardens, factory yards, car parks and campus walkways.
Package Contents & Nuclias Connect Ordering Information
Nuclias Connect Models
| Part No. | Description |
| DNH-100 | Nuclias Connect Hub, up to 100 APs/switches |
| DNH-1000 | Nuclias Network Controller, up to 500 devices |
| DNH-3000 | Nuclias Network Controller, up to 1500 devices |
| DAP-X2810 | AX1800 Wi-Fi 6 AP, 1 x GE PoE |
| DAP-X3060 | AX3000 Wi-Fi 6 indoor AP, 1 x 2.5GE PoE |
| DAP-X2850 | AX3600 Wi-Fi 6 AP, 2.5GE PoE + GE |
| DAP-X3060OU (this listing) | AX3000 Wi-Fi 6 outdoor AP, IP68, 2.5GE PoE |
| DAP-E9560 | BE9500 Wi-Fi 7 tri-band AP, 10GE PoE + 2.5GE |
Package contents are not listed in D-Link's datasheet — ask us to confirm which wall/pole mounting parts are supplied.
Datasheet & Downloads
| D-Link datasheet | DAP-X3060OU Datasheet v1.03 (PDF) |
| D-Link product page | DAP-X3060OU on dlink.com |
| D-Link Singapore product page | DAP-X3060OU on dlink.com.sg |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DAP-X3060OU.
Frequently Asked Questions — D-Link DAP-X3060OU
Is it fully weatherproof?
It is rated IP68 (water- and dust-proof) and operates from -30 to 60 °C.
How is it powered?
By IEEE 802.3at PoE on its 2.5GbE port; maximum consumption is 16.7 W.
How is it mounted?
D-Link lists wall-mounting and pole-mounting options.
Is there an indoor version?
Yes, the DAP-X3060 is the indoor AX3000 model.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
