D-Link DIS-100G-8W 8-Port Industrial Gigabit Unmanaged Switch
PRODUCT DESCRIPTION
D-Link DIS-100G-8W 8-Port Gigabit Unmanaged Industrial Switch (DIS-100G-8W) - 5 Years Local Warranty
Plug-and-Play Gigabit for the Field
The D-Link DIS-100G-8W is an industrial unmanaged switch with 8 x 10/100/1000BASE-T ports, 16 Gbps switching capacity and store-and-forward switching. It needs no configuration: connect devices and power it up.
Wide-Temperature, Fanless Design

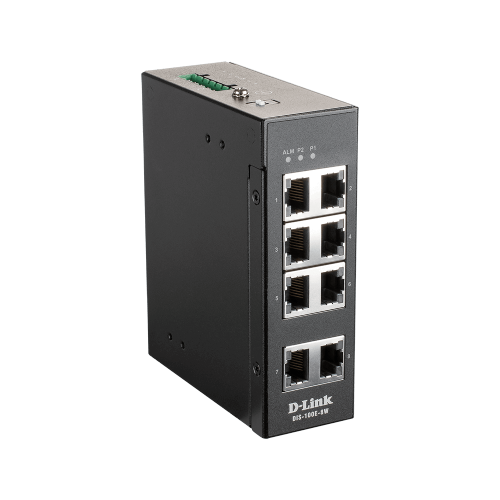

A compact IP30-rated metal casing operates from -40 to 75 °C and is tested for shock (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibration (IEC 60068-2-6). It is EN 50121-4 compliant for railway wayside use and mounts on a DIN rail or wall.
Redundant Power and Traffic Control

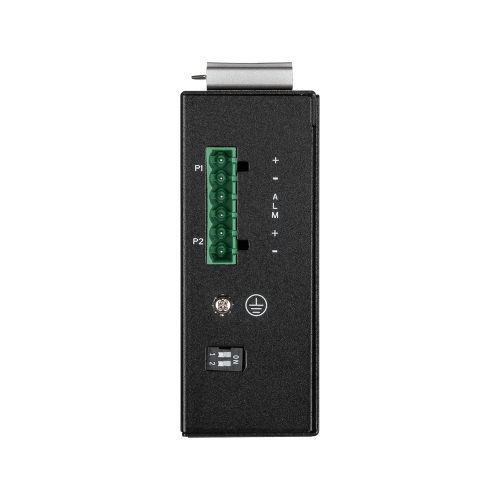

Dual 12–58 VDC terminal-block inputs with an alarm LED, broadcast/multicast/unicast storm control and IEEE 802.1p QoS with 4 hardware queues per port keep critical traffic flowing.
Need help choosing? Email sales@sourceit.com.sg with your port count and power source and we will recommend the right switch and power supply.
D-Link DIS-100G-8W Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-100G-8W 8-Port Gigabit Unmanaged Industrial Switch |
| Part Number | DIS-100G-8W |
| Series | DIS-100G Industrial Gigabit Unmanaged Switches (hardware A1) |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces & Standards

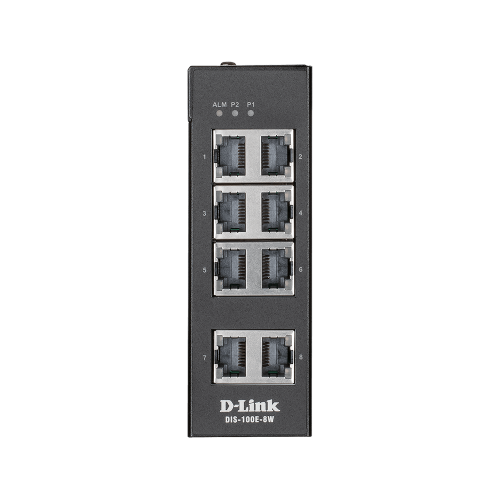

| Ports | 8 x 10/100/1000BASE-T, auto-MDI/MDIX |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x flow control, 802.3az EEE |
| PoE | Not supported |
| LEDs | ALM, P1/P2, link/activity/speed |
Performance
| Switching Capacity | 16 Gbps |
| Max. Forwarding Rate | 11.9 Mpps |
| MAC Address Table | Up to 8K entries |
| Transmission Method | Store-and-forward |
| Jumbo Frames | 9 KB |
| Traffic Features | Broadcast/multicast/unicast storm control; IEEE 802.1p QoS, 4 hardware queues per port |
Power
| Input | 12–58 VDC terminal block, dual input |
| Max. Power Consumption | 7.8 W |
| Heat Dissipation | 26.61 BTU/hr |
Physical & Environmental
| Dimensions | 117.8 x 39 x 96.9 mm |
| Weight | 0.44 kg |
| Enclosure | IP30-rated metal casing, fanless |
| Mounting | DIN rail / wall |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| MTBF | > 25 years |
Certifications
| Safety | UL 60950-1; UL, CE, FCC |
| EMI / EMC | 47 CFR FCC Part 15 Subpart B Class A; EN 61000-6-2, EN 61000-6-4 |
| EMS | EN 61000-4-2 / -4-3 / -4-4 / -4-5 / -4-6 (Level 3), EN 61000-4-8 |
| Industry | EN 50121-4 (railway wayside); NEMA-TS2 listed as pending for this model in D-Link's datasheet |
| Mechanical | IEC 60068-2-27 shock, IEC 60068-2-32 free fall, IEC 60068-2-6 vibration |
Compatibility & Software Support
Management
Unmanaged, plug-and-play — no configuration or software required.
Power Supplies
The switch is DC-powered, so an industrial DIN-rail power supply is needed on AC sites. D-Link lists the DIS-H30-24, DIS-H60-24, DIS-N240-48 and DIS-N480-48 industrial power supplies for its industrial switches — ask us which suits your cabinet.
Typical Use
Railway wayside, traffic, factory and utility cabinets where devices need Gigabit copper connectivity in extreme temperatures.
Package Contents & DIS-100G Ordering Information
DIS-100G Models
| Model | Ports | PoE |
| DIS-100G-8W (this listing) | 8 x GE | — |
| DIS-100G-06 | 4 x GE + 2 x 1G SFP | — |
| DIS-100G-06P | 4 x GE PoE + 2 x 1G SFP | 120 W |
| DIS-100G-10 | 8 x GE + 2 x 1G SFP | — |
| DIS-100G-10P | 8 x GE PoE + 2 x 1G SFP | 240 W |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Power supply sold separately. Email us for pricing on the other DIS-100G models.
Datasheet & Downloads
| D-Link datasheet | DIS-100G Series Datasheet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-100G-8W.
Frequently Asked Questions — D-Link DIS-100G-8W
Does it need configuring?
No, it is an unmanaged plug-and-play switch.
Does it have fibre ports or PoE?
No, it has 8 Gigabit copper ports only. For SFP uplinks or PoE see the DIS-100G-06/-06P/-10/-10P.
Can it run from AC mains?
It takes 12–58 VDC on dual terminal-block inputs, so an industrial DIN-rail power supply is needed on AC sites.
What temperatures can it handle?
-40 to 75 °C operating, in a fanless IP30 metal housing.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
