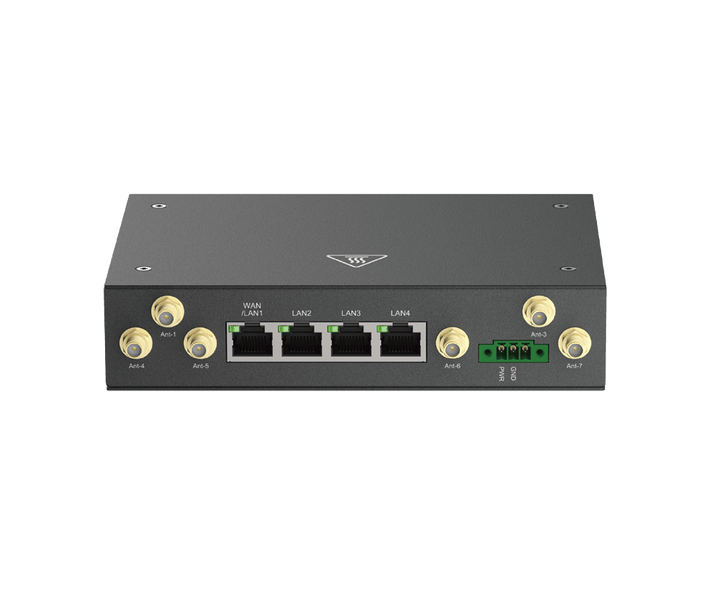

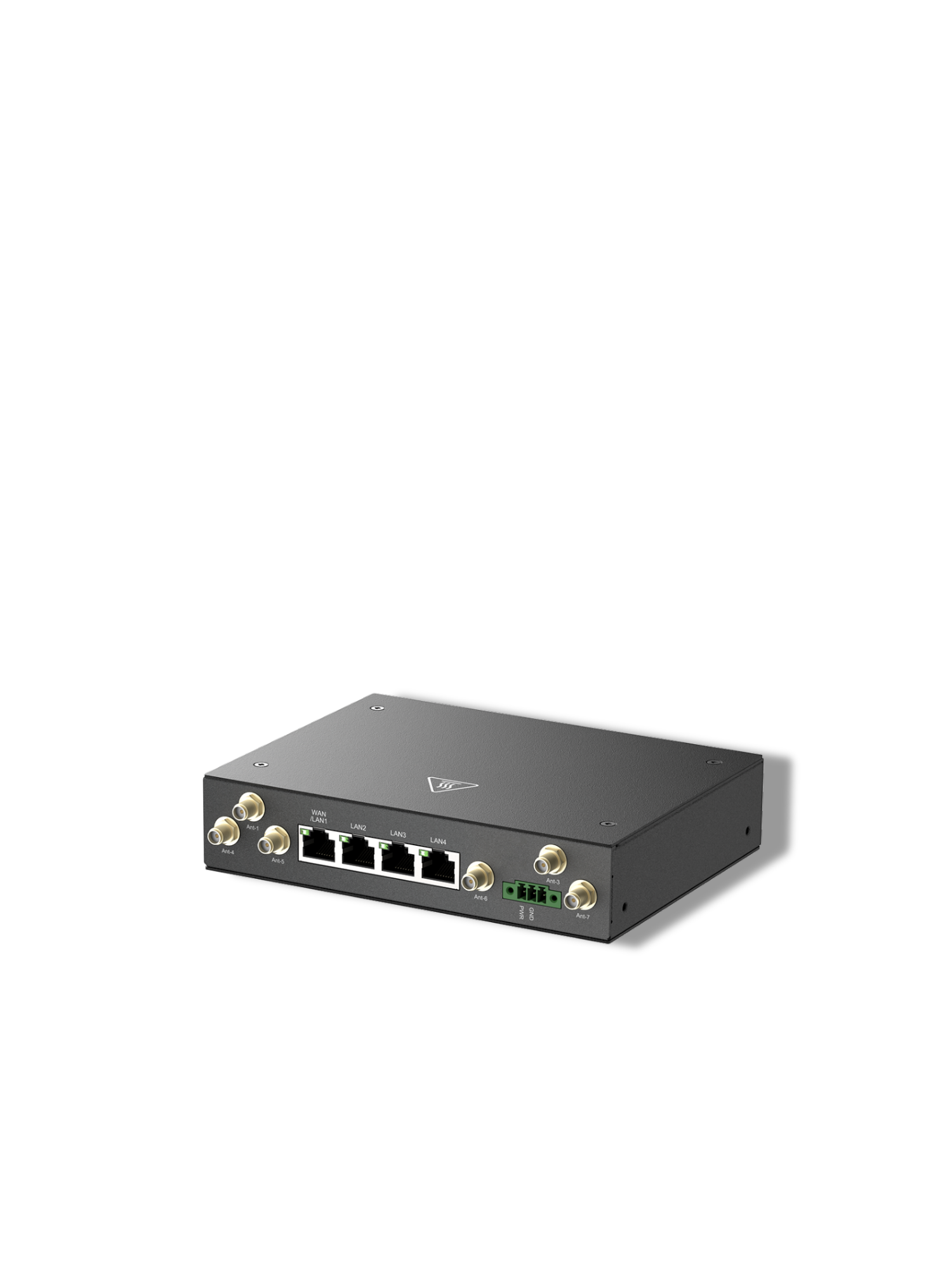

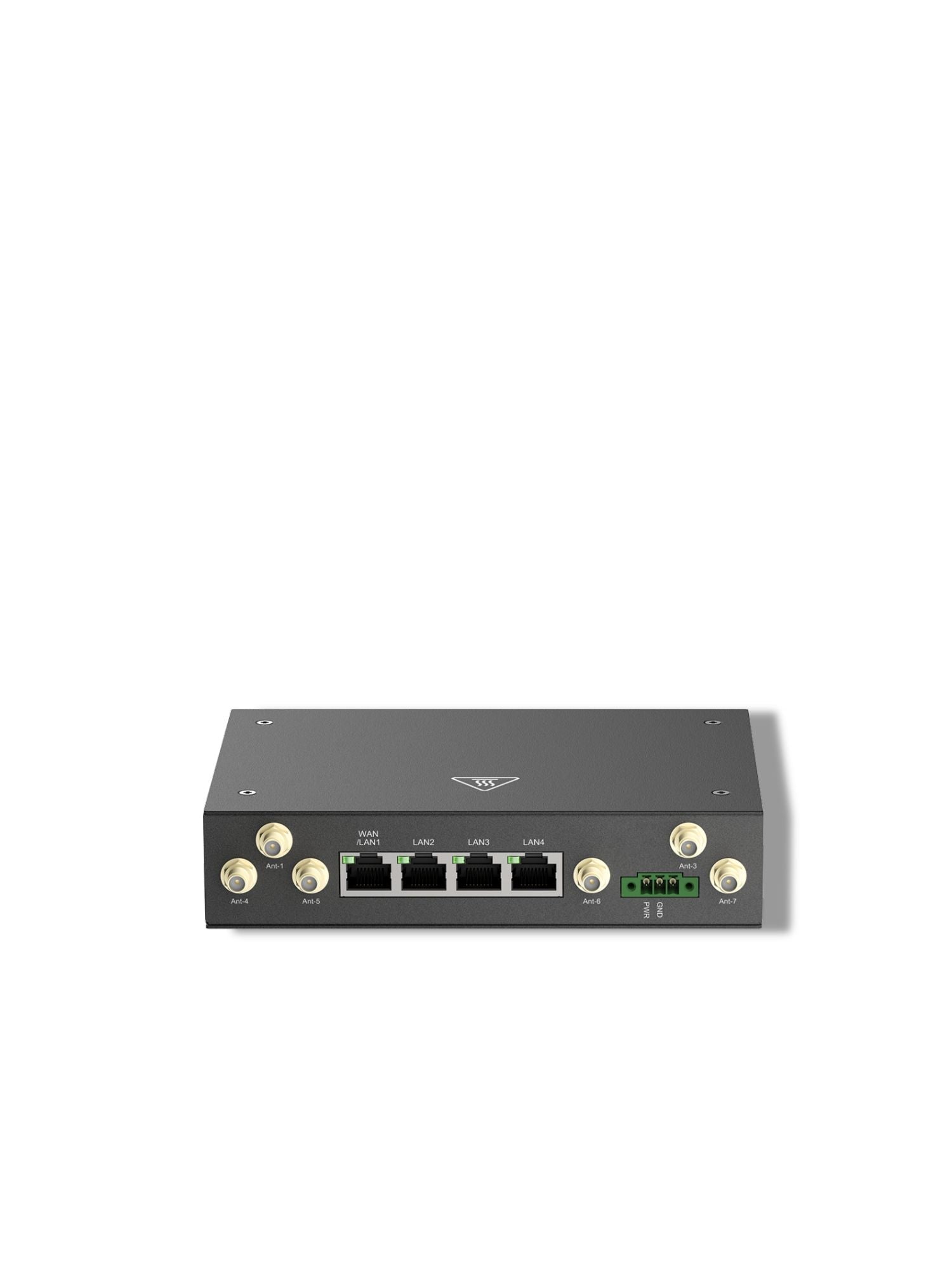

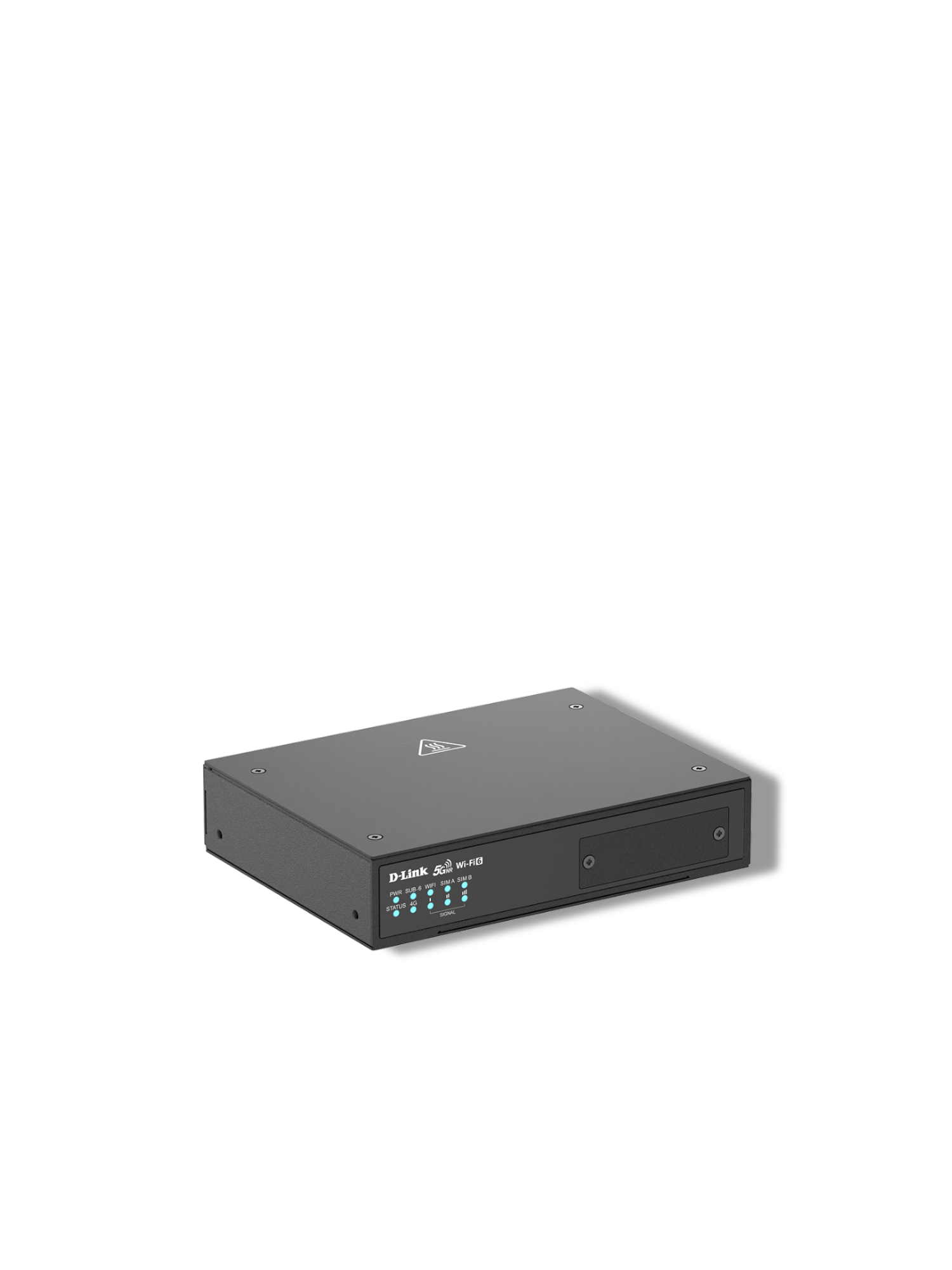

D-Link DWM-550-G 5G NR Industrial M2M Wi-Fi 6 VPN Router
PRODUCT DESCRIPTION
D-Link DWM-550-G 5G NR Industrial M2M Wi-Fi 6 VPN Router (DWM-550-G) - 3 Years Local Warranty
5G SA/NSA with Wi-Fi 6
The D-Link DWM-550-G uses a 3GPP Rel. 16 5G/4G module with D-Link-rated throughput of up to 3.4 Gbps downlink (5G NSA), and shares it through four Gigabit Ethernet ports and Wi-Fi 6 AX1800.
Dual-SIM and Ethernet Redundancy
Two Nano-SIM slots with automatic failover (optional eSIM) plus a Gigabit WAN/LAN port keep connectivity up when a carrier or wired line fails.
Industrial-Grade Durability
A metal case, -30 to 70 °C operating range and DC 12-36 V terminal-block input suit outdoor cabinets, transport and utility sites.
Secure VPN and Central Management
IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard, an SPI firewall with IPS, and SNMP, RESTful API or D-Link D-ECS2 cloud management.
Need help choosing? Email sales@sourceit.com.sg with your site, carriers and bandwidth needs and we will recommend the right M2M router.
D-Link DWM-550-G Datasheet — Technical Specifications
General
| Product Name | D-Link DWM-550-G 5G M2M Router |
| Part Number | DWM-550-G |
| Series | D-Link 5G/4G LTE Industrial M2M Routers |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Cellular
| Cellular Module | 5G/4G 3GPP Rel. 16 |
| Cellular Standards | 5G NR (Sub-6GHz), 4G LTE (DL Cat.19 / UL Cat.18) |
| 5G NSA Throughput | 3.4 Gbps (DL) / 550 Mbps (UL) |
| 5G SA Throughput | 2.4 Gbps (DL) / 900 Mbps (UL) |
| LTE Throughput | 1.6 Gbps (DL) / 200 Mbps (UL) |
| 5G NR Bands (EU SKU, HW A1) | n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 |
| 4G LTE Bands (EU SKU, HW A1) | FDD B1/B3/B5/B7/B8/B20/B28/B32/B71; TDD B38/B40/B41/B42/B43 |
| SIM | 2 x SIM (Nano SIM) with auto failover, optional eSIM |
Interfaces & Wi-Fi
| Ethernet | 1 x WAN/LAN GE, 3 x LAN GE |
| Wi-Fi | Wi-Fi 6 AX1800, IEEE 802.11 ax/ac/n/g/b/a/h; 2.4 GHz up to 574 Mbps, 5 GHz up to 1201 Mbps |
| Antenna Connectors | 4 x SMA(F) cellular, 2 x SMA(RP-F) Wi-Fi |
| Power Input | DC 12-36V (terminal block) |
Network, Security & Administration
| VPN | IPSec, OpenVPN, PPTP, L2TP, GRE, WireGuard |
| Firewall | SPI firewall with stealth mode, IPS, port forward, ALG |
| Routing | Static, dynamic RIPv1/v2, OSPF, BGP |
| Configuration | Web UI, CLI, command script; ping/tracert diagnostics |
| Management | SNMPv1/2/3, D-Link D-ECS2, RESTful API |
Physical & Environmental
| Dimensions | 160 x 129 x 35 mm |
| Housing & Mounting | Metal casing; optional wall-mount bracket |
| Operating Temperature | -30 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | Operating 10% to 95% (non-condensing) |
| Certifications | CE, UKCA, VCCI, JATE, TELEC; cyber security EN 18031-1, EN 18031-2, EN 303645 |
Compatibility & Software Support
Management
Web UI, CLI and command script locally; SNMPv1/2/3, RESTful API and D-Link D-ECS2 for central management.
Typical Use
High-bandwidth 5G primary or backup uplink for surveillance, digital signage, retail, transport and smart-city cabinets.
Package Contents & M2M Router Ordering Information
Package Contents
4 x cellular SMA antennas, 2 x Wi-Fi RP-SMA antennas, 1 x RJ-45 cable, 1 x power adapter, 1 x terminal block.
D-Link M2M Router Models
| Model | Cellular | Ports / Wi-Fi | Part No. |
| DWM-313 | 4G LTE Cat.4, 2 SIM | 1 x WAN/LAN FE + 1 x LAN FE / N150 | DWM-313 |
| DWM-530-T | 4G LTE Cat.4, 2 SIM | 1 x WAN/LAN FE + 3 x LAN FE / N300 | DWM-530-T |
| DWM-550-G (this listing) | 5G NR / 4G LTE, 2 SIM | 1 x WAN/LAN GE + 3 x LAN GE / Wi-Fi 6 AX1800 | DWM-550-G |
Datasheet & Downloads
| D-Link datasheet | DWM-550-G Datasheet (PDF) |
| D-Link product page | DWM-550-G on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DWM-550-G.
Frequently Asked Questions — D-Link DWM-550-G
Does it support 5G standalone?
Yes, both 5G SA (up to 2.4 Gbps down) and NSA (up to 3.4 Gbps down), per D-Link.
Does it support dual-SIM failover?
Yes, two Nano-SIM slots with automatic failover; eSIM is optional.
Which VPN types are supported?
IPSec, OpenVPN, PPTP, L2TP, GRE and WireGuard.
What power input does it need?
DC 12-36V via terminal block; a power adapter is included.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
