D-Link DGS-3130-30TS 30-Port Gigabit Layer 3 Stackable Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-3130-30TS 30-Port Gigabit Layer 3 Stackable Managed Switch with 6 x 10G Uplinks (DGS-3130-30TS) - 5 Years Local Warranty
Gigabit Access with Six 10G Ports

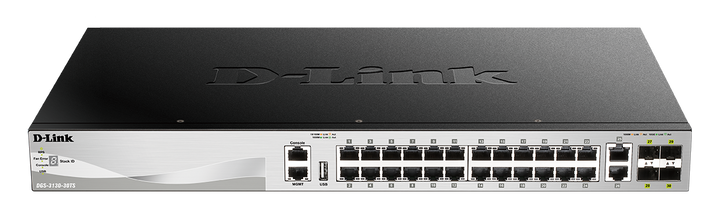

The D-Link DGS-3130-30TS provides 24 x 10/100/1000BASE-T ports, plus 2 x 10GBASE-T and 4 x 10G SFP+ ports for uplinks or stacking — 168 Gbps switching capacity and 125 Mpps forwarding.
Physical and Virtual Stacking
Stack up to 9 units over the 10G ports with DAC or fibre (80 Gbps stacking bandwidth per device), or manage up to 32 switches as one virtual stack.
Layer 3 Routing and Enterprise Security
Static routing, RIP, OSPFv2/v3, ECMP, policy-based routing, VRRP v2/v3 and PIM-SM multicast routing, with ERPS ring protection, 802.1X, web- and MAC-based access control, IP-MAC-Port Binding with DHCP snooping, and embedded 6 kV surge protection on the Gigabit RJ-45 ports.
Need help choosing? Email sales@sourceit.com.sg with your port count, fibre and PoE needs and we will size it for you.
D-Link DGS-3130-30TS Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-3130-30TS Layer 3 Stackable Managed Switch |
| Part Number | DGS-3130-30TS |
| Series | DGS-3130 Gigabit Layer 3 Stackable Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit RJ-45 Ports | 24 x 10/100/1000BASE-T |
| 10G Ports | 2 x 10GBASE-T + 4 x 10G SFP+ |
| Management Ports | RJ-45 console port, RJ-45 out-of-band management port, 1 x USB 2.0 Type A |
Performance & Stacking
| Switching Capacity | 168 Gbps |
| Maximum Forwarding Rate | 125 Mpps |
| Packet Buffer | 2 MB |
| MAC Address Table | 16K entries |
| Jumbo Frames | Up to 9 KB |
| Physical Stacking | Up to 9 units per stack (stacking cost 1 per 30-port unit; 12 per stack max); 80 Gbps stacking bandwidth per device |
| Virtual Stacking | Up to 32 units |
Physical & Environmental
| Dimensions | 440 x 250 x 44 mm |
| Weight | 3.2 kg |
| Cooling | 1 x smart fan |
| Acoustic Noise | max 47 dB / min 39.7 dB |
| Power Input | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | Max 30.36 W; standby 13.23 W |
| Heat Dissipation | 103.59 BTU/h |
| Redundant Power (optional) | DPS-500A / DPS-500DC |
| MTBF | 388,361 hours |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 10% to 90% RH |
Certifications
| EMI | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Safety | CB, cUL, BSMI |
Compatibility & Software Support
Layer 3
Static routes (512 IPv4 / 256 IPv6), RIPv1/v2/RIPng, OSPFv2/v3, ECMP, policy-based routing, VRRP v2/v3, PIM-SM for IPv4, 1,024 hardware routing entries shared by IPv4/IPv6.
Layer 2
4K VLAN groups, link aggregation (32 groups per device, 8 ports per group), STP/RSTP/MSTP, ERPS v1/v2, IGMP v1/v2/v3 snooping (1,024 groups), MLD snooping.
Security
802.1X, Web-based Access Control (WAC), MAC-based Access Control, IP-MAC-Port Binding (IMPB) with DHCP snooping, D-Link Safeguard Engine.
Management
Web-based GUI, Command Line Interface (CLI), SNMP and sFlow; unified software image across the series.
Optional Modules (per D-Link)
1G SFP: DEM-211, DGS-712, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R. 10G SFP+: DEM-431XT to DEM-436XT-BXU. DAC: DEM-CB100S, DEM-CB300S, DEM-CB700S. RPS: DPS-500A / DPS-500DC.
Package Contents & DGS-3130 Ordering Information
DGS-3130 Models
| Model | Ports | PoE Budget | Part No. |
| DGS-3130-30TS (this listing) | 24 x GE + 2 x 10GBASE-T + 4 x SFP+ | — | DGS-3130-30TS |
| DGS-3130-30S | 24 x 1G SFP + 2 x 10GBASE-T + 4 x SFP+ | — | DGS-3130-30S |
| DGS-3130-30PS | 24 x GE PoE + 2 x 10GBASE-T + 4 x SFP+ | 370 W | DGS-3130-30PS |
| DGS-3130-54TS | 48 x GE + 2 x 10GBASE-T + 4 x SFP+ | — | DGS-3130-54TS |
| DGS-3130-54S | 48 x 1G SFP + 2 x 10GBASE-T + 4 x SFP+ | — | DGS-3130-54S |
| DGS-3130-54PS | 48 x GE PoE + 2 x 10GBASE-T + 4 x SFP+ | 370 W | DGS-3130-54PS |
Optional redundant power supply: DPS-500A.
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord, console cable and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-3130 Series Datasheet (PDF, B1) |
| D-Link series page | DGS-3130 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-3130-30TS.
Frequently Asked Questions — D-Link DGS-3130-30TS
What are the 10G ports?
2 x 10GBASE-T copper ports and 4 x 10G SFP+ slots. SFP+ modules and DAC cables are sold separately.
Can I stack it?
Yes. D-Link allows up to 9 units per physical stack with a total stacking cost of 12 (30-port models cost 1, 54-port models cost 2), and up to 32 units in a virtual stack.
Does it support dynamic routing?
Yes. D-Link lists RIP, OSPFv2/v3, ECMP, policy-based routing, VRRP and PIM-SM.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
